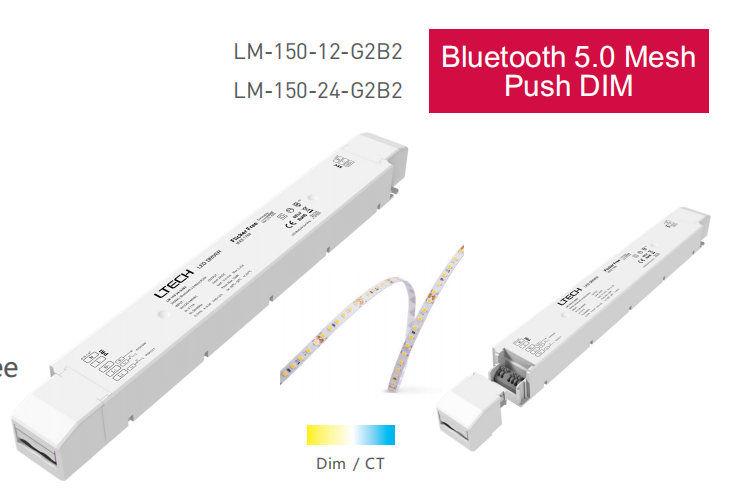

150W 24VDC CV Tunable White LED Driver LM-150-24-G2B2
telligent Tunable White LED Driver (Constant Voltage)
Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective
housings with small size and light weight.
Bluetooth 5.0 Mesh with high networking capability are reliable and stable.
With soft-on and fade-in dimming function enhancing visual comfort.
T-PWM dimming technology allows continuous and flicker-free images underhigh-speed shooting.

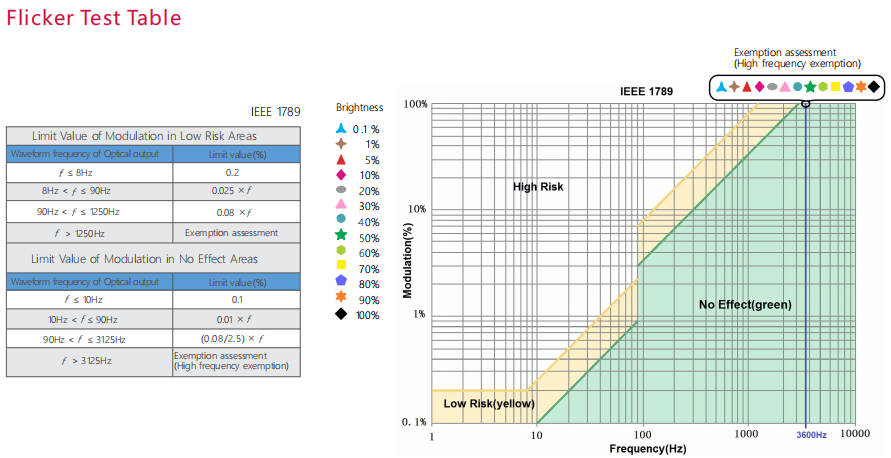

0-100% flicker-free dimming with high frequency exemption level.
0-100% dimming range, down to 0.1%.
Energy-efficient driver: Efficiency 93%, PF>0.98,THD<6%
Comply with EU’s Energy-Related Products Directive, standby
Innovative thermal management technology protects the power life intelligently.
Overheat, overvoltage, overload, short circuit protection and automatic recovery.

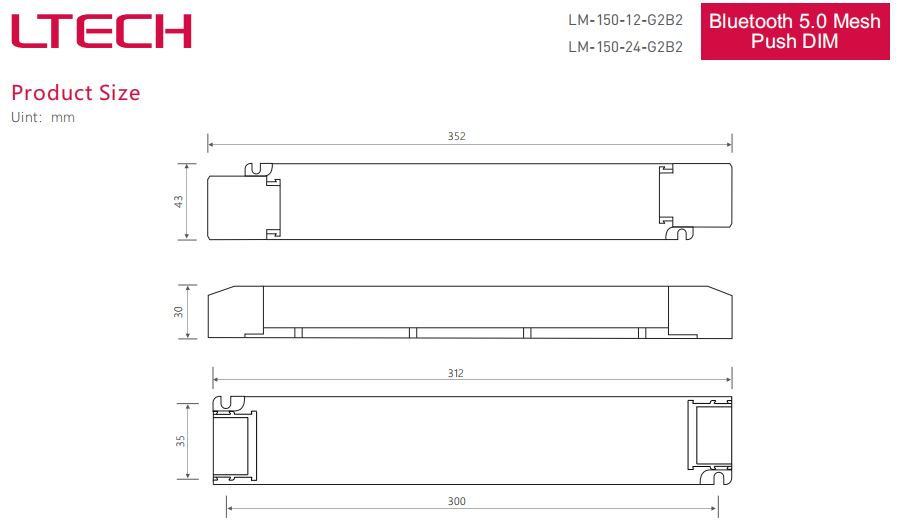

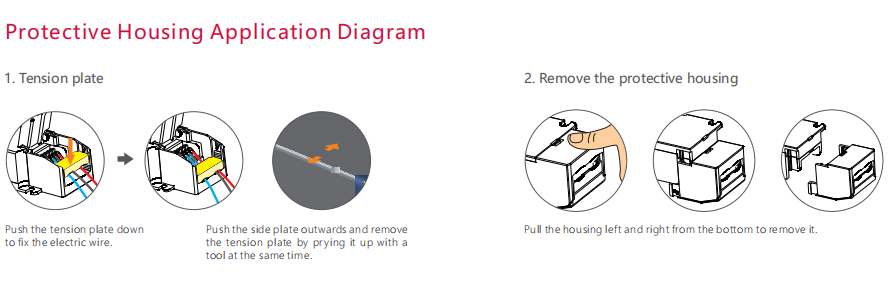

The design of removable end housing is convenient to adjust the length of driver.
Suitable for indoor light applications ofⅠ/Ⅱ/Ⅲ type.
Up to 50000-hour life time.5-year warranty (Rubycon capacitor)
