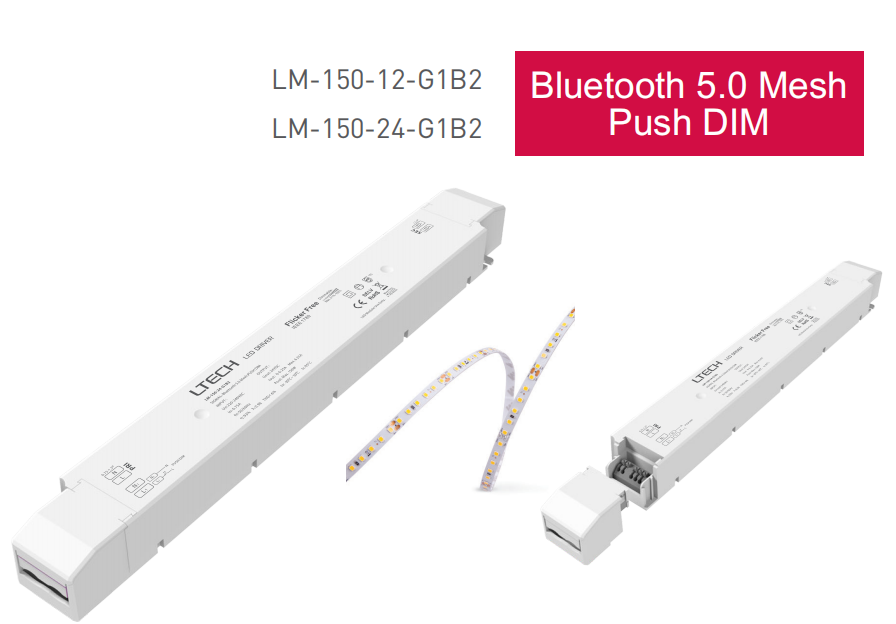

150W 24VDC CV Bluetooth Smart LED Driver LM-150-24-G1B2
Intelligent LED Driver (Constant Voltage)

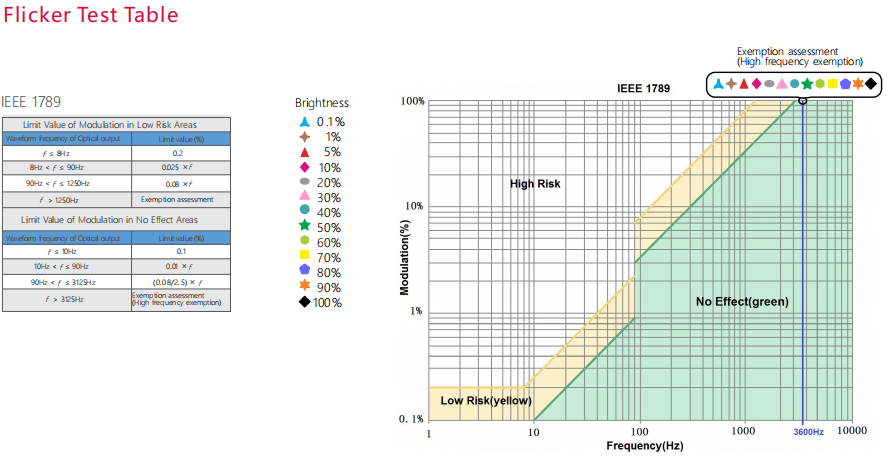

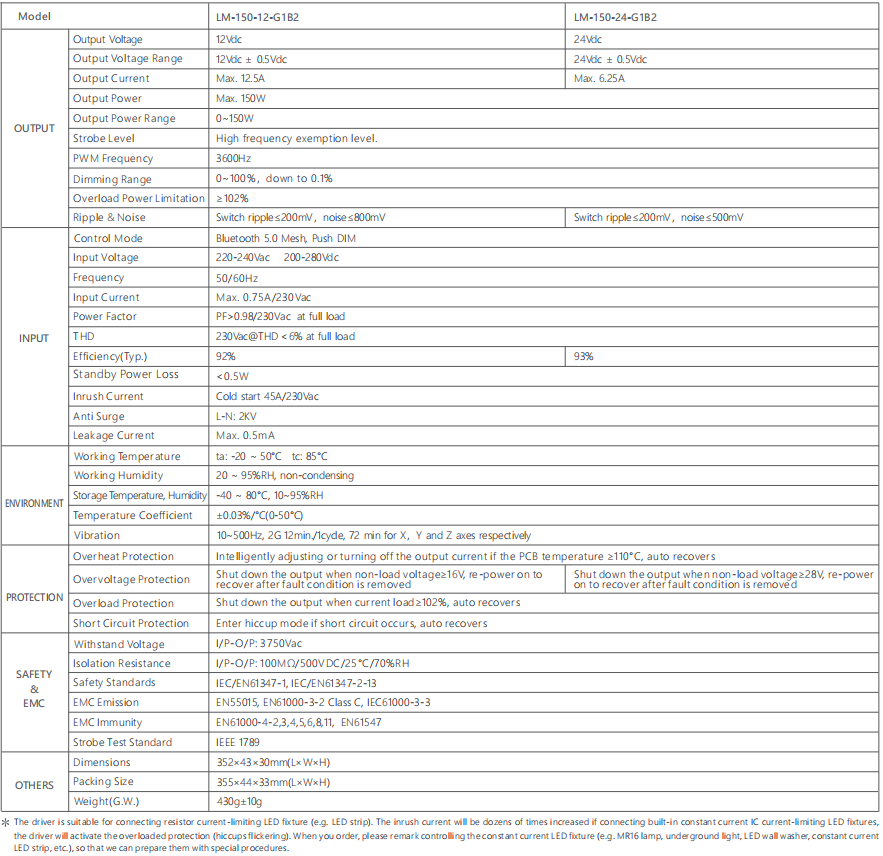

Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protectivehousings with small size and light weight.Bluetooth 5.0 Mesh with high networking capability are reliable and stable. With soft-on and fade-in dimming function enhancing visual comfort. T-PWM dimming technology allows continuous and flicker-free images underhigh-speed shooting. 0-100% flicker-free dimming with high frequency exemption level.0-100% dimming range, down to 0.1%..Energy-efficient driver: Efficiency 93%, PF>0.98,THD<6%Comply with EU’s Energy-Related Products Directive, standbypower consumption＜0.5W.Innovative thermal management technology the power life intelligen

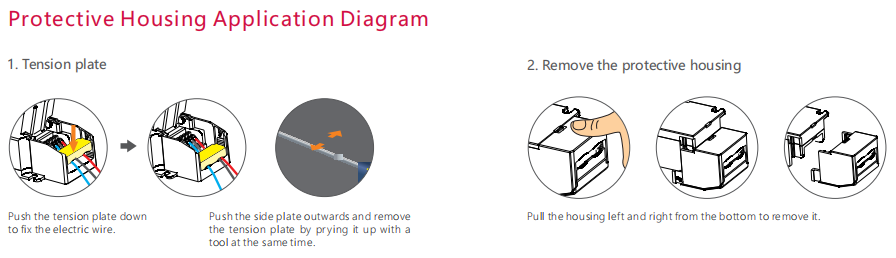

Overheat, overvoltage, overload, short circuitprotection and automatic recovery. The design of removable end housing is convenient to adjust the length of driver. Suitable for indoor light applications ofI/II/III type.Up to 50000-hour life time.5-year warranty (Rubycon capa).
