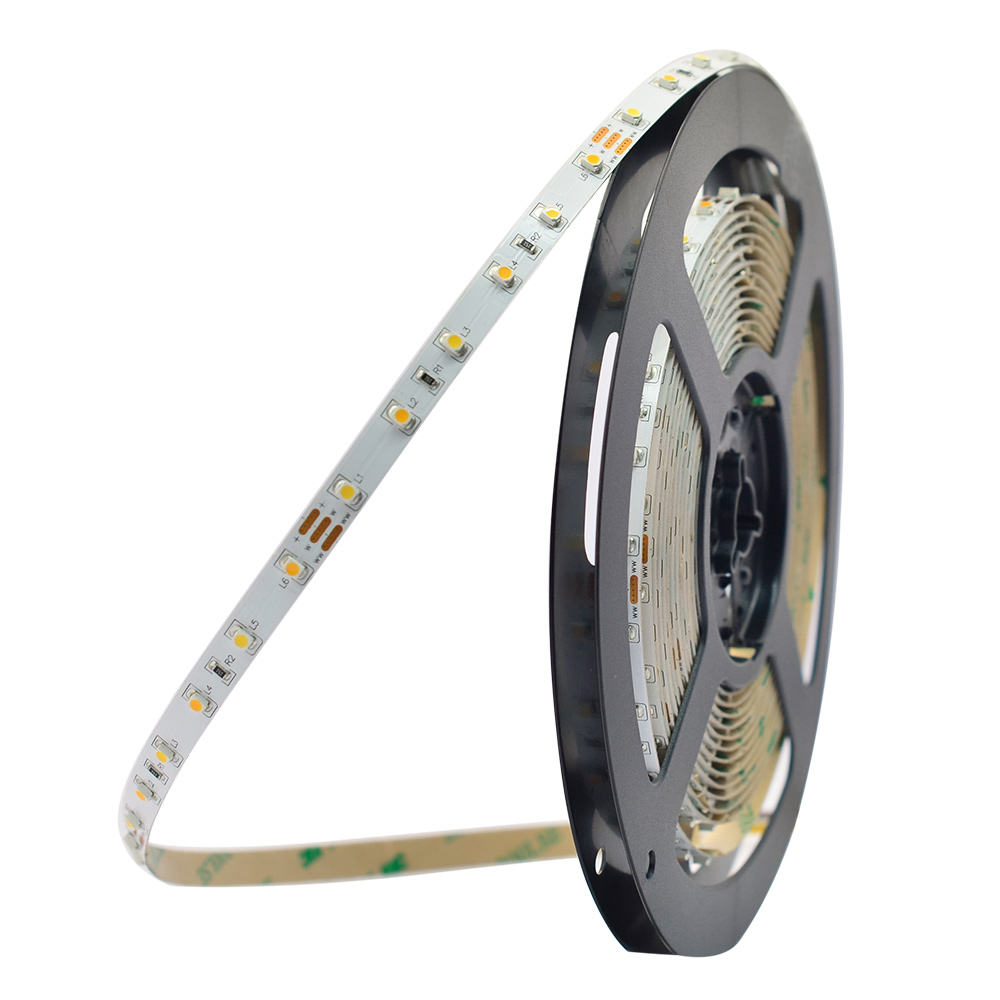

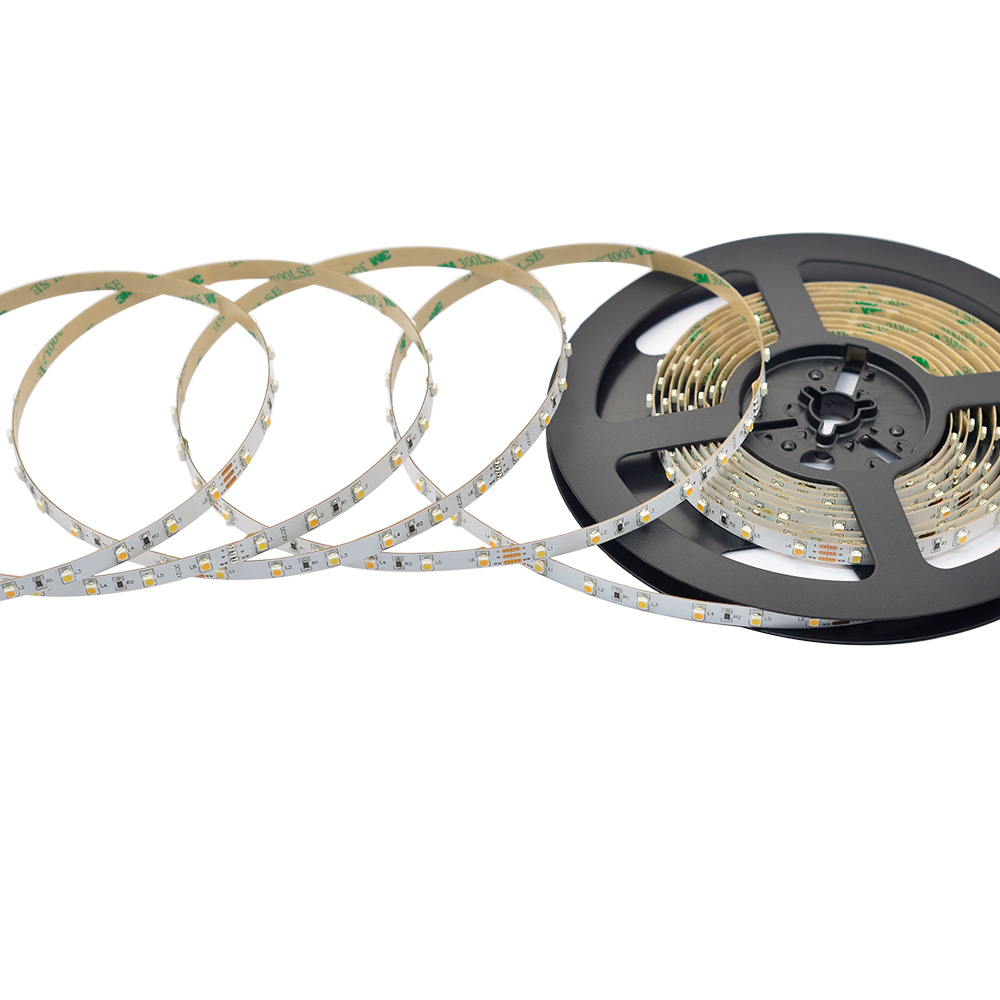

Color Temperature Pure White+Warm White Series DC12V 3528SMD 300LEDs Flexible LED Strip - 16.4ft Per Reel
Universal single white color super bright Waterproof optional Dual Chip LED Variable Color Temperature high power LED flexible light strip. Single color super bright 3528 SMD flexible LED tape lights, Epistar chip, 300LEDs/roll, 16.4ft(5 meters)Per Reel By Sale.
Our brightest super flexible LED single white color light Strips soft and easy bent for installation. Available in 5 meters (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 6-LED segments, so you could cut a different length for your project and request.
This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance, and depth of color are critical, Suitable for the average home lighting as well as lighting professionals.
High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 12V DC operation. Color temperature can be adjusted with Single white CCT dimmers (sold separately) from 2500K to 6800K. - Connect LED Dual white CCT Dimmers.
What is CCT tunable white LED strip?
CCT means correlated color temperature. Usually, the warm white light and cool white LED light are specifically expressed by Kelvin color temperature. The white light color temperature of CCT tunable white LED strip can be adjusted with white CCT dimmers from 3000K to 6500K(warm white/soft white to natural white to daylight white to cool white).
What is 3528 SMD LED?
3528 SMD(surface mouting device, an LED technology) LED is referred to its size 3.5mm*2.8mm. The 3528 LED chip name is named after the LED size. More SMD LED knowledge please read: Top 6 Considerations Before Buying LED Strip Lights
What is 12V LED strip lights?
12V led strip lights are no voltage drop in 5-7 meters and cut 3 LED lights as a cut unit. The 12V led strip is powered at one end of five meters and needs to be powered at both ends for 10 meters. 12V light strips are also used in cars and boats.
►Everything you should know before buying LED strip lights:
►Choose a suitable LED power supply and an LED dimmer CCT controller:
Standards and Certifications
LED Strip Type: SMD 3528
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White

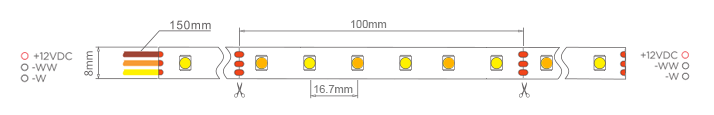

Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 300 LEDs per 5meter (16.4 ft)
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12V DC
Working Power: 2A 24W /16.4ft Max
Lamp Luminous Flux(lm): 2~3lm/LEDs 765Lumens/16.4ft, 46.6Lumens/Ft, 31.9Lumens/watt
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
|You can cut the strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof type which will come with mounting brackets.|
►Can you cut LED light strips and how to reconnect:
Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
The basics are all the similar. You will need a led strip light, a power supply(Please DC12V 35W power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: email@example.com
►Choose a suitable LED strip power supply and a CCT LED strip lighting controller:
►16.4/32.8 feet (5/10meter) Connection diagram
►65 feet (50meter) Connection diagram
