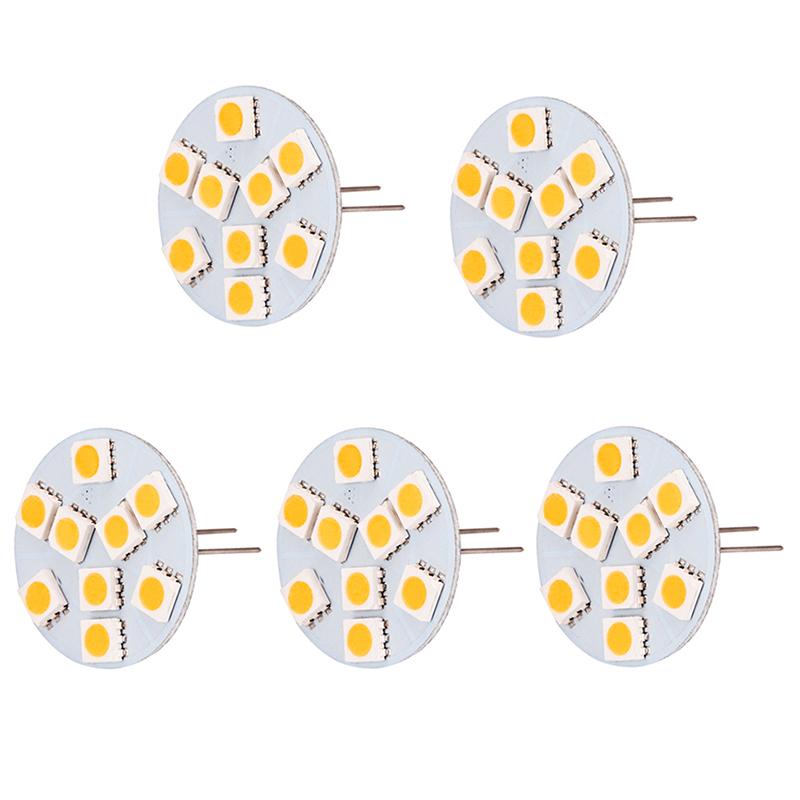

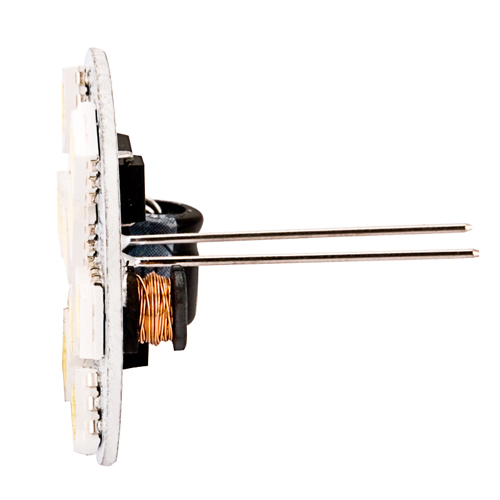

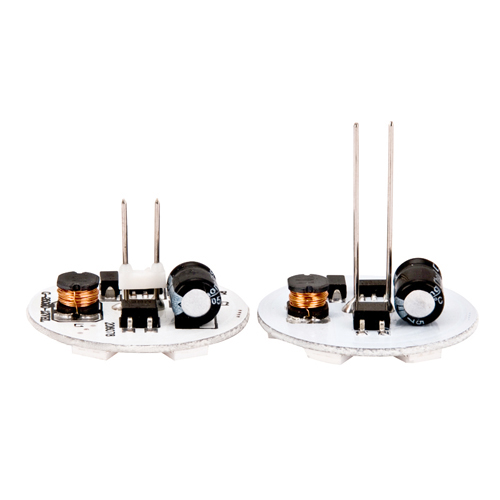

AC10-18V / DC10-30V, Extended Back-Pin T3 JC G4 LED Bulb, 1.8 Watts, 20W Equivalent, 5-Pack
Input voltage is AC10-18V/DC10-30V
Power consumption is 1.8 Watts

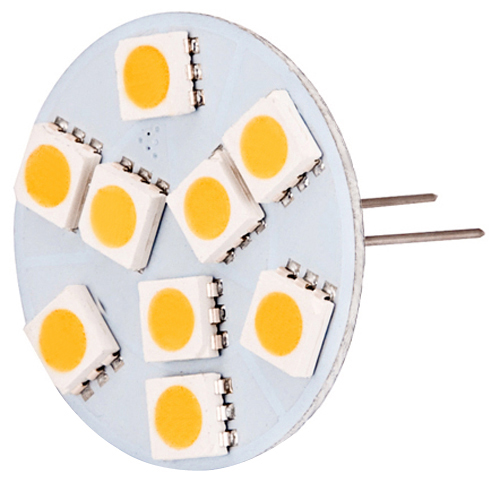

Uses 9 pcs SMD 5050 LEDs
Luminous flux up to 200 lumens maximum
Nearly equivalent to standard 20W halogen/incandescent bulb
Optional colors are warm white and daylight white
120-degree wide beam floodlight
1.10 inch diameter x 0.98 inch total length
For use in ceiling lights, pendant lights, desk lamps, table lights, puck lights, under-counter lights, closet lights, under-cabinet lights, accent lights or display lighting, etc.
The package includes 5 pcs bulbs
Non-Weatherproof. Indoor use only unless contained within weatherproof housing.
Standards and Certifications
Wattage: 1.8 Watt
Halogen Equivalent: 20 Watt
Voltage: AC10-18V / DC10-30V
Bulb Base: G4
Bulb Shape: T3 JC
Luminous Flux: Max.200 Lumen
Beam Angle: 120 Degree
LED Brand: Epistar
LED Type: Tri-chip 5050 SMD LED
LED Quantity: 9 Pcs
LED Color(s): Daylight White / Wam White
CCT or Wavelength: 5000K / 3000K
Color Rendering Index: 80

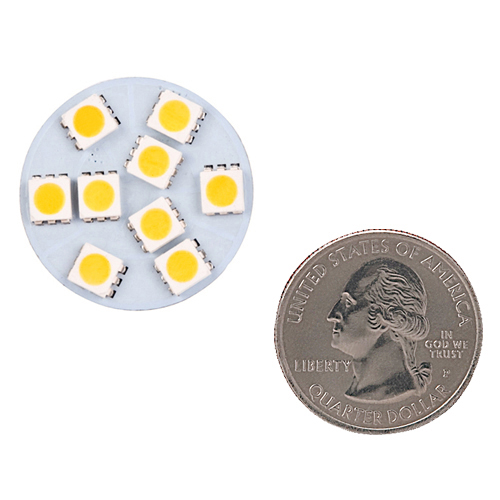

Diameter: 28mm (1.10 in.)
Length (M.O.L.): 25mm (0.98 in.) / 15mm(0.59in)
RoHS Compliant: Yes
LED Lifetime: 40,000 Hours
