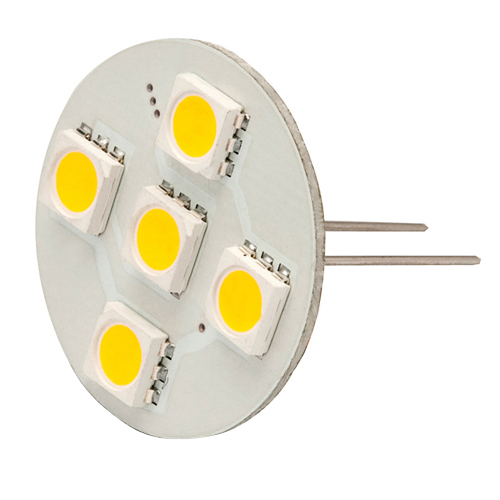

12V AC/DC, Extended Back-Pin T3 JC G4 LED Bulb, 1 Watt, 10W Equivalent, 5-Pack
Input voltage is 12V AC/DC
Power consumption is 1 Watt

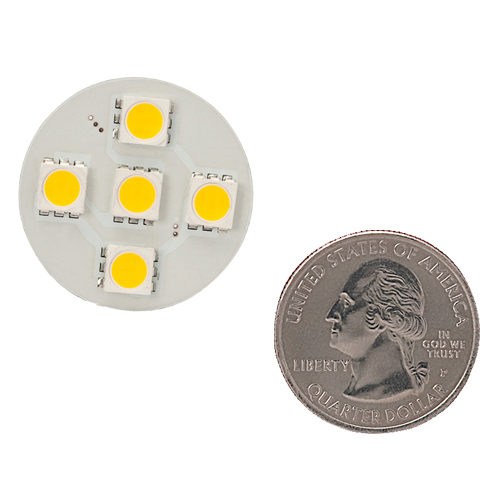

Uses 5 pcs SMD 5050 LEDs
Luminous flux up to 100 lumens maximum
Nearly equivalent to standard 10W halogen/incandescent bulb
Optional colors are daylight white and warm white
120-degree wide beam floodlight
0.98 inch diameter x 0.98 inch total length
For use in ceiling lights, pendant lights, desk lamps, table lights, puck lights, under-counter lights, closet lights, under-cabinet lights, accent lights or display lighting, etc.
The package includes 5 pcs bulbs
Non-Weatherproof. Indoor use only unless contained within weatherproof housing.
Standards and Certifications
Wattage: 1.0 Watt
Halogen Equivalent: 10 Watt
Voltage: AC/DC 12V
Bulb Base: G4
Bulb Shape: T3 JC
Luminous Flux: Max.100 Lumen
Beam Angle: 120 Degree
LED Brand: Epistar
LED Type: Tri-chip 5050 SMD LEDs
LED Quantity: 5 Pcs
LED Color(s): Daylight White / Warm White
CCT or Wavelength: 5000K / 3000K
Color Rendering Index: 80
Diameter: 25mm (0.98 in.)
Length (M.O.L.): 25mm (0.98 in.) OR 15mm (0.59in.)
RoHS Compliant: Yes
LED Lifetime: 40,000 Hours
