AC10-18V/DC10-30V, Side Pin JC G4 LED Bulb, 2.4 Watts, 20W Equivalent, 5-Pack
Input voltage is AC10-18V/DC10-30V
Power consumption is 2.4 Watts

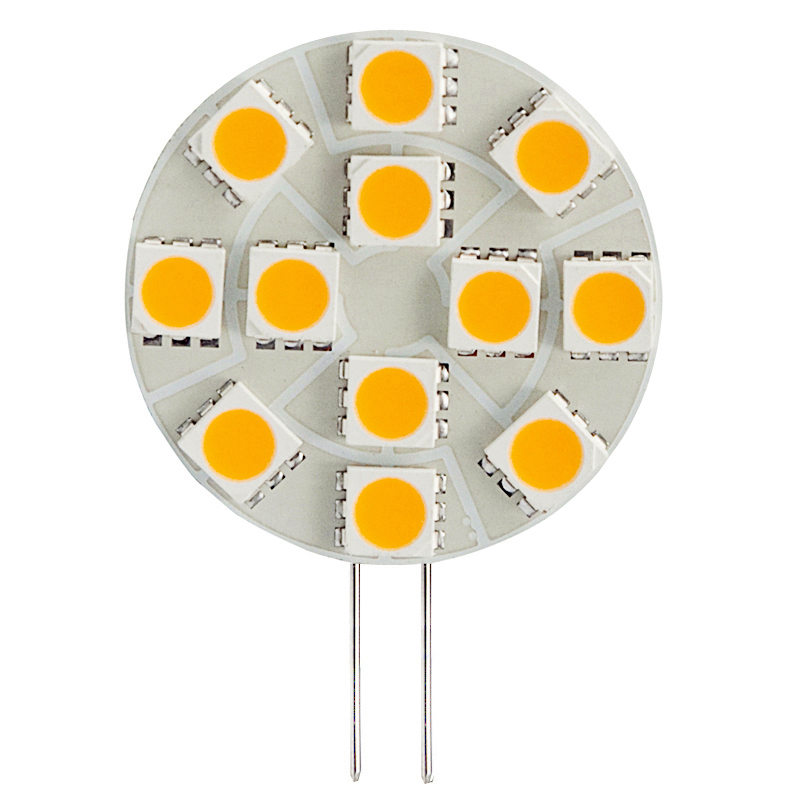

Uses 12 pcs SMD 5050 LEDs
Luminous flux up to 200 lumens maximum

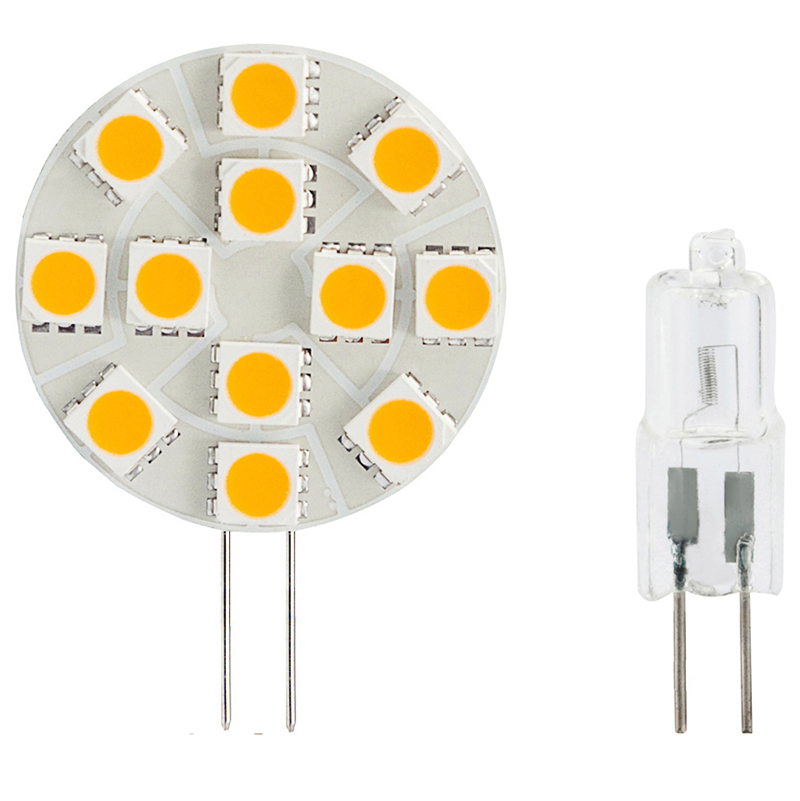

Nearly equivalent to standard 20W halogen/incandescent bulb
Optional colors are cool white, daylight white and warm white
120 degree wide beam floodlight
1.22 inch diameter x 1.69 inch total length
For use in ceiling lights, pendant lights, desk lamps, table lights, puck lights, under-counter lights, closet lights, under-cabinet lights, accent lights or display lighting etc.
The package includes 5 pcs bulbs
Non-Weatherproof. Indoor use only unless contained within weatherproof housing.
Standards and Certifications
Wattage: 2.4 Watt
Halogen Equivalent: 20 Watt
Bulb Base: G4
Bulb Shape: T3 JC
Luminous Flux: Max.200 Lumen
Beam Angle: 120 Degree
LED Brand: Epistar
LED Type: Tri-chip 5050 SMD LED
LED Quantity: 12 Pcs
LED Color(s): Cool White / Daylight White / Wam White
CCT or Wavelength: 6000K / 5000K / 3000K / 2700K
Color Rendering Index: 80
Diameter: 31mm (1.22 in.)
Length (M.O.L.): 43mm (1.69 in.)
RoHS Compliant: Yes
LED Lifetime: 40,000 Hours
