Break-Resume WS2818F Addressable RGB 12V 24V Cob LED Tape 100 Pixels

Model: FSLCOB-WS2818F-720W12 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: £32.61
Qty Discounts Off Price
1-20
£32.61		 21-50
£31.63		 51-99
£30.66		 100+
£29.35
* Discounts may vary based on options below
Select Specifications:
Select PCB Width:
Select Length:
Select LED Quantity:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

Achieve flawless, dynamic lighting with the WS2818F Addressable COB LED Strip. This advanced pixel tape combines the perfectly uniform, dot-free illumination of Chip-on-Board (COB) technology with the intelligence of the WS2818F IC. Engineered for commercial-grade reliability, it features a unique Break-Resume function and dual data signals, ensuring your lighting installation remains operational even if a single pixel fails. This makes it a superior choice for critical projects where consistency and uptime are paramount.

Available in both 12V and 24V options, this RGB COB LED strip offers vibrant color-changing capabilities controlled by any standard addressable LED controller. The 24V version is highly recommended for full 5-meter runs to minimize voltage drop and maintain consistent brightness and color from start to finish.

Key Features

WS2818F Break-Resume Technology

If one pixel is damaged, the signal bypasses it and continues to the rest of the strip, preventing project failure.

Dual Data Signal Redundancy

Features both a primary data line (DAT) and a backup data line (BI) for maximum signal stability and reliability.

High-Density & Precision Cutting

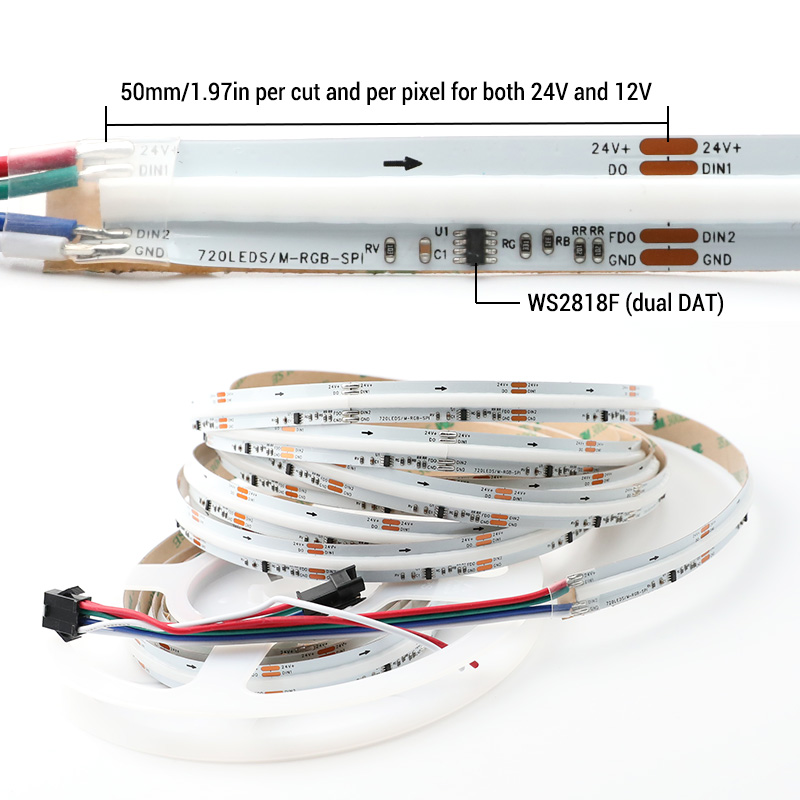

Packed with 720 LEDs per meter for exceptional brightness and can be cut every 50mm for precise length adjustments.

12V and 24V Versions Available

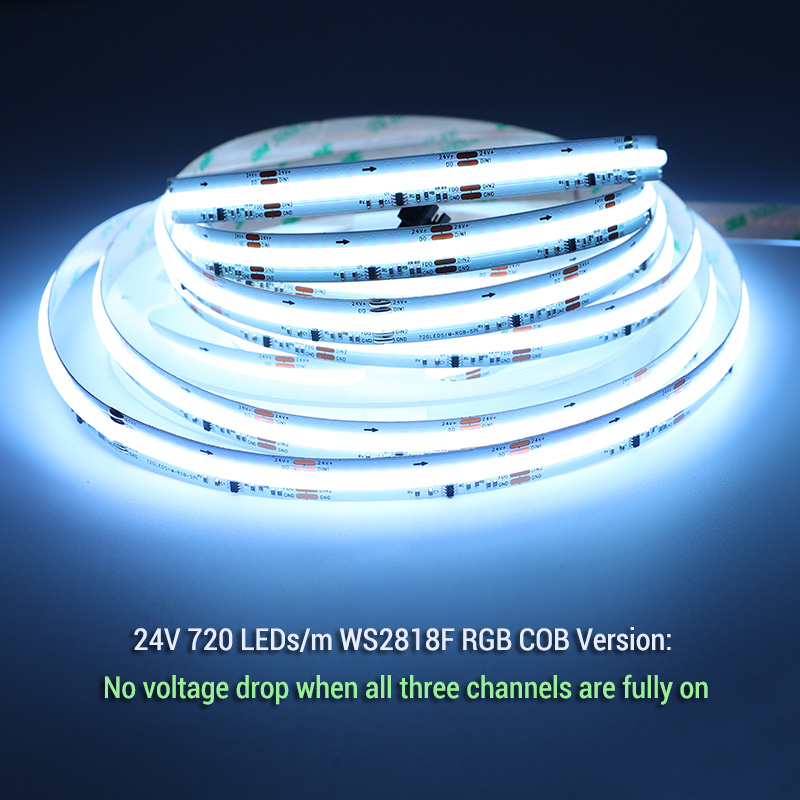

Choose the 24V option for longer, more stable runs with significantly less voltage drop and consistent color.

Product Specifications

Parameter Details
Product Model FSLCOB-WS2818F-720W12
Input Voltage 12V DC / 24V DC
IC Type WS2818F
Signal Type Dual Data Signal, Break-Resume
LED Type Chip-on-Board (COB)
LED Density 720 LEDs per meter
Pixel Density 20 pixels per meter
Power Consumption 105W/Roll, 21W/m
PCB Width 12mm
Strip Height Approx. 3mm
Cutting Interval Every 50mm (2.0 inches)
Reel Length 5 meters (16.4 feet)
IP Rating IP20 (Non-waterproof) / IP67 (Silicone Tube)
PCB Color White
Connector Type 4-pin JST-SM Male/Female connectors on ends
Warranty 2 Years
Beam Angle 180°
Operating Temperature -20°C to +50°C

Application Scenarios

Architectural Accent Lighting Create stunning dynamic effects on building facades, in coves, and along structural lines. The seamless light from this rgb cob led strip provides a clean, professional finish without distracting hotspots.
High-End Retail & Hospitality Design engaging displays, bar backlighting, and hotel lobby features. The break-resume reliability ensures your commercial space always looks its best, minimizing maintenance calls for this type of led strips cob.
Stage & Event Production Use as a robust and reliable tape pixel solution for creating complex visual effects, stage outlines, and set pieces. The dual-signal feature provides peace of mind during live events.

How to Install & Use This LED Strip

  1. Plan your layout and measure the required lengths of the LED strip.
  2. Ensure the mounting surface is clean, dry, and free of dust or oils. Use an isopropyl alcohol wipe for best results.
  3. Cut the strip only on the designated copper cut lines, typically marked every 50mm.
  4. Use our solderless COB LED strip connectors or solder wires to the copper pads for connections and power input.

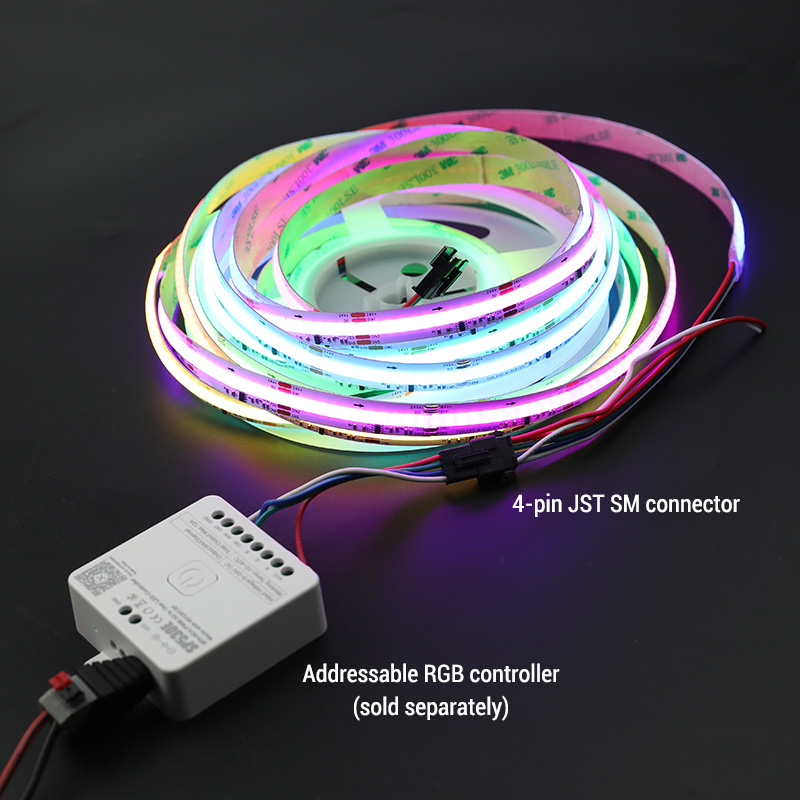

  5. Connect the strip to a compatible WS2818F/WS2811 controller and the appropriate 12V power supply or 24V power supply. Always test the lights before final installation.

Break-Resume WS2818F 可寻址 RGB 12V 24V COB LED 灯带 100 像素

⚠ Precautions
  • Always use a power supply with at least 20% more wattage capacity than the total required by your strip length.
  • For runs longer than 5 meters, power must be injected from both ends to prevent voltage drop, especially on the 12V version.
  • For best results and longevity, install the strip in a surface-mount LED strip diffuser to aid in heat dissipation and further enhance the uniform light.
  • Ensure correct polarity (+, DIN1, DIN2, -) before connecting to power. Incorrect wiring can permanently damage the strip.

What's in the Box

  • ✓1x 5-meter Reel of FSLCOB-WS2818F-720W12 Addressable COB LED Strip

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for FSLCOB-WS2818F-720W12
PDFFSLCOB-WS2818F-720W12 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

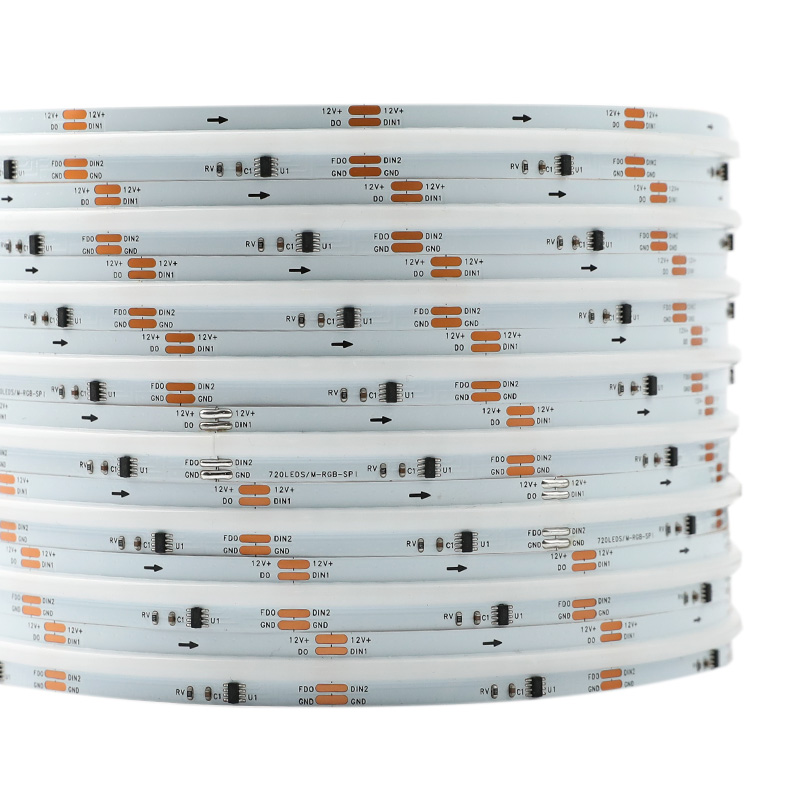

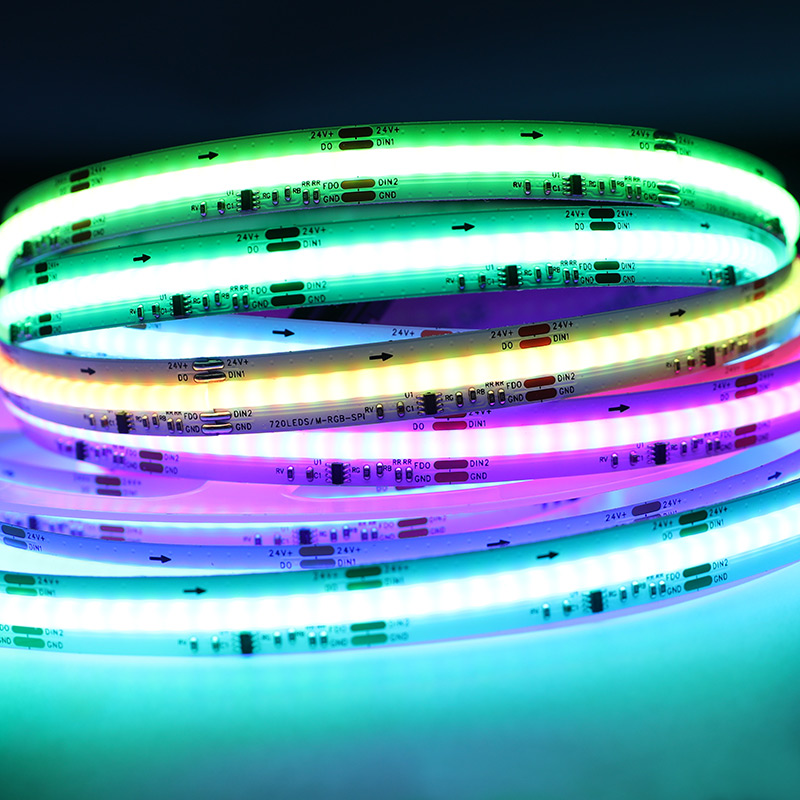

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

Break-Resume WS2818F Addressable RGB 12V 24V Cob LED Tape 100 PixelsBreak-Resume WS2818F Addressable RGB 12V 24V Cob LED Tape 100 PixelsBreak-Resume WS2818F Addressable RGB 12V 24V Cob LED Tape 100 PixelsBreak-Resume WS2818F Addressable RGB 12V 24V Cob LED Tape 100 PixelsBreak-Resume WS2818F Addressable RGB 12V 24V Cob LED Tape 100 PixelsBreak-Resume WS2818F Addressable RGB 12V 24V Cob LED Tape 100 Pixels

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?
This model is offered in DC12V · DC24V. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply
Which waterproof rating should I choose?
Available on this model: Outdoor Silicone Tube IP67 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Connector options on this model: Quick Waterproof Connectors · Waterproof Wires · 4-Pin JST SM Connectors. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Will it fit an aluminium profile, and how dense are the LEDs?
PCB width 12mm (0.47in) · LED density 720chips/m. Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
