DC12/24V 3A4CH Max 144W, LED Music Controller Sound radio frequency stage with bar cars, IR Remote control RGB Strips or Modules
This Aluminum 12A LED Music Controller Sound radio frequency stage Adopts advanced micro units control. Mainly used to adjust the brightness and color changing speed of RGB LED light source, such as point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on. 3 channels output. Total 18 modes for your choice. Matched with a Radio Frequency wireless remote control, ensures long remote distance. Easy to install.

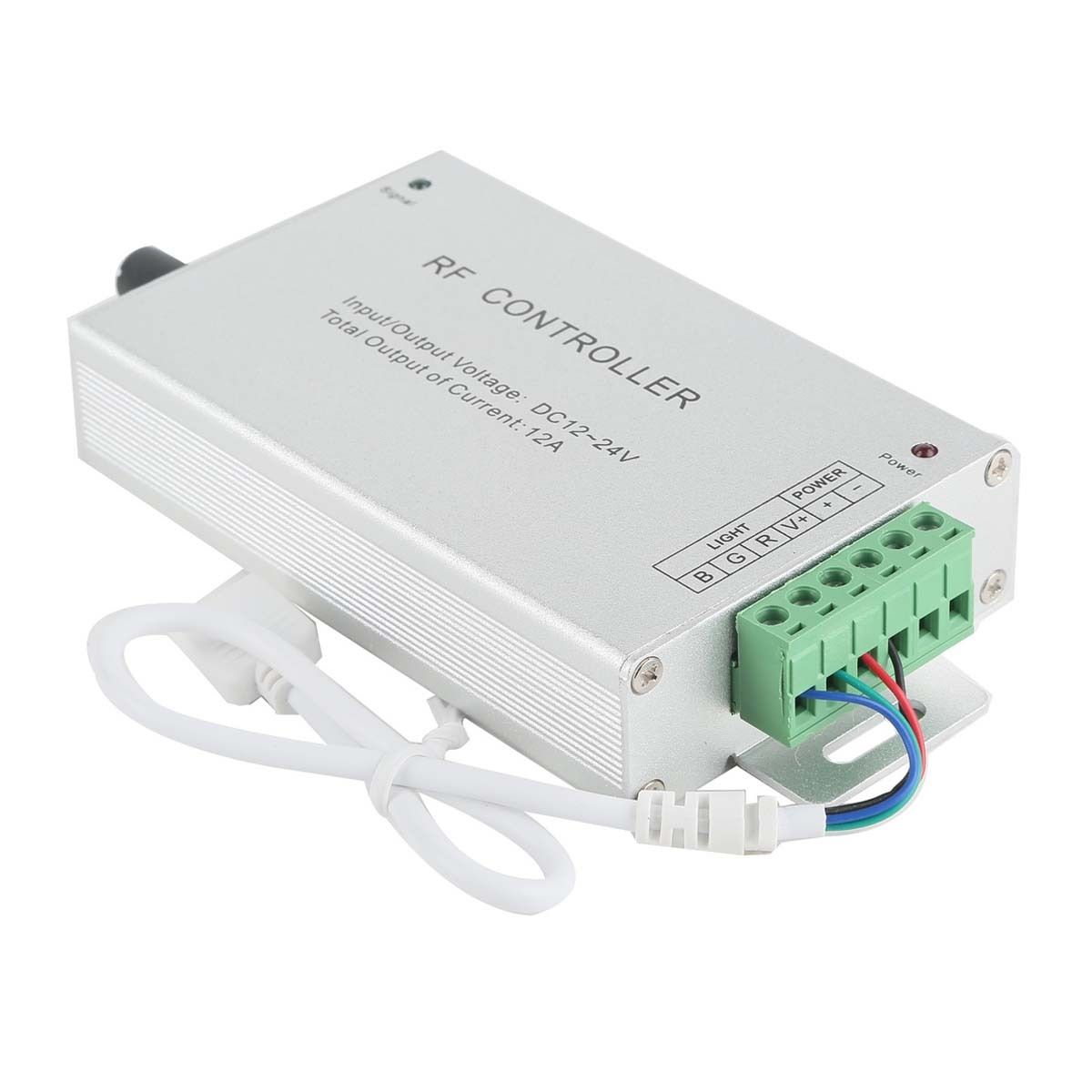

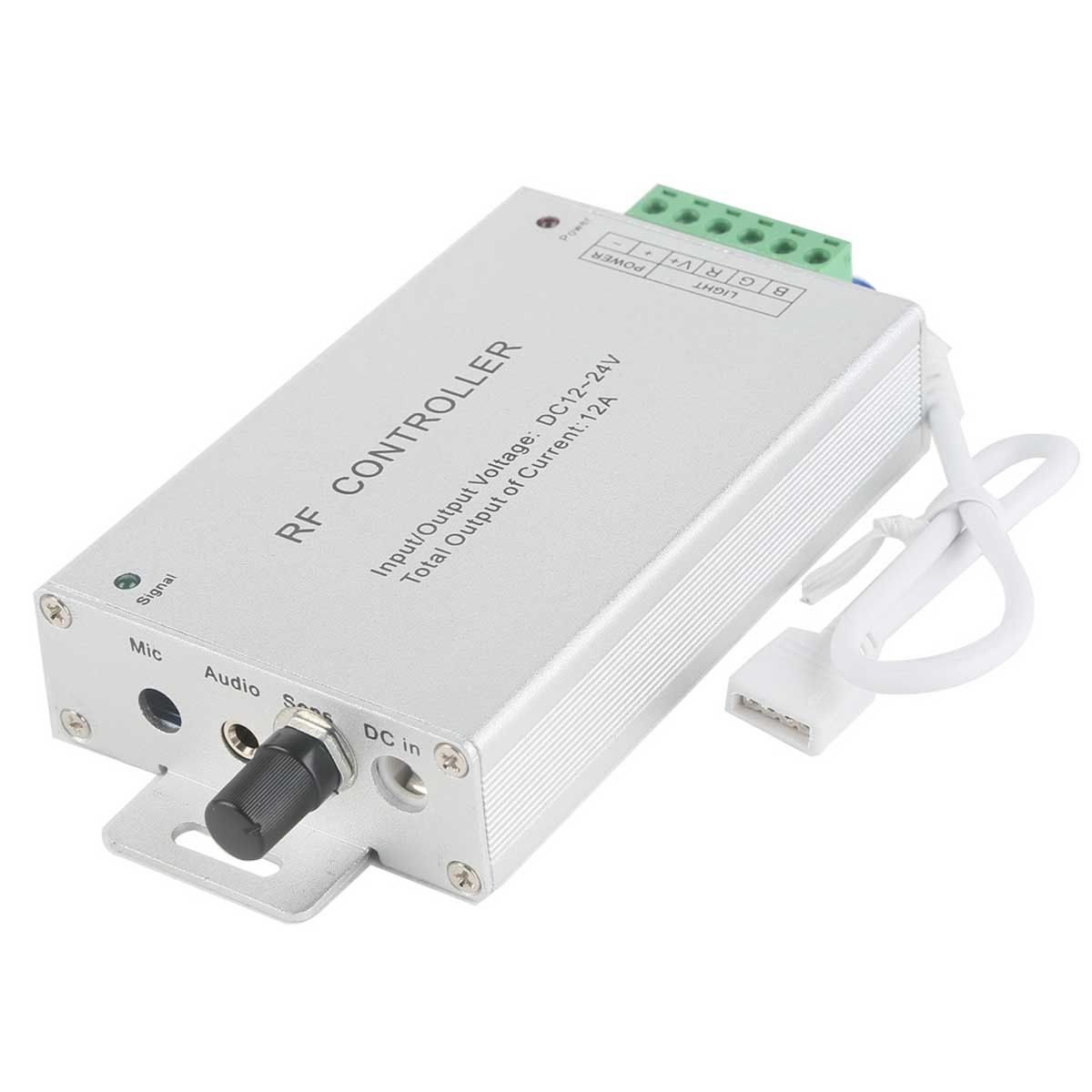

Controller case material: Aluminum
Voltage supply: DC 12V-24V
Max Output current: 12A
Output: 3 CMOS drain-open output
Connecting mode: Common anode
Working temperature: -20-60℃
Controller size: approx. 12.8 * 6.5 * 2.5cm / 5 * 2.6 * 1in
Controller weight: approx. 136g / 4.8oz
Remote control size: pprox. 8.5 * 5.2 * 0.7cm / 3.3 * 2 * 0.3in
Package size: approx. 13.5 * 7.5 * 5.5cm / 5.3 * 3 * 2.2in
Package weight: approx. 190g / 6.7z
Slim light box,lighting, signs, advertising signs, etc.
In high-end stores,shopping malls and other indoor commercial lighting atmosphere
Entertainment,beauty salon lighting,Kara OK and other mood lighting, fashion lighting
Shopping malls, hotels, exhibition halls, outdoor decoration and other places
Atmosphere of the bar, KTV,cafes and other leisure venues lighting
Crafts light,car decoration,decorative lighting yacht

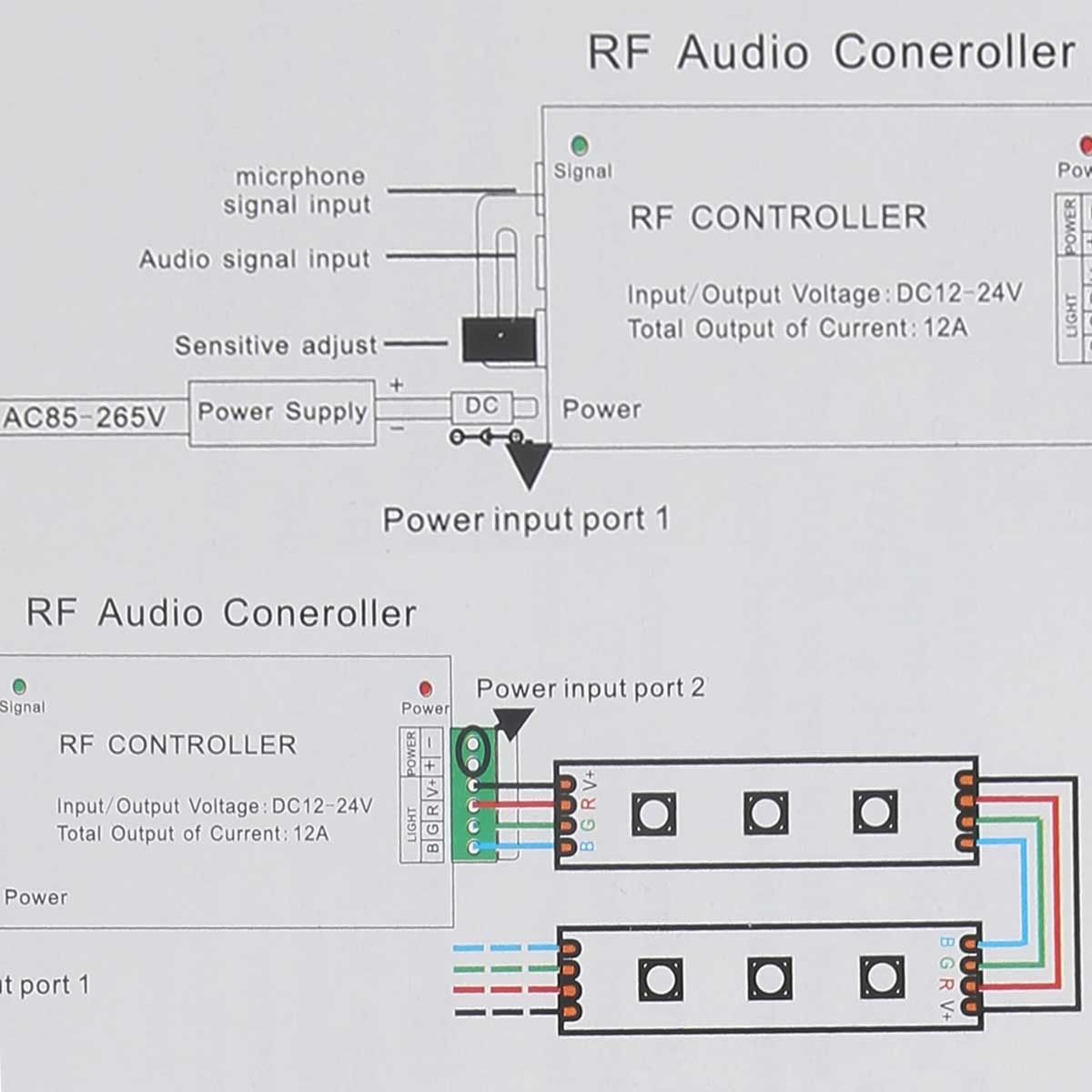

* Connect the load lines and power lines, make sure all connection correct before power switched on
* Insure there is no obstacle between the IR controller and the receiver when operating
* This product should not be used in outdoor and any other humid environment. Not allowed to touch water or any liquid. No impacting and knocking. Should not be used in high temperature and high pressure environment to avoid the product damage, and cause short-circuit, fire disaster and electric shock etc.

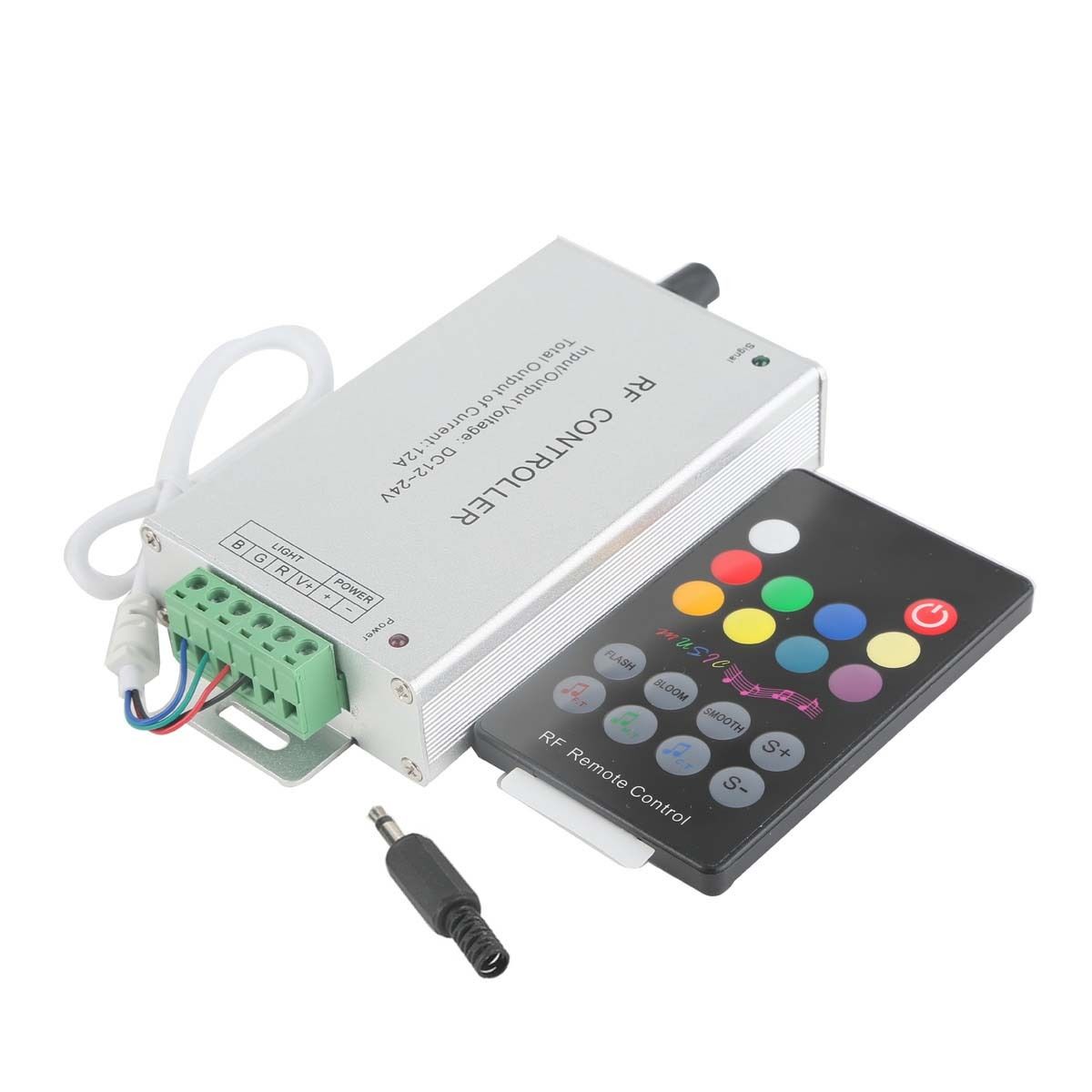

1 * LED Controller

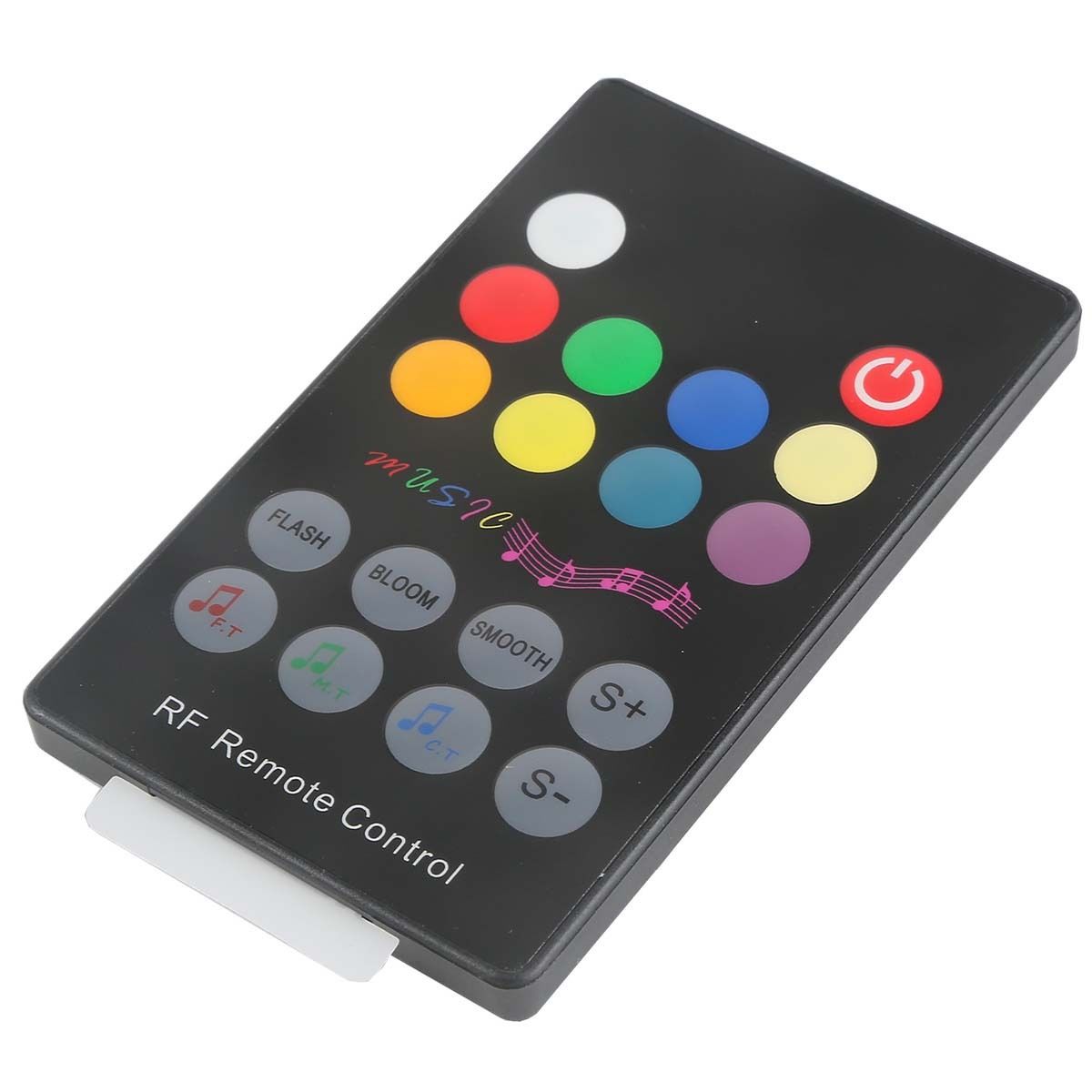

1 * 18 Keys Remote Control
1 * User Manual
