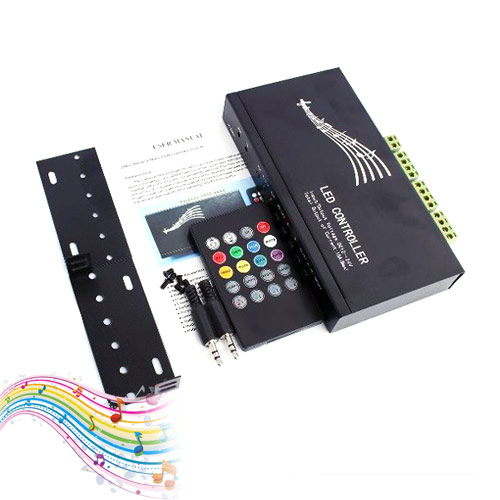

DC12/24V 6A3CH Max 216W, LED Music rhythm Controller Sound Recognition for KTV bar or cars, 20keys IR Remote control RGB light strips
This 20Key infrared Music LED controller adopts the advanced micro control unit. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible strip light, wall washer, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simple to use. Meanwhile you could adjust brightness, static colors and color changing effects through infrared remote control. With 3.5MM audio, non-interfered music mode works better. Color changing is more exquisite with PWM. 20 classic modes changing follow your heart. 15 music modes make every moment rhythmical. With Dual channel output, the maximum power is 12V/216W, 24V/432W. When it is in sound-control mode, the colors will change with the rhythm of music.
Controller case material: Metal (black color)
Working temperature: -20°C ~ 60°C
Input voltage: DC12-24V
Output: 3 channels
Connecting mode: Common anode
External dimension: L163.5*W82.5*H25 mm
Packing size: L205*W165*H55 mm
Net weight: 500g
Gross weight: 600g
Static power consumption: <1 W
Output current: < 6 A (each channel)
Output power: 12V<216W 24V<532W Technical Parameters
Remote control functions: When in static mode to adjust the brightness.When in jump3,jump7,fade3,fade7 mode to adjust the light flashing rate. When in Music mode to adjust the sensitivity. Red/Green/Blue/White/Orange/Yellow/Cyan/Purple for selection.
Control distance: >20 m
Interior Decoration: Club, bar, corridor, room, hotel, museum, christmas, holiday etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, etc
Direction for use
1. Connect the load lines and power lines, make sure all connection correct before switch on the power.
2. Insure there is no obstacle between the IR controller and the receiver when operating.
3. This product should not be used in outdoor and any other humid environment. Do not touch water or any liquid. No impacting and knocking. Should not be used in high temperature and high pressure environment to avoid the product damage, and cause short-circuit, fire disaster and electric shock etc.
4. The manufacturers will not be responsible for the product damage, property damage, personal injury, and any other losses which are caused by improper use. Direction for use
1 X Music Controller
1 X RF Remote control
1 X User Manual
