DC12/24V 3A4CH Max 144W, LED Music rhythm Black or White Controller Sound Recognition for bar or cars, IR Remote control RGB Strips or Modules

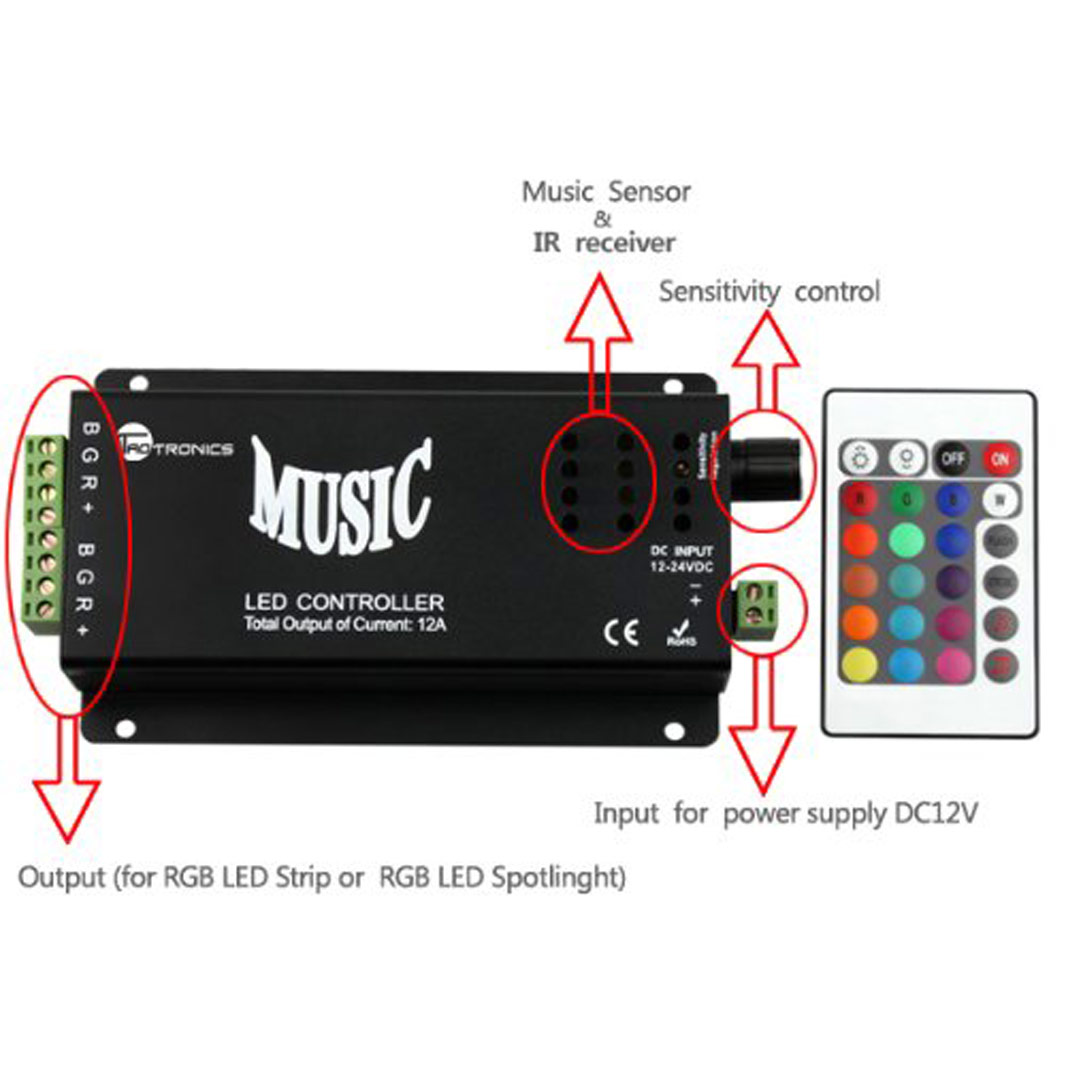

This is a sound-activate music controller (with IR remote) for LED RGB multi-color strip lights, which can manage a total of 16 colors changing program and 4 different modes (flash, strobe,fade, smooth). You can use it to adjust the brightness and speed of your LED strip light. Add this controller to your listing system and have the light flash/ fade along with the beat of music. Easy installation is another feature of this product. You can wire in two power cables(+-)to power the controller and connect multiple LED strip to its connection ports. This is a 12V, 5A controller with maximum output wattage of 60 watts. This product is perfect for christmas holiday lighting control , night club, restaurant, karaoke, and other commercial entertainment places. With 2 kinds Infrared wireless remote control. Sound receiver sensitivity adjustable. 3 way-output for RGB LED Light Strips or RGB LED Spotlight. Self-lock wire connecting holder. Wide input voltage and high power output. 16 single color choices. Brightness and changing speed adjustable.
Controller case material: ABS(white) or Metal (black)
Shell Color: Black or White optional
Voltage supply: DC 12V-24V
Output Power: 12V/144W 24V/288W Max
Max Output current: 12A
Output Channel: 3
Connecting mode: Common anode
Sound Control: >70dB
Working temperature: -20-60℃
Controller size: approx. 155 x 76 x 29mm
Package weight: approx. 250g / 7.2z
Slim light box,lighting, signs, advertising signs, etc.
In high-end stores,shopping malls and other indoor commercial lighting atmosphere
Entertainment,beauty salon lighting,Kara OK and other mood lighting, fashion lighting, christmas holiday lighting.
Shopping malls, hotels, exhibition halls, outdoor decoration and other places
Atmosphere of the bar, KTV,cafes and other leisure venues lighting
Crafts light,car decoration,decorative lighting yacht
* Connect the load lines and power lines, make sure all connection correct before power switched on
* Insure there is no obstacle between the IR controller and the receiver when operating
* This product should not be used in outdoor and any other humid environment. Not allowed to touch water or any liquid. No impacting and knocking. Should not be used in high temperature and high pressure environment to avoid the product damage, and cause short-circuit, fire disaster and electric shock etc.
1 X Music IR Controller
1 X RF Remote control
1 X User Manual
