DC12V to DC24V Boost Converter DC LED Transformer For Cars and Boats
DC12V to DC24V boost converter, used for DC12V battery connected to DC24V LED light strip projects such as cars, yachts, boats, etc. This DC to DC converter has high safety performance, small size, and strong anti-interference, the boost converter efficiency is higher to 93%. Various output currents are available, you can choose the aluminum shell DC converter or the plastic shell DC transformer. How to caulate power: if you choose the 3A aluminum shell boost converter, the power is 24V*3A=72W.
|Current||Plastic Shell DC12V to DC24V Boost Converter Power||Current||Aluminum Shell DC12V to DC24V Boost Converter Power||Current||Iron Shell DC12V to DC24V Boost Converter Power|
Standards and Certifications
|Module Type||Non-isolated module|
|Input Voltage||DC12V (10~23V)|
Aluminum Shell - 3/5/8/10/12/15A,
Plastic Shell - 1/2/3A
Iron Shell - 15/16/20A
Aluminum Shell - 72/120/192/288/360/384/480/600/720/960/1200W
Plastic Shell - 24/48/72W
Iron Shell - 360/384/480W
Aluminum Shell - IP68,
Plastic Shell - IP67
Iron Shell - IP20
|Installation Cable Length||11CM/0.36ft|

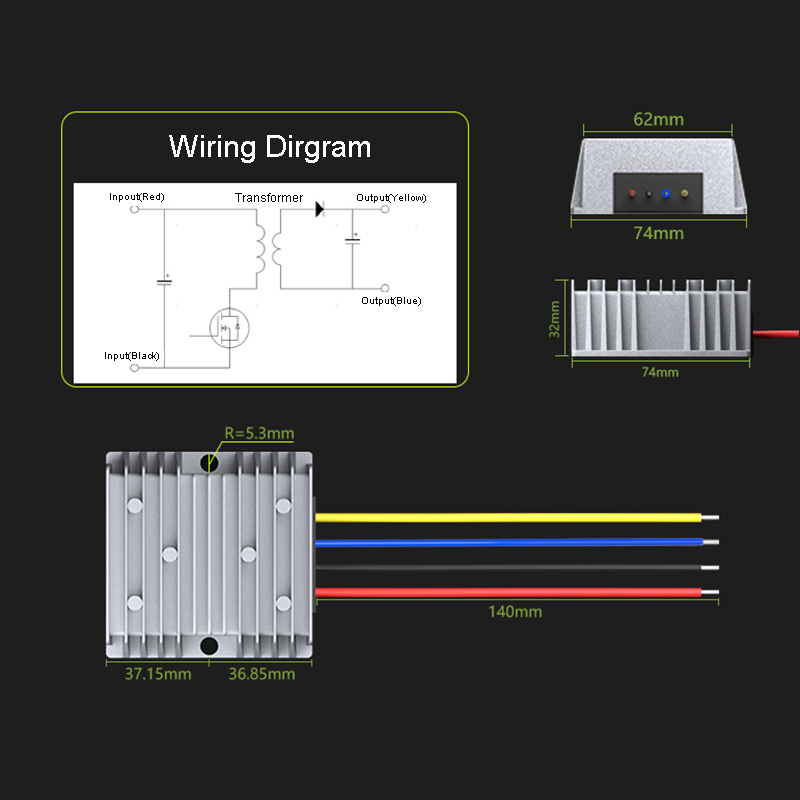

Aluminum Shell - 74*74*32mm, 100*80*39mm(enlarged version), 150*127*63mm(medium version), 220*127*63mm(40A large version), 300*127*63mm(50A large version)
Plastic Shell - 58*40.5*22mm
Iron Shell - 118*87*40mm
Aluminum Shell - 300g, 500g(enlarged version), 1600g(medium version), 2300g(40A large version), 3200g(50A large version)
Plastic Shell - 100g
Iron Shell - 370g
|Shell||Aluminum / Plastic / Iron|
1A-20A - 13~14cm/5~5.5"
25A-50A - No wire, comes with screw copper bar

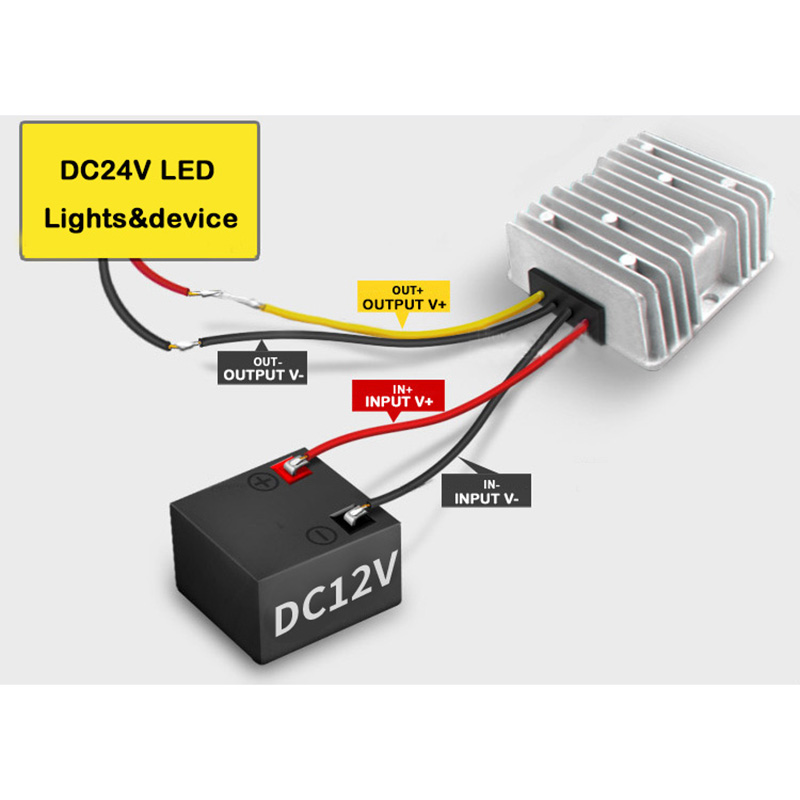

►Input power supply (battery or switching power supply) input positive and negative poles cannot be reversed.
1. The voltage fluctuation range of the power supply should not exceed the voltage range of the converter.
2. The power of the power supply must be greater than the power required by the output electrical appliances.
►Output appliances (power less than or equal to the power of the converter)Output positive and negative poles cannot be short-circuited in reverse.
1. You can equip the equipment with as many V converters as the voltage required by the electrical appliances.
2. The power should not be greater than that of the converter.
