DC12-24V CV Dimming Driver LT-451-12A for led strip lights

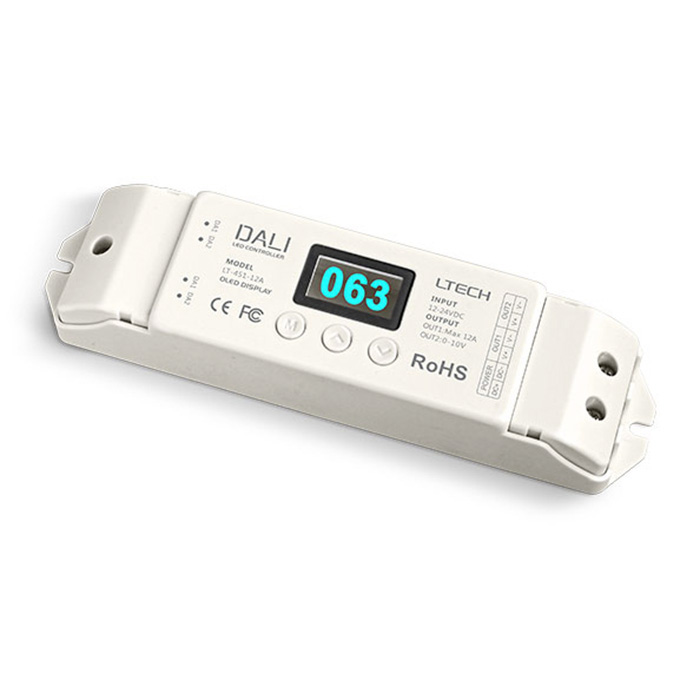

LT-451-12A CV Dimming Driver
Input signal :DALI digital dimming signal
Input voltage :DC12V～DC24V

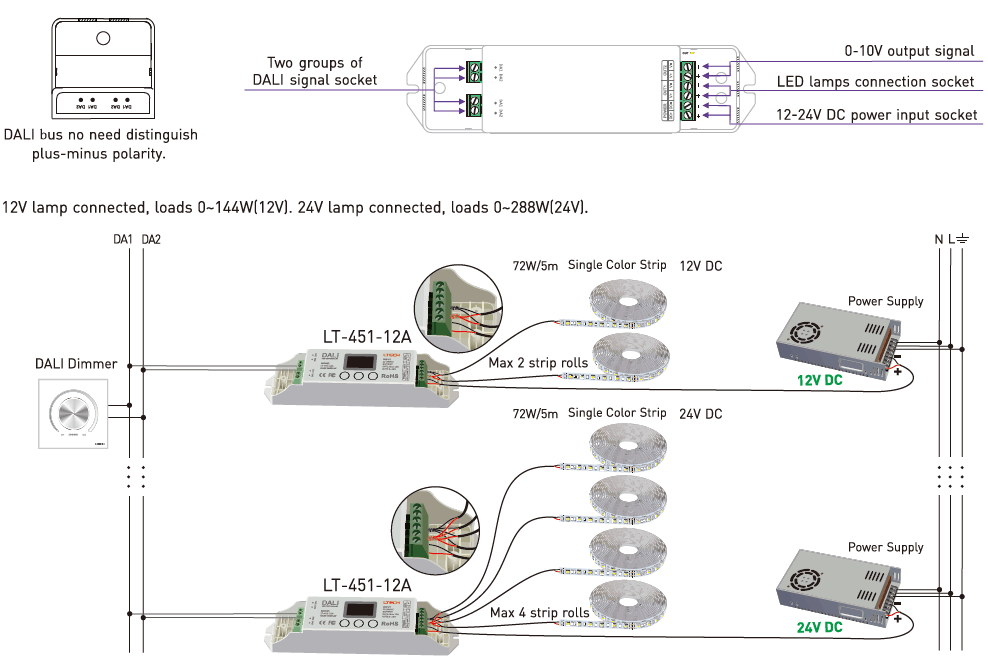

Max output power :144W(12V) 288W(24V)
Dimming Range :0.1～100%
working temperature :-30℃～55℃

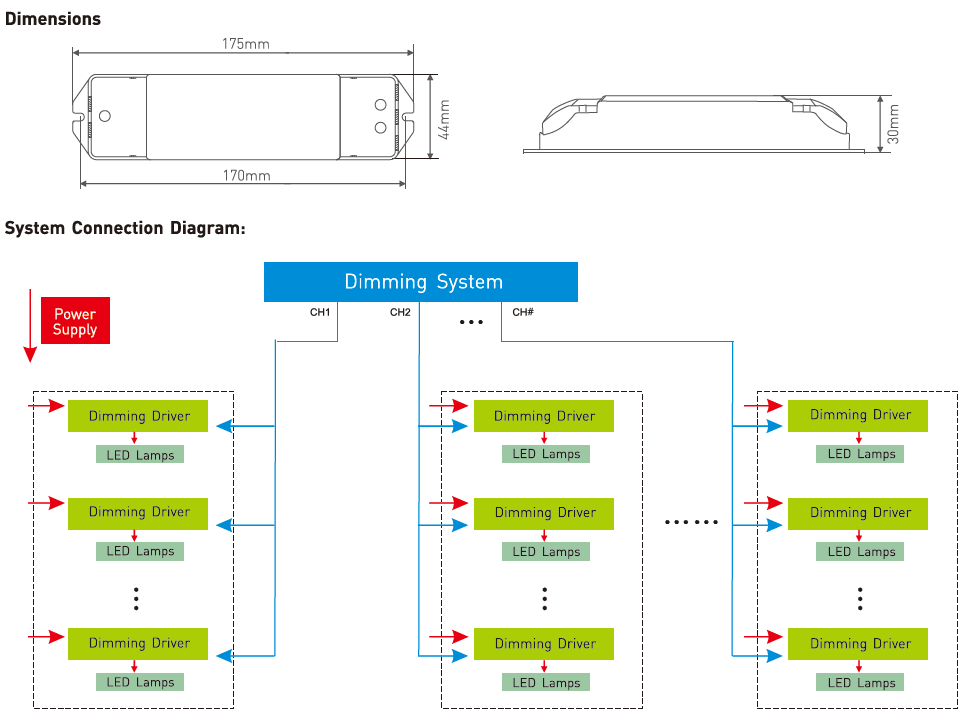

Package Size: L178×W48×H33(mm)
Weight (G.W) :150g
