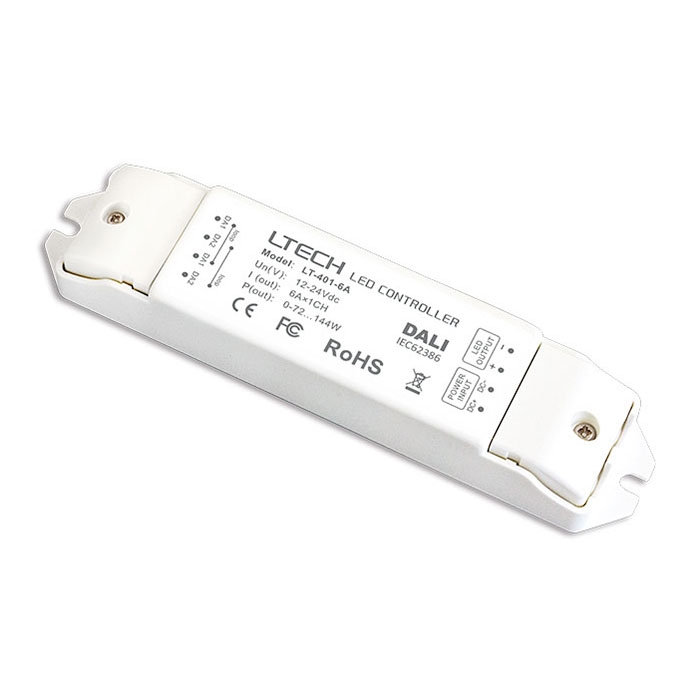

DC12-24V CV Dimming Driver LT-401-6A
Dimming interface: DALI.
PWM digital dimming, standard DALI logarithmic dimming curve.
Dimming range: 0~100%, LED start at 0.1% possible.
Max. current output: 6A.
Full protective plastic housing.
DALI bus standard: IEC62386.
Suitable for indoor environments.
Dimming Interface: DALI (IEC62386)
Input Voltage: 12~24Vdc
Output Voltage: 12~24Vdc
Dimming Range: 0~100%, LED start at 0.1% possible

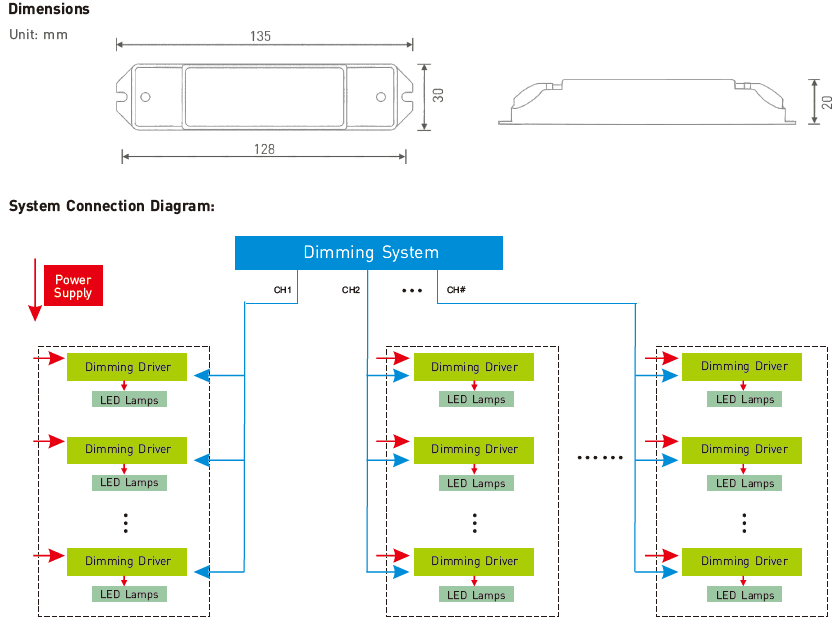

Product Size: L135×W30×H20(mm)
Package Size: L140×W34×H23(mm)
Working Temperature: -30℃~55℃
Max. Output Power: 0-72W...144W
