DC24V 16.4Ft 840LEDs 10*10mm Top Lighting Waterproof Multiple Single Color Optional Flexible LED Neon Light for Outdoor Lighting

Model: DCFLS-SCNEON-1010X840
DC24V 16.4Ft 840LEDs 10*10mm Top Lighting Waterproof Multiple Single Color Optional Flexible LED Neon Light for Outdoor Lighting
  • DC24V 16.4Ft 840LEDs 10*10mm Top Lighting Waterproof Multiple Single Color Optional Flexible LED Neon Light for Outdoor Lighting
  • DC24V 16.4Ft 840LEDs 10*10mm Top Lighting Waterproof Multiple Single Color Optional Flexible LED Neon Light for Outdoor Lighting
  • DC24V 16.4Ft 840LEDs 10*10mm Top Lighting Waterproof Multiple Single Color Optional Flexible LED Neon Light for Outdoor Lighting
  • DC24V 16.4Ft 840LEDs 10*10mm Top Lighting Waterproof Multiple Single Color Optional Flexible LED Neon Light for Outdoor Lighting
  • DC24V 16.4Ft 840LEDs 10*10mm Top Lighting Waterproof Multiple Single Color Optional Flexible LED Neon Light for Outdoor Lighting

Select Specifications:

Starting at: $49.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-2
$49.98
3-9
$49.73
10-79
$49.48
80+
$48.48
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

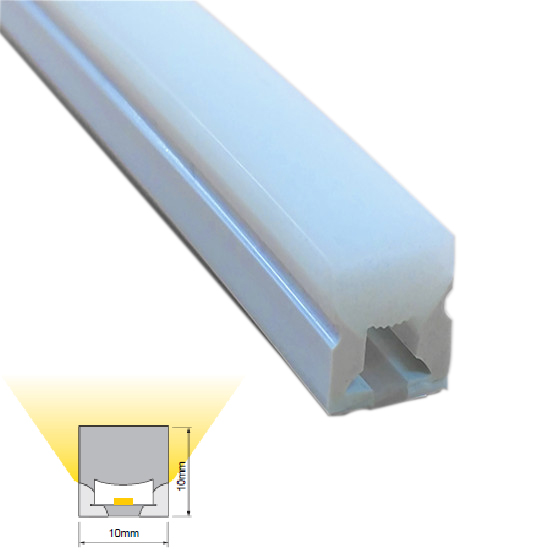

    Here is the 10*10mm (0.4*0.4in) square LED neon tube light with various white led color temperatures (2700K warm white, 3000K soft white, 4000K natural white, 6000K pure white) and other solid light colors (red, green, blue, yellow, pink), with soft linear light, no light spot.

    This 24V led neon flex outdoor uses food-grade silicone material as housing, can achieve IP67 waterproof rating, suitable for advertising lighting, decorative lighting, and outdoor lighting. IP20 non-waterproof indoor and IP67 waterproof outdoor neon lighting kits are available.

    • 1. Adapt 2835 SMD LEDs, energy-saving, low power consumption, 168 LEDs per meter, high density, super bright.

    • 2. Food grade silicone housing, 120 degrees top lighting, weather resistance, anti-UV, soft and easy bent for installation.

    • 3. Multiple white light color temperatures and led light colors optiona

    • 4. DC24V operation, 10m without voltage drop, good light effects.

    • 5. 95+ high CRI can restore the color and color temperature of the real environment.

    • 6. Achieve IP67 waterproof, arbitrary bending, tear and pull resistance, suitable for making various forms and billboard signs.



    LED Neon Light Kit:

    1* 5m/16.4Ft LED neon light

    If you choose the LED strip + Controller + Power Adapter, we will send you V1 + RT1 LED controller and PSPS-24V-72W  LED power supply.

    If you choose the LED strip + IP67(Controller + Power Supply), We will send you CONSC-RF161 LED controller and PSWP-24V-100W waterproof LED power supply

    If you have requirements for other single color LED controller, you can visit our single color dimmer series.



    Standards and Certifications

    24VDC CE FCC UL RoHS ISA SGS ISO LIFETIME warranty waterproof

    LED Product Type: 10*10mm Waterproof 24V LED Neon Flex Outdoor
    LED Chip: 2835 SMD LED
    Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
    Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
    Light Colors: 2700K/3000K warm white, 4000K natural white, 6000K daylight white, red, green, blue, pink, yellow
    Max Bending Length: 200mm/7.87in
    LED Quantity: 168LEDs/m; 51LEDs/Ft; 840LEDs/Roll
    Lifespan: 30,000+hours
    Size: 5000*10*10mm
    Input Voltage(V): 24 VDC
    Working Power: 14W/m, 70W /16.4ft  Max
    Material: Food grade silicone
    Waterproof Rating: Waterproof IP67
    CRI(Ra>): 95
    Beam Pattern: 120 degree
    Lumen:  12lm/LED, 614lm/ft



    How To Install LED Neon Lights?

    1. cut and install led neon sign light:

    cut led neon strip lights

    There are three installation methods for the led neon strip lights. One is to install with mounting clipsThe second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.

    Three Ways to Fix LED Neon Tube Lights

    2. How to Make Neon Lights?

    3. How to Repair LED Neon Strip Lights?

    how to install single color led strip and led dimmer
