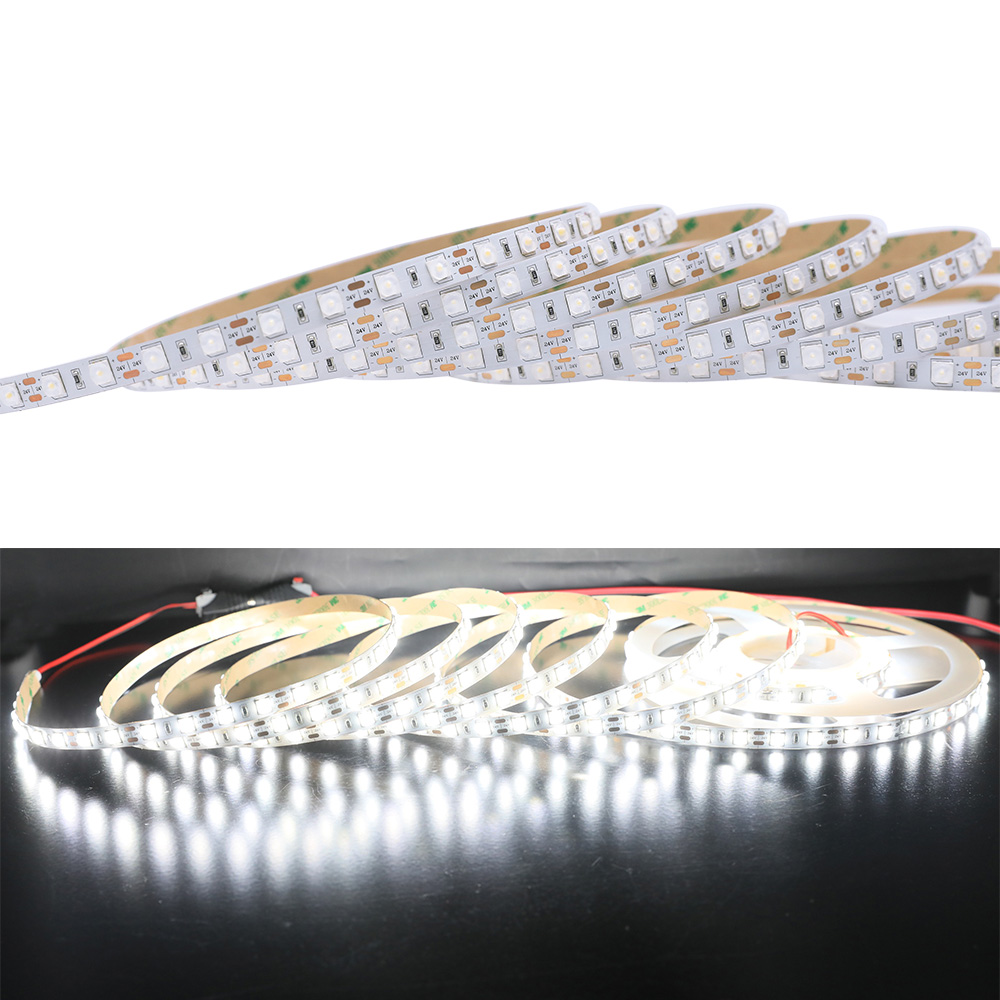

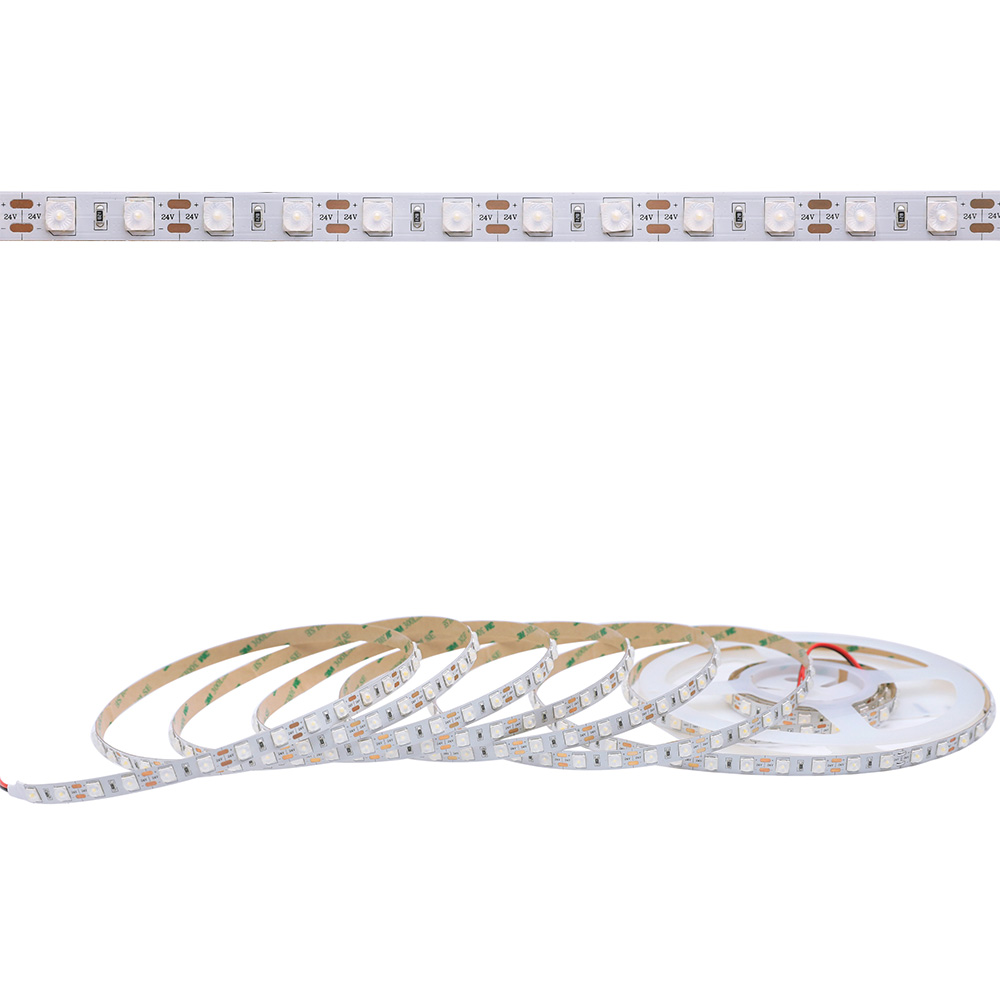

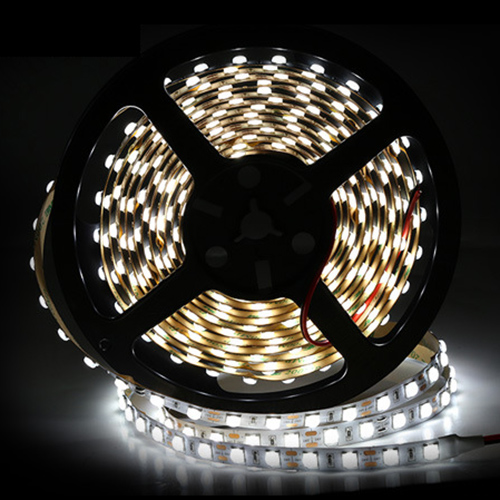

Diffuse Reflection 6060 SMD Brightest Single Color LED Strips With 180 Degree Lens
Diffuse Reflection 6060 SMD Brightest Single Color LED Strips With 180 Degree Lens， Our Brightest Flexible LED single light strip is soft and easy to bend for easy installation. 2 cuttable LEDs, so you can cut different lengths according to the project and requirements. LED strips are suitable for general household lighting and lighting professionals. DC24v voltage is safe, stable, and efficient. The light-emitting angle of 180 degrees can expand the light-emitting area. Accept custom waterproof LED light strip.
Standards and Certifications

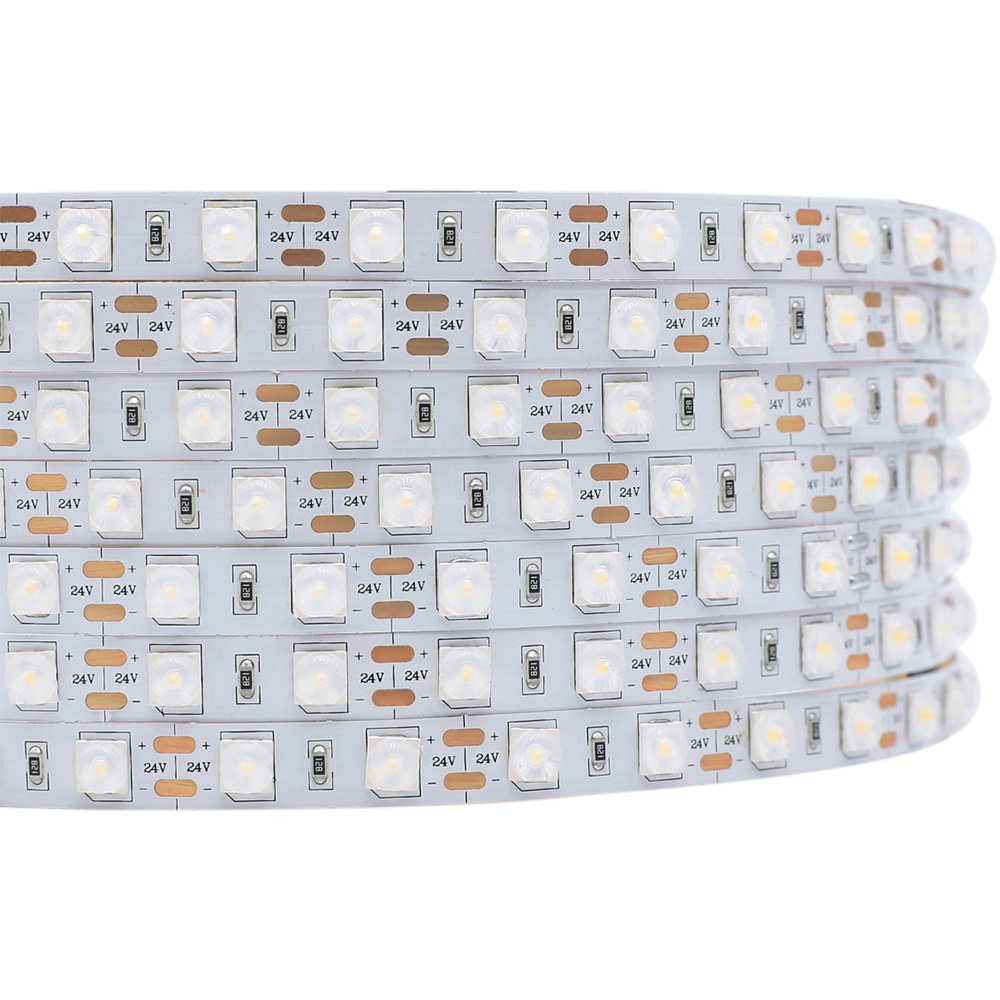

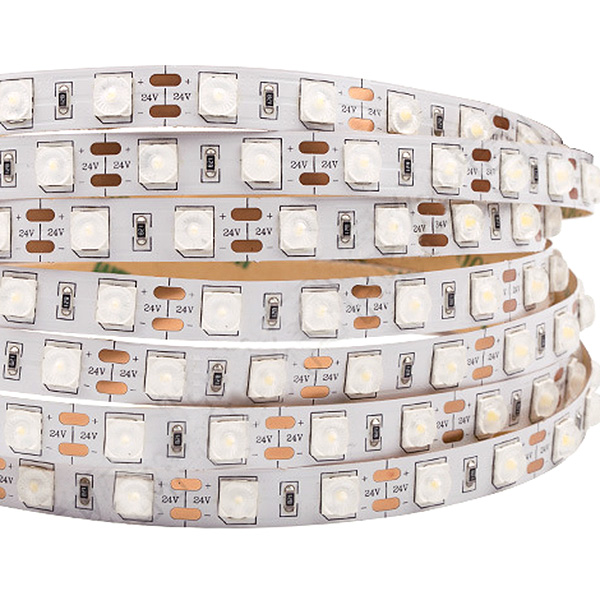

LED Strip Type: SMD 6060
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: 6000K

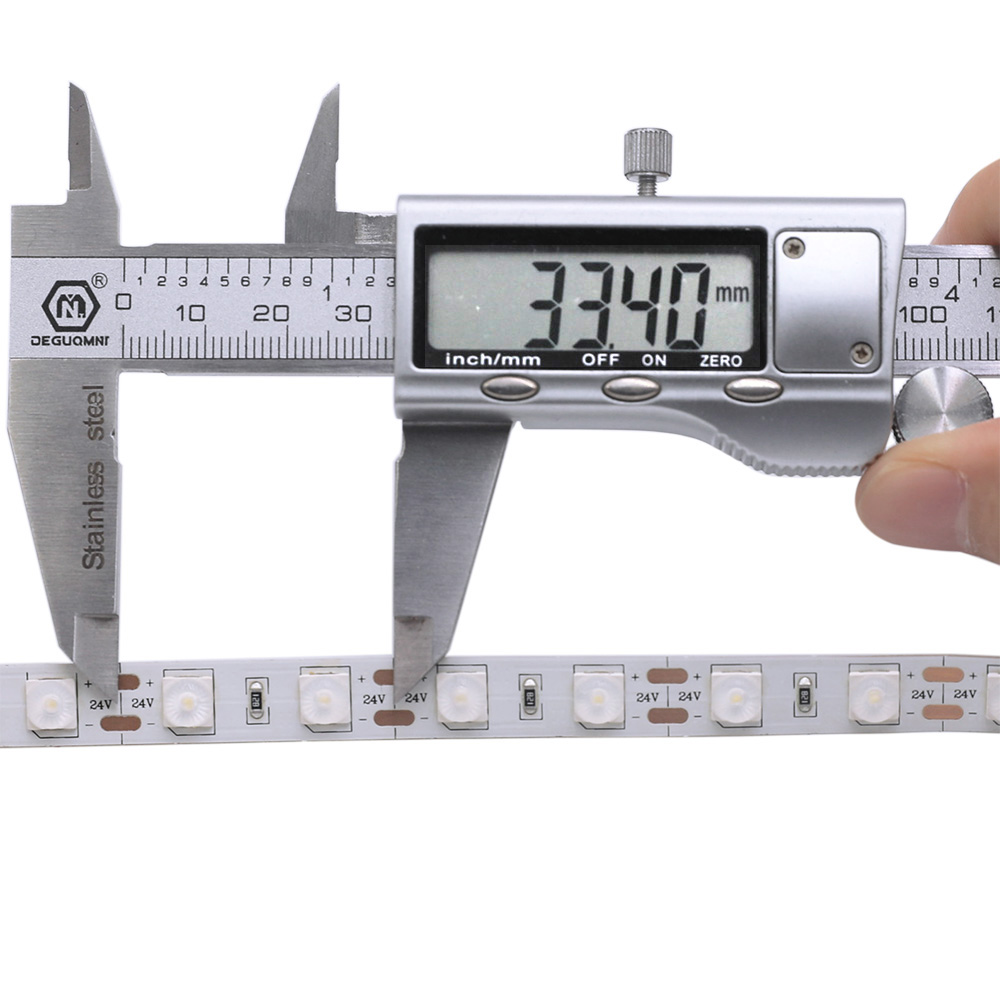

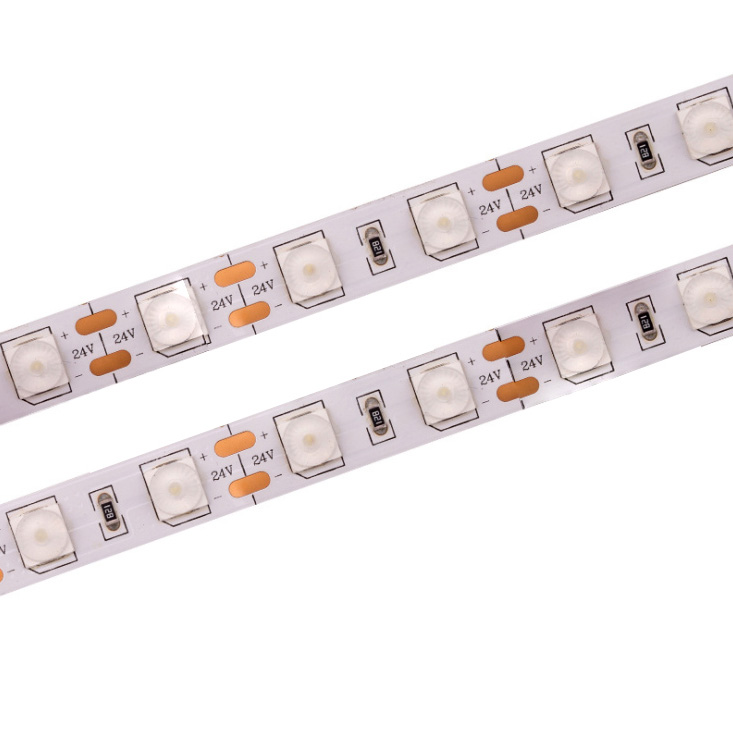

Dimension: 16.4ft/roll, every 2 PCS LED can be cut
LED Quantity: 60 LEDs per 3.28ft; 300 LEDs per 16.4ft
Warantty: 3 years

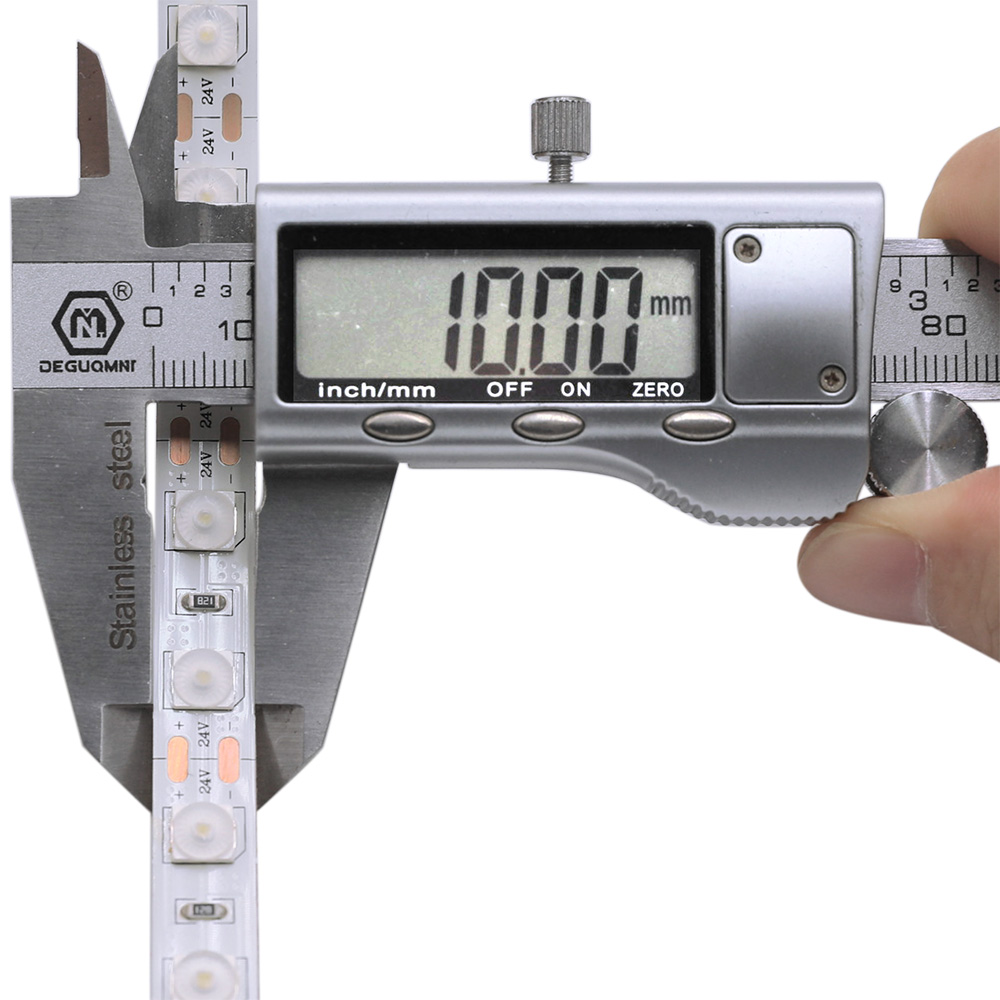

Board Width: 10mm/00.39in
Input Voltage(V): 24VDC
Working Power: 6W/3.28ft (1 meter) ; 30W/16.4ft(5 meter) Max
Color Temperature (White): Daylight White(6000K)
Beam Pattern: 180 degree
Water Proof: Non-waterproof IP20
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.

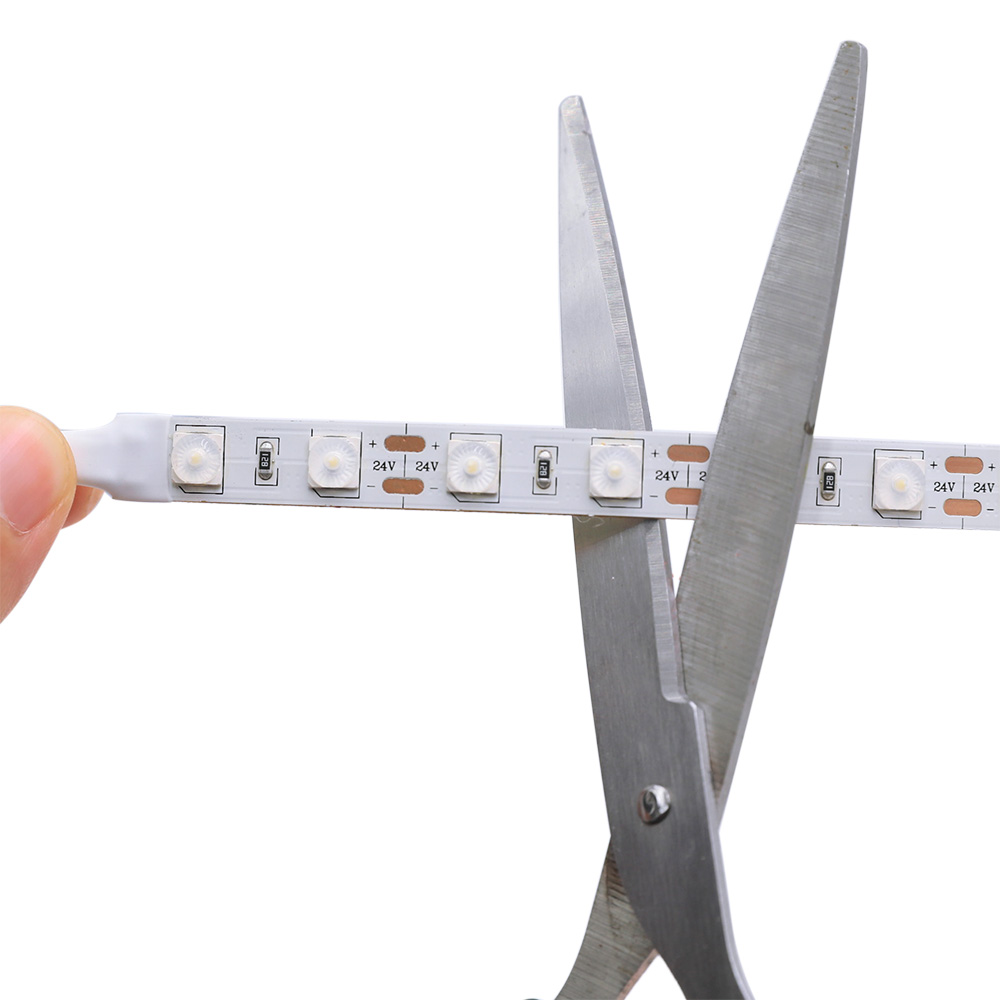

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with

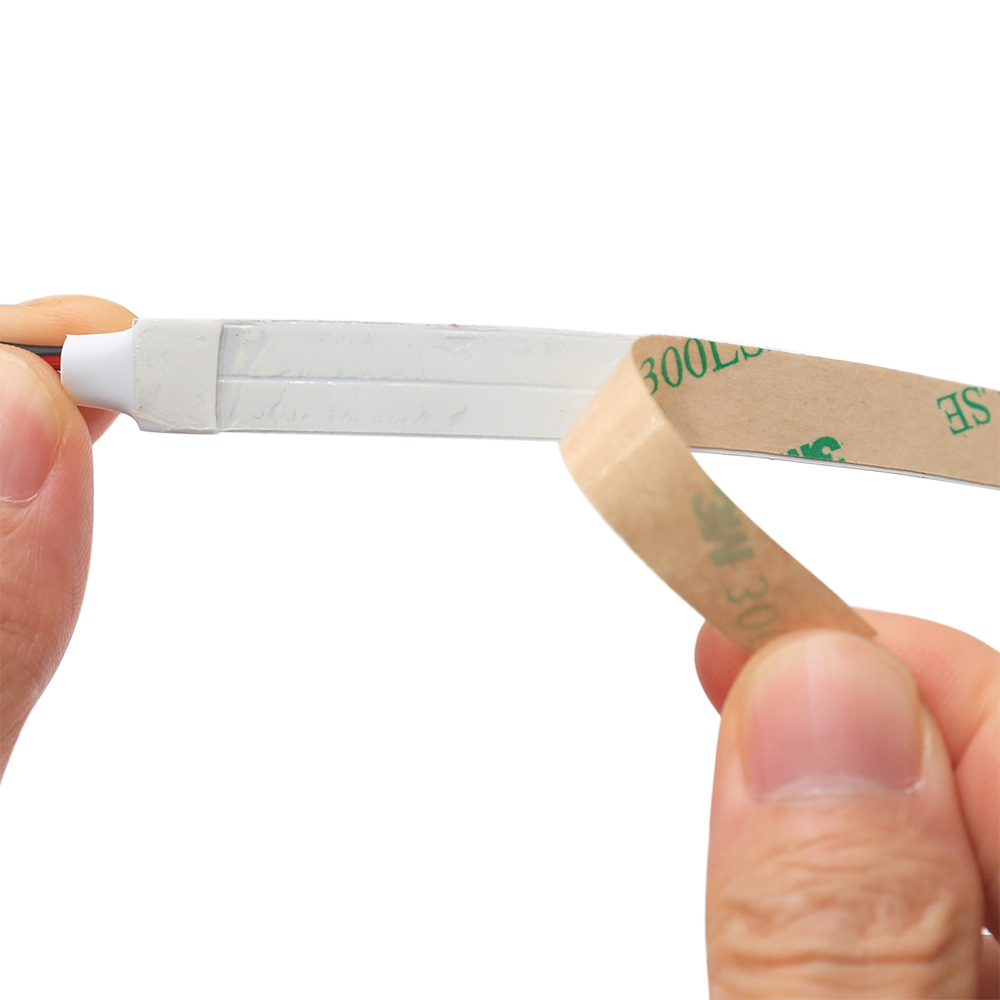

allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements to many different surfaces.
