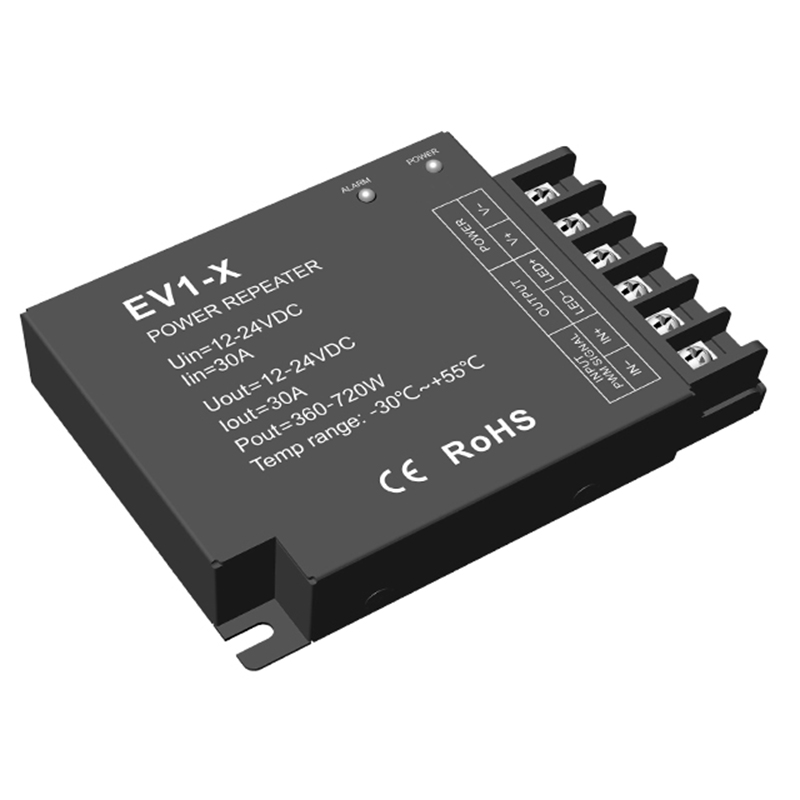

EV1-X 1CH*30A 12-24VDC Constant Voltage Power Repeater
● 12-24V constant voltage power repeater.
● 1 channel, 30A per channel.
● To receive PWM signal control.
● Power repeater in series or in parallel to expand output unlimitedly.
● Apply to single color constant voltage LED strip or module.
Safety & Warnings
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain.
3. Good heat dissipation will prolong the working life of the controller,Please ensure good ventilation.
4. Please check if the output voltage of any power supplies used comply with the working voltage of the product.
5. Ensure all wire connections and polarities are correct and secure before applying power to avoid any damages
to the LED lights.
6. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
Input and Output
Input Voltage: DC12-24V
Output Voltage: DC12-24V
Output Current: 30A
Output Power: 360-720W
Input Signal: PWM
Output Type: Constant voltage
Dimming level: 1024 levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 750Hz (default)
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity/over heat/ short circuit/over load
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
