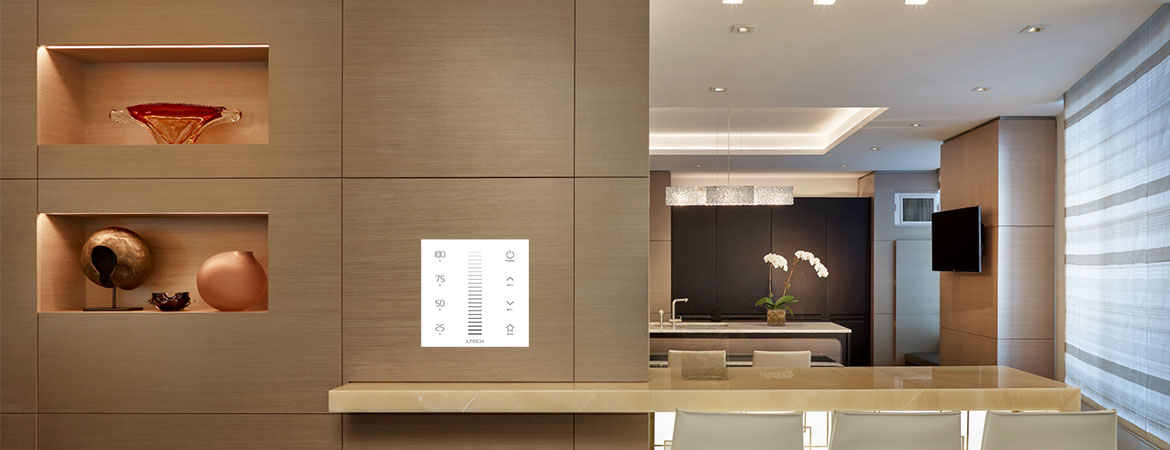

DC12-24V E1S Dimming Touch Panel
2 in 1 function: RF wireless control and PWM power output.
Power output, lamps can be connected directly, easy and convenient.
Touch keys with chord and LED indicator
Save any scene you like, touch 1 key to recall the scene, easy and convenient.
Adopts capacitive touch control technology on the full-color slider, makes LED dimming selection more user-friendly
The touch panel can be controlled by remote directly or smartphone if add a gateway
LED Dimmer E1S

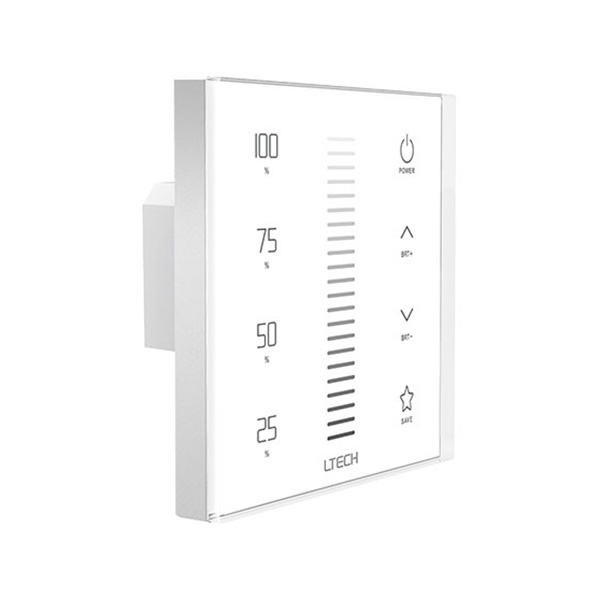

E1S Dimming Touch Panel
Input Voltage :12-24Vdc
Current Load: 4A×2CH Max 8A
Output Power :(0~48W...96W)×2CH Max. 192W
Working Temp.: -30℃～55℃
Package Size: L113×W112×H50(mm)
