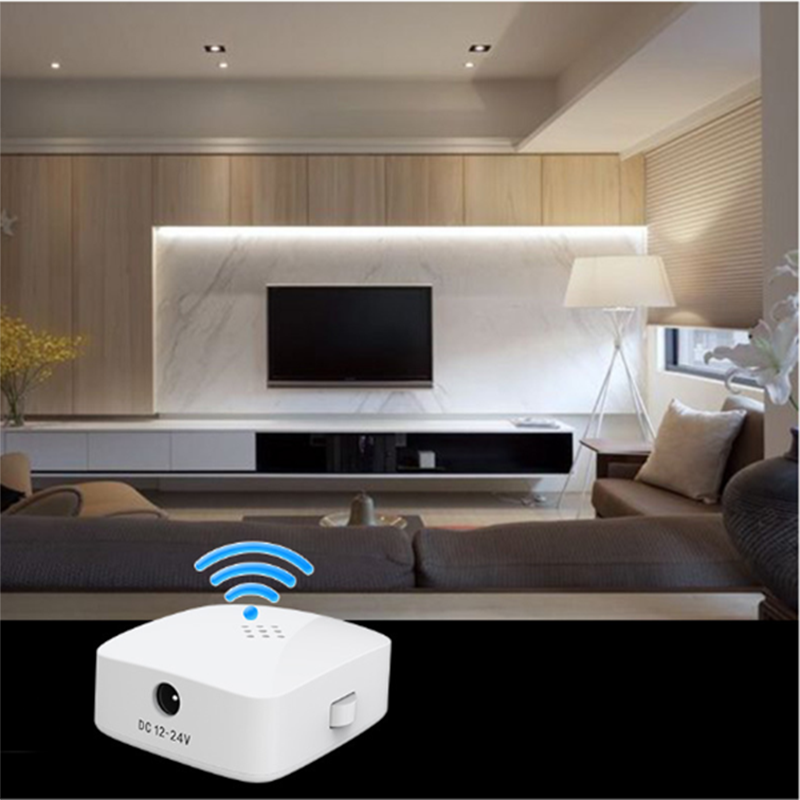

DC5-24V Dual Channels RGB WiFi LED Controller With 24 Keys IR Remote For Flexible LED Strip Light, Work With Alexa & Google Assistant
Group control: Sort multiple controllers into the same group, and then they can be switched on and off at the same time. In order to easily identify the name of the controller, you can modify the group name of the grouped controller group to identify each group, such as bedroom, living room, bathroom, etc.
Timing function: The controller can automatically switch the light bar controlled by it according to the time you set
Voice control: enable Alexa light strip, work with Amazon Echo, Dot, Google Home Mini, etc. Free your hands with voice control. You can also use the APP or the included remote control to easily dim and set the colour change mode.
Supports 16 million colour control and brightness adjustment: The three primary colours of RGB are mixed into 16 million colours, and there is also warm white that can adapt to various scenes, freely adjust the brightness, make the light more suitable for various scenes, and support DIY colour customization, You can DIY your favourite colour.
A variety of light-off conversion modes: divided into the monochrome gradient, jump, stroboscopic and multi-colour gradient, jump, and stroboscopic.
Light and music rhythm synchronization function: Music has four major modes: rock. Jazz, classical, default mode. The light off changes with the rhythm of the music.
- IOS system: You need to download music files in iTunes or copy the downloaded audio files to your mobile phone through the computer's iTunes software, and you can synchronize the lights with the music rhythm by opening the music mode of the APP
- Android: Download music to your phone to use

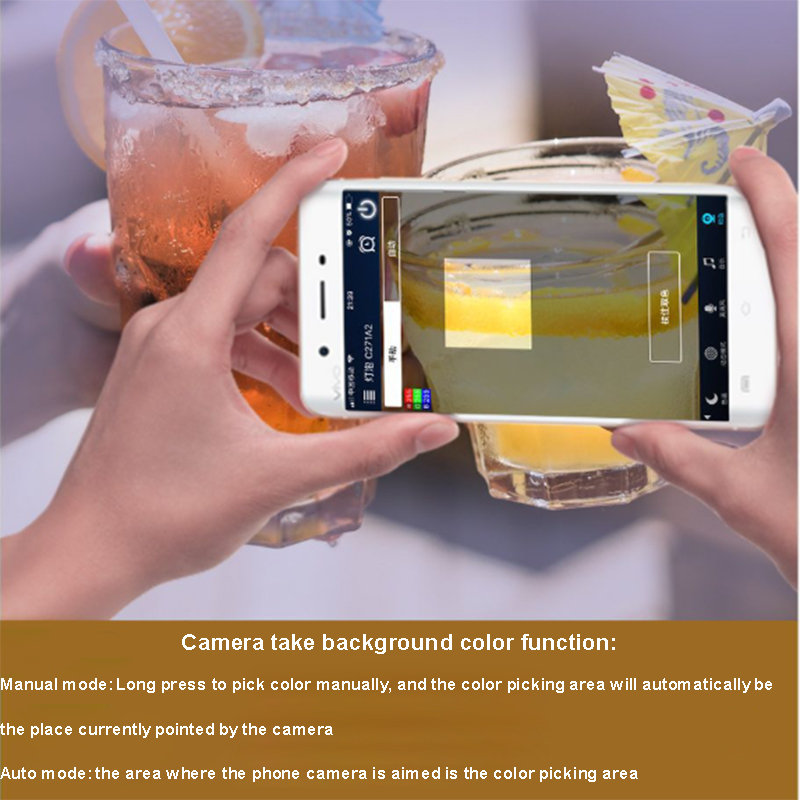

The camera takes a background colour function:
- Manual mode: Long press to pick colour manually, and the colour picking area will automatically be the place currently pointed by the camera
- Auto mode: the area where the phone camera is aimed is the colour picking area

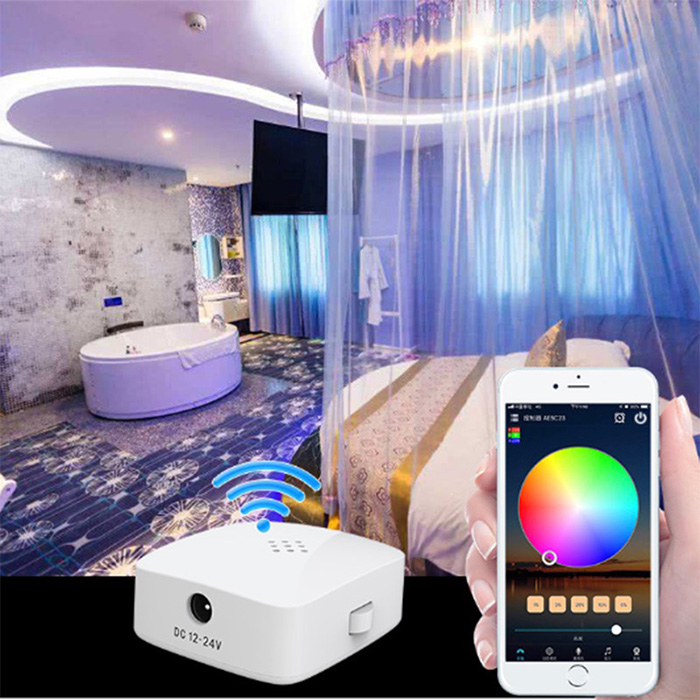

Application range: This controller can be used with LED light strips. It can be used to control car atmosphere lights, festivals, dance parties, wedding lights, etc. It can also be used for the atmosphere layout of homes, hotels, coffee shops, etc.
Standards and Certifications
Control Principle: WiFi
APP Software Name: Magic Home
APP Language: Chinese, English
Mobile Version Requirements: Android 4.0/IOS9.0

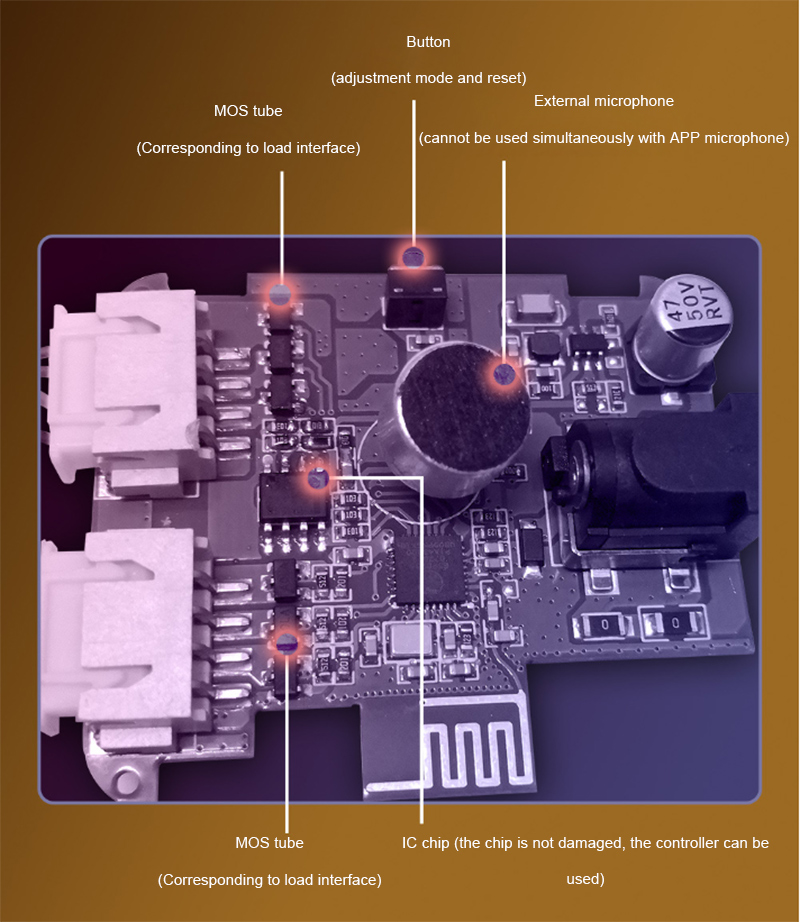

LED Drive Type: Constant voltage: MOS tube

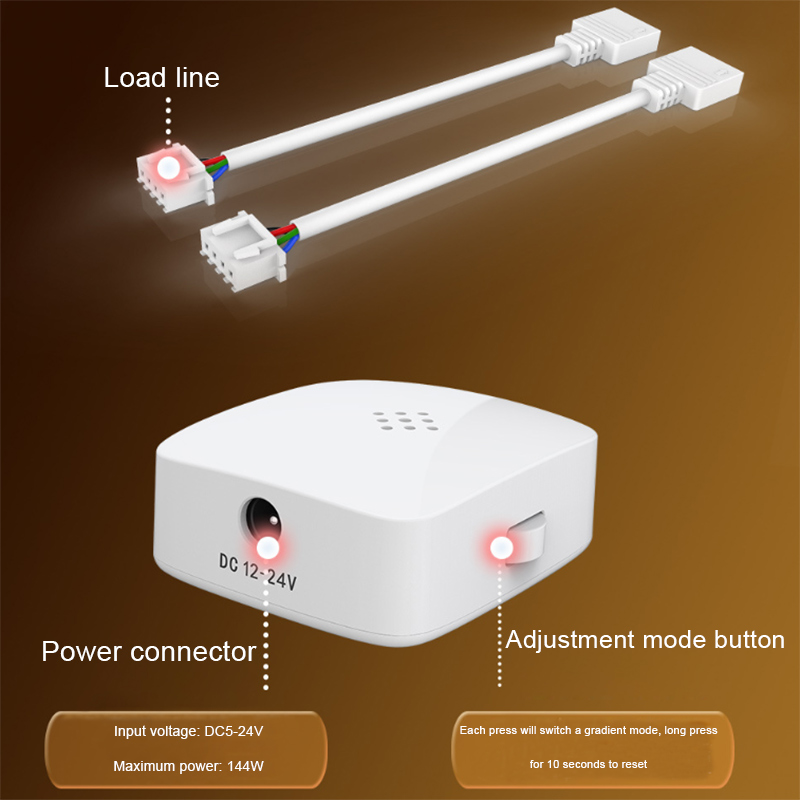

Input Voltage: DC5-24V
Maximum Power: 144W (72*2)

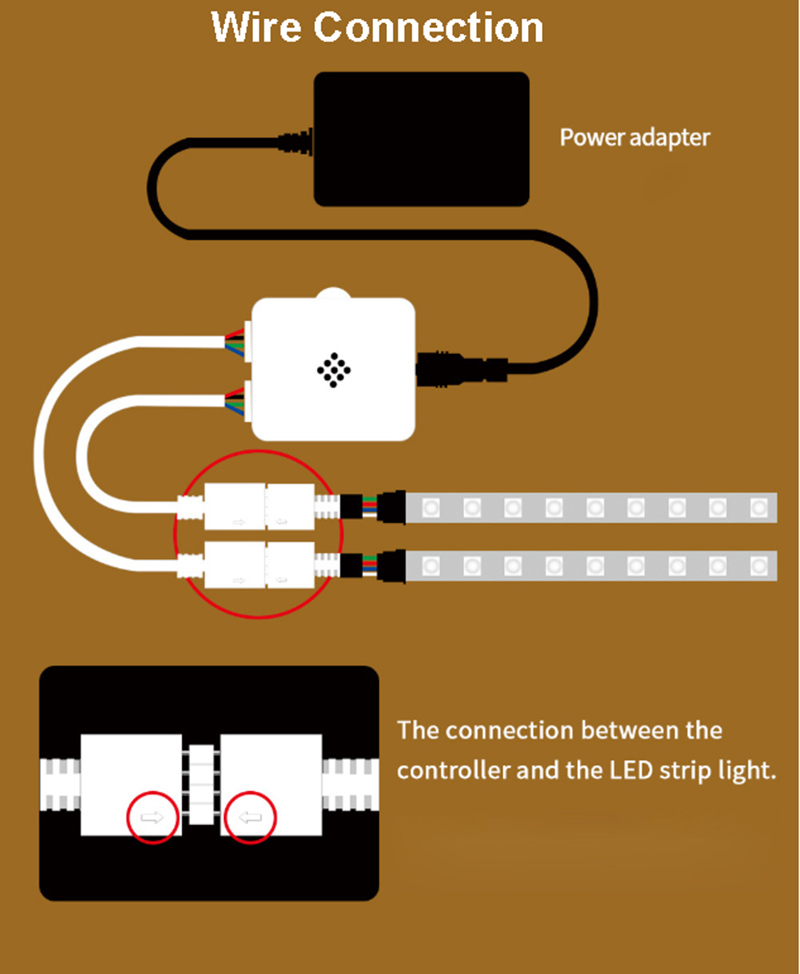

Connection Method: Common anode
Working Temperature: -20℃-55℃
Effective Control Distance: visual distance 60 meters

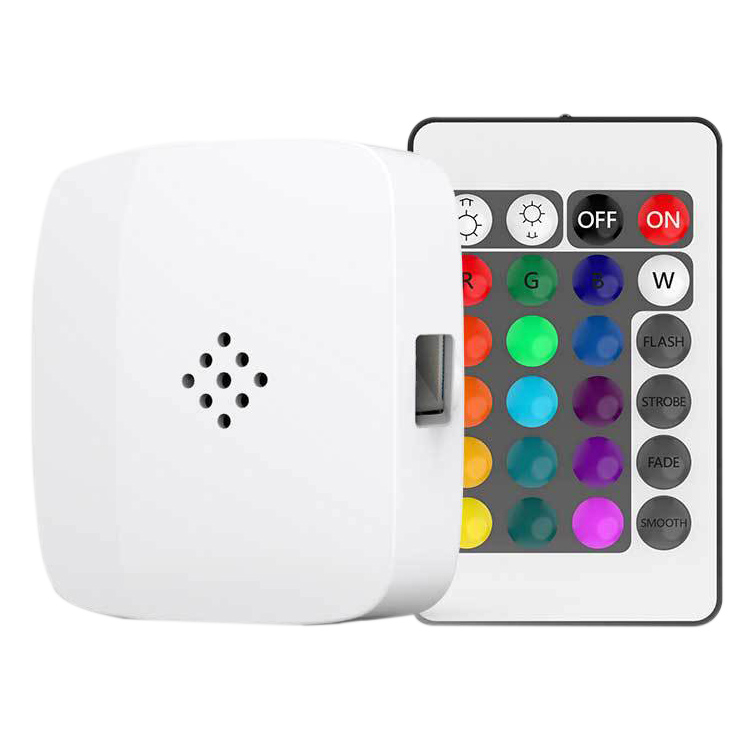

1 * double channels led controller
1 * 24keys IR controller
Instructions for use

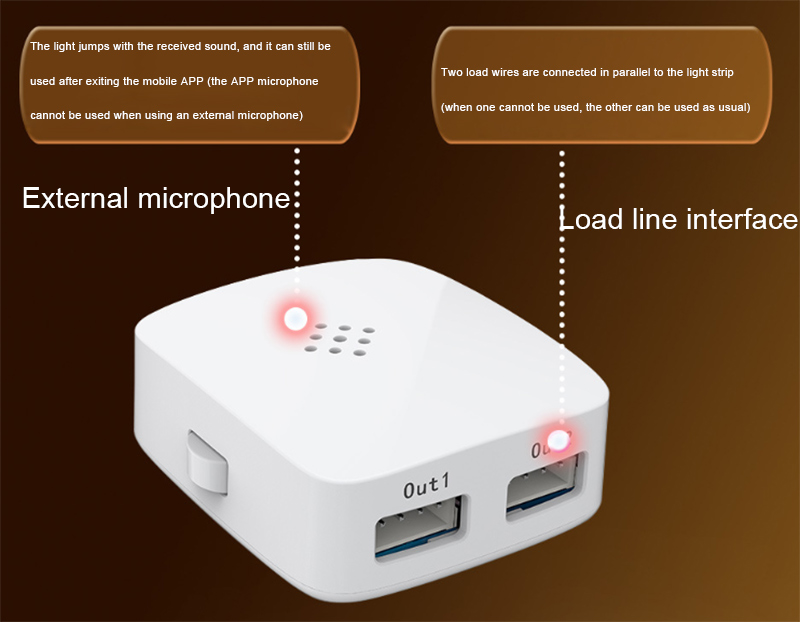

Each time you press it, you can switch to a color gradient mode. There are 20 color change scenes to choose. Long press for 10 seconds, the mode is reset to the initial state. The controller adds a new microphone function on the original basis. The light will follow the sound received by the device microphone. Even if you exit the APP, the device microphone will still work (the APP microphone is not available when the device microphone is used)
