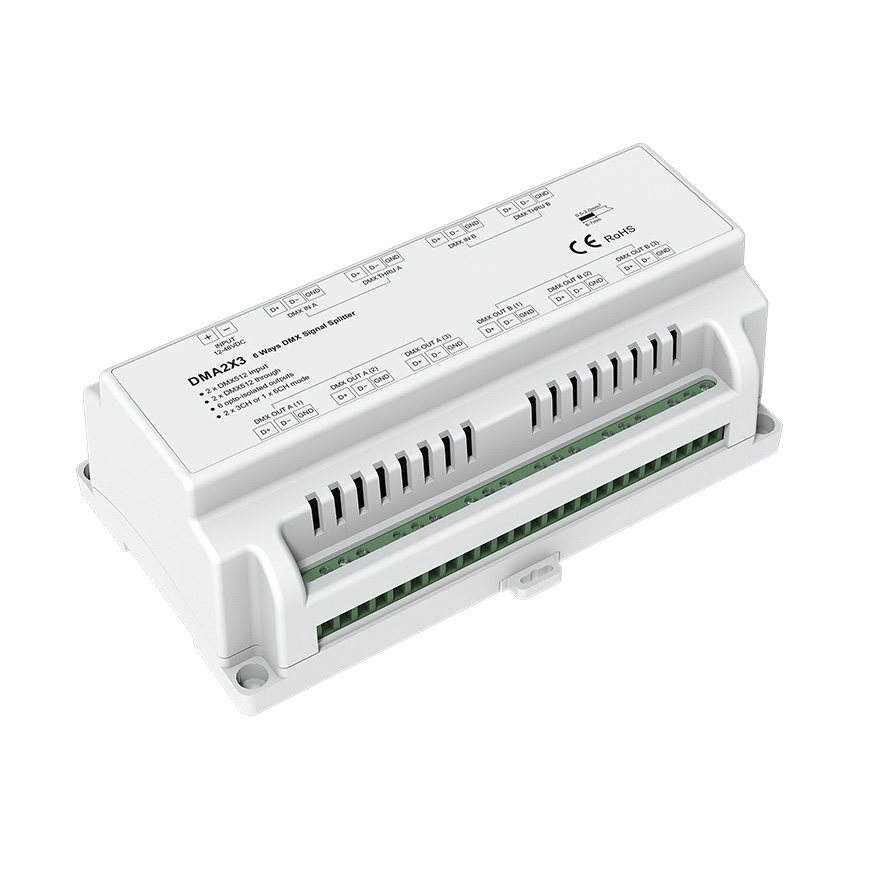

DMA2X3 6 Output Channels DMX Signal Splitter 12-48VDC

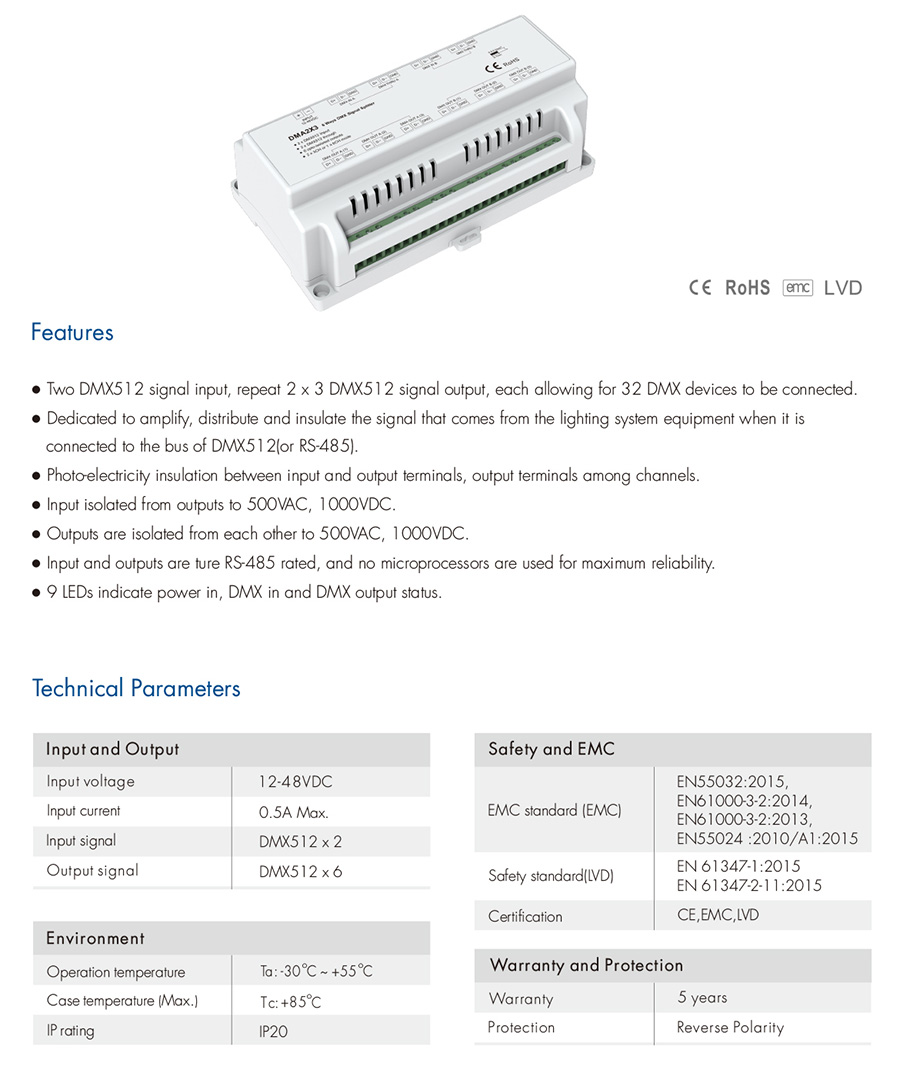

Two DMX512 signal input, repeat 2 x 3 DMX512 signal output, each allowing for 32 DMX devices to be connected.
Dedicated to amplify, distribute and insulate the signal that comes from the lighting system equipment when it is connected to the bus of DMX512(or RS-485).
Photo-electricity insulation between input and output terminals, output terminals among channels.
Input isolated from outputs to 500VAC, 1000VDC.
Outputs are isolated from each other to 500VAC, 1000VDC.
Input and outputs are ture RS-485 rated, and no microprocessors are used for maximum reliability.
9 LEDs indicate power in, DMX in and DMX output status.
Input and Output
Input Voltage: DC12-48V
Input Current:Max. 0.5A max
Input Signal: DMX512 X 2
Output signal: DMX512 x 6
Operation Temperature: -30℃~+55℃
Case Temperature(MAX.): +85℃
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Safety and EMC
EMC Standard (EMC): EN55032:2015, EN61000-3-2:2014, EN61000-3-2:2013, EN55024 :2010/A1:2015
Safety Standard(LVD): EN61347-1:2015, EN61347-2-11:2015
Standards and Certifications
