Product Information

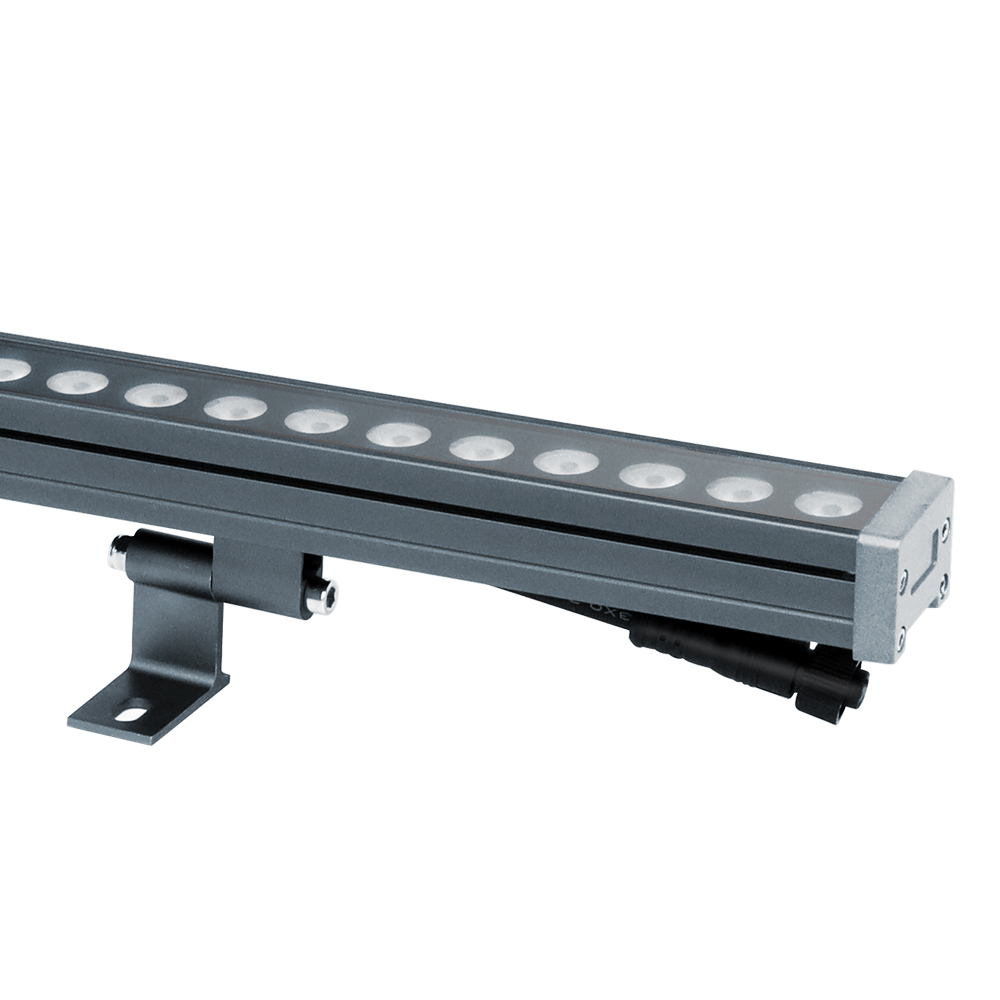

The WW4-24A-XL DMX512 RGBW LED wall washer light delivers 1200LM of focused architectural illumination across an optical projection distance exceeding 15 meters. Powered by a steady DC24V input and drawing 24W per fixture, this 3.28ft (1 meter) linear fitting integrates four-channel RGB plus 2700K warm white emitters behind precision 24° secondary lenses. Engineered for demanding exterior installations, the anodic aluminum oxide casing achieves an IP66 waterproof rating to withstand rain, snow, and salt-laden moisture. Designed with automated address allocation and wide-band DMX decoding (200K to 750Kbps), this wall washer light supports up to 1024 channels in parallel topology without manual DIP switch configuration.


Key Architectural & Control Features
Automated Address Writing
Each fixture edits its own DMX address automatically along the signal line, eliminating manual DIP switch setup during site commissioning.
Direct DMX512 Protocol Support
Fully compatible with the DMX512 (1990) standard, enabling native integration with any standard DMX512 master console or architectural lighting controller.
Parallel 1024-Channel Architecture
Parallel bus control topology accommodates up to 1024 channels on a single universe run, preventing downstream signal failure if one luminaire goes offline.
Wide-Baud DMX Decoding
Onboard decoder handles communication baud rates from 200Kbps to 750Kbps with exact frame synchronization for smooth, flicker-free dimming.
True 2700K Dedicated White
Combines dynamic RGB chips with an independent 2700K warm white diode channel (CRI >80) to produce rich pastel tones and crisp static architectural washes.
IP66 Sealed Aluminum Enclosure
Manufactured from anodic aluminum oxide with tempered glass and waterproof cable glands to resist corrosion and outdoor weather extremes.
Technical Highlights
- Narrow 24° beam optics cast uniform light past 15 meters without beam scatter or dark bands.
- Built-in signal shaping and repeating circuits extend the transmission boundary across long cable runs.
- Operates on regulated DC24V constant voltage to maintain strict thermal stability and eliminate electric shock hazards.
- Delivers 1200 lumens of total output while consuming exactly 24W of power across the full 1-meter span.
- Corrosion-resistant anodic aluminum oxide housing provides passive heatsinking across ambient temperatures from -20°C to 45°C.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | WW4-24A-XL |
| Product Type | Linear LED wall washer light |
| Operating Voltage | DC24V |
| Power Consumption | 24W |
| Fixture Length | 3.28ft (1 meter) |
| Color Spectrum | RGB + Warm White |
| Correlated Color Temperature | 2700K (White Channel) |
| Color Rendering Index (CRI) | >80 Ra |
| Luminous Flux | 1200LM |
| Optical Beam Angle | 24° |
| Illumination Distance | >15 meters (49.2 ft) |
| Control Protocol | DMX512 (1990) |
| DMX Signal Decoding Rate | 200Kbps – 750Kbps |
| Channel Support | 1024 Channels (Parallel Control) |
| Ingress Protection Rating | IP66 Waterproof |
| Housing Material | Anodic Aluminum Oxide |
| Operating Temperature Range | -20°C to 45°C (-4°F to 113°F) |
| Control Addressing | Automatic address allocation |

Application Scenarios
How to Control & Use This Controller

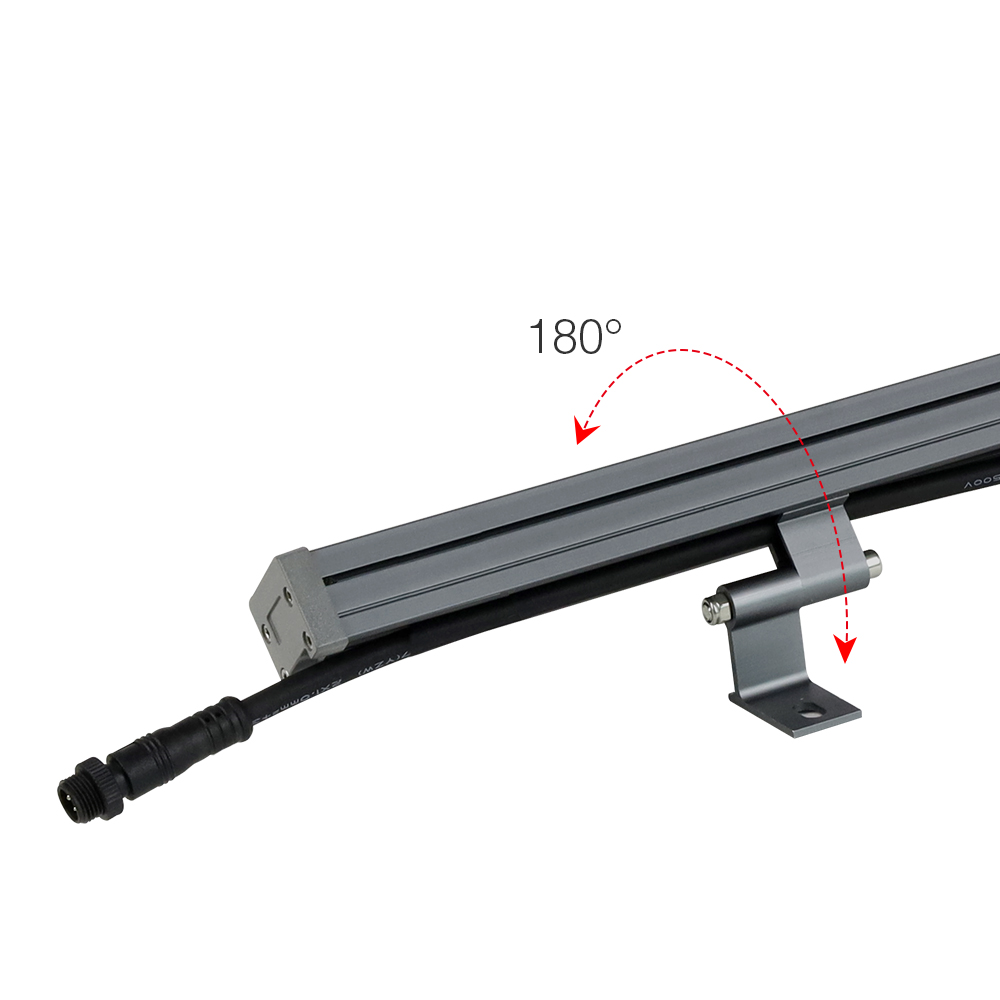

- Mount the fixture securely to the ground or mounting surface using the integrated brackets, adjusting the tilt angle toward the targeted surface.
- Connect the DC24V positive and negative power leads from the fixture to an external 24V waterproof power supply, verifying strict voltage matching and polarity.

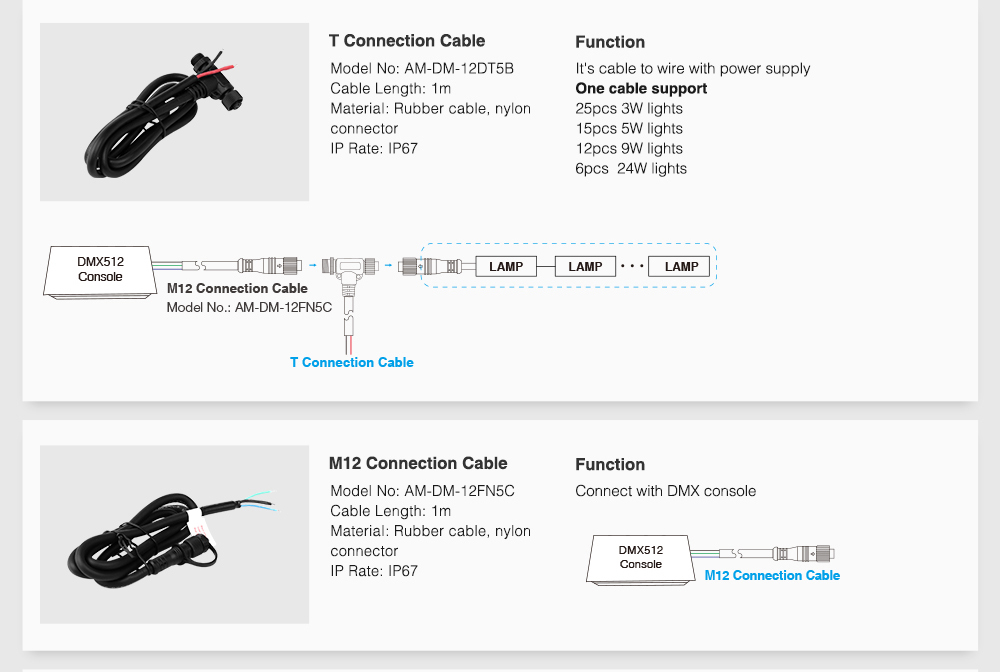

- Connect the DMX512 input signal cables (D+, D-, and Shield/GND) to the DMX line originating from your DMX512 master console or signal distributor.
- Link subsequent wall washer units in daisy-chain or parallel topology; automated address editing allocates channel positions sequentially along the run.

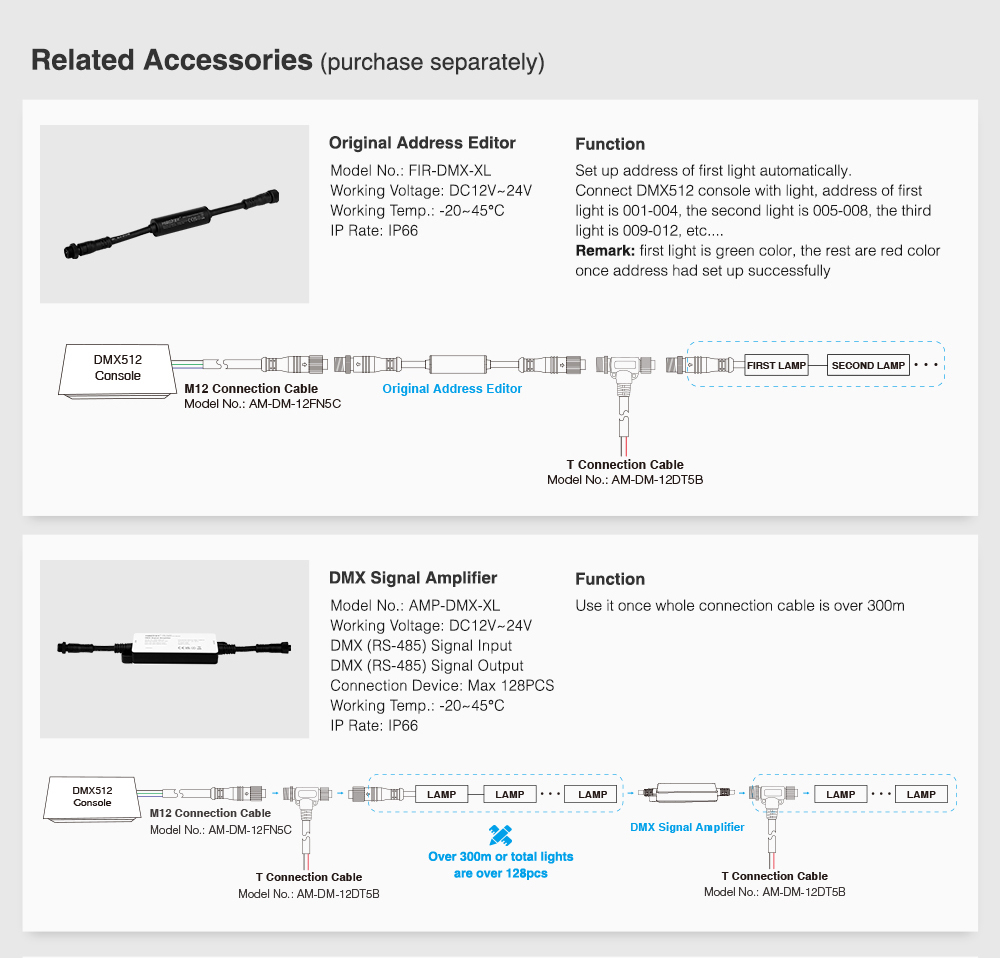

- If using long signal wiring, install suitable DMX accessories such as a 120-ohm terminal resistor on the final fixture to prevent reflected data packets.
- Power on the DC24V source and run a four-channel test sequence (Red, Green, Blue, White) from the console to verify response across all channels.
- Do not connect this fixture directly to AC100-240V mains; it requires a regulated DC24V power source to prevent instant driver failure.
- Ensure the cumulative wattage of connected wall washers does not exceed 80% of the rated capacity of your power supply.
- Keep total continuous low-voltage DC cable runs within calculated wire-gauge limits to prevent voltage drop and color shifting.
- Ensure all waterproof male/female mating connectors are tightened firmly to maintain the IP66 ingress protection seal.
What's in the Box
- ✓1 × WW4-24A-XL 24W DMX512 RGBW LED Wall Washer Light (1 Meter / 3.28ft)
- ✓2 × Heavy-Duty Adjustable Aluminum Mounting Brackets with Hardware
- ✓1 × Waterproof DMX Input Cable Pigtail
- ✓1 × User Wiring and DMX Addressing Specification Guide
Frequently Asked Questions
Q: how to connect rgbw led strip?
A:This wall washer uses four internal channels (Red, Green, Blue, White 2700K) controlled digitally via DMX512 data cables rather than five separate analog wires, simplifying cabling down to DC24V power plus DMX data lines.
Q: how to install waterproof led strip lights?
A:Fasten the dual adjustable mounting feet to your surface with anchors, set the 24° beam tilt angle, make watertight electrical joints using IP68 connectors, and connect the leads to a regulated DC24V outdoor driver.
Q: how does the automatic DMX address editing work?
A:The internal microchip reads its physical sequence in the signal chain upon startup and assigns its own 4-channel block automatically, eliminating the need to set manual DIP switches on ladders or scaffolding.
Q: what is wall washer light?
A:A wall washer light is a specialized luminaire engineered with directional optics (here, 24°) that casts an even, uniform sheet of light across vertical walls, facades, or architectural details over distances up to 15 meters.
Q: Can I connect multiple WW4-24A-XL units together?
A:Yes, fixtures can be wired in parallel up to 1024 DMX channels across a universe, provided each unit receives its required 24W from correctly sized DC24V power feeds.
Q: How is this fixture different from the RL1-24 and D4-W72 models?
A:The WW4-24A-XL runs on low-voltage DC24V and features direct DMX512 auto-addressing with RGBW (2700K) optics, whereas the RL1-24 uses AC100-240V RF wireless control and the D4-W72 is a larger 72W luminaire.
Q: Can this fixture produce true warm white light?
A:Yes, in addition to color-changing RGB LEDs, it contains dedicated 2700K warm white chips with a CRI >80, delivering clean architectural white lighting without the purplish hue of mixed RGB white.
