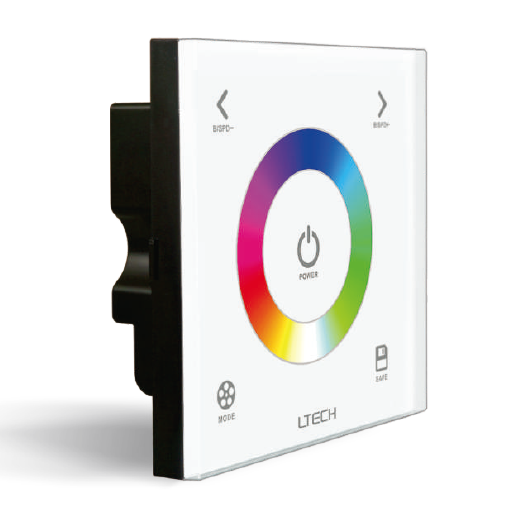

DX Series Touch Panel Controller DX3 For RGB LED Strips Lighting
DX3,DX Series,Wireless single zone, Dimming Touch Panel High-end Controller For RGB Color Change Multic Colour LED Strips Lighting, Warranty 5 years
Input voltage AC100~240V
Output signal RF 2.4G+DMX512
Control mode Sync control
RF Remote distance 30m
Working temperature -20℃～60℃
Package Size L112×W112×H48mm
Weight (N.W.) 225g
DX series touch panel controller
DX series wall-mounted touch panel controller is widely installed in commercial / office/household, which has four types: single color/CT/RGB/RGBW control with 2.4G wireless zones’ control and cable output DMX512 signal. Apply for various kinds LEDs.
DX Series Touch Panel Controller is the essence of others technology to provide you a high quality product.
Base on 2.4Hz wireless multi-zone control, no wiring trouble.
Can choose DMX 512 output, control DMX lamps.
Support 4 zones(only DX5, DX6, DX7, DX8), different zones can be in different control.
simple fashion and decent appearance design.
Unique structure, super easy to install/remove.
high accuracy touching IC+special post-processing ,the touching accuracy is highly strengthened.
Fool type operation, easy to use.
Touching along with chord music & LED indicator.Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.
Pioneered T-PWM dimming technology makes an almost perfect dimming/ color-mixing performance.
Support several panels to achieve multi-connected control.
Controller control the LEDs by the wireless zones receiver, base on 2.4GHz wireless control, no wiring trouble, user experience the free and fun of the wireless control!
