Product Information

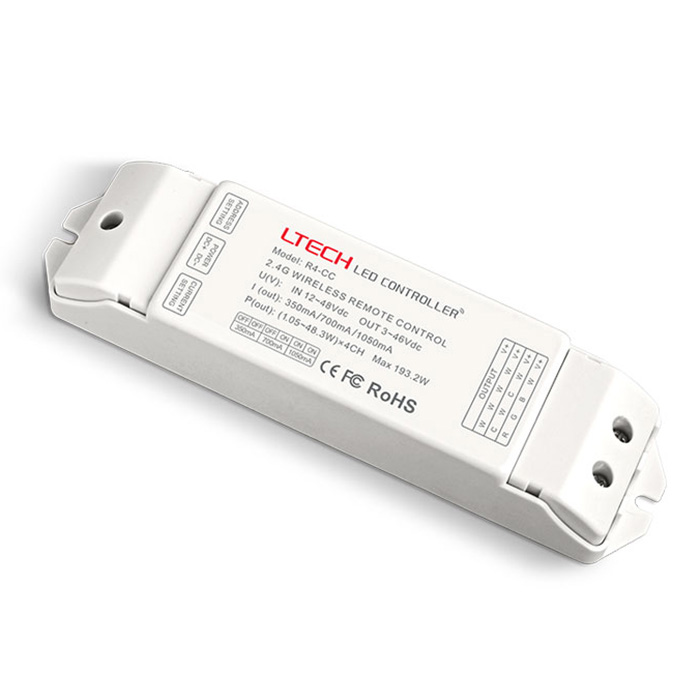

The Ltech R4-CC is a professional-grade 4-channel wireless receiving controller engineered for lighting systems that require precise constant current. Unlike standard controllers, the R4-CC provides a stable, selectable current output (350mA, 700mA, or 1050mA), making it exceptionally versatile for driving a wide range of high-power LEDs, spotlights, and custom fixtures. Its broad DC 12V to 48V input range offers significant flexibility in power supply selection. As a key component in Ltech's 2.4GHz wireless ecosystem, this multi-channel controller integrates seamlessly into sophisticated multi-zone control systems, delivering reliable, long-range performance for demanding architectural and commercial lighting projects.
Key Features
Selectable Constant Current Output
A 3-in-1 design allows you to select 350mA, 700mA, or 1050mA per channel to perfectly match the requirements of your specific LED fixtures.
Wide Voltage Compatibility
Operates on a broad DC 12V to 48V input, providing flexibility for various project scales and compatibility with different power supplies.
4-Channel Multi-Zone Control
Independently control four channels, perfect for managing multiple zones of single-color lights or a full RGBW constant current setup.
Reliable 2.4GHz Wireless RF
Features stable 2.4GHz wireless technology for responsive control up to 50 meters away when paired with compatible Ltech DX series wireless remotes.
High Power Capacity
Capable of handling a total maximum load of 193.2W (up to 48.3W per channel), suitable for substantial and professional lighting installations.
Technical Highlights
- PWM output ensures smooth, flicker-free dimming from 0.1% to 100%.
- Compact and robust housing designed for easy installation in tight spaces.
- Built-in protection mechanisms for enhanced safety and longevity.
Product Specifications
| Parameter | Details |
|---|---|
| Model | R4-CC |
| Working Frequency | 2.4GHz |
| Input Voltage | DC 12V ~ 48V |
| Output Voltage | DC 3V ~ 46V |
| Output Current | 350mA / 700mA / 1050mA × 4 Channels (Selectable) |
| Output Power per Channel | 1.05W - 48.3W |
| Max Total Power | 193.2W |
| Remote Distance | 50m (Line of Sight) |
| Working Temperature | -30℃ to 55℃ |
| Dimensions (L×W×H) | 175 × 44 × 30 mm |
| Package Size (L×W×H) | 178 × 48 × 33 mm |
| Weight (Gross) | 165g |
Application Scenarios
How to Control & Use This Controller
- Select Output Current: Before installation, use the DIP switch on the controller to select the correct output current (350mA, 700mA, or 1050mA) that matches your LED fixtures' specifications.
- Connect Power Supply: Wire the DC output from your 12V to 48V power supply to the controller's main power input terminals (V+ and V-).
- Connect LED Loads: Wire your constant current LED fixtures to the four output channels (CH1, CH2, CH3, CH4). Ensure the polarity is correct for each connection.
- Pair with Remote Control: Press the 'Learning Key' on the R4-CC receiver. Then, immediately press the desired zone key on your compatible Ltech RF remote. A flash from the connected LEDs will confirm a successful pairing.
- Test System: Power on the system and use the paired remote to test all functions, including on/off, dimming, and zone control, to ensure everything is working correctly.
- This is a constant current (CC) controller. Do NOT use it with standard constant voltage (CV) LED strip lights.
- Ensure the input voltage from your power supply is within the DC 12V-48V range.
- Do not exceed the maximum power rating of 48.3W per channel or 193.2W total for the controller.
What's in the Box
- ✓1 x R4-CC Constant Current Zone Receiving Controller
⇩ Downloads & Documents
PDFR4-5A
Frequently Asked Questions
Q: What is a constant current (CC) receiver used for?
A:A CC receiver delivers a stable, fixed amperage (e.g., 350mA) required by high-power LED chips found in spotlights and downlights. This protects them from overcurrent damage and ensures consistent brightness.
Q: How do I choose the right output current on the R4-CC?
A:You must match the controller's output current to the specification of your LED fixture. The setting is selected using a physical DIP switch on the unit before you connect the lights.
Q: Which remotes are compatible with this receiver?

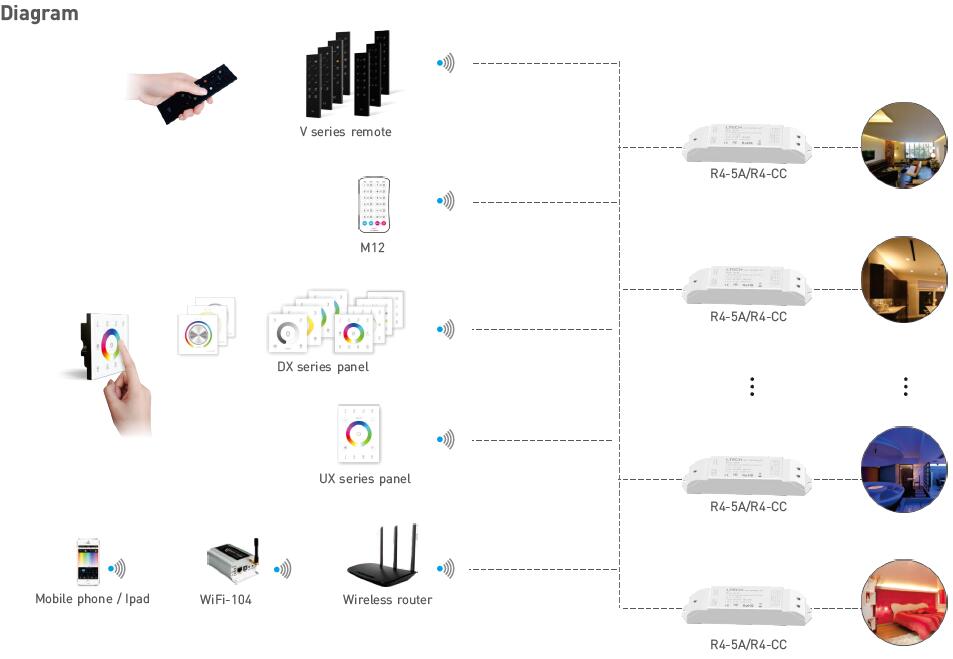

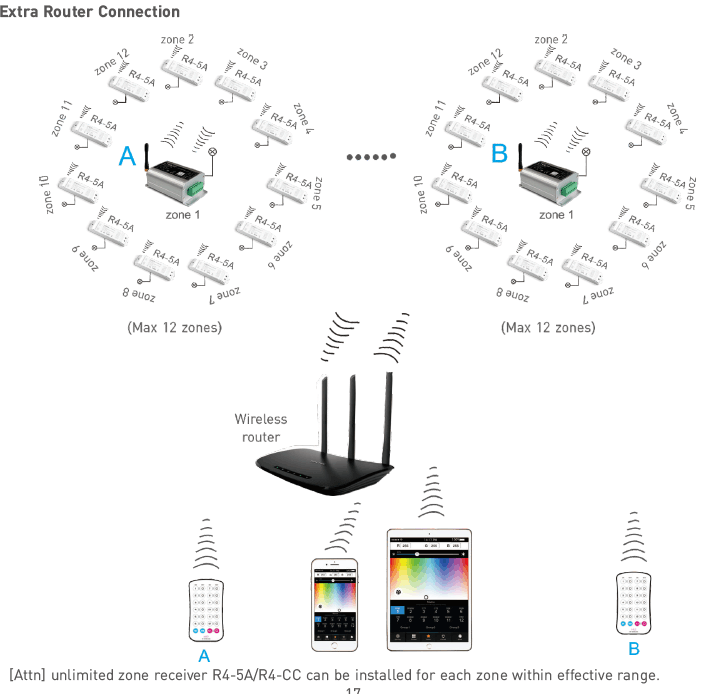

A:The R4-CC is designed to work with Ltech's DX series 2.4GHz RF wireless remotes and compatible WiFi gateways for app control. It enables sophisticated multi-zone control.
Q: Can I use this with regular 12V or 24V LED tape light?
A:No. This controller is strictly for constant current LED fixtures. Standard LED tape light requires a constant voltage (CV) controller, such as the Ltech R4-5A.
Q: What kind of power supply is needed?
A:You will need a constant voltage DC power supply with an output between 12V and 48V. The exact voltage and wattage rating depends on the requirements of the LED lights you are connecting.
