Extra Large 100mm 4 Inch Square Pendant Ceiling LED Strip Light Profile

Model: ZM-LXJ-100100-B
Extra Large 100mm 4 Inch Square Pendant Ceiling LED Strip Light Profile
  • Extra Large 100mm 4 Inch Square Pendant Ceiling LED Strip Light Profile
  • Extra Large 100mm 4 Inch Square Pendant Ceiling LED Strip Light Profile
  • Extra Large 100mm 4 Inch Square Pendant Ceiling LED Strip Light Profile

Select Specifications:

Starting at: $70.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$70.98
10-19
$69.92
20-49
$69.21
50+
$68.50
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

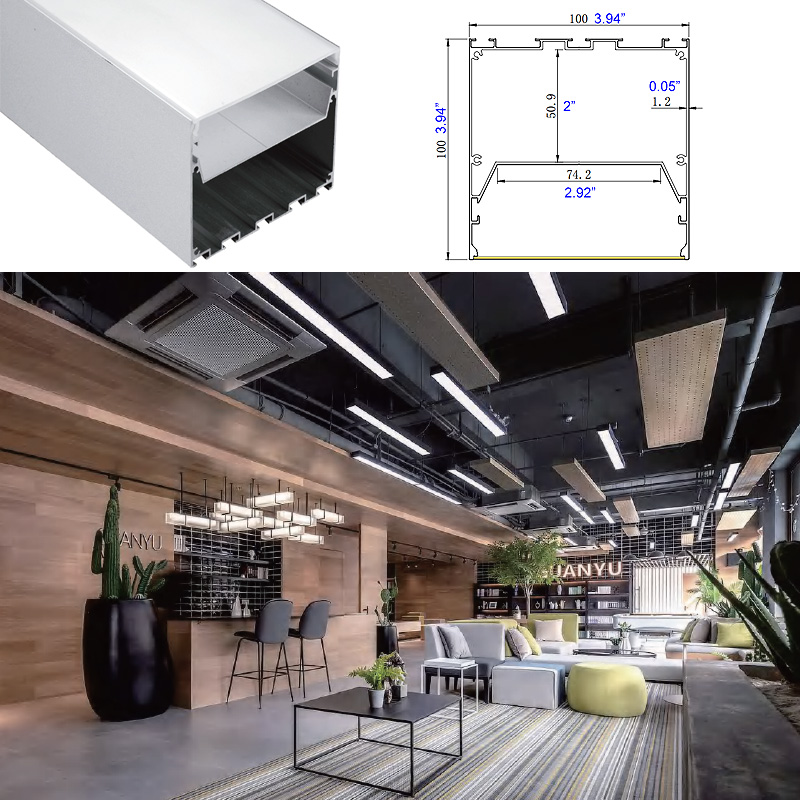

    ZM-LXJ-100100-B 100mm*100mm extra large, extra wide size square ceiling LED profile is designed to enhance the lighting beauty and functionality of any space. This ultra-large square pendant light led strip aluminum profile has a modern and sleek look that complements a variety of decorative styles. The large 4-inch size allows for plenty of coverage for LED strip channel lighting, ensuring that your pendant fixtures will make a statement in any commercial or industrial setting.

    This ZM-LXJ-100100-B hanging led strip profile features an innovative dual-layer construction design, the layer with PC light diffuser ideal for affixing LED strips and the other enclosed layer providing a dedicated space for mounting LED controllers and power accessories. This layered design ensures that the installation of LED strip lights in the ceiling has a clean and organized appearance.



    • Square linear pendant ceiling LED tape profile, adds geometric beauty to any interior design

    • 100mm*100mm (4in*4in) extra large and extra wide size, providing a spacious space for your lighting design

    • Simple, minimalist modern and stylish appearance, ideal for modern interior lighting decoration

    • 74.2mm (2.92in) internal width for easy installation of any LED strip like multi-row 2835 or 3528

    • Two-tier construction, one for attaching LED strips and one for holding LED controllers and power accessories

    • Accent lighting from top to bottom to bring bright light to the space

    • Ideal for offices, supermarkets, retail environments and other commercial and industrial lighting spaces



    Note: As the 2m extra large led aluminum profile is too long and bulky, the package size will exceed the DHL/UPS/TNT requirement (4 feet), so extra long transportation costs will be required if your 2m order is less than 10 pieces.

    Multiple led strip aluminum profiles can be spliced together with some channel connectors.



    Product Specification

    Product Type:  Extra Large 4 Inch Square Pendant Ceiling LED Strip Light Profile
    Material:  6063-T5 Aluminum Alloy

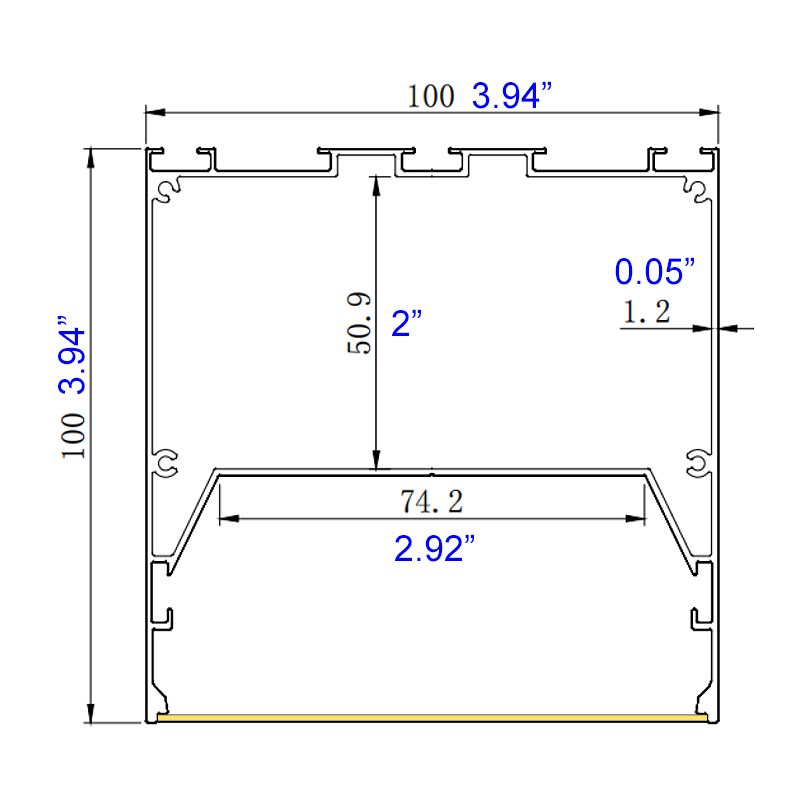

    Channel Size:  W100mm(3.94")*H100mm(3.94")
    Inner Width:  74.2mm(2.92")
    Color:  Silver / black aluminium
    LED Diffuser:  Opal / semi-clear light diffuser cover
    Length:  1m(3.28ft) /2m(6.56ft)
    Accessory:  1*aluminum led strip proifle, 1*light diffuser cover, 2*end cap, 2*suspension cable
    Apply to:  LED strip light with any width



    Extra Large 100mm 4 Inch Square Pendant Ceiling LED Strip Light Profile



    Extra Large 100mm 4 Inch Square Pendant Ceiling LED Strip Light Profile

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    Extra Large 100mm 4 Inch Square Pendant Ceiling LED Strip Light ProfileExtra Large 100mm 4 Inch Square Pendant Ceiling LED Strip Light ProfileExtra Large 100mm 4 Inch Square Pendant Ceiling LED Strip Light Profile
