Extremely Bright Digital COB RGB LED Strip SM16703

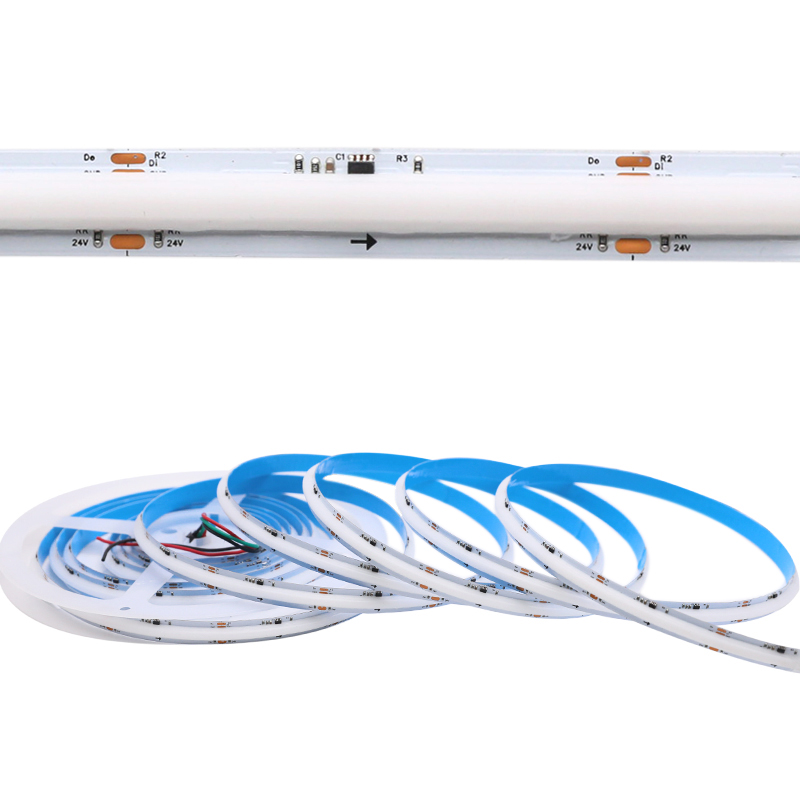

An improved version of the DCFLS-24V-WS2811X588 720 chips/m cob addressable RGB led strip, with a thicker and wider light-emitting layer to achieve ultra-high brightness levels at 648 chips/m led density.

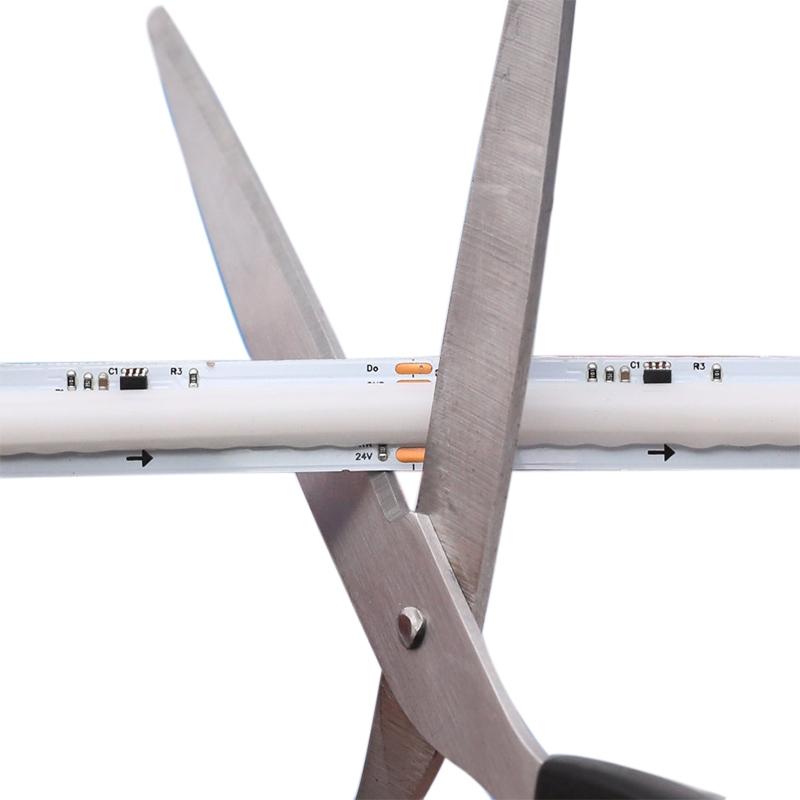

This extra bright digital RGB cob led strip light is controlled by SM16703 IC, similar to WS2811, and is cut every 55.6mm (0.18"), with one cut unit for one IC control area, 18 pixels per meter. 24V voltage input.
This super bright pixel rgb cob led light strip has a friendlier lighting experience with a more focused light that reduces glare. Whether used directly or with neon tubing or aluminum profiles, it achieves an aesthetical lighting effect for your room and outdoor home areas.
|Product Type:||Super Bright Digital RGB COB LED Strip|
|IC Chip:||SM16703 (WS2811)|

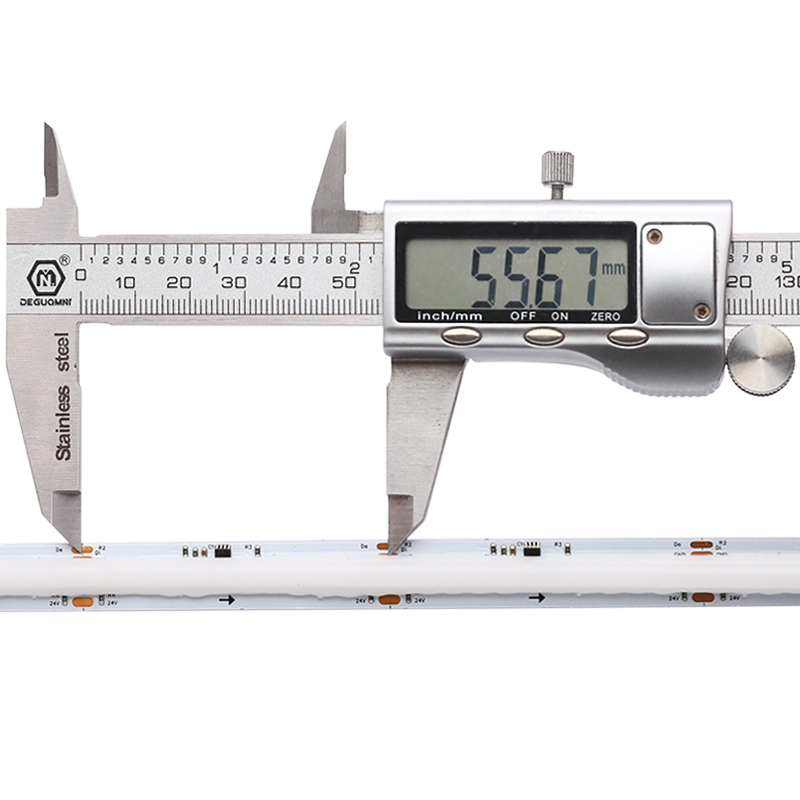

|Cut Segment:||55.6mm (0.18")|
|LED Quantity:||648 chips per meter, 197 chips per foot|
|Waterproof Rating:||Non waterproof IP20|
|Lamp Luminous Flux(lm):||8-10lm/LED|
3 Pin Digital COB RGB LED Strip Wiring Diagram
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
