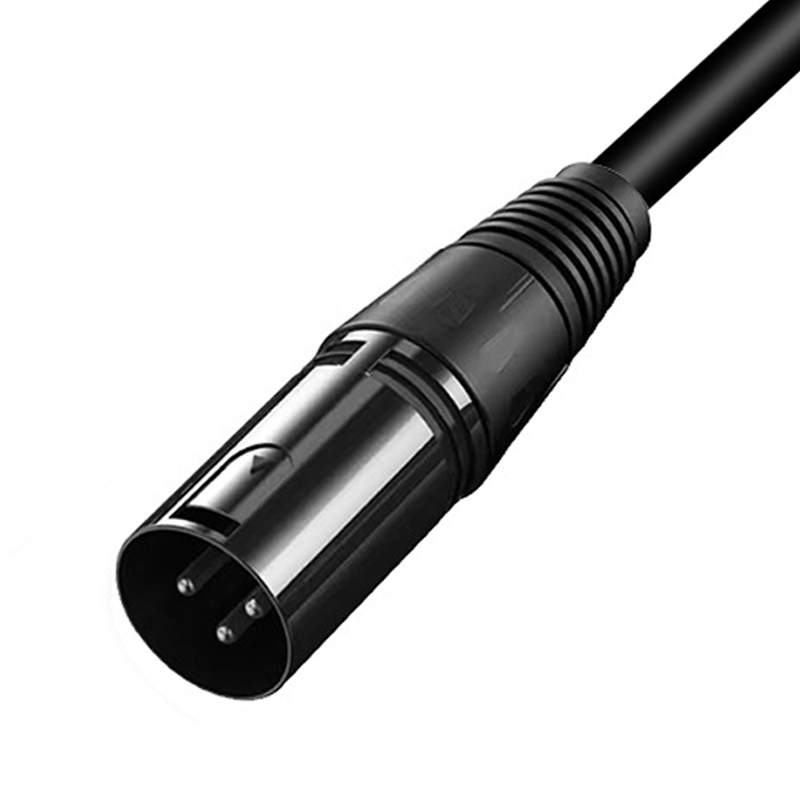

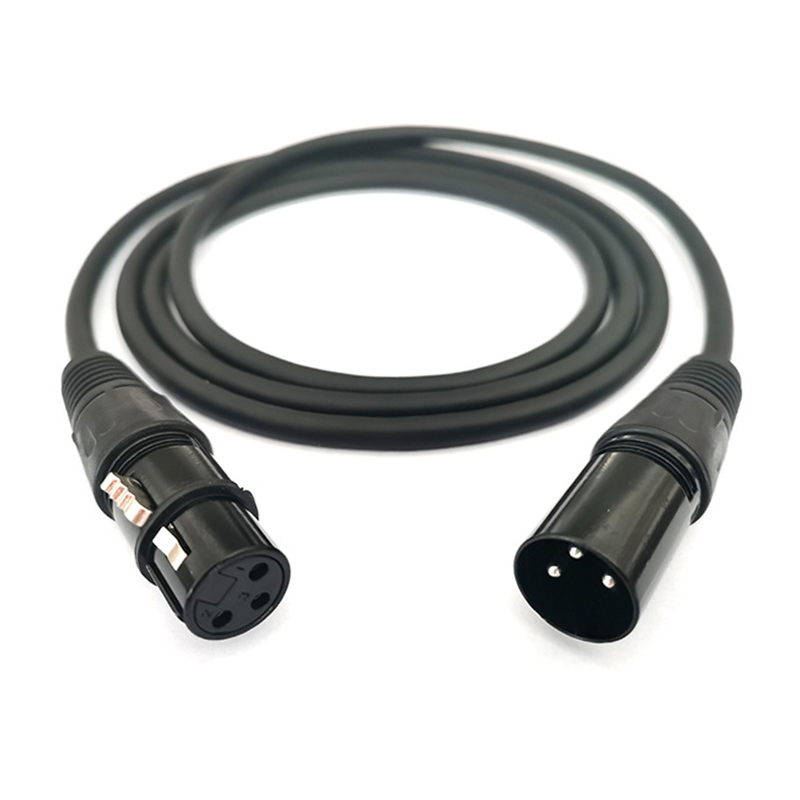

Create robust and reliable connections in your professional lighting setup with the DMX Lighting System XLR Male Connector Wire. This essential component is the perfect solution for building custom-length DMX cables, repairing existing equipment, or creating pigtail connections for fixtures. With a wide selection of pin counts (3, 4, 5, and 6-pin) and the choice of a standalone connector or a pre-wired version up to 10 meters, you have the flexibility to tackle any project. Engineered for secure signal integrity, this male XLR connector ensures flawless communication between your DMX master decoder console and your lighting fixtures, making it a must-have for any technician's toolkit.
Key Features
Versatile Pin Configurations
Available in 3, 4, 5, and 6-pin options to support standard DMX512, DMX with RDM, or other custom multi-channel signal applications.
Flexible Wiring Options
Choose between a standalone connector for custom wiring or a pre-wired pigtail in multiple lengths from 1m to 10m for quick integration.
Secure Locking Design

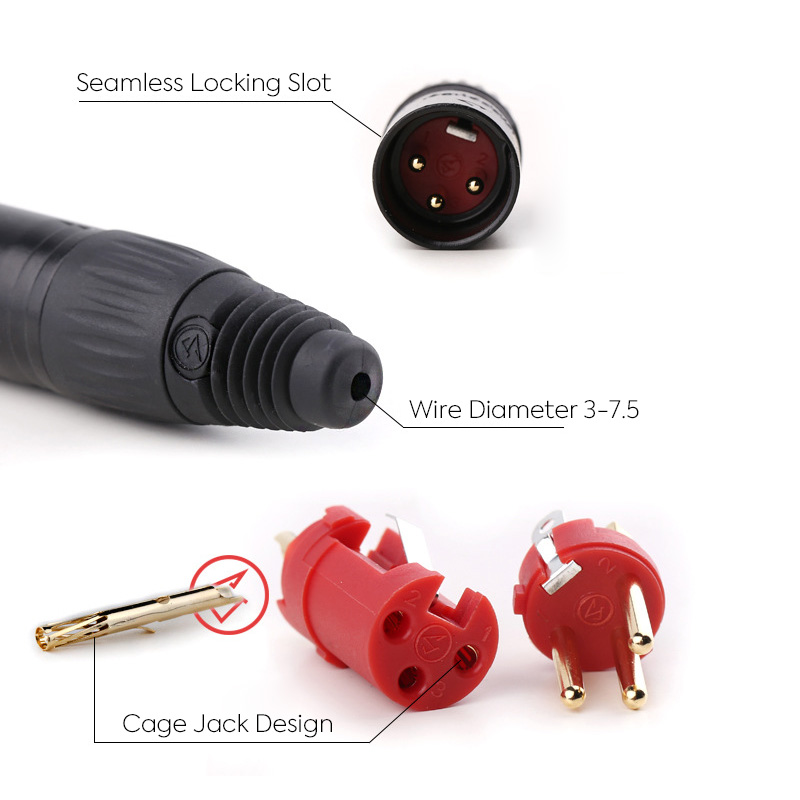

Features a robust metal housing with a secure latching mechanism to prevent accidental disconnections during performances or events.
High-Quality Signal Transfer
Designed to maintain DMX signal integrity, ensuring reliable control of your lighting fixtures without data loss or interference.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | DMX-XLR-MALE |
| Connector Type | XLR Male Connector |

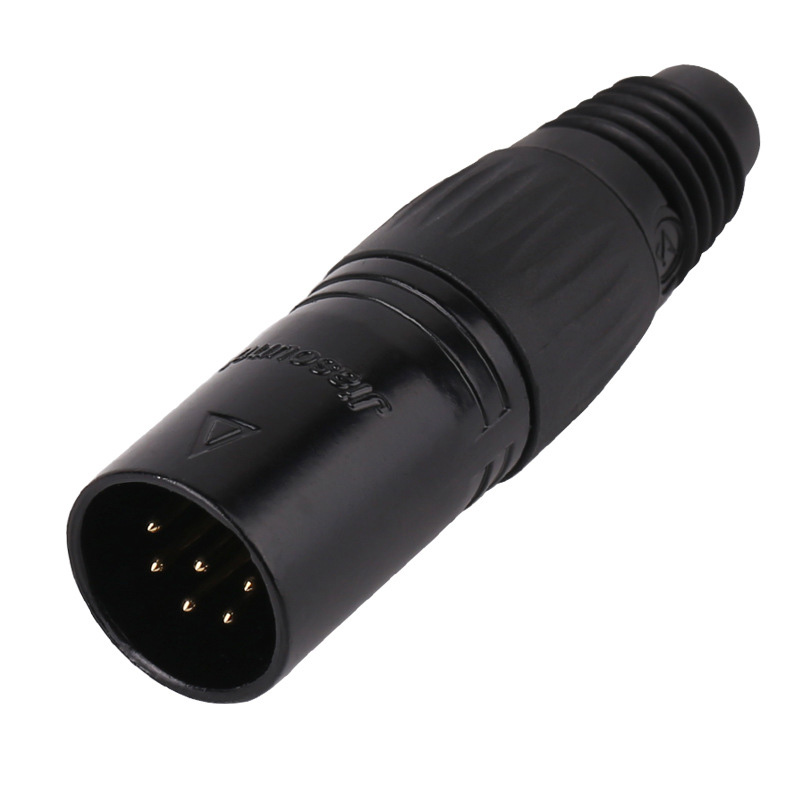

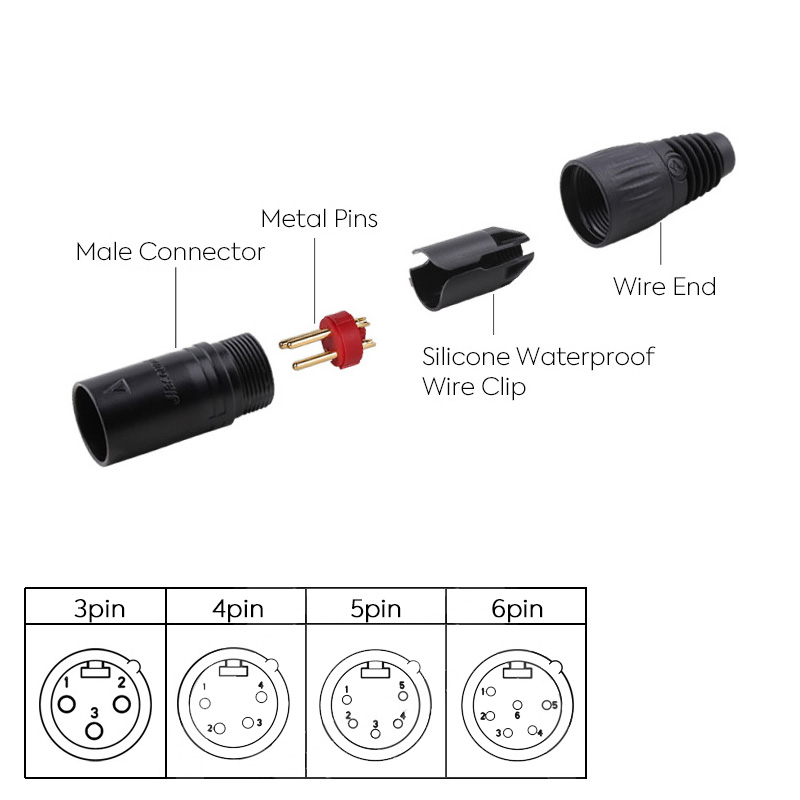

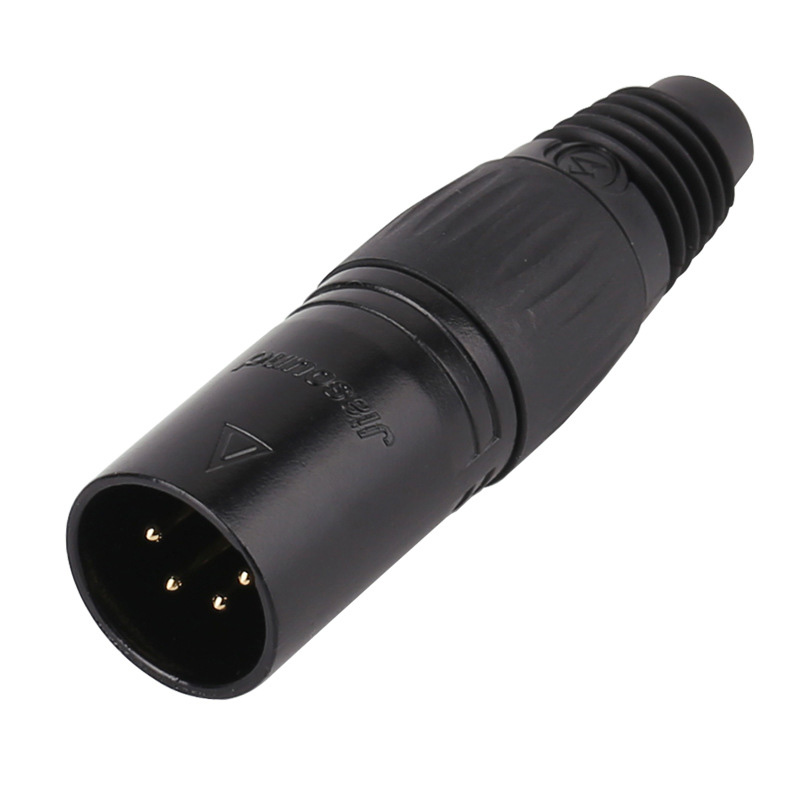

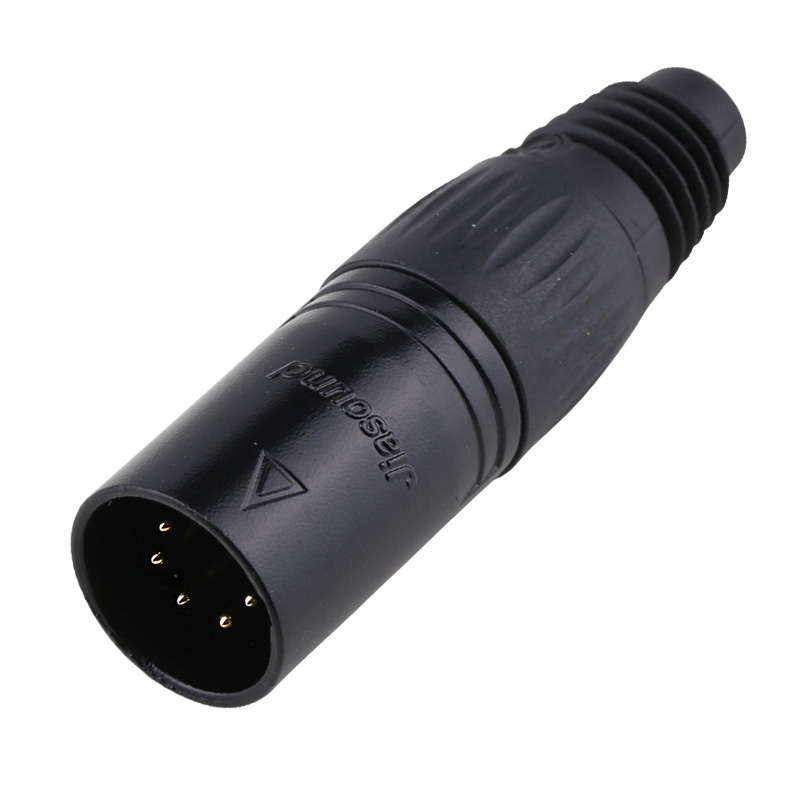

| Pin Options | 3-Pin, 4-Pin, 5-Pin, 6-Pin |
| Wire Length Options | Just Connector (No Wire), 1m (3.28ft), 2m (6.56ft), 3m (9.84ft), 5m (16.4ft), 10m (32.8ft) |
| Rated Voltage | < 50V |
| Housing Material | Durable Metal Alloy |
| Termination (Wired versions) | Pre-tinned wire ends for soldering |
| Compatibility | Standard DMX512 protocol devices |
Application Scenarios
How to Use This DMX XLR Male Connector
- Select the connector with the correct pin count (3, 4, 5, or 6) that matches your DMX device and cable.
- If using a pre-wired version, consult your device's manual to identify the function of each colored wire.
- Strip a small amount of insulation from the ends of the wires on the cable or fixture you are connecting to.
- Solder the corresponding wires from the XLR pigtail to your device's wires, ensuring a clean and strong solder joint for optimal signal transmission.
- Use heat-shrink tubing over each individual solder joint to provide insulation and strain relief.
- Plug the assembled male XLR connector into the female XLR port on your DMX controller or the previous light in your DMX chain, ensuring the latch clicks securely into place.
- Always double-check the pinout diagram of your specific equipment before soldering. Pin assignments can vary, especially for non-standard 4-pin and 6-pin applications.
- This product is a component for soldering and requires appropriate tools and skills for proper installation. It is not a solderless or quick-splice connector.
- Ensure the total voltage of the connected system does not exceed the connector's <50V rating.
- This connector is intended for indoor or protected outdoor use and is not waterproof.
What's in the Box
- ✓1 x DMX XLR Male Connector (configuration as per your selection)
Frequently Asked Questions
Q: What is the difference between 3-pin and 5-pin DMX connectors?
A:3-pin is the most common for basic DMX512 control (Ground, Data+, Data-). 5-pin is the official DMX standard, with two extra pins intended for a secondary data link or other functions, though they are often unused in simple setups.
Q: Can I use this 3-pin XLR connector for audio microphones?
A:While it is physically identical to a 3-pin audio XLR connector, this product is specified and sold for DMX lighting control. For critical audio applications, we recommend using connectors specifically rated for audio to ensure proper impedance and shielding.
Q: What does the 'Just Connector' option include?
A:The 'Just Connector' option provides only the male XLR connector housing with solder cups, without any pre-attached wire. This is for users who prefer to solder their own custom cable directly to the connector pins.
Q: Do I need to solder this connector?
A:Yes. Both the 'Just Connector' version (soldering to the pins) and the pre-wired versions (soldering the wire ends) require soldering for a secure and reliable electrical connection.
Q: Is this DMX connector waterproof?
A:No, this is a standard XLR connector designed for indoor or dry, protected environments. It does not have an IP rating for water resistance.
