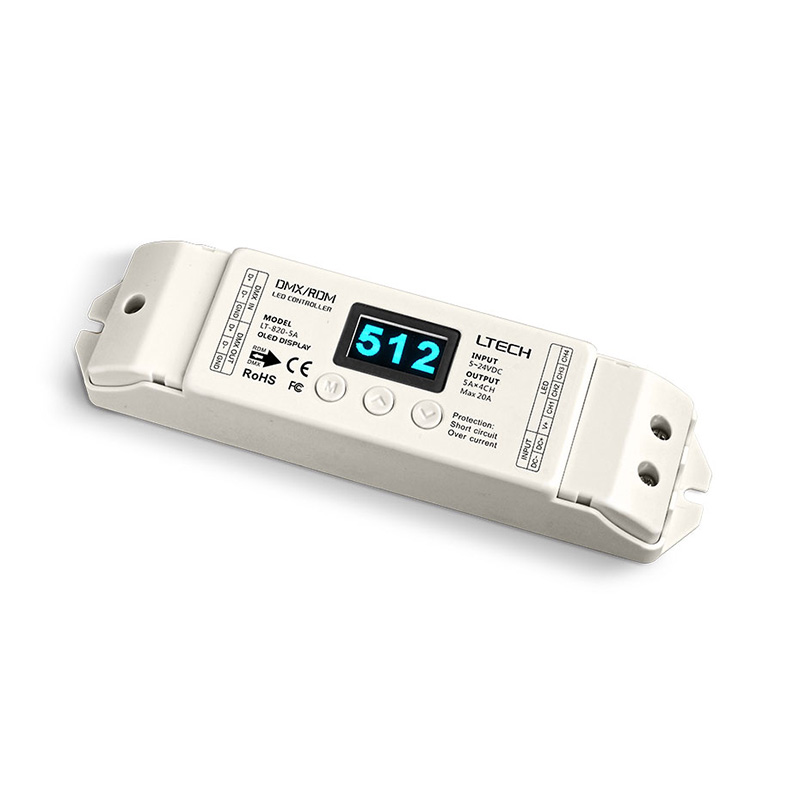

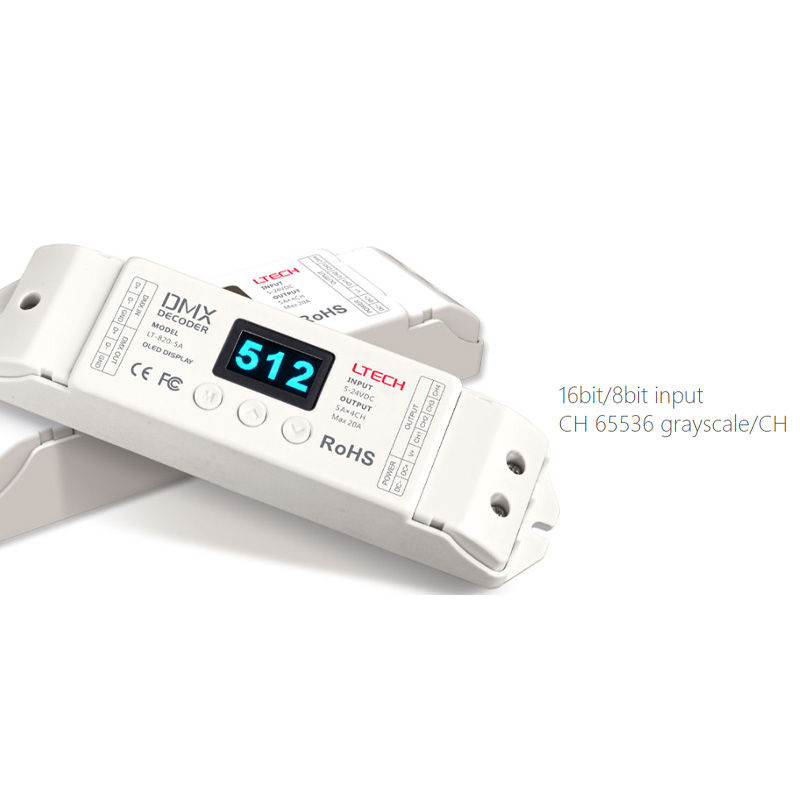

4CH 20A CV RGB RGBW DMX Decoder LT-820-5A for CT RGBW led strip lights
LT-811-12A, LT-820-5A, LT-823-6A Wireless DMX512 receiver receive the standard DMX512 protocol data wirelessly. Match with our DX series wireless transceiver,supporting point to point, point to multi-point net work Network structure.A transceiver can match with multiple receivers as long as they under the same frequency.
The product is used for data transmission between DMX console and lightings ,lightings and lightings which replace Wired transmission .The data will not be delayed and which is ture and reliable during transmission process.
The product adopts 2.4GHZ RF global open ISM frequency channel, which is a low-cost, powerful wireless DMX512 transceiver and widely applied to DMX512 controllers from various manufacturers.
With monitoring wireless environment around and automatic frequency selecting function.
Use relay settings or connect to Booster Antenna to further the communication distance.
● It is easy to set the address parameter and so on with OLED display.
● Adopt 2.4GHZ RF global open ISM frequency channel, which is applicable for license free worldwide and efficient GFSK modulation.
● Compatible with Standard International standard DMX512 protocol.
● A sending end can configure multiple receiving ends. As long as the receiving end and sending end are set as same frequency point, both sides can communicate normally.
● With monitoring wireless environment around and automatic frequency selecting function.
● 4 choices of sending end transmitted power level, visual communication distance can reach 350 meters at maximum transmitted power (20dBm).
● With self-test inspection mode when need to test the wireless link quality or engineering installation and debugging.
● Use relay settings or connect to Booster Antenna to further the communication distance. Relay once or many times to achieve the required distance.
Input signal: DMX512
Input power: DC5V～DC24V
Max load current: 5A ×4CH Max 20A
Max output power: 100W/240W/480W/(5V/12V/24V)
Dimming range: 0～100%
Working temperature: -30℃～55℃

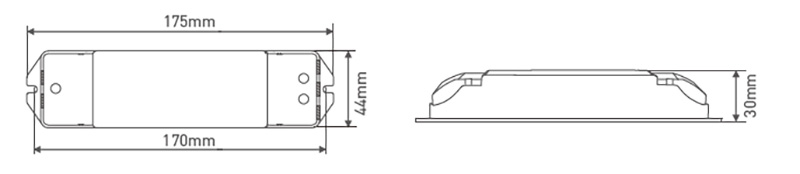

Package Size: L178×W48×H33(mm)
Weight (G.W): 175g
