MiLight WiFi RGB Smart LED Strip Light Kit - 12V LED Tape Light/ Remote or Wi-Fi Controller Hub - 244 Lumens/ft

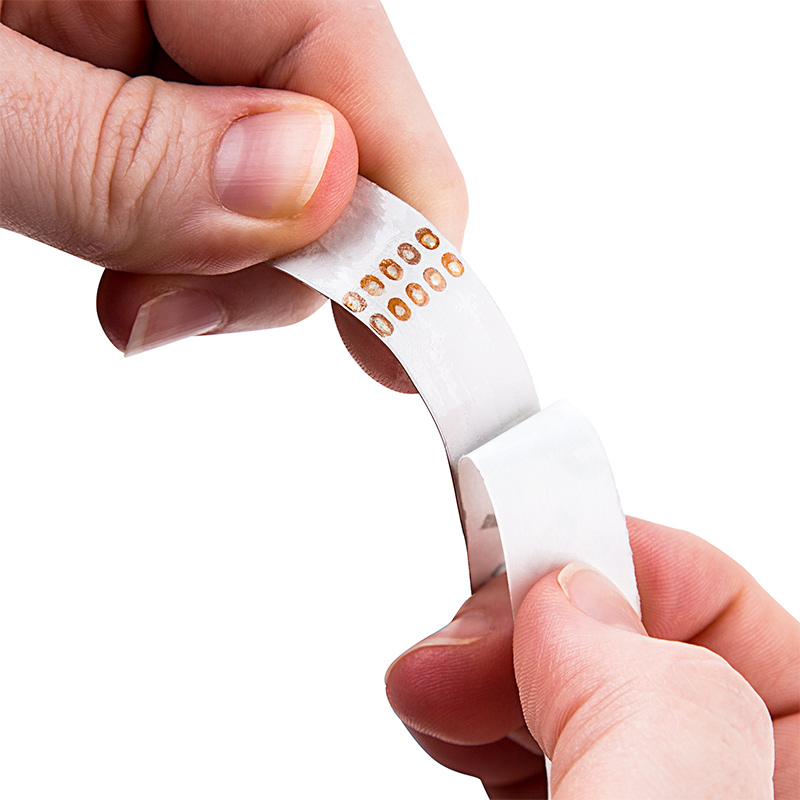

This complete RGB LED smart light strip kit includes everything required for easily installed cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, or other indoor applications where space is limited and can be plugged into a standard 3-prong outlet. Kits include a 16.4', 3.28', or 1.64' LED strip light, LC4 connector, Wi-Fi multi-zone RGB controller, and 12V power supply. Use the optional Wi-Fi hub with your smartphone or tablet on Android or iOS via the free MiLight 3.0 app to adjust colors, static and dynamic color modes, speed, and brightness for up to 4 separate zones of strips, or control strips with an optional RF remote. Easily cut this strip into 6-LED segments and install it with its peel-and-stick adhesive backing.
Under cabinet LED lighting
Cove LED lighting
Retail/sign LED lighting
Display case LED lighting
Accent decor LED lighting
Trade show lighting
Beam Angle: 180 degree
Connection Type: LC4 Connector, LC4 Female, LC4 Male
Connector Type: LC4
IP Rating: Non-Weatherproof

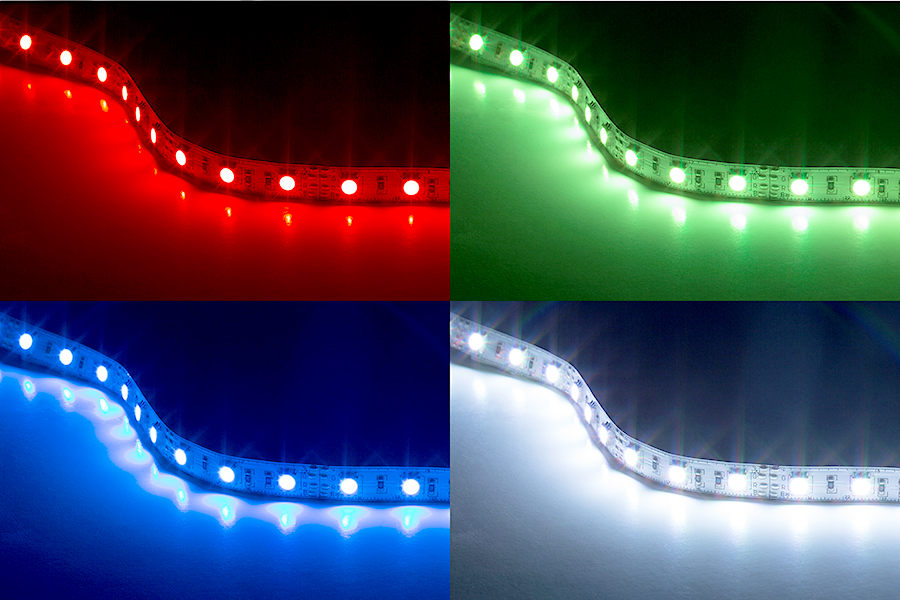

LED Color: RGB
LED Density: 18 LEDs/ft.
LED Lifetime: 40000 Hours
LED Type: 5050 SMD
LEDs per Segment: 3
Lumen Per Foot: 244 lm/ft
Lumen Per LED: 13.4 Lumen
MCD Per Foot: 38972
MCD Per LED: 2132
Polarity Sensitive: Yes

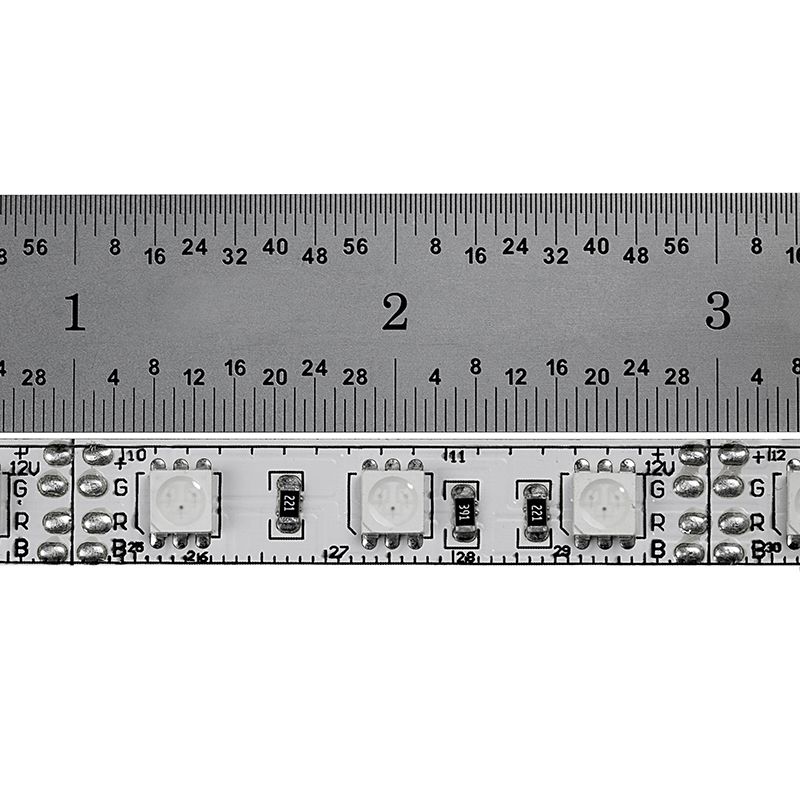

Minimum Cut Length: 50mm (2in)
Special Features: Plug and Play
Standards And Certifications: ISA Approved, RoHS Compliant, UL Listed
Strip Width: 10mm (0.39in)
Suitable for Vehicles: Yes
Type: Flexible Light Strips, High Density
UL File Number: E357850
Operating Voltage Range: 9~14.8 VDC
Wavelength: 470 nm, 525 nm, 626 nm
Wire Length: 9in(22.8cm)
