Music Controller DMX-BT-AUDIO

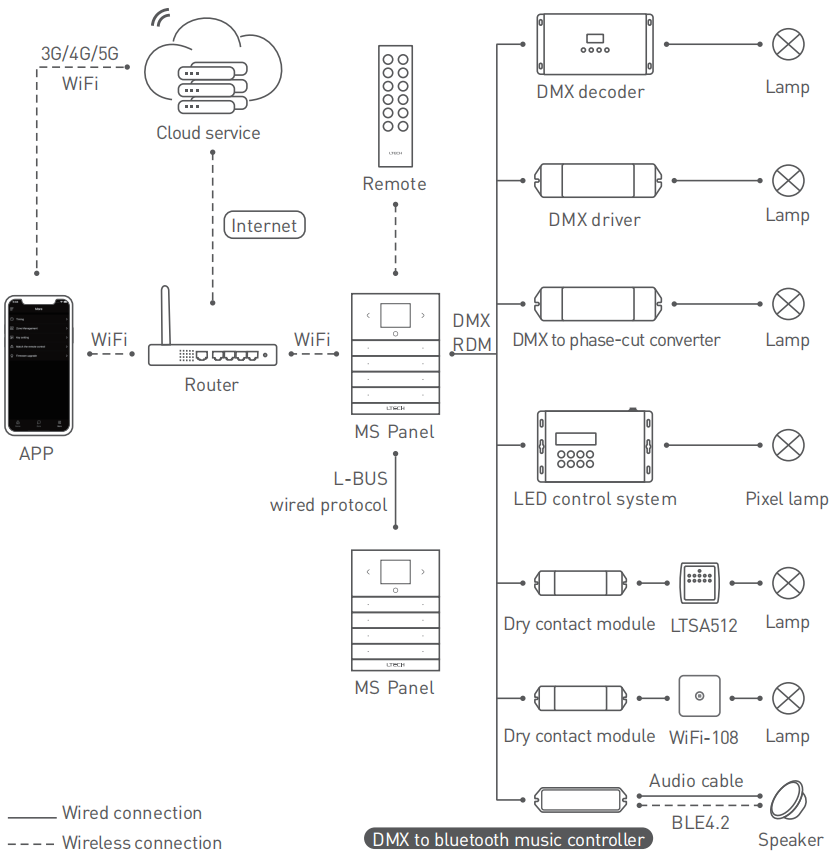

DMX-BT-AUDIO is a DMX to Bluetooth music controller that can work with LTECH MS Panel system. It works with speakers through Bluetooth connection or audio cables. The built-in USB interface and TF card socket read music resources and realize the matching effects of customized lighting scenes and music, which satisfy the needs of general customers.
Input signal: DMX512/RDM
Input voltage: 12-24Vdc
Number of tracks: 128
TF card / USB: 128G (Max)

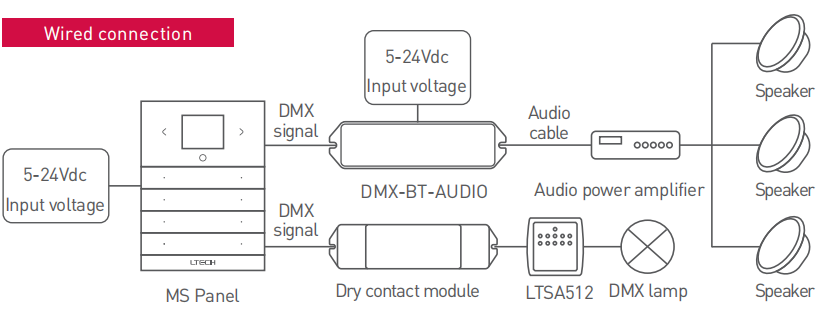

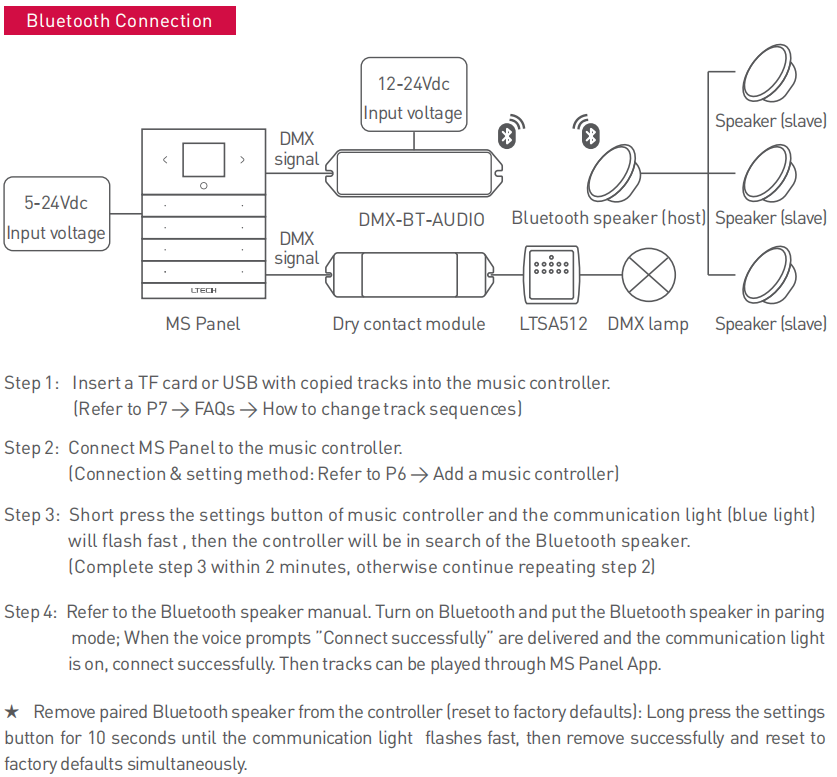

Output mode: Bluetooth 4.2, Line Out
Audio format: MP3、WAV
Working temp: -30°C ~ 55°C

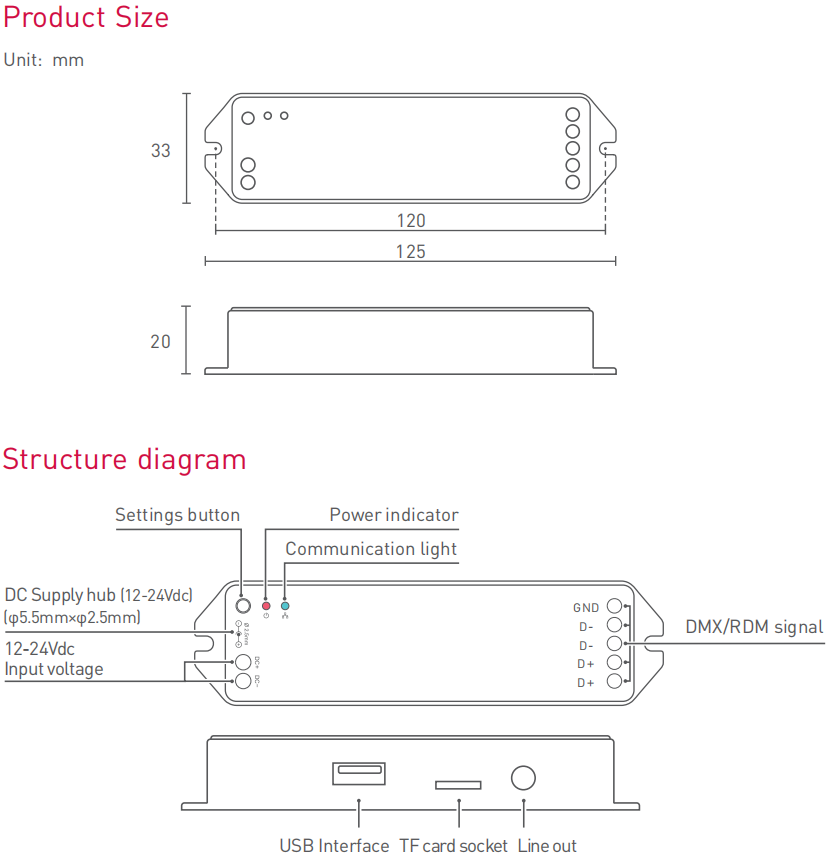

Package size: 127×35×24mm(L×W×H)
1. Can I both connect a wired speaker and a Bluetooth speaker at the same time?
Not recommended. Because tracks from the Bluetooth speaker may be delayed while playing. Yet the delay time of tracks from the wired speaker is relatively short. So it may occur a deviation When both speakers are playing tracks.
2. How to change track sequences?
Tracks are in chronological order sorted by copy time. If you want a track to play first, you need to clear the USB or TF card and then copy the track first. The same operation for the rest of tracks.
Products shall be installed by qualified professionals.
LTECH products are non-waterproof (special models excepted). Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
Good heat dissipation will extend the working life of products. Please ensure good ventilation.
Please check if the working voltage used complies with the parameter requirements of products.
The diameter of wire used must be able to load the light fixtures you connect and ensure the firm wiring.
Before you power on products, please make sure all the wiring is correct in case of incorrect connection that causes damage to light fixtures.
If a fault occurs, please do not attempt to fix products by yourself. If you have any question, please contact your suppliers
