Very Thin 6mm WS2815 5050 RGB LED Strip Light 300 LEDs

Name: Very Thin 6mm WS2815 5050 RGB LED Strip Light 300 LEDs
Brand: SuperLightingLED
SKU: DCFLS-12V-WS2815X5050-6MM
Price: 34.98 USD
Availability: InStock

Model: DCFLS-12V-WS2815X5050-6MM Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $44.98 $34.9822% off

Qty Discounts Off Price
1-9 $34.98	10-49 $34.28	50-99 $32.88	100+ $31.83
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

12V WS2815 LED strip light features a 6mm or 5.5mm wide PCB board, specially designed for customers who need narrow digital RGB LED strip with WS2815 IC. 5050SMD 60LEDs/m mounted on the circuit board, providing high bright illumination experience with great light efficiency. Line sequence of 6mm WS2815 is RGB, of 5.5mm WS2815 is GRB. For other line sequence, it need quantities.

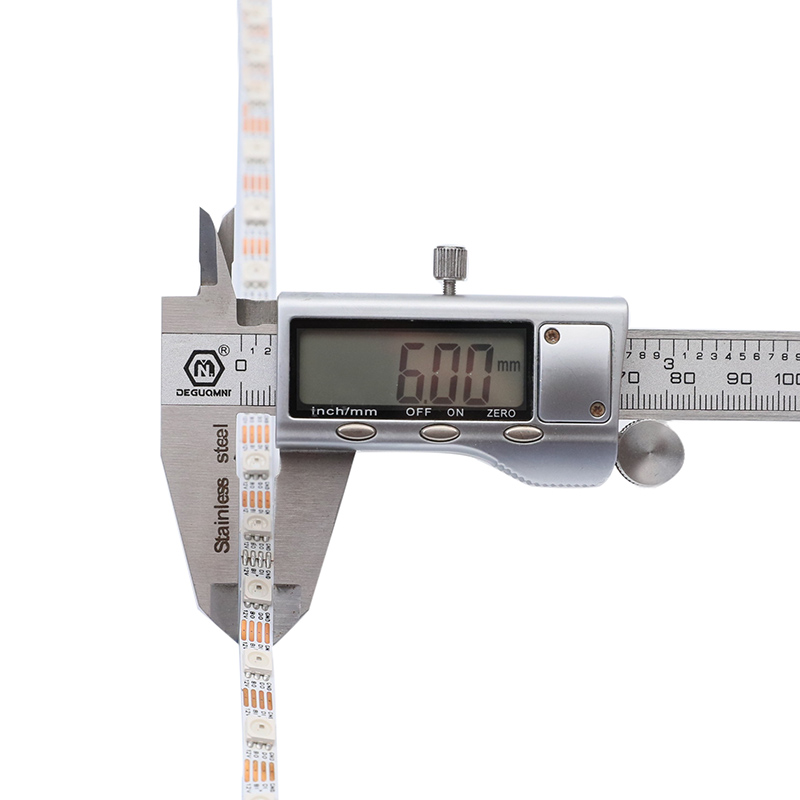

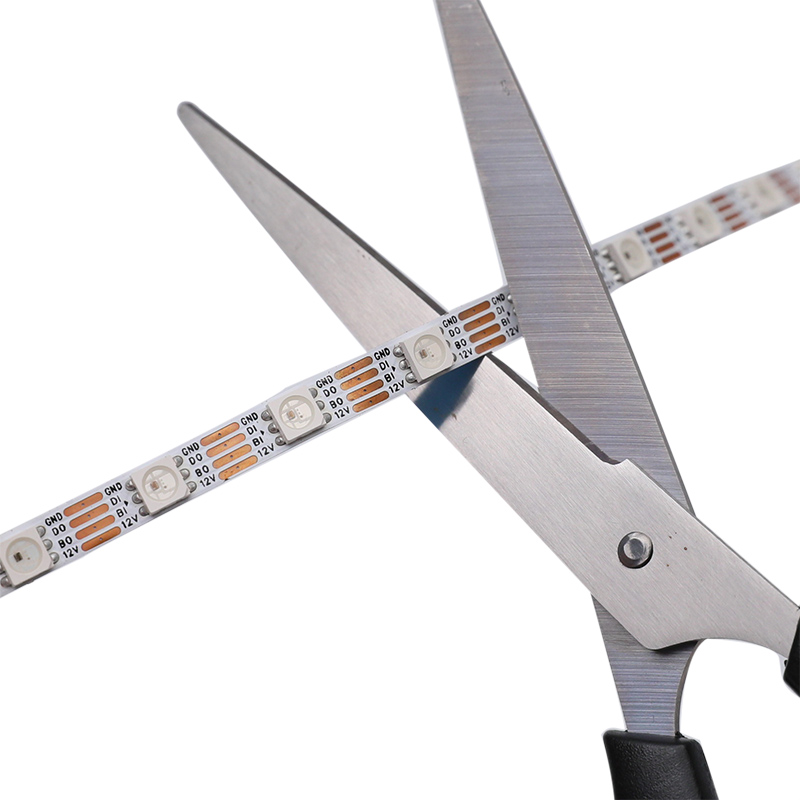

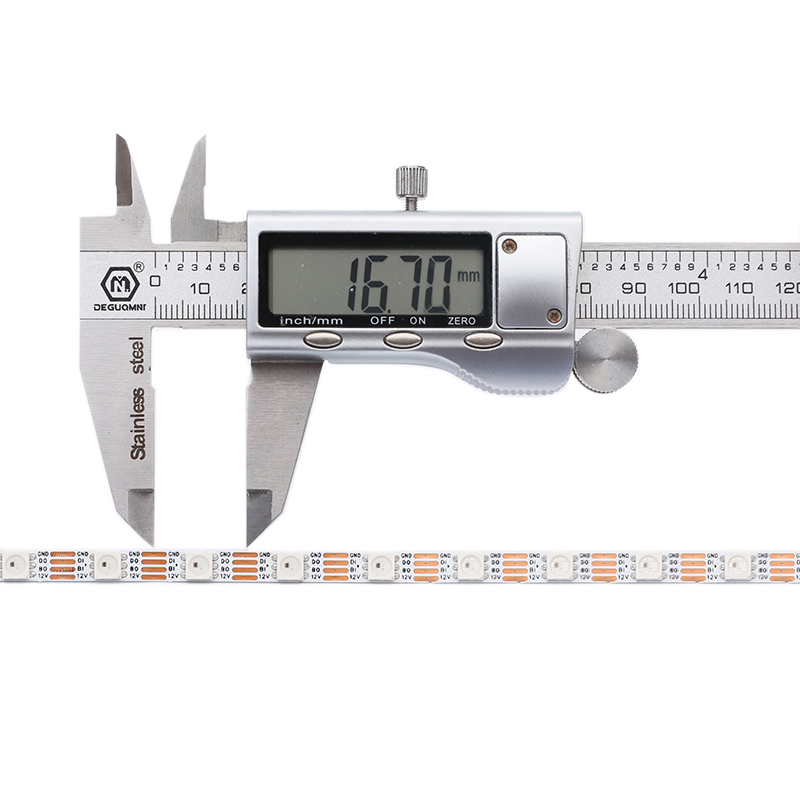

Typically, the width of WS2815 LED pixel strip is 10mm or 12mm, but this 2815 6mm 5050 LED strip light has been produced with a width reduced by almost a half, without any change in performance. WS2815 is built in each 5050 LED chip, making isolated color and brightness control possible. Using a controller, you can easily manipulate different flows of light to achieve various illumination effects. This thin addressable RGB LED strip also supports dual data transmission, so when one LED is damaged, the other LEDs will continue to work, ensuring overall lighting. Cutting section is 16.7mm/0.65” (every single LED can be cut), and 3m adhesive backing allows simple installation within a few minutes.

Feature

1. Very thin 6mm WS2815 LED strip, suitable for limited spaces.

2. SMD 5050 LED tape, bright illumination with superior performance.

3. Density of 60 LEDs per meter, RGB color individually addressable.

4. IP20 and IP67 waterproof ratings available, perfect as smart rgbic outdoor lights

LED Strips + Controller: 16.4ft LED Strip + CONFULL-SP630E

LED Strips + Controller + Power Supply: 16.4ft LED Strip + CONFULL-SP630E + LRS-100-12

If you need lighting accessories, please click here to buy. For waterproof power supply, click here.

Product Specification

DC12V

LED Strip Type:	Very Thin 6mm WS2815 5050 RGB LED Strip Light Programmable
LED Chip:	RGB 5050 SMD
Input Voltage(V):	12VDC
Length:	16.4ft/roll, every LED (16.7mm/0.65") can be cut
LED Quantity:	60 LEDs/m
IC Quantity:	60 pixels/m
Lumen Per LED:	20-22 Lumen
LED Color:	RGB Deram Color Change
PCB Width:	6mm, 5.5mm
Wavelength NM:	Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Working Power:	72W /16.4Ft Max
Waterproof Rating:	Non-waterproof IP20, Waterproof IP67
Beam Pattern:	120 degrees
Lifespan:	50,000+hours
Storage Temperature:	-40°F (-40°C) ~ 176°F (80°C)
Working Temperature:	-4°F (-20°C) ~ 122°F (50°C)

How To Wire Addressable LED Strip Lights?

WS2815 Thin 6mm 5050 RGB LED Ribbon Light Strips

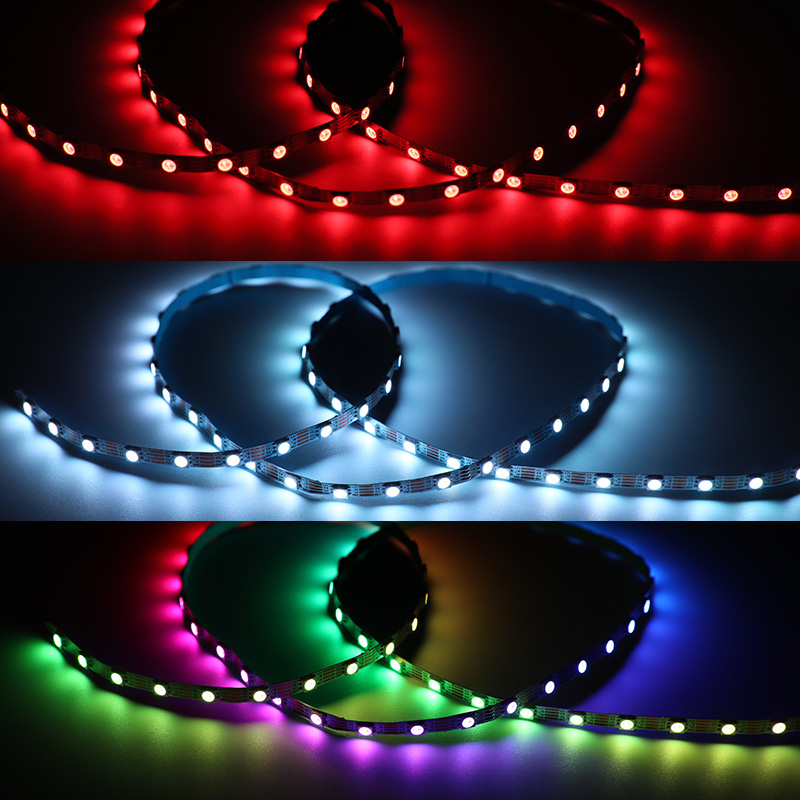

WS2815 6mm 5050 RGB LED Ribbon Light Strips Dynamic Color Changing Effect

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for DCFLS-12V-WS2815X5050-6MM

PDFDCFLS-12V-WS2815X5050-6MM product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Outdoor Silicone Tube IP67 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 5.5mm - GRB · 6mm - GRB (3+ days) · 6mm - RGB. Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
