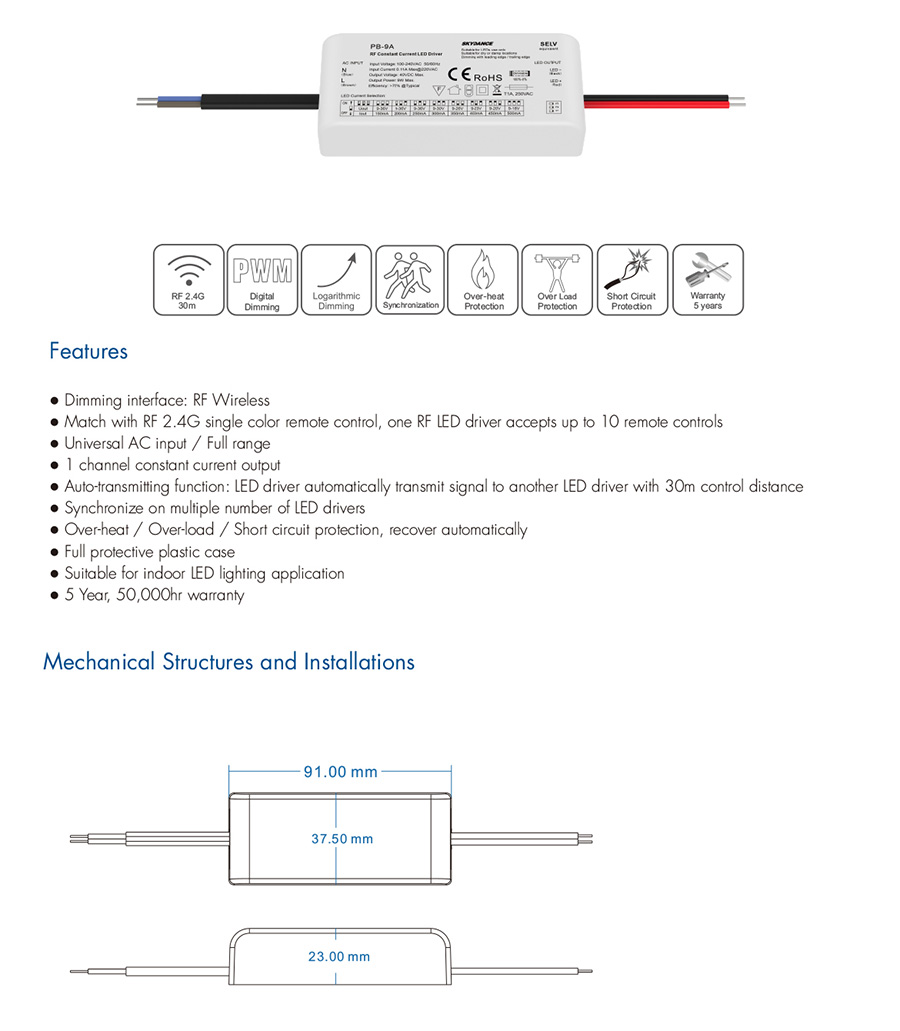

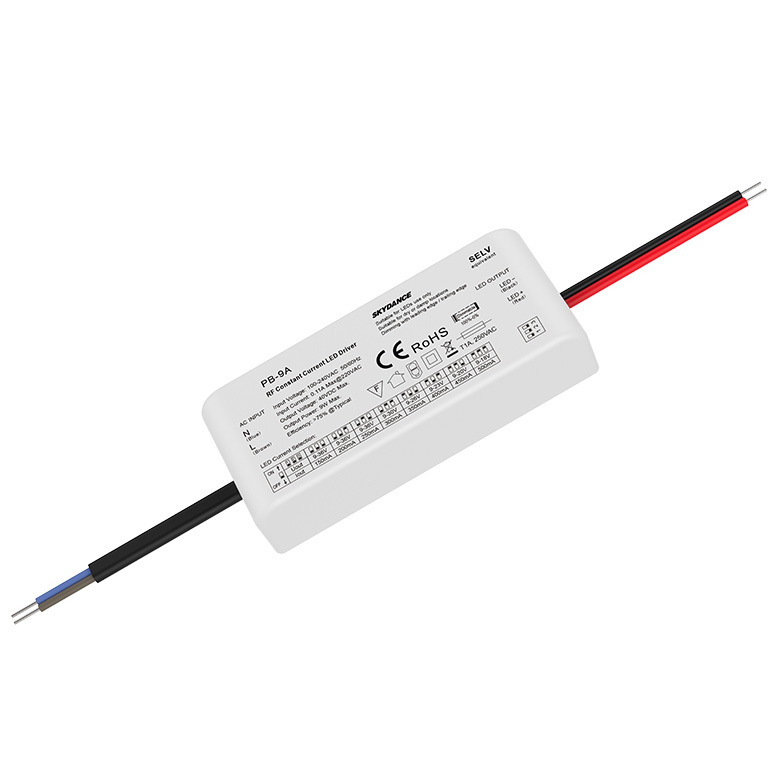

PB-9A 9W RF Constant Current Dimmable LED Driver - AC100-240V Input
Newest Constant Current LED driver, support 100-240V input, 9-36V output, max output 9W, suitable for low power LED spotlight, downlight, and single color LED strip light.
0-100% dimmable LED driver, working with the RF 2.4G single color LED dimmers, there is an Auto-transmitting function between multiple LED drivers, LED driver automatically transmit a signal to another LED driver with 30m control distance Synchronize on multiple numbers of LED drivers
one RF LED driver accepts up to 10 remote controls, 1 channel constant current output LED power supply, which is non-waterproof IP20, suitable for indoor LED lighting,
Over-heat / Over-load / Short circuit protection,recover automatically Full protective plastic case

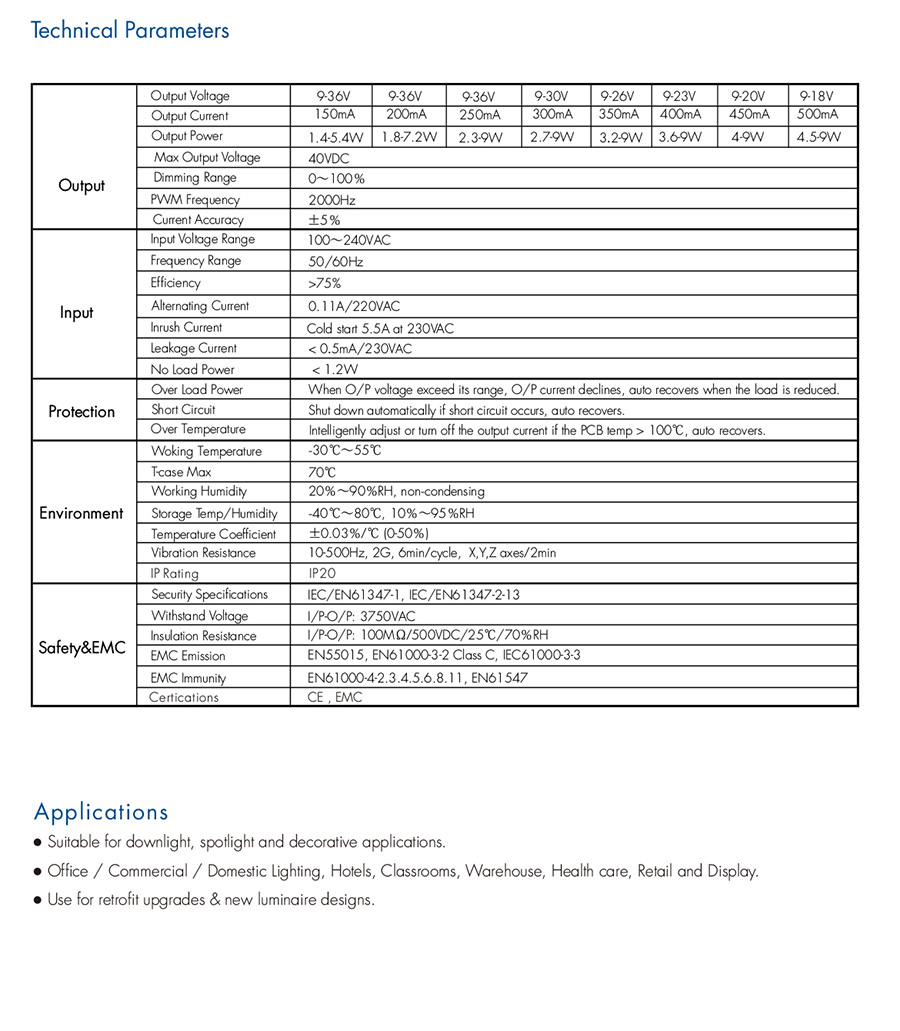

Output Voltage: 9-36V
Output Current: 9-36V
Output Power: 1.4-9W
Max Output Voltage: 40VDC
Dimmable Range: 0~100%
PWM Frequency: 2000Hz
Input Voltage: 100~240VAC
Frequency Range: 50/60Hz
Working Temperature: -30~55℃
IP Rating: IP20
Suitable for downlight, spotlight and decorative applications.
Office / Commercial / Domestic lighting, Hotels, Classrooms, Warehouse, Health care, Retail and Display. Use for retrofit upgrades & new luminaire designs.
