CXR-28A MAX 29.4W Single Color RF Dimmable Constant Current LED Driver - 48V to 10-42V
0-100% dimmable constant current LED driver, 1024 level dimming, from bright to dim, without input polarity, with Short circuit, overload, no-load and anti-reverse protection, we provide a 5-year warranty promise.
DC to DC constant current output, support DC48 volt low voltage input, output 10~42 volt, the max output power is 29.4W, support for indoor low power single color LED spotlight, LED downlight, LED underwater, LED strip light.

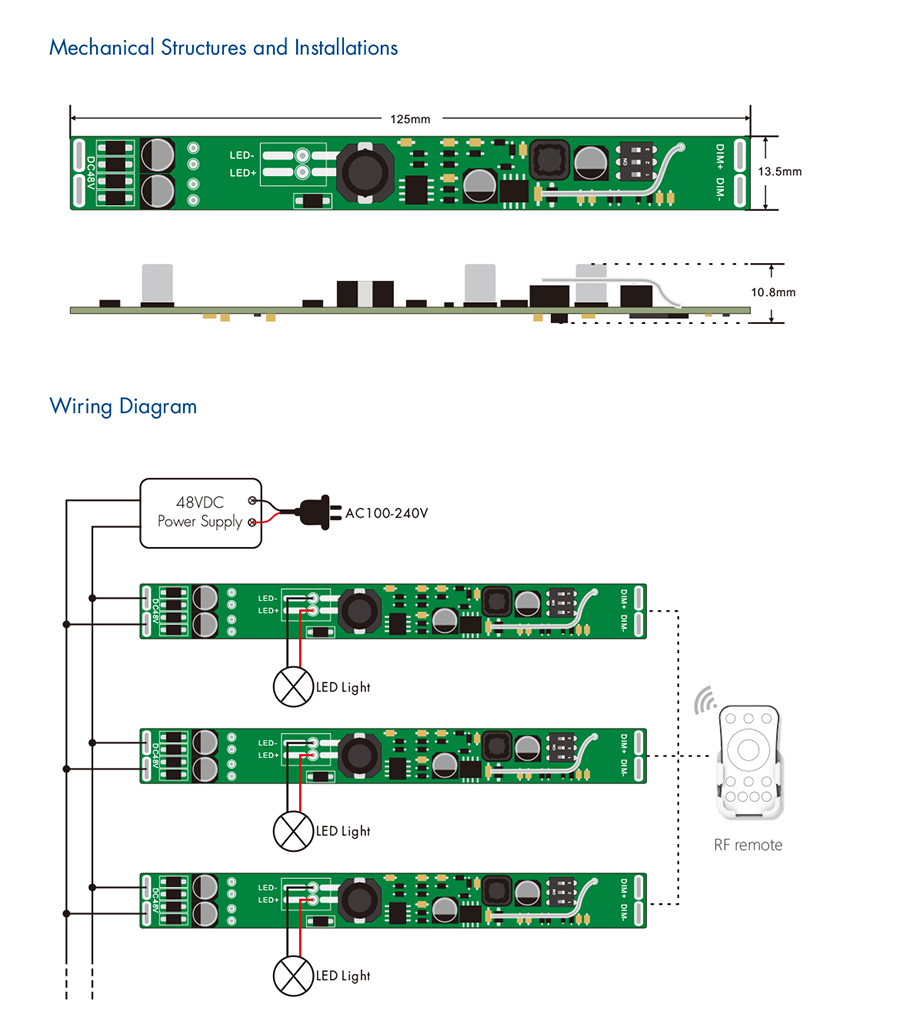

Working with 2.4G RF remote controller control, one LED remote controller can sync control multiple single color LED drivers, Suitable for STUCCHl standard housings, magnetic installation smooth dimming without flicker, quiet without noise.

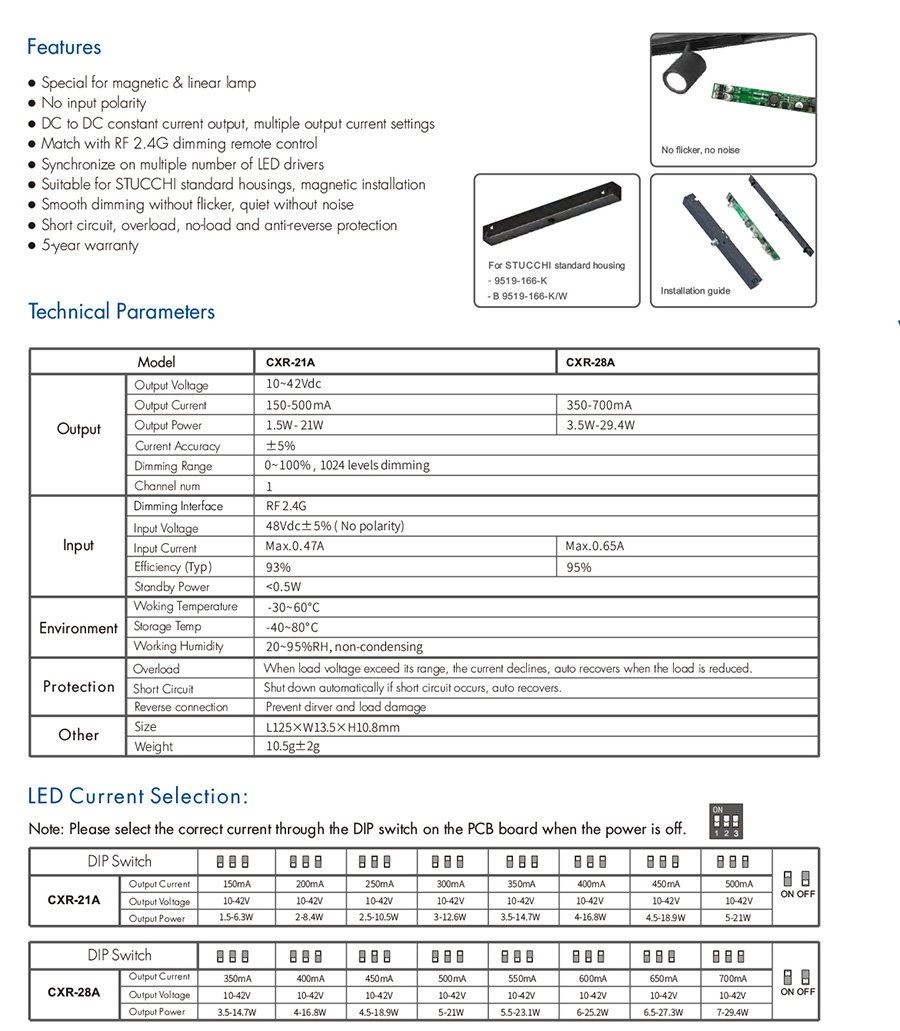

Output Voltage: 10-42Vdc
Output Current: 350-700mA
Output Power: 3.5W-29.4W
Dimmable Range: 0-100%, 1024 levels dimming
Channel Num: 1 (Single color)
Dimming Interface: RF 2.4G
Input Voltage: 48Vdc
Input Current: Max 0.47A
Working Temperature: -30~60℃
The above distance is measured in a spacious (no obstacle) environment, Please refer to the actual test distance before installation.
● Suitable for downlight, spotlight and decorative applications.
● Office / Commercial / Domestic Lighting, Hotels, Classrooms, Warehouse, Health care, Retail and Display.
● Use for retrofit upgrades & new luminaire designs
