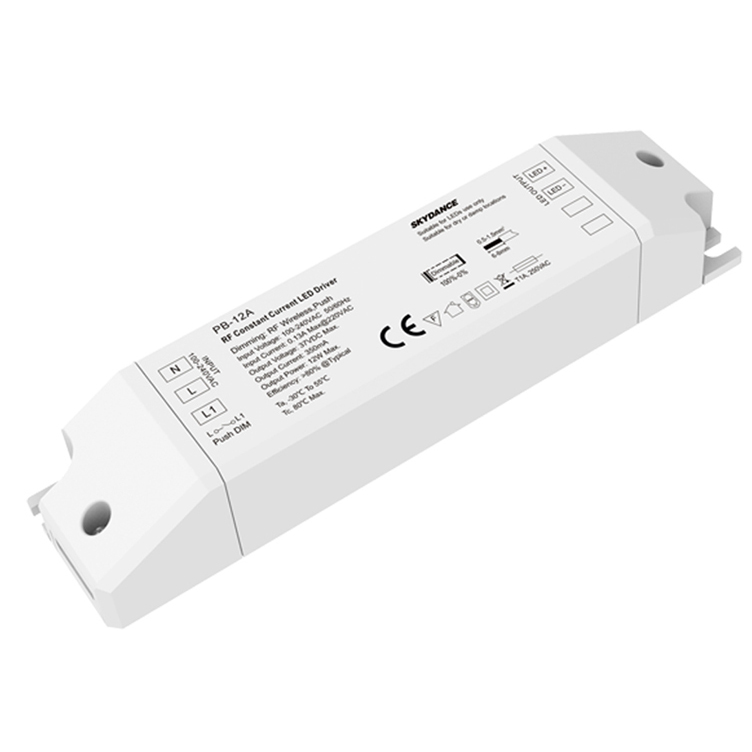

12W 350mA CC Wireless Dim & switchDIM LED Driver PB-12A, For LED lighting

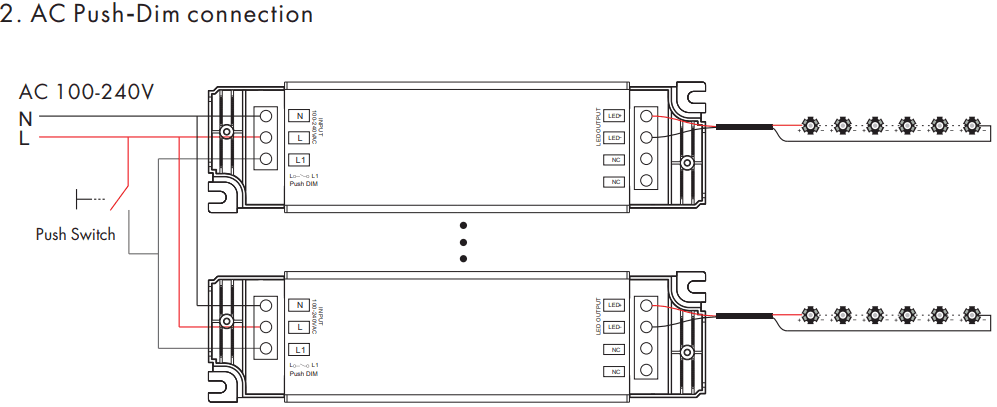

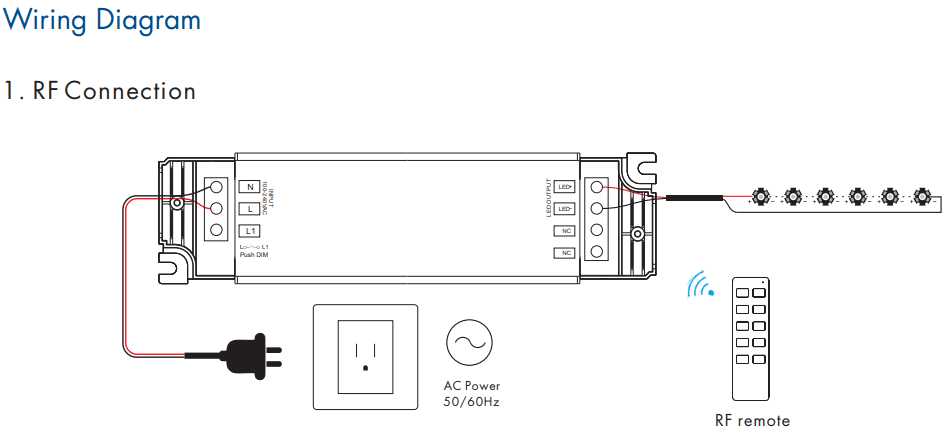

● Dimming interface: RF Wireless, AC Push-Dim.
● Match with Skydance’s 2.4G single color remote control, one RF LED driver accept up to 10 remote control.
● Universal AC input / Full range.
● 1 channel constant current output.
● Auto-transmitting function: LED driver automaticly transmit signal to another LED driver with 30m control distance.
● Synchronize on multiple number of LED drivers.
● Over-heat / Over load / Short circuit protection, recover automatically.
● Full protective plastic case.
● Suitable for indoor LED lighting application.
● 5 Year, 50,000hr warranty
