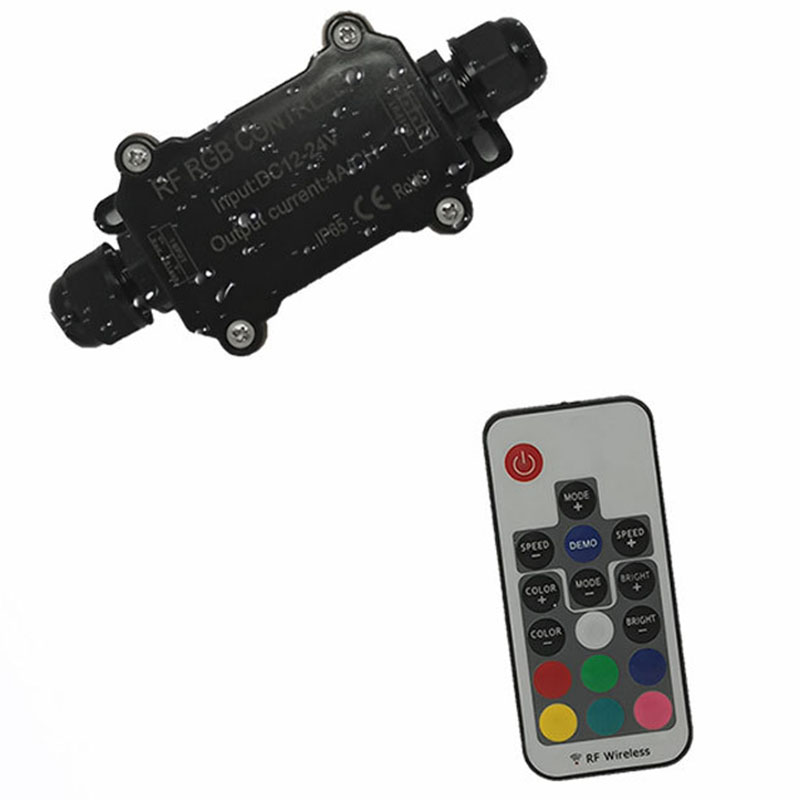

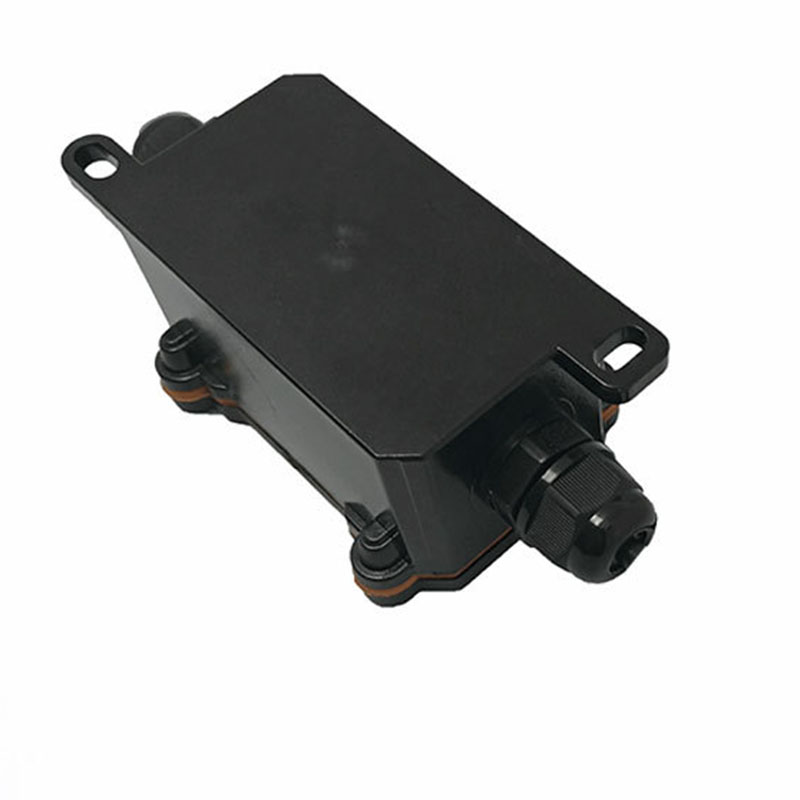

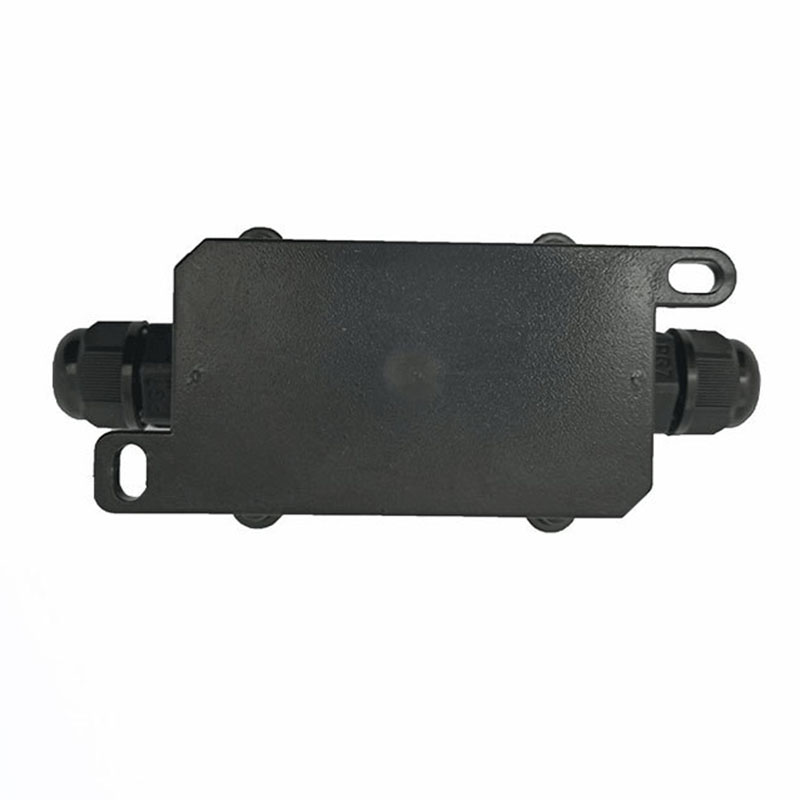

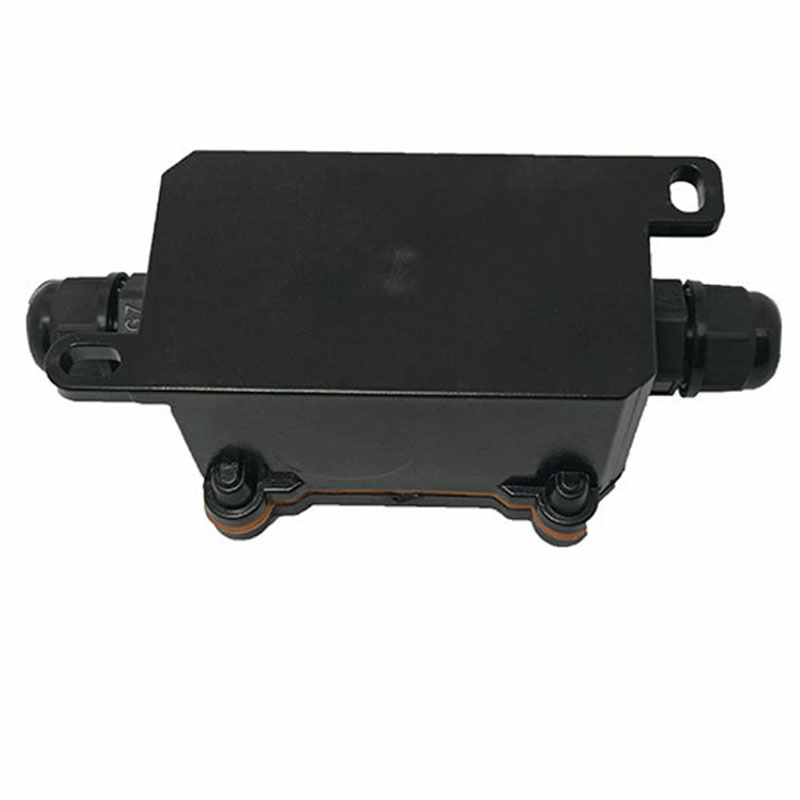

RF163 DC12V-24V 3 Channel Wireless IP65 Waterproof Controller, Low Voltage RGB Controller
The controller uses an advanced computer control chip and is controlled by a 433MHz wireless signal. It is used to control various lamps with LED as the light source, such as point light source, soft light bar, wall washer, glass curtain wall lamp, etc.; Convenient wiring, easy to use, easy to operate and other advantages; according to the actual needs of customers can achieve gradual, gradual dimming, jumping, flashing, flashing, and a variety of static colors and other lighting effects, with easy to carry, easy to use and other characteristics.
Working Temperature: -20-60℃
Power Supply Voltage: DC12-24V
Output: 3 Channel
Connection Method: Common

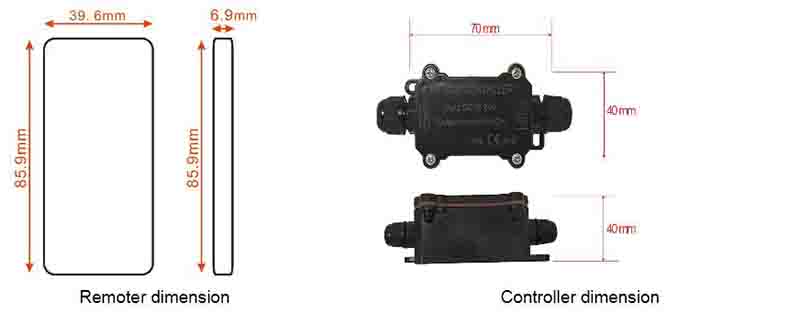

Controller Size: L70×W40×H40mm
Remote Control Size: L85.9×W39.6×H6.9mm
Packing Bag Size: L200*W147mm
Net Weight: 95g
Gross Weight: 170g
Static Power Consumption: <0.5W
Output Current: <4A (each circuit)
Output Power: 12V<144W, 24V<288W

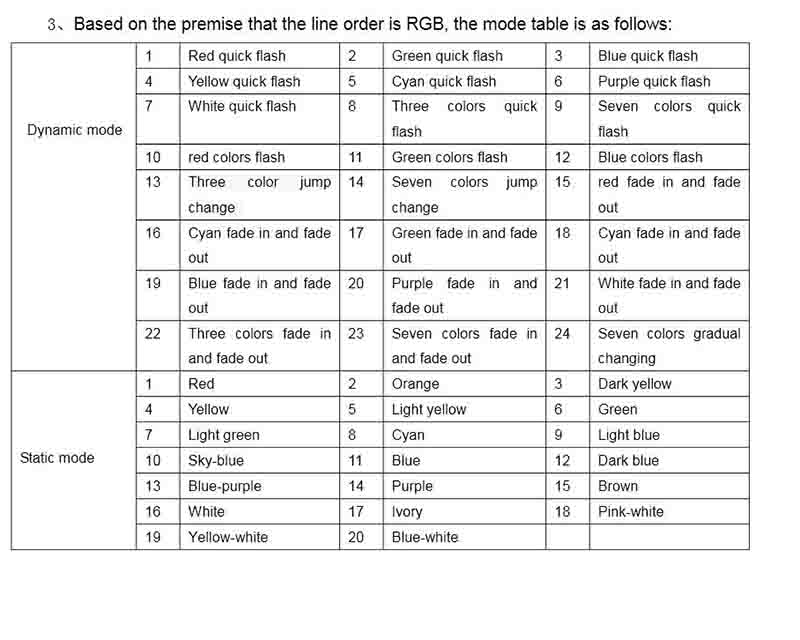

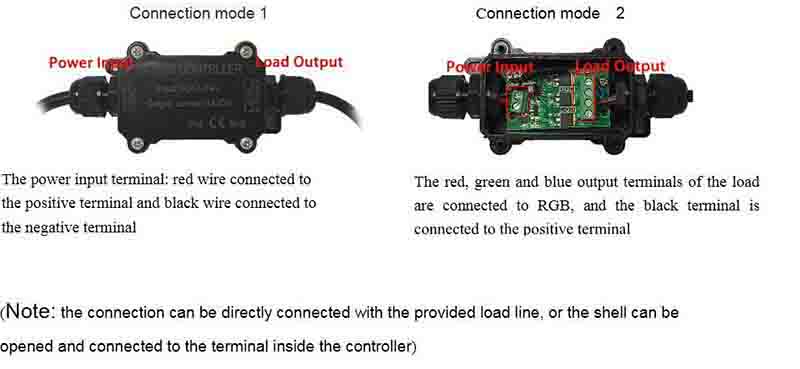

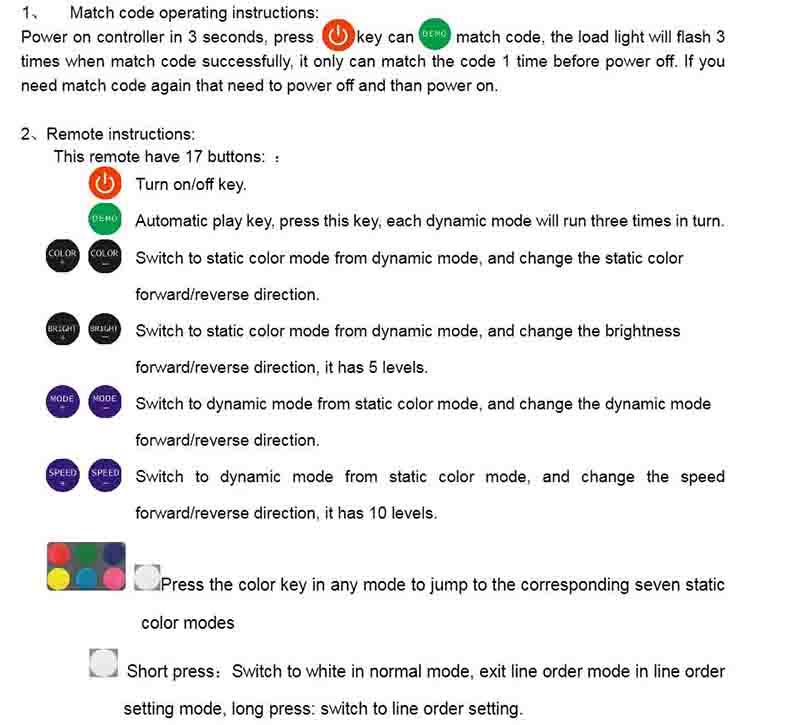

Instructions for use
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
