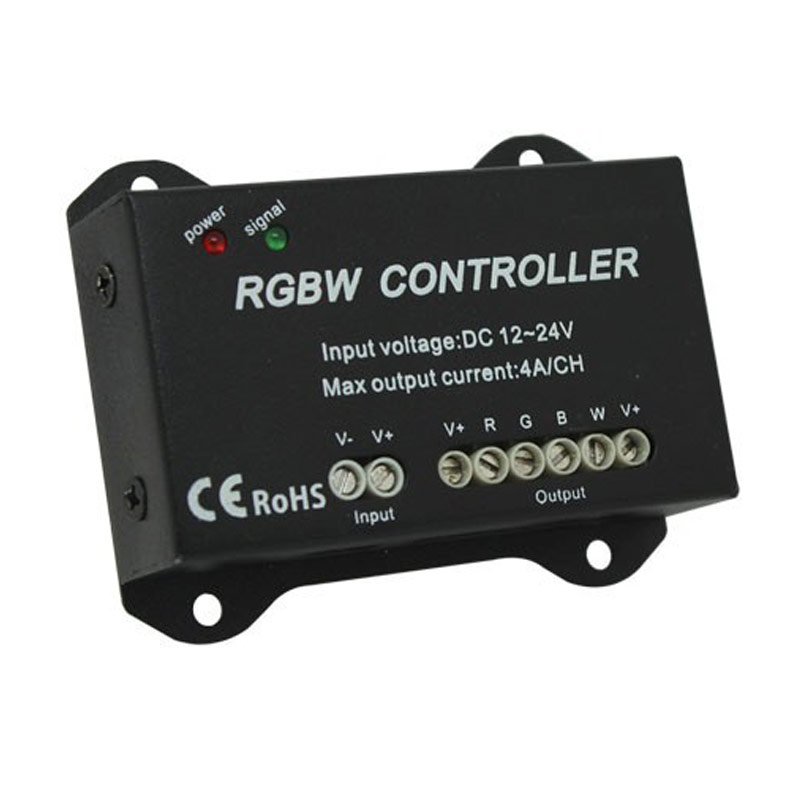

RF104 DC12-24V 4 Channels RGBW LED Wireless RGBW Controller

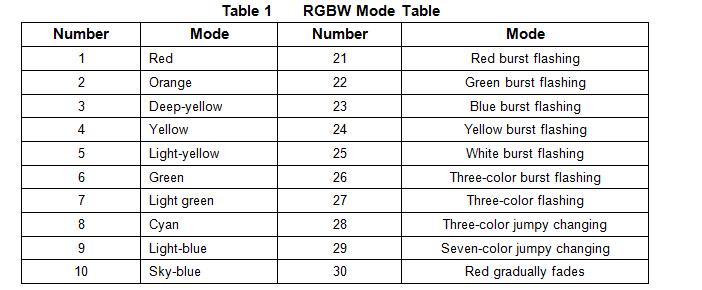

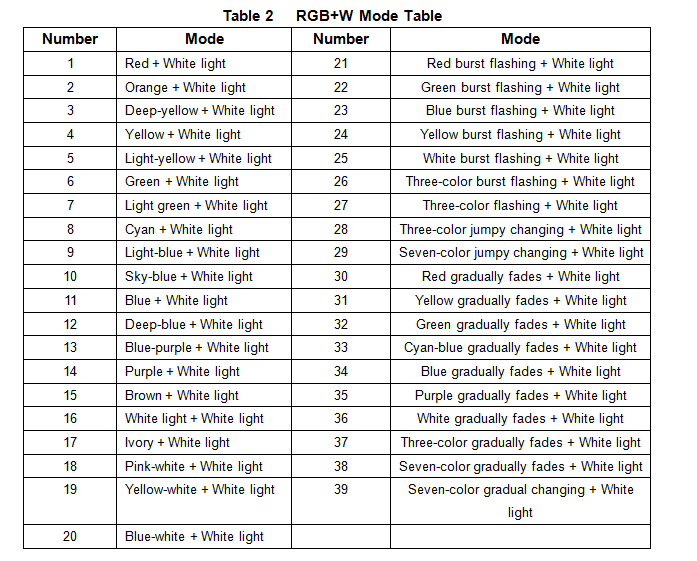

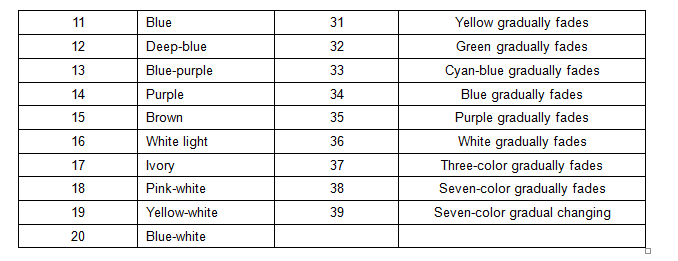

This RGBW panel controller is our newly developed a new type of high-end controller, RGBW 4 channel controller is a multifunction controller, mainly used for control 4 channel lamps, it supports switch the mode from RGBW to RGB+W, at the same time, under each large mode, it supports switch mode from 39 kinds small mode; This controller can control RGB and RGBW lamps, users no need to purchase a variety of controller, then can achieve the effect you want, also RGBW mode can realize pure white light effect that RGB lamps and lanterns can't reach. It is mainly used to control a variety of led lamps as the light source, such as: point light source, soft light, light strips, panel light, etc.; with easy wiring, simple to use and so on. it has many advantages such as convenient to connect, easy to use and others.
Controller Type: RGBW Controller
Input Voltage: DC12-24V
Output Current: RGBW:<4A*4
Output Power: 12V<192W, 24V<384W
Output connect way: common anode (6 line with 4 loop)
Static Power Consumption: <1W
Connection Mode: common anode
Working Temperature: -20~60 degree

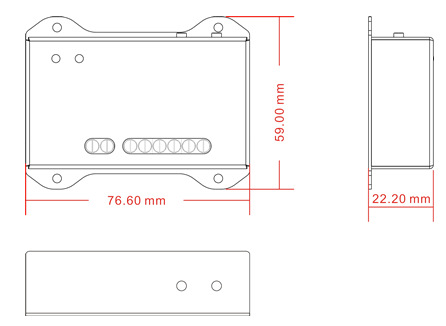

Dimensions: L76.6*W59*H22.2 mm
Package size: L103*W70*H43 mm
Color: White or black
net weight : 135g
gross weight: 160g
Remote control distance: <=25M

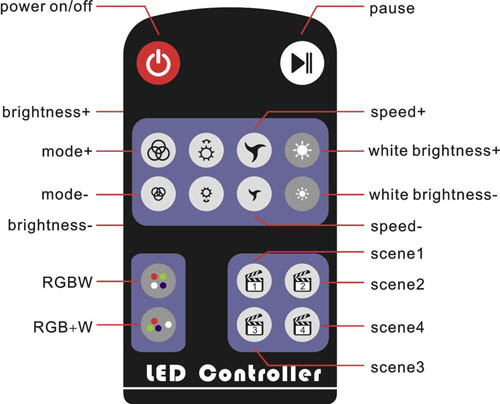

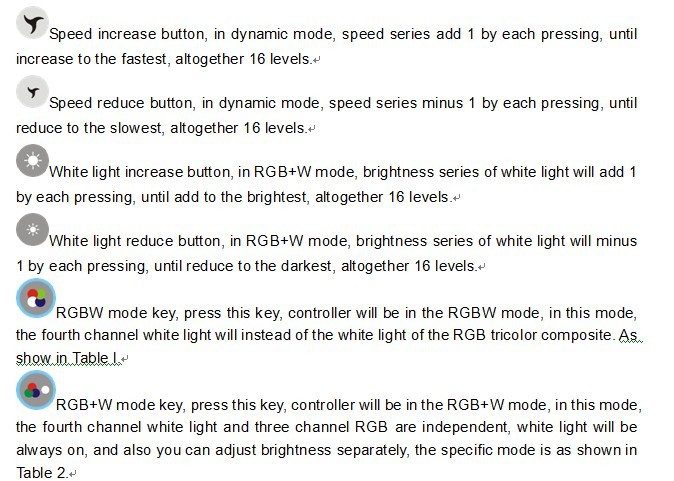

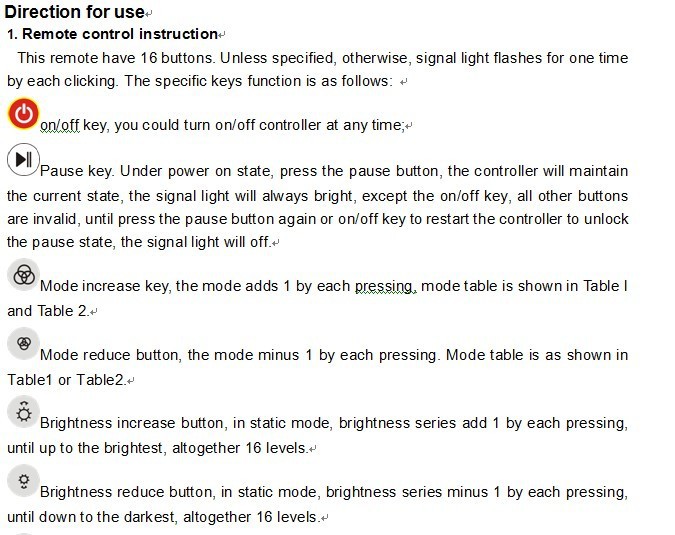

IR Reomte Description
The instructions button operation on the controller

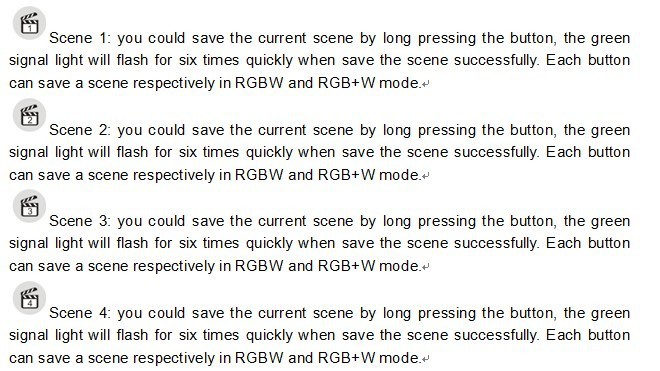

1. Match code key, controller is in normal power state, press and hold the key, at the same time press the on/off key for 3 seconds can match code, after matching code successfully, the signal light flashes for six times quickly.
2. The Function key, short press this key, the mode of controller addes 1, signal light flashes for one time. When the model is added to the last one, and then click it, the mode will be back to the first mode. Long press it for 3 seconds, can turn on/off the controller, signal light flashes for one time.
Note: RGB and W are independent parts, the switch can be individually controlled, the brightness. For example: When you select a static red RGB mode, then you can still turn on or off according to the needs of W, or adjust the brightness according to the needs of W, RGB mode change does not happen, on the contrary part may be individually adjusted RGB mode and state. In addition, in FLASH mode can not be turned off W, this is the mode-specific changes in effect.
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

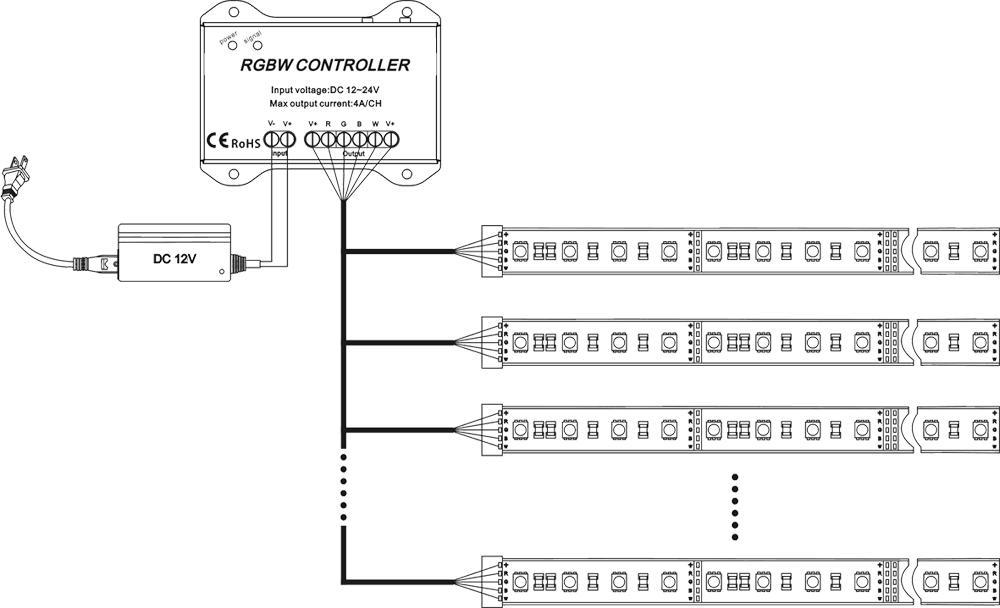

Connect according to the Wiring Schematic drawing.
Controller can control a maximum of 30 meters of our Flexible RGBW LED Strip. Over 30 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one Horse Race Amplifier for every 15 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications.
1 x 16A RGBW 4 channel led controller

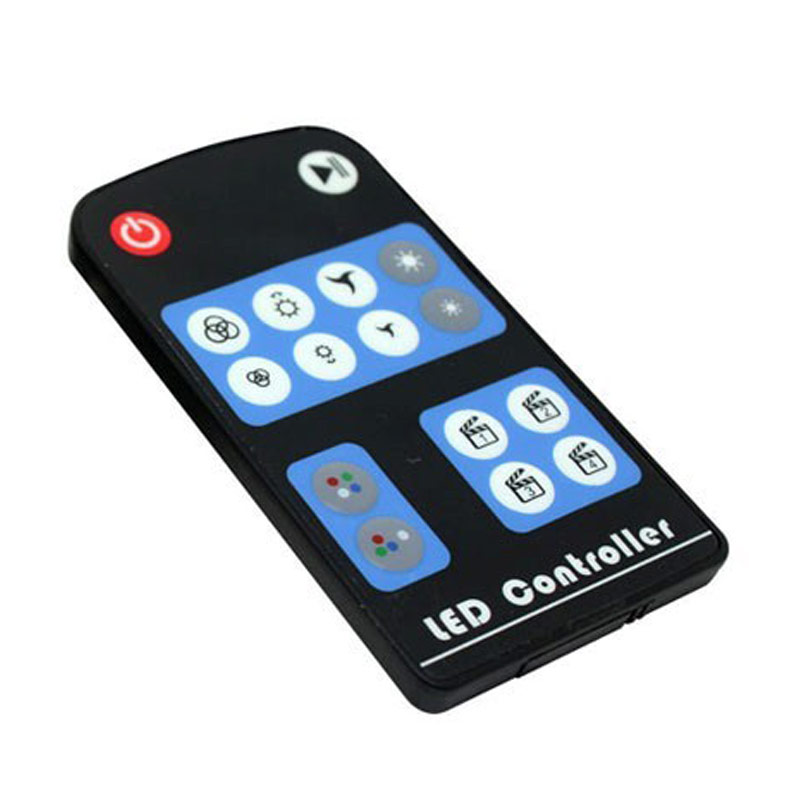

1 X RF remote
