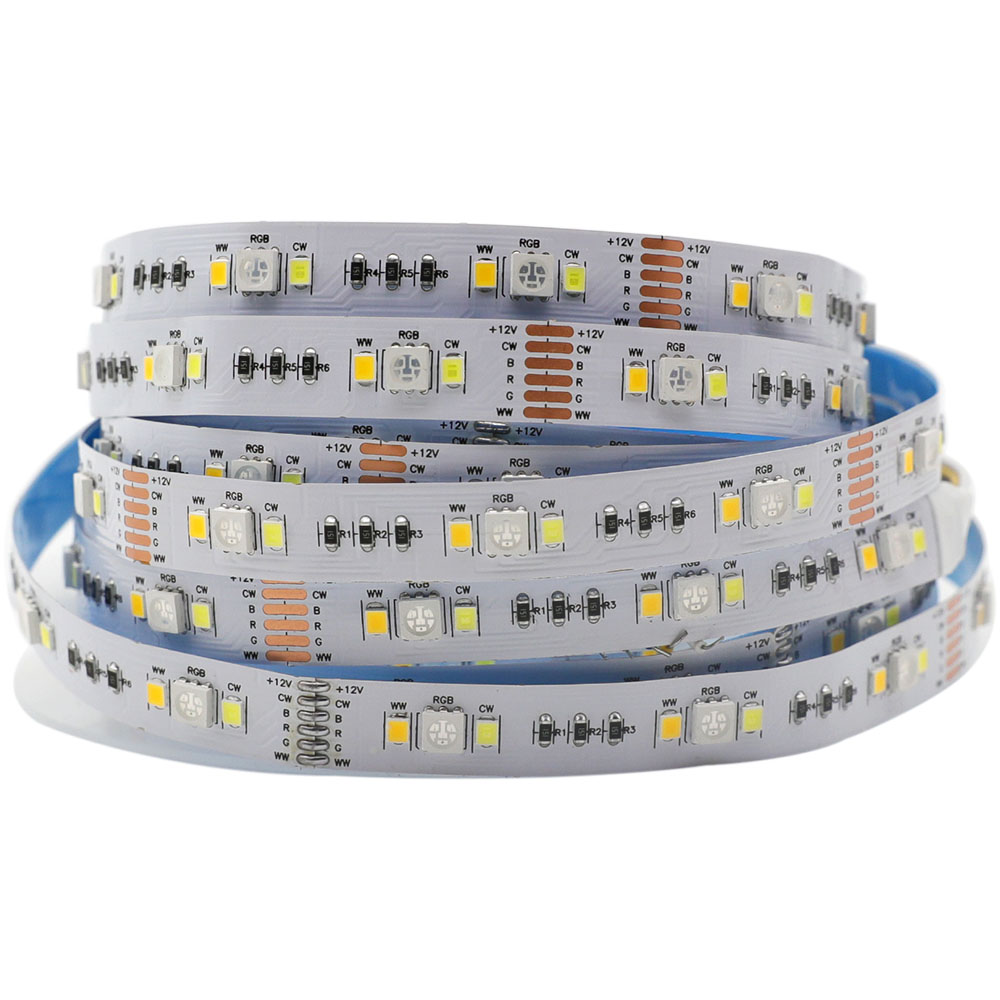

RGB+WW+CW Multi-Color LED Lights - 12mm 12V RGBCCT LED Strip - 60LEDs/m
RGBCCT color changing led strip lights have both RGB color and dimmable white light color, this RGBCCT led strip combines RGB LEDs, warm white LEDs, and cool white LEDs in one strip, has purer white light with a wider color temperature range (2700K-6500K, warm white to cool white) than multi color RGB led strip lights and RGBW led strips, and more color options, compatible with mood lighting and task lighting. You can freely change the LED light colors by using wireless control method via an RGB CCT controller, use low-voltage 12V power supply.
Standards and Certifications
|LED Strip Type:||SMD5050+SMD2835 RGB+WW+CW 300LEDs/16.4ft|
|LED Chip:||Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

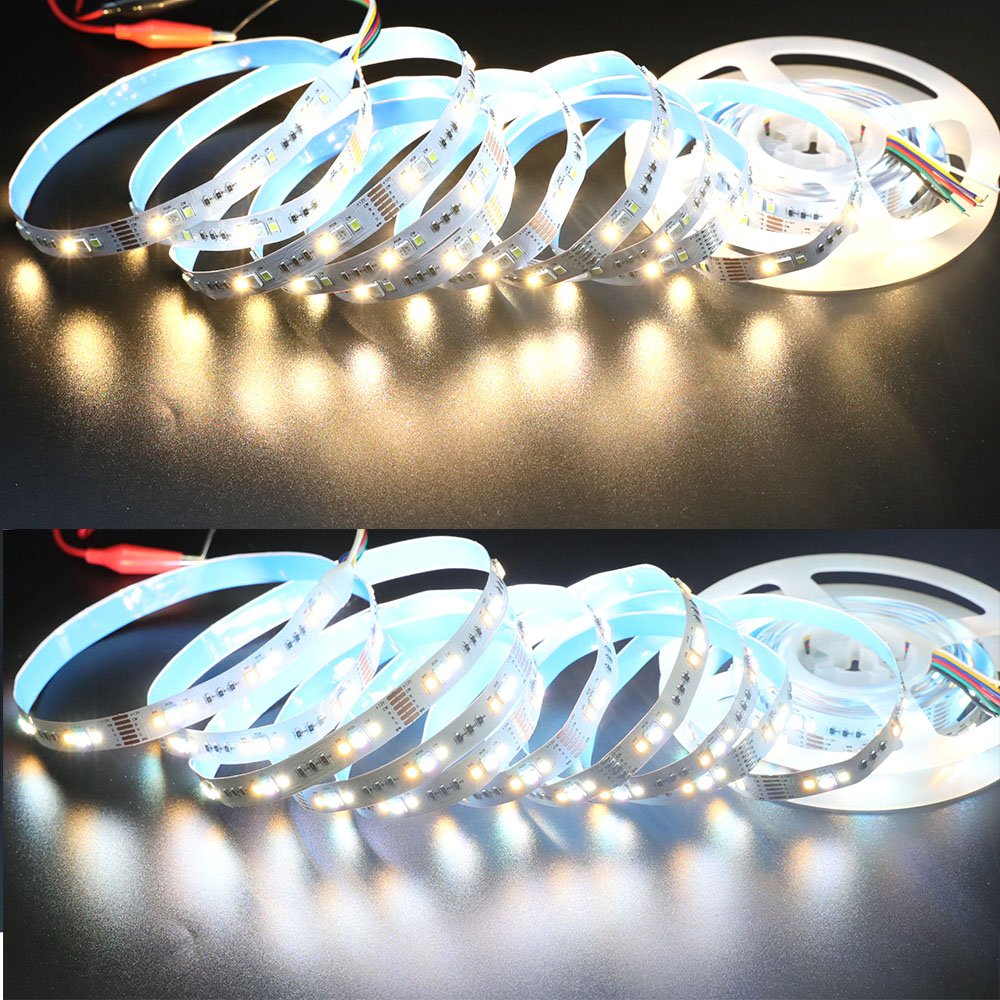

|Light Color:||RGB+CCT (2700K-6500K color temperature)|

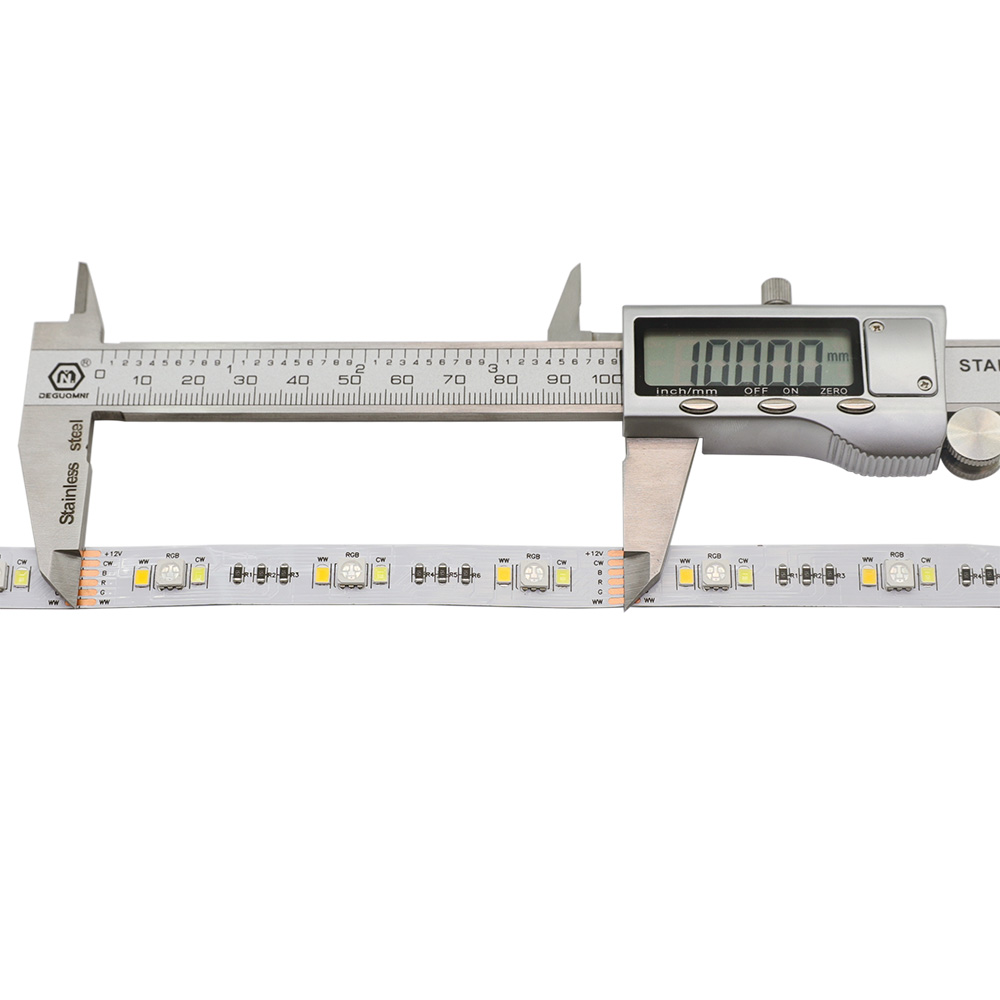

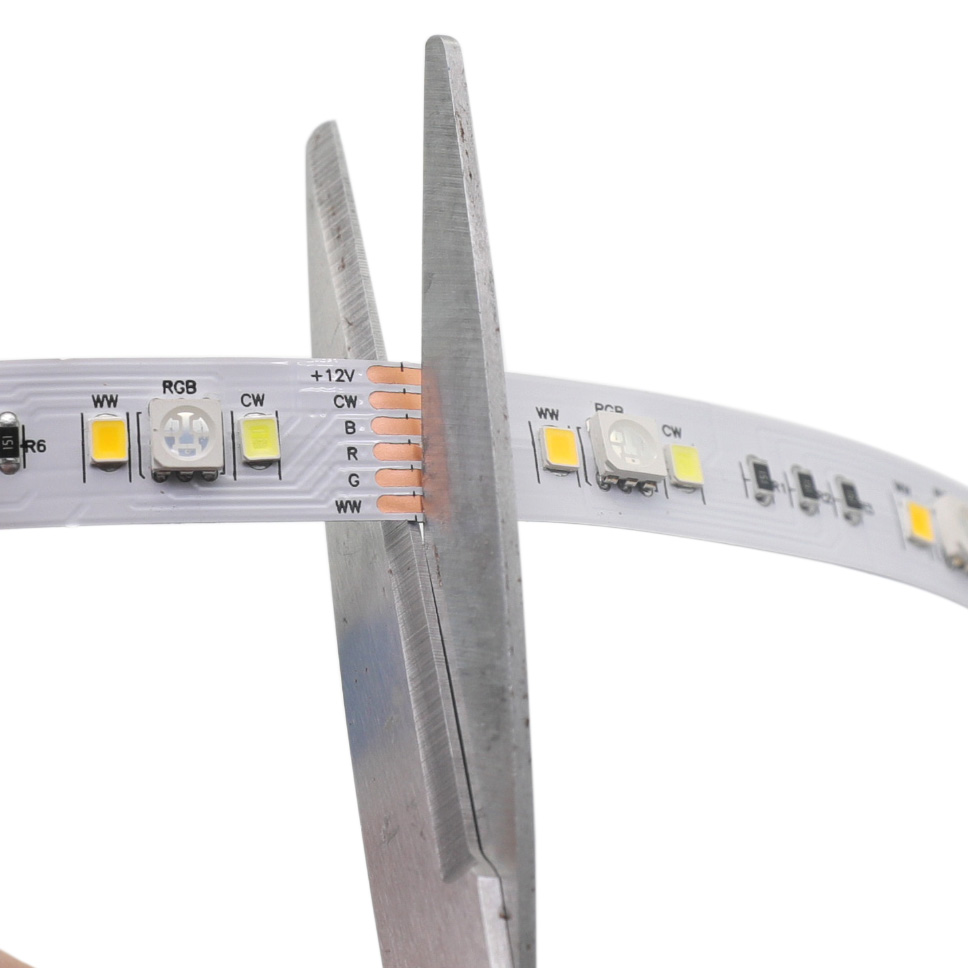

|Dimension:||16.4ft/roll, every 9 PCS LED can be cut (100mm)|
|LED Quantity:||60 LEDs per 1meter (3.28 ft)|

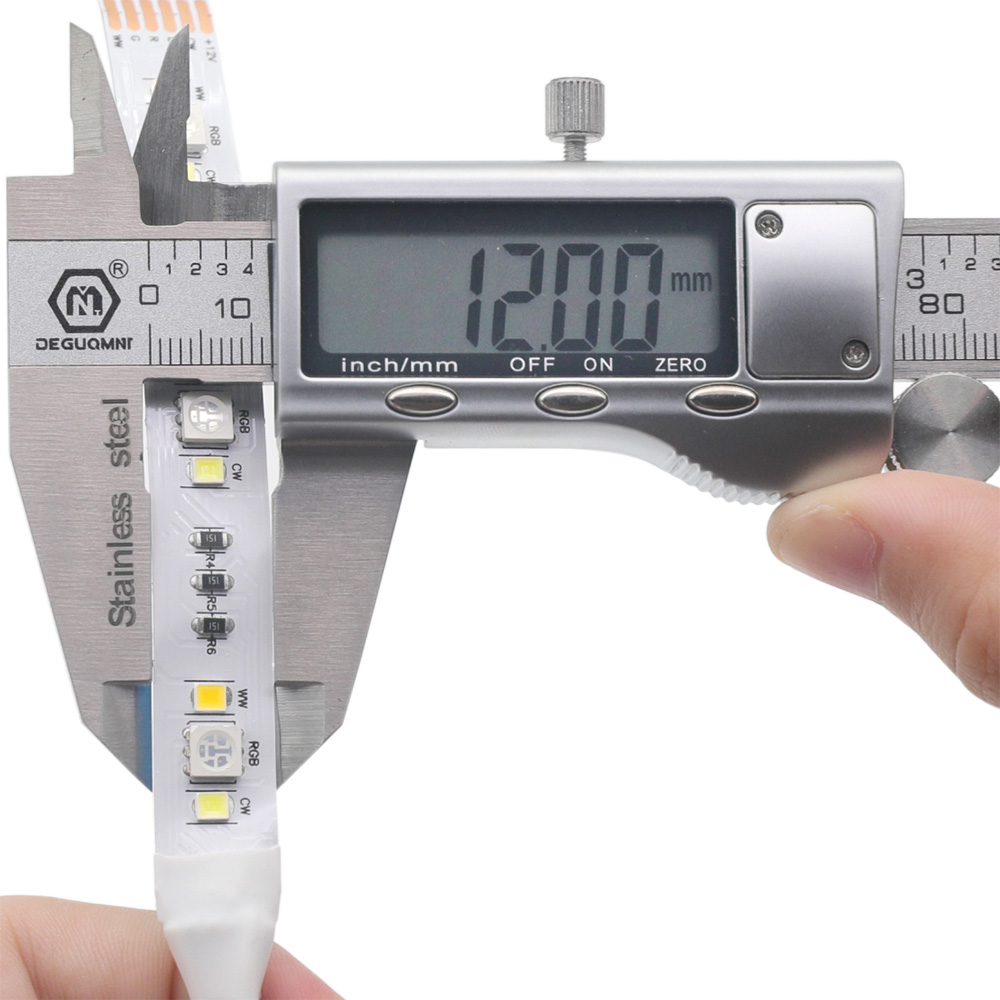

|Strip Width:||12mm (0.47in)|
|Input Voltage(V):||12 VDC|
|Working Power:||14.4W/m, 72W /16.4ft Max → Informations About LED Power Supply|
|Lamp Luminous Flux(lm):||20-22Lumen 9240lm Max /16.4ft 563lm/feet 69lm/watt|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65 IP67|
1. RGB+CCT led strip wiring diagram:
1. Ultra-thin light box, lighting signs, advertising signs, etc.
2. Indoor and commercial atmosphere lighting for high-end specialty stores, shopping malls, etc. and light source lighting for showcases/jewellery shops/crafts
3. Decoration of irregular design body (such as polygonal wall of hotel/nightclub/KTV, water drop line ceiling groove)
4. Atmosphere lighting for bars, cafes and other leisure places
5. Home furnishing with dark grooves (ceiling, door frame, wine cabinet, wardrobe, TV cabinet...)
6. Auto beauty ect.
