Product Information

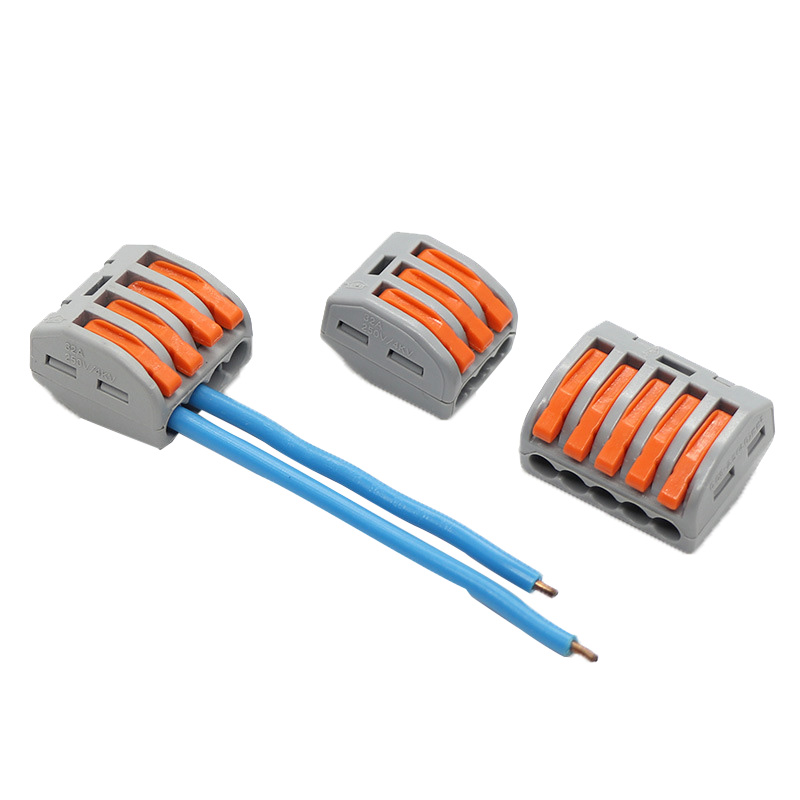

Simplify your LED lighting projects with these Parallel Press-Lock Wiring Terminals. Designed for speed and reliability, these solderless led light strip connectors allow you to securely join and extend LED wires in seconds. Forget the hassle of soldering and heat shrinking; just press to create a solid, dependable connection. These versatile terminal strip connectors are perfect for custom installations, repairs, or bridging gaps in your lighting layout. Available in 2, 3, 4, and 5-pin configurations, they are compatible with a wide range of LED systems, from simple single color LED strip lights to complex RGBW setups. Each pack contains five connectors, providing excellent value for both hobbyists and professional installers.
Key Features
Effortless Solderless Connection
Create secure wire-to-wire connections in seconds without any soldering, ideal for fast installations and on-site repairs.
Broad Wire Compatibility
Designed to work perfectly with standard 18-22 AWG solid or stranded core LED extension wires.
Multiple Pin Configurations
Available in 2, 3, 4, and 5-pin versions to support single color, CCT, RGB, and RGBW LED strip lights.
Secure Locking Mechanism
The robust press-lock design ensures wires are held firmly in place, providing a stable and reliable electrical connection.
Compact & Insulated Design
The closed terminal housing protects the connection point from accidental contact, ensuring a clean and safe installation.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | LED-ACCESSORIE-027 |
| Product Type | Solderless Wire-to-Wire Connector |
| Connection Method | Parallel Press-Lock |
| Available Pin Counts | 2-Pin, 3-Pin, 4-Pin, 5-Pin |
| Compatible Wire Gauge | 18-22 AWG |
| Quantity Per Pack | 5 Pieces |
| Housing Material | Insulating Plastic |
| Use Environment | Indoor, Dry Locations |
Ideal for a Variety of LED Projects

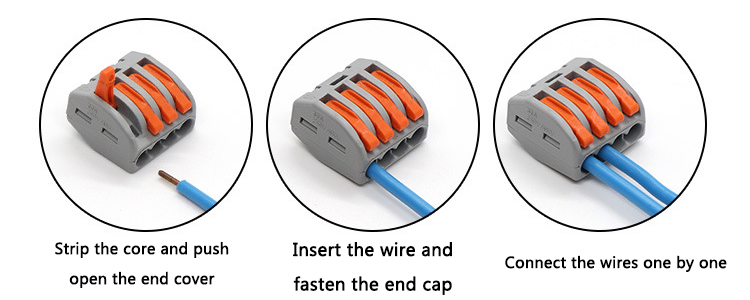

How to Use These LED Fast Connectors
- Ensure the power to your LED system is completely turned off.
- Use a wire stripper to remove approximately 8-10mm of insulation from the ends of each wire you intend to connect.
- Lift the transparent cover of the press-lock connector.
- Insert the stripped ends of one cable into the terminal slots, ensuring each wire aligns with the correct channel. Observe polarity (+/-) and color order (R, G, B, etc.).
- Insert the wires from the second cable into the opposite side, matching the polarity and order.
- Firmly press the transparent cover down until it snaps securely shut. You should feel a distinct click.
- Gently tug on the wires to confirm they are locked in place and the connection is secure.
- These connectors are for low-voltage use only.
- Verify the wire gauge is within the 18-22 AWG range for a reliable connection.
- Always double-check your wiring polarity and pinout before restoring power.
- These connectors are not waterproof and should only be used in dry, indoor environments.
What's in the Box
- ✓5 x Parallel Press LED Fast Wiring Connectors (in your selected pin configuration)
Frequently Asked Questions
Q: What type of wire is compatible with these connectors?
A:These connectors are designed for 18-22 AWG solid or stranded core wire, which is standard for most low-voltage LED strip light installations.
Q: Do I need any special tools for installation?
A:No special tools are required, aside from a basic wire stripper to prepare the wire ends. The connection itself is a tool-free press-lock mechanism.
Q: Are these led electrical connectors waterproof?
A:No, these connectors are intended for indoor use in dry locations only. They do not have a waterproof rating.
Q: Can I use these to connect a wire directly to an LED strip PCB?
A:These are strictly wire-to-wire connectors designed to join two sections of cable. For connecting a wire to an LED strip, you would need a different style of strip-to-wire connector.
Q: How do I choose the right number of pins?
A:Match the pin count to your LED strip and wire. Use 2-pin for single color, 3-pin for CCT/Tunable White, 4-pin for RGB, and 5-pin for RGBW or RGBCCT strips.
Q: What is the main advantage of this 'press-lock' style?
A:The main advantages are speed and reliability. It provides a strong, secure connection that is much faster and easier to make than soldering, especially in tight spaces.
