Product Information

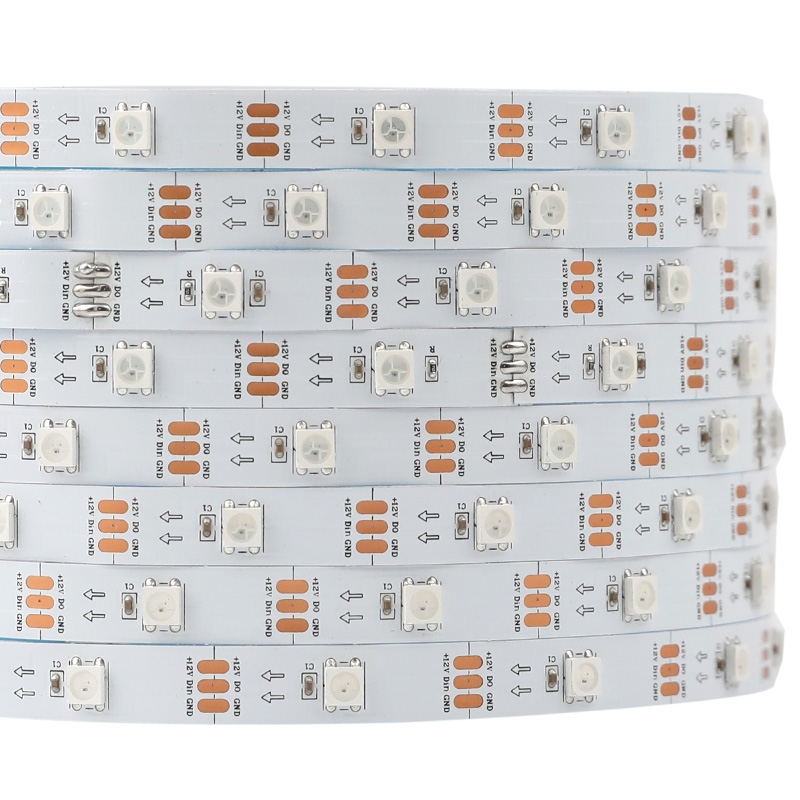

SLLHUT Great wall led strip for Advertising Signboard, with addressable RGB color, to light up letter channels or light box. 12VDC input. With flexible PCB construction, easy to bend to your shape.
SMD5050 RGB LED built-in SK6812 breakpoint resume IC chips, has one data line and one backup line. The damage of an LED diode does not affect the work of the entire light strip.
Each LED is individual addressable, available to dispaly its own color and brightness through a SPI controller or programmable controller.
Since the Great Wall-type PCB board is not in stock, at least 500 meters of this light strip are required for production. If your order quantity is less than 500 meters, we will charge a customization fee of US$50 (one customization fee per order).
SK6812 Specifications Download
Standards and Certifications
| LED Strip Type: | Bendable Great Wall Individually Addressable LED Strip |
| LED Chip: | SK6812 Breakpoint Resume + SMD5050 RGB LED |
| Input Voltage: | DC12V |
| Power: | 8W/m |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | Addressable RGB |
| PCB Width: | 11mm/0.43" |
| LED Quantity: | 60 LEDs/m |
| Waterproof Rating: | Non-waterproof IP20 |
| Strip Length: | 1m/3.28ft |
| Lumen: | 22lm/LED |
| Lifespan: | 50,000+hours |
| Beam Angle: | 120° |
| CRI: | >85 |
How to Wire Addressable LED Strip Lights?
4-Pin Breakpoint Resume Addressable LED Light Strip Wiring Diagram:
Applications
-
Advertasing lighting
-
Signboard lighting
-
Channel letter lighting
Reviews
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Downloads
Files for GW-SK6812RGB-12V-60Images
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
LED Strip Light Guide
Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.
