Product Information

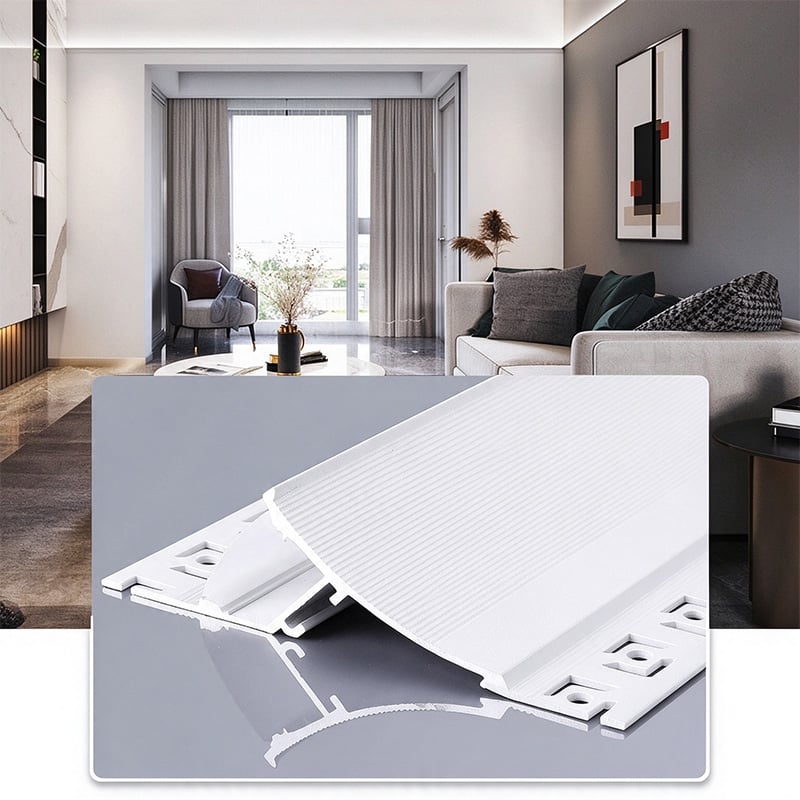

The ALU-CM-MS-YX9836M architectural plaster-in crown molding profile integrates indirect ceiling illumination directly into drywall partitions without visible fixture flanges. Built with a 15.6mm (0.614 in) internal bed, this structural white 6063-T5 aluminum channel houses high-output tape lights up to 15mm in PCB width, including high-density single-color, tunable white, and multi-conductor color-changing LED ribbons.
Once mudded, taped, and skim-coated into sheetrock, the profile extends 26.4mm (1.04 in) outward from the finished wall plane to conceal the diode line while directing uniform luminance upward across the ceiling expanse. Supplied with a PC opal diffuser and engineered end caps, this crown molding lighting fixture eliminates individual diode hotspots to produce a continuous, soft indirect glow.
Key Features of the ALU-CM-MS-YX9836M Profile
26.4mm Optical Projection Standout
Extends 26.4mm from the drywall face to form an integrated light shelf that reflects beams across the ceiling without exposing diodes to seated occupants.
15.6mm Usable Tray Width
Accommodates LED tape formats measuring up to 15mm across, supporting high-density Cob LED strip lights.
Seamless Mud-In Perforated Flange
Features a continuous mounting base designed for direct countersunk screw fastening and standard multi-pass joint compound plastering.
Homogeneous PC Opal Diffusion
Includes a polycarbonate opal diffuser cover engineered to eliminate pixelation and glare when learning how to diffuse LED strip lights.
Architectural and Mechanical Highlights
- Vertical mounting height of 97.8mm (3.85 in) provides an expansive contact plane against wall studs and drywall backing for rigid anchoring.
- Compatible with miter cutting at 45-degree angles to create neat 90-degree internal and external perimeter corners.
- Designed to accept mechanical continuous alignment using channel connectors along extensive perimeter walls.
- Coordinate with corner molding connectors for specialized architectural layouts.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | ALU-CM-MS-YX9836M |
| Product Type | Architectural Crown Molding LED Profile |
| Extrusion Material | 6063-T5 Aluminum Alloy |
| Extrusion Profile Finish | White |
| Diffuser Material | PC Opal |
| Diffuser Coverage | Snap-In Friction Fit |
| Internal Usable Width | 15.6mm (0.614 in) |

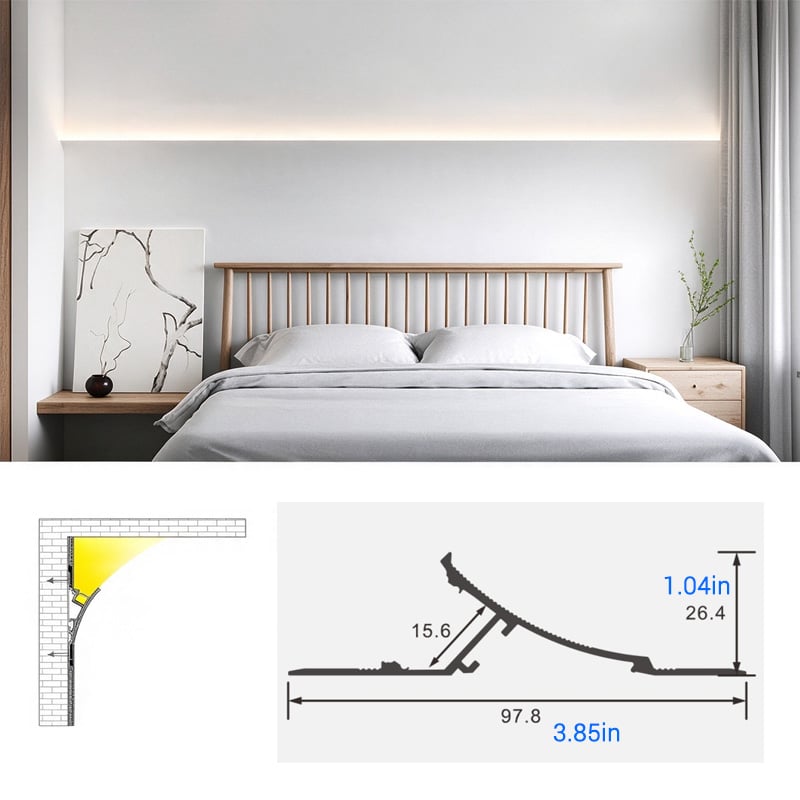

| Outer Dimensions (W x H) | 26.4mm x 97.8mm (1.04 in x 3.85 in) |
| Compatible Strip Widths | 8mm, 10mm, 12mm, 14mm, 15mm |
| Installation Method | Drywall Mud-In Recessed / Plaster-In |
| Available Lengths | 1m (3.28ft), 2m (6.56ft), 2.44m (8ft), 20cm (7.87in) Sample |
| End Cap Accessory | Included (Pair of Matching End Caps) |
Application Scenarios for Architectural Indirect Lighting
What's in the Box
- ✓1 x Extruded White Aluminum Crown Molding Profile
- ✓1 x Snap-In PC Opal Diffuser Cover
- ✓2 x Matching End Cap
Frequently Asked Questions
Q: Can I install this crown molding with popcorn ceiling surfaces?
A:Yes, installing this crown molding with popcorn ceiling setups works reliably because the channel fastens strictly to the vertical drywall face below the ceiling. The 26.2mm projection directs indirect light across the acoustic ceiling texture, creating an elegant visual border without requiring alteration of the textured ceiling material.
Q: Can multiple profile lengths be joined for long continuous walls?
A:Yes, multiple 1m, 2m, or 2.44m channels can be butt-joined along extensive perimeters. Aligning the extrusions tightly and using joint compound over the plaster-in flange creates a completely seamless structural appearance with no visible gaps on the wall.
