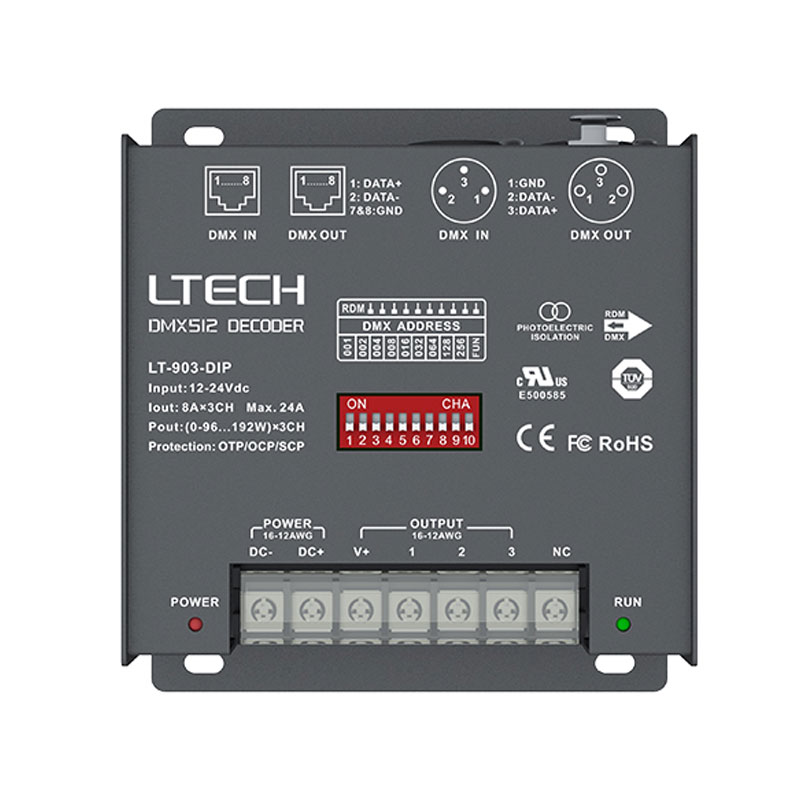

Max.576W,24A,3CH CV DMX Decoder LT-903-DIP

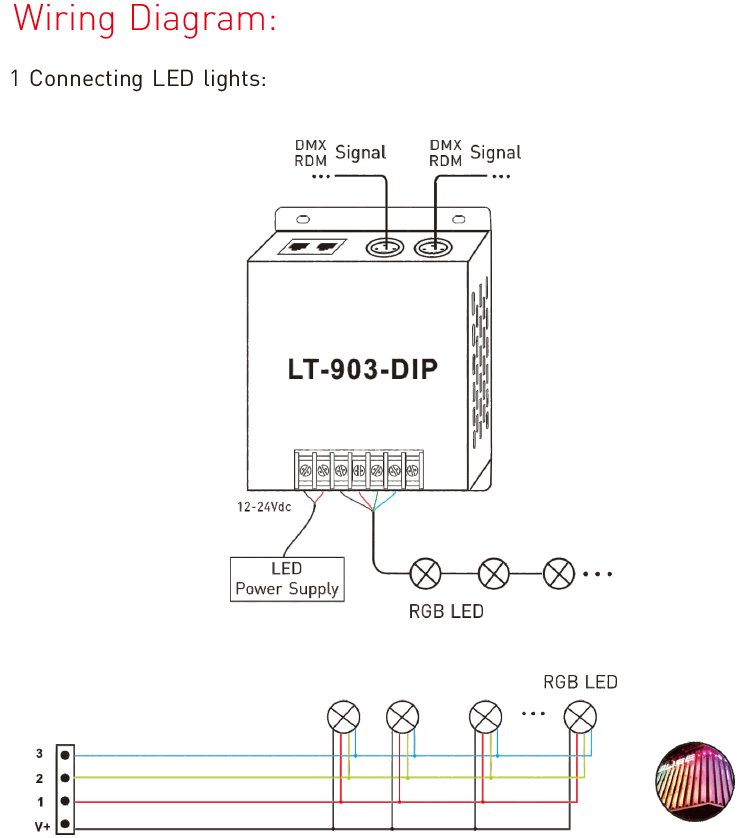

1. Designed with 3 channels output, and Max. 8A current per channel, up to 576W output power.

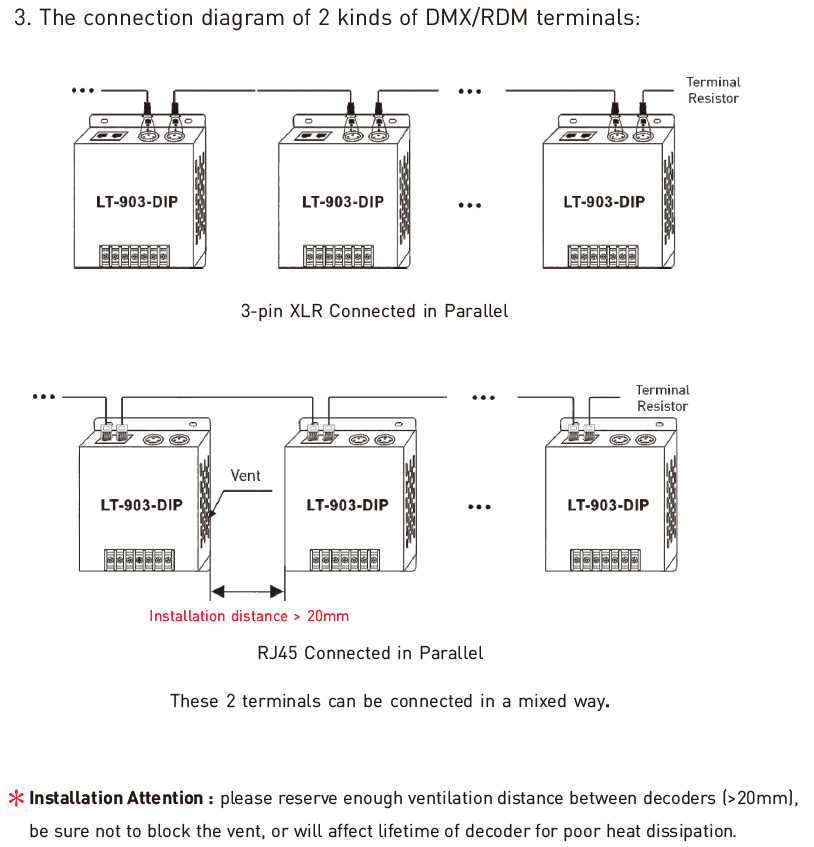

2. Support 2 kinds of DMX ports with signal isolation function: 3-pin XLR, RJ45.
3. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
4. With shortcut protection and overload protection, as well as warning function when fault.

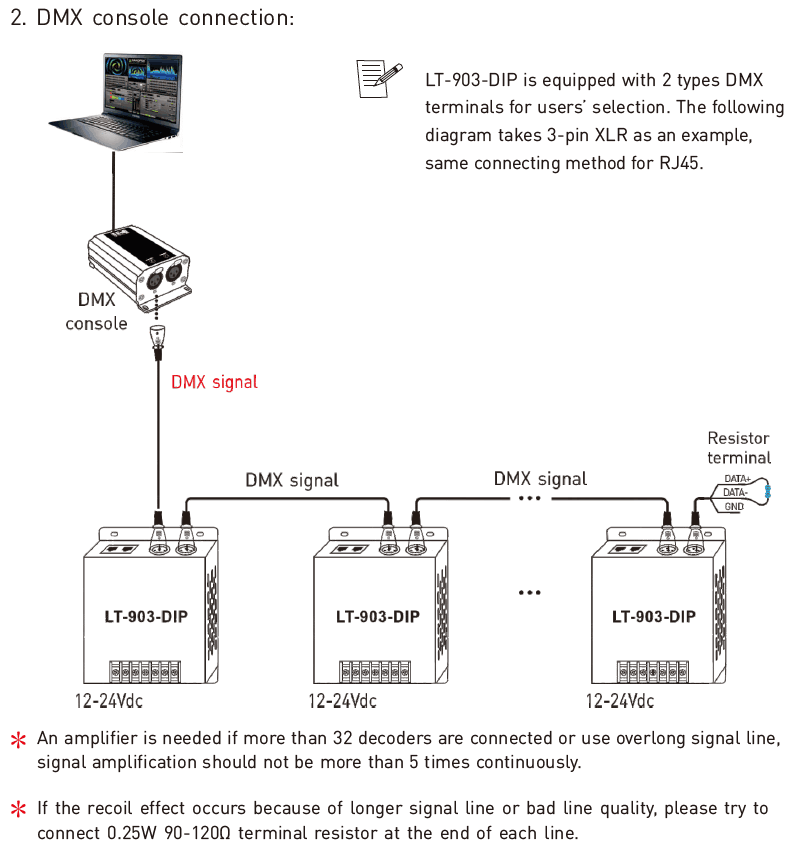

Input signal : DMX512/RDM
Input voltage: DC12V～DC24V
Max load current : 8A x 3CH Max. 24A
Max output power : (0~96W...192W) x3CH Max.576W
DMX512 socket: 3-pin XLR, RJ45
Working temperature: -30℃～65℃
Package Size : L127×W123×H41mm
Weight (G.W): 550g
