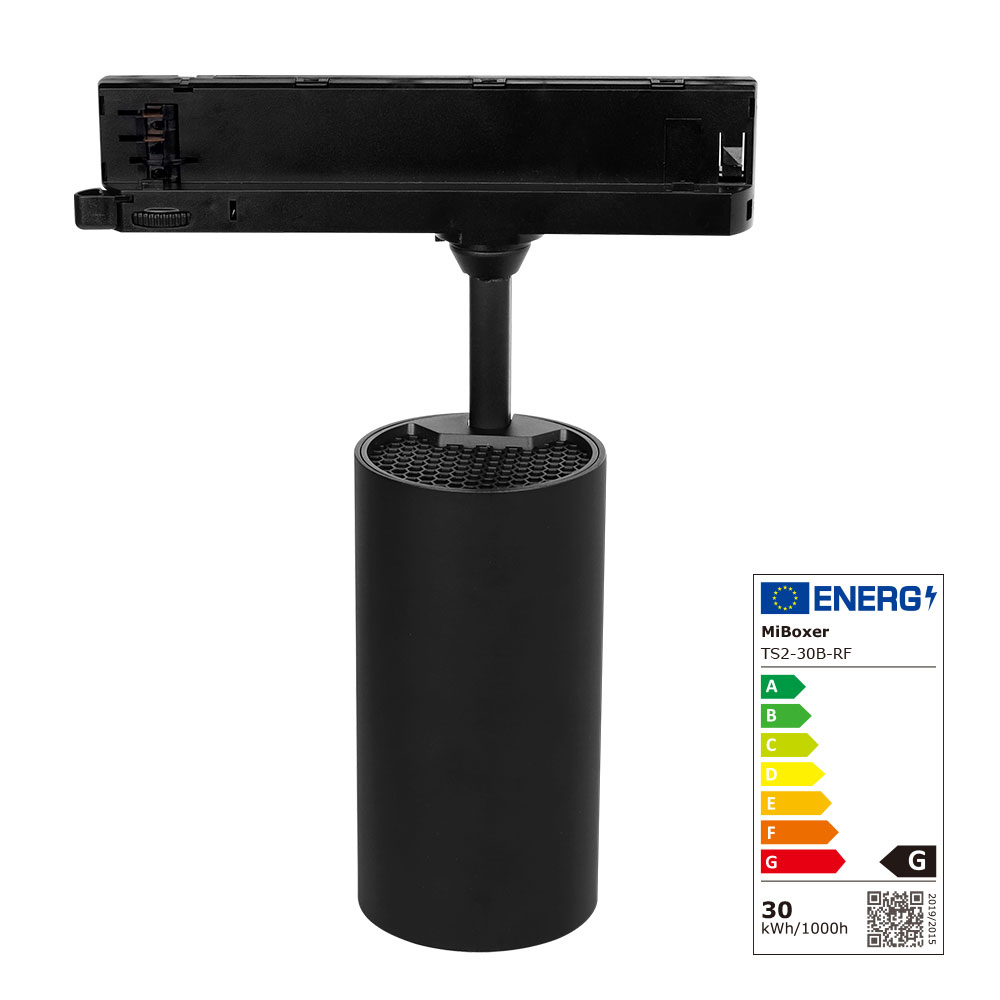

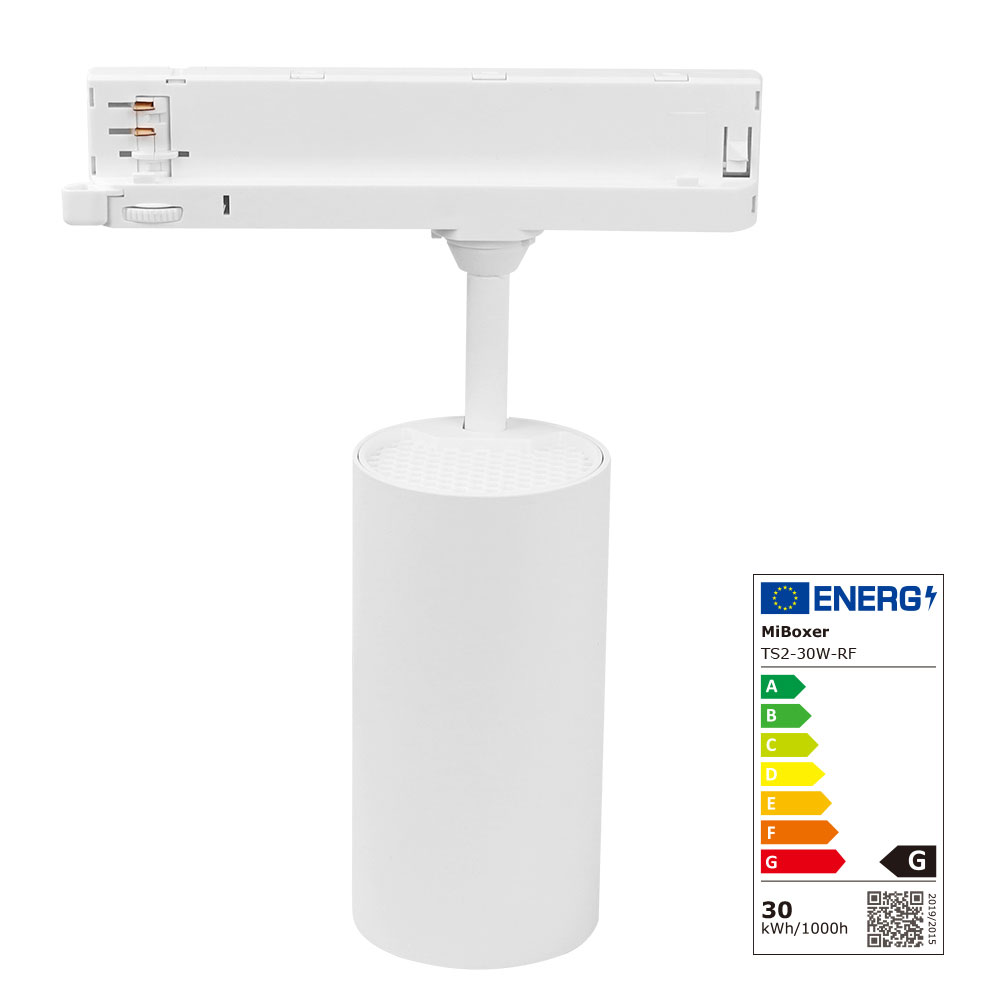

TS2-30W-RF TS2-30B-RF AC100-240V 30W Dual White CCT Track light (2.4GHz), 36-Degree LED Spotlight
30W 2.4GHz RF Remote Controlled Dual White Track Spotlight (2.4GHz). Color temperature and brightness are adjustable. Magnetic insulating base. Powered by rail. Multi-angle rotation. Moving randomly on the rail. Compatible with 4 wire rail (need to purchase separately).
Compatible with these remote controls (Purchased separately): FUT006, FUT007, B2 / T2, K1 / K1-B, S1-B / S1-W / S1-G, WL-B0x1.
Color temperature 2700K-6500K adjustable
2.4G RF wireless transmission technology
Support 2.4G Remote control
Remote control distance 30m
Signal transmitting, One light can transmit the signals from the remote control to another light within 30m, as long as there is a light within 30m, the remote control distance can be limitless.
Support Smartphone app control (2.4GHz gateway is needed)
Support third party voice control (2.4GHz gateway is needed)
TS2-30W-RF & TS2-30B-RF Manual Download
|Product Name:||30W Dual White LED Track Spotlight (2.4GHz)|
|Model No.:||TS2-30B-RF (Black), TS2-30W-RF (White)|
|Input Voltage:||100-240V~ 50/60Hz|
