Xiaolei smart gateway support WiFi, RF2.4GHz, infrared, RF 433MHz wireless protocol, Smart Gateway

Model: Smart Gateway
Xiaolei smart gateway support WiFi, RF2.4GHz, infrared, RF 433MHz wireless protocol, Smart Gateway

$207.98

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+Min:  1000

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Xiaolei smart gateway support WiFi, RF2.4GHz, infrared, RF 433MHz wireless protocol. Support real-time remote control via LAN or WiFi, 3G / 4G mobile network, remote upgrading the latest version of firmware, smart speaker, or voice control. Controllable equipment includes ceiling lamps with Xiaolei driver, wall switches, smart wireless switch, human body sensor, electric curtains, electric racks, and other RF type appliances, and air conditioners, TV sets, fans, and other infrared appliances. With an 8000+ online infrared code database, it can update automatically regularly and is compatible with up to 95% of infrared-control appliances in the market. Meanwhile, it also has one key custom scene, timing control, and other functions, which makes life more intelligent and convenient.



    Product parameters

    Name: Smart gateway

    Model: GW-WF-PRO

    Input Voltage: 5Vdc 1A

    Network Type: WiFi 2.4GHz, IEEE 802.11 b/g/n

    Infrared Frequency: 38KHz

    RF Frequency: 2.4GHz, 433MHz

    Wording Temp.: -20°C~60°C

    Dimensions: L109×W109×H25(mm)

    Packing Size: L115×W115×H52(mm)



    Common question and answer

    1. Is there a requirement for the mobile version of this product?

    Please use Android 4.0, iOS 9.0, or a higher version.

    2. What we can do if the gateway match failed?

    2.1router into 2.4G if you use the intelligent dual-band routers.

    2.2 Please do not hide your router network.

    2.3 Please keep the distance between devices and router close.

    2.4 Kindly check the WiFi signals.

    2.5 Kindly check the WiFi account and password.

    2.6 Kindly check the WiFi devices, do not exceed the router capacity.

    Please check if the router net in 2.4G b

    3. How to set up if the configured router needs to be replaced?

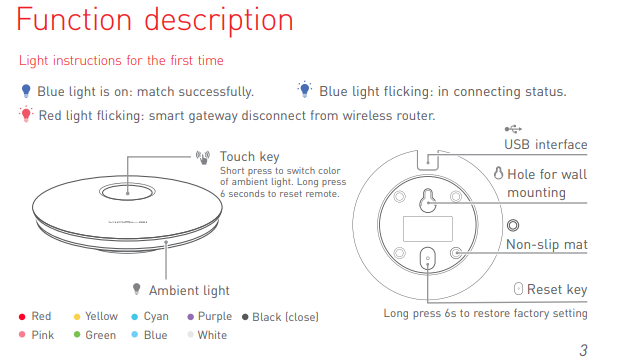

    Long press the touch key on the gateway for 6 seconds, and the blue light flashes, entering into the distribution network state. Select the smart remote control 4.0 on APP and proceed according to the prompts to rewire.

    4. What can we do if the long-range control failed or the gateway offline?

    4.1 Kindly check the network of your mobile phone.

    4.2 Kindly check the router.

    4.3 Kindly check the power of the gateway or if the devices are restored factory setting.

    5. What can we do If failed to match the sub-devices and gateway.

    5.1Please check the distance between the gateway and the sub-devices, or if there is any large area of the metal barrier. Please shorten the distance if there are lots of barriers.

    5.2 Please add the EBOX-AP RF relay if any long-distance situation.

    Please contact suppliers if needs more support.

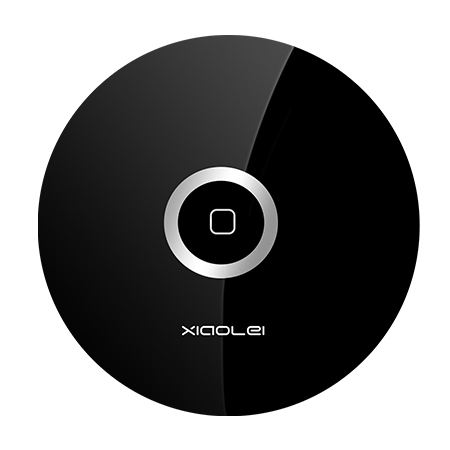

    Xiaolei smart gateway

    Xiaolei smart gateway

    Xiaolei smart gateway

    Xiaolei smart gateway

    Xiaolei smart gateway

    Xiaolei smart gateway support WiFi, RF2.4GHz, infrared, RF 433MHz wireless protocol, Smart Gateway

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    Xiaolei smart gateway support WiFi, RF2.4GHz, infrared, RF 433MHz wireless protocol, Smart Gateway
