1 circuits Output EDX Communication protocol General intelligent lighting control system for hotel lighting, building lighting ,indoor and outdoor lighting
Summarize of the system
General control system is our response to the hotel lighting, building lighting, etc all kinds of indoor and outdoor lighting control research and development of a set of intelligent lighting control system, the overall design scheme is based on the principles of humanized operation and personalized. The system can through the computer network to monitor the whole system, monitoring the working state of the current lighting subsystem;Can implementation linkage control with DALI, DMX system, control system, the 485 bus, TCP/IP.At the same time can be extended to the whole household or business system of intelligent control
Standards and Certifications
Output： 1 circuits
External dimension：L86ΧW86ΧH34 mm
Package dimension：L122ΧW85ΧH42 mm
The output current ：<8A
The output power ：12V<144W,24V<288W

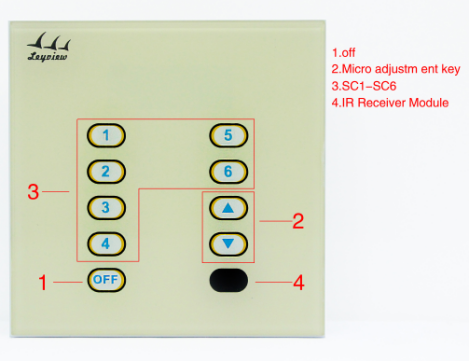

1-6：Micro adjustment key
IR Receiver Module
1 Connection line well
2 Power on,the default on electricity control single area, area number is 1
3 1-6 control to Send scene command control
4 Short press OFF to send scene command
5 Short press up and down to adjust light brightness
6 Long press off to enter or exit,the region setting mode
7 In the region setting mode:
7.1 Up and down to set the size of region number
7.2 6 Is confirm button ,when the region number confirmed ,then touch 6 to confirm and store.If store more region ,then can control more .At most control 9 region
1 Connect the load line, and then connect the power cord;Before power on to ensure no short circuit between input and output cables
2 Power supply voltage range for controller DC12 ~ 24 v , the over voltage range may burn out the controller
