DMX306 4 circuit output international DMX - 512 standard protocol adopted rail 0-10V dimmer applied for company general lighting control system , home lighting systems , led light strips
Summarize of produce

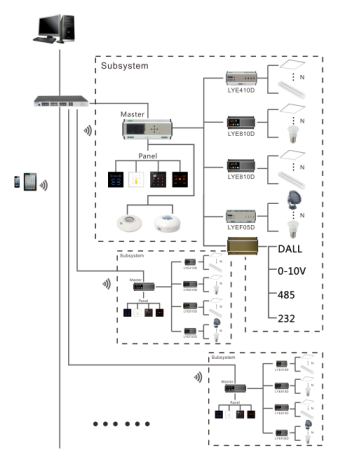

The product is our company general lighting control system of 0 ~ 10 v dimmer extension, the extension support two kinds of agreement, can output 4 circuit, per circuit includes a set of AC output power and a set of DC 0 - 10 v analog output, the extension receives the widespread adoption of international DMX - 512 standard protocol, DMX control signal can be converted into 0 ~ 10 v analog voltage signal to drive leds, can control of extension set single zone and more zone.Support compatible with yong Lin EDX protocol,with software and control panel.
Standards and Certifications
Output：each circuits 5A
Working power consumption ：<2W
Installation： 5MM rail
Signal connector ： 4 PIN Green terminal station 5.0mm
Output： 4 circuits PWM common-cathode,4 circuits 0-10V
Key Interface Instructions
power input port
the AC power input terminal （100-240）
Dc output port
the DC output terminal（0-10V）
the AC power output terminal
FCN DMX ▲ ▼ ◀▶
DMX/EDX connection port
Connection D + and D - signal lines
When power on ,the power light bright
DMX communications light
Often off, extension and host in communication,the light flash
Real-time output button1 2 3 4
by key real-time control 0 ~ 10 v output
Digital display screen
the display Setting the parameters
Please do not install the controller in a closed or high pressure, high magnetic field area
In order to reduce the risk of short-circuit fire and device damage, please make sure the right connection
To ensure the installation in a ventilation area to ensure the right temperature
Check whether the voltage and the power supply is matching the controller
Before power on, please check whether the circuit is properly connected, and instrument
test whether there is a short circuit
When there is a problem, please don't open the shell of the controller optionally.
This manual is only applicable to this type controller, if any updated without prior notice
No output load
1. no power
2. Output overload
3. D+ and D- inversely connect
1. Check the power supply
2. check connect line
