AC100-240V 5MM rail 4 circuits 512 standard protocol signal software or panel control EXP Rail Switch Controller for home lighting systems ,led strip projects , led strip remote control
Summarize of produce
The product is our company general lighting control system of 4 CH 20 A EPX rail switch extension, can output 4 circuits, per circuit includes a set of AC output power and a set of output, change the extension to receive the widespread adoption of international DMX - 512 standard protocol, DMX control signal can be converted to switch signal to control relay switch, can control of extension to set single zone and more zones.Support compatible with yong Lin EDX protocol, with software and panel to control.
Standards and Certifications
Controller Technical Parameters
Output： each circuits 5A
Communication protocol ：EDX/DMX-51
Working power consumption ：
Installation ： 5MM rail
Signal connector ： 4 PIN Green terminal station 5.0mm

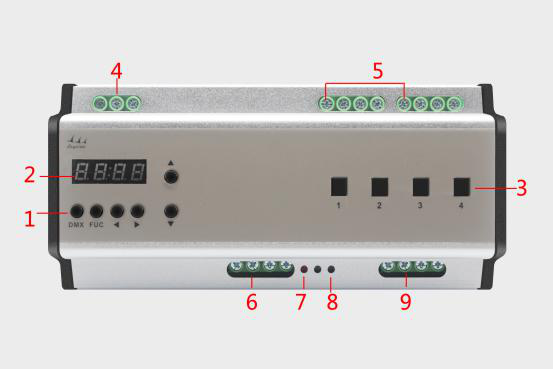

Key Interface Instructions
FCN DMX ▲ ▼ ◀▶
Digital display screen
display setting or output Parameters
ON-circuits forced open,off-circuits forced close
the power input port
AC power input terminal station（100-240V）
4 circuits AC power output terminal station
input DMX/EDX connector
connect D+and D- signal line
When power on ,the power light bright
DMX communications light
Often off, extension and host in communication,
output DMX/EDX connector
connect with another extension to input DMX connector
No output load
2. Output overload
3. D+ and D- inversely connect
1. Check the power supply
2. check connect line
