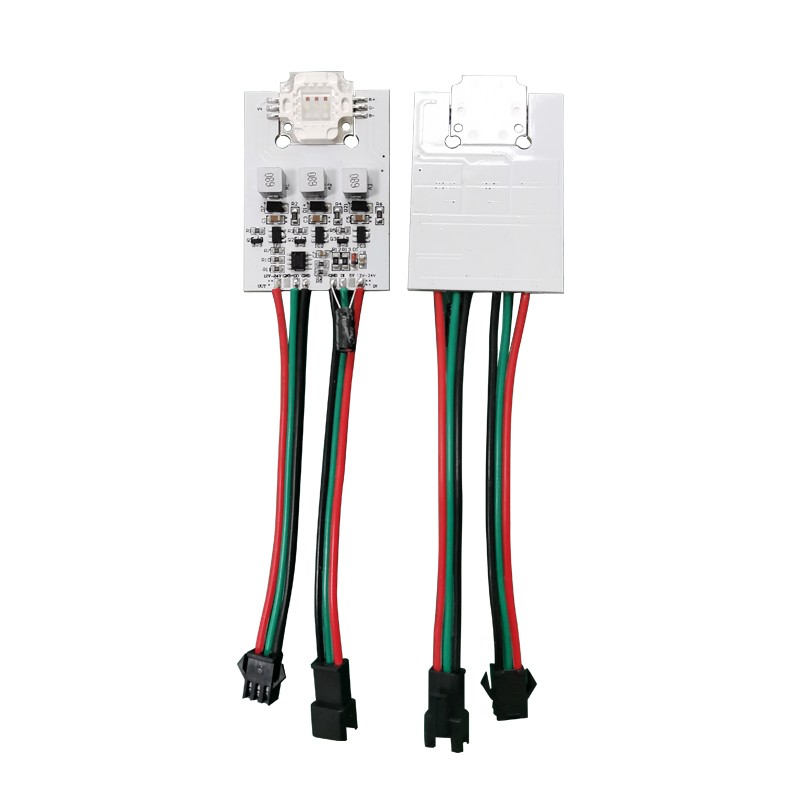

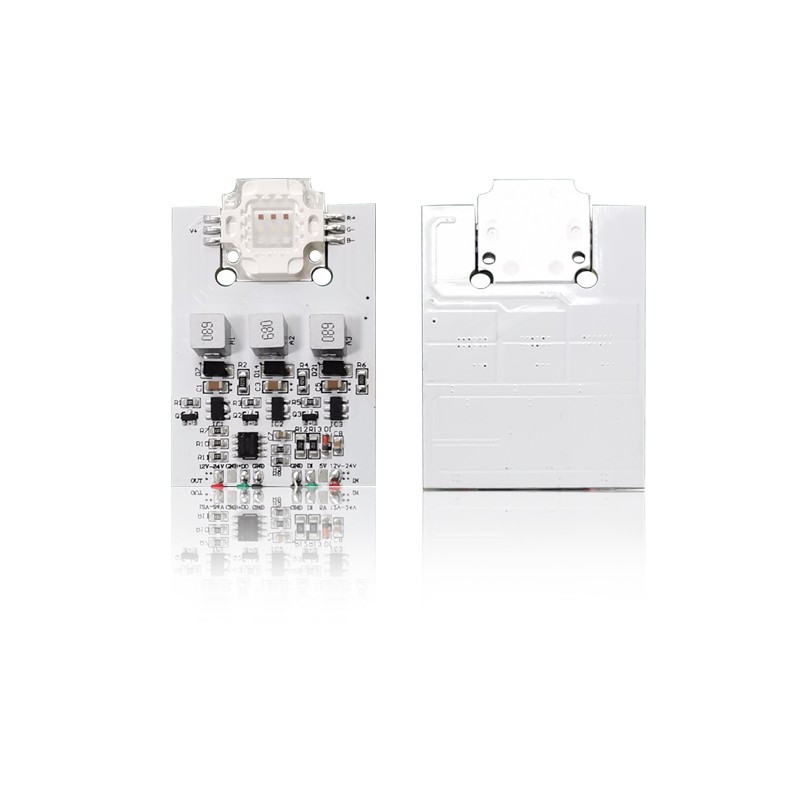

DC12V 10W WS2811 RGB LED Light Module Pixel Dots
Ckeck this 10W high-power WS2811 LED pixel module light, RGB addressable, can display multi-color RGB lights. Using COB chip, the lamp beads are bright without stroboscopic, low-voltage 12V DC power supply, can be used for sign lighting, light box lighting, channel letter lighting, and letter background lighting. This led pixel dots are not waterproof.
Standards and Certifications
IC type: WS2811
LED Chip: COB

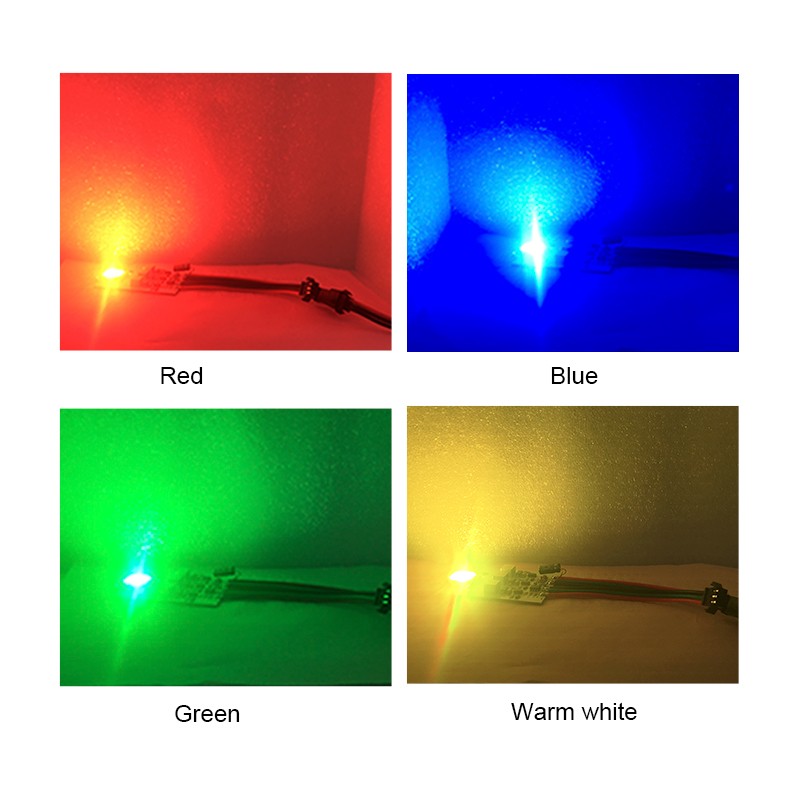

LED Color: RGB full color
Input Voltage(V): DC12V
Output power: 10W / piece
Lumen: Red: 65lm, Blue-20lm, Green: 90lm
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)

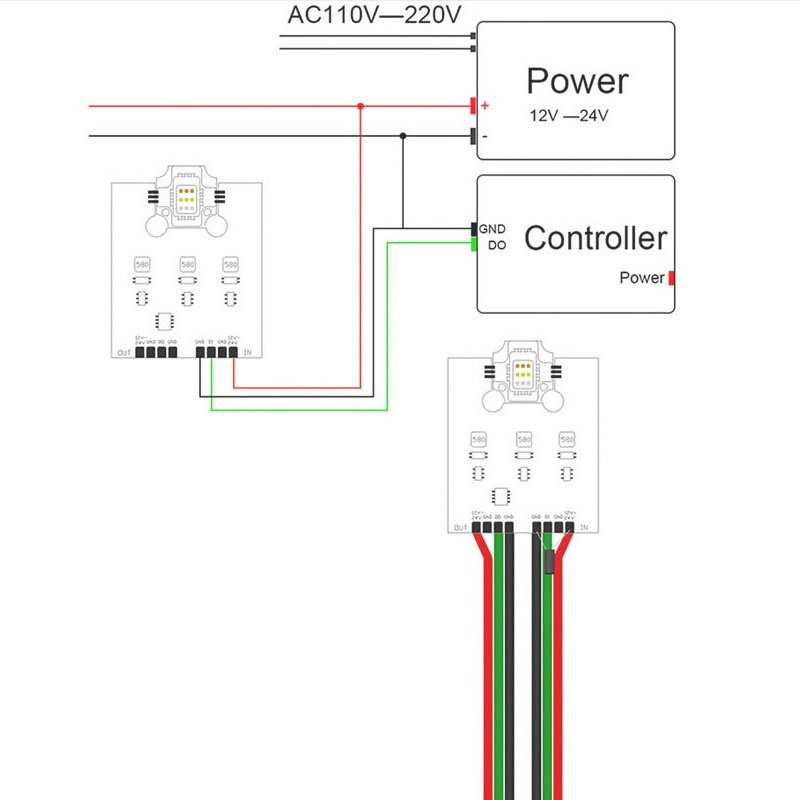

Red Wiring colors: 12v Positive / +
Green Wiring colors: Data Signal
Black Wiring colors: 12v Negative /-

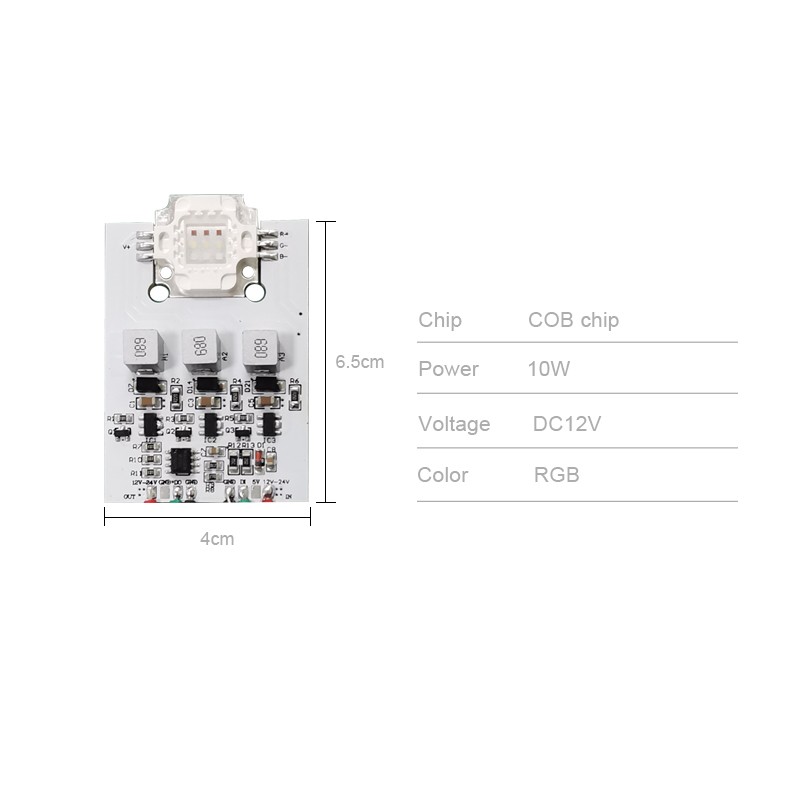

Size: 4cm*6.5cm / 1.57in*2.56in
three-dimensional light-emitting word
Channel letters lighting
Light boxes lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
Edge lit signs
Off grid lighting
