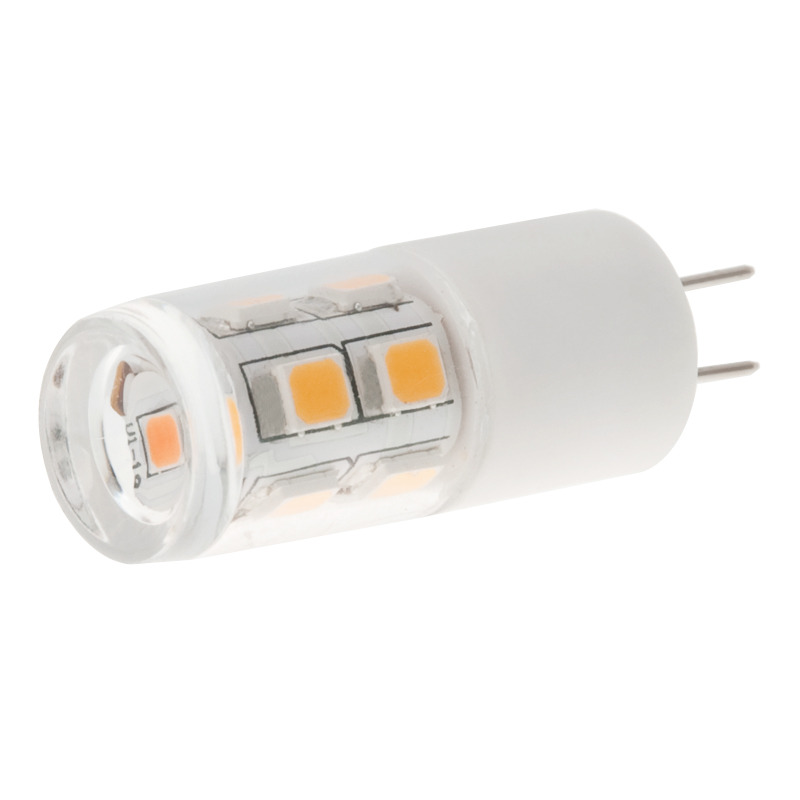

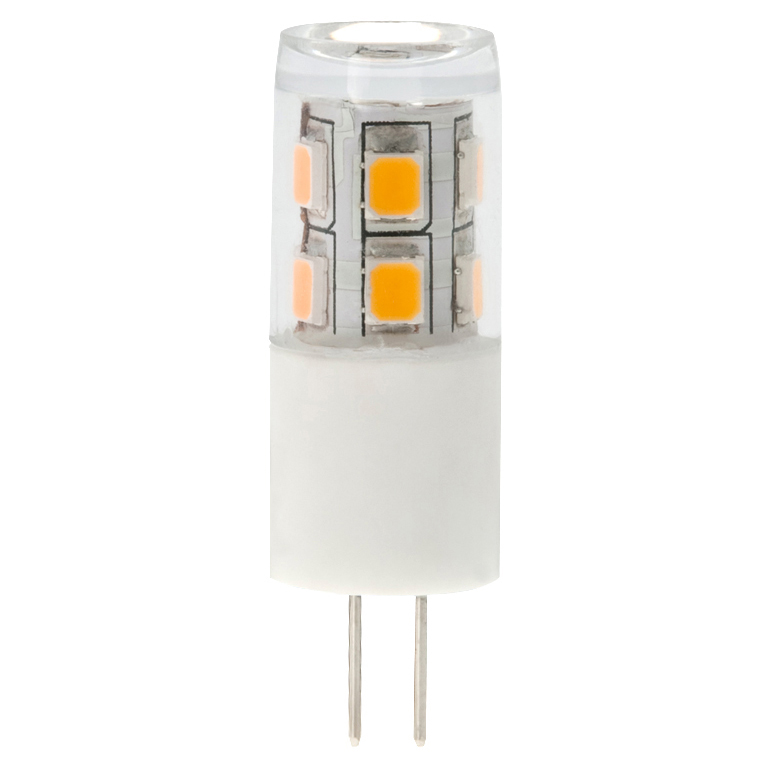

12V AC/DC, Back-Pin Tower T3 JC G4 LED Bulb, 1.5 Watts, 15W Equivalent, 5-Pack
Input voltage is 12V AC/DC
Power consumption is 1.5Watts
Uses 13 pcs SMD 2835 LEDs
Luminous flux up to 180 lumens maximum

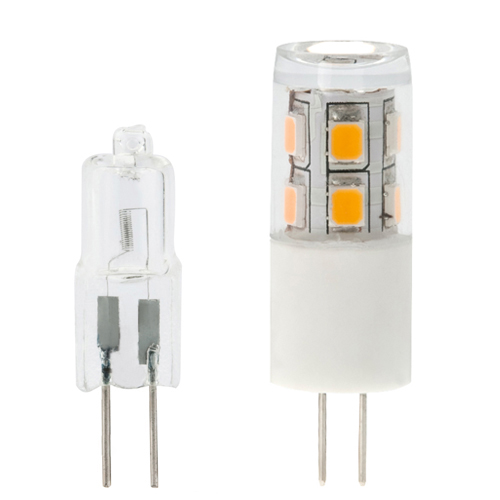

Nearly equivalent to standard 15W halogen/incandescent bulb
Optional colors are daylight white and warm white
360-degree wide beam floodlight

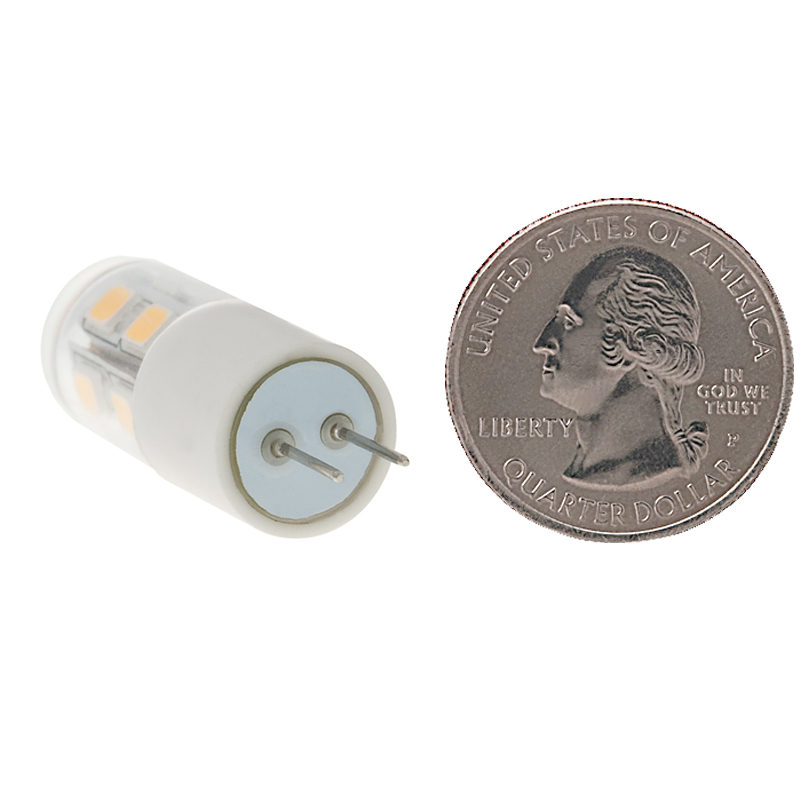

0.45-inch diameter x 1.45-inch total length
For use in ceiling lights, pendant lights, desk lamps, table lights, puck lights, under-counter lights, closet lights, under-cabinet lights, accent lights or display lighting, etc.

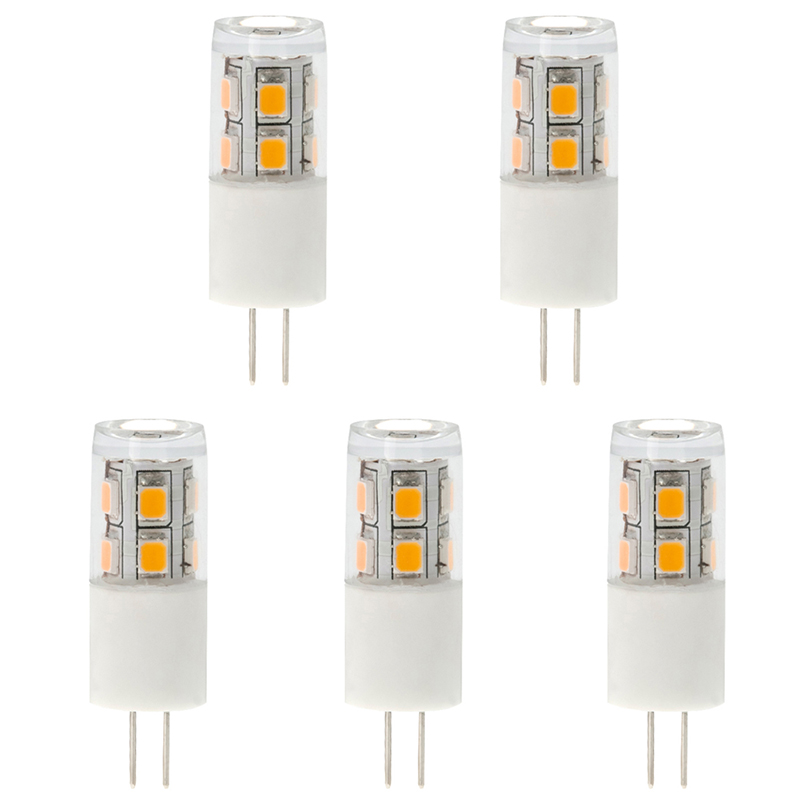

The package includes 5 pcs bulbs
Non-Weatherproof. Indoor use only unless contained within weatherproof housing.
Standards and Certifications
Wattage: 1.5 Watt
Halogen Equivalent: 15 Watt
Voltage: 12V AC/DC
Bulb Base: G4
Bulb Shape: T3 JC
Luminous Flux: 180 Lumen
Beam Angle: 360 Degree
LED Brand: Epistar
LED Type: 2835 SMD LEDs
LED Quantity: 13 Pcs

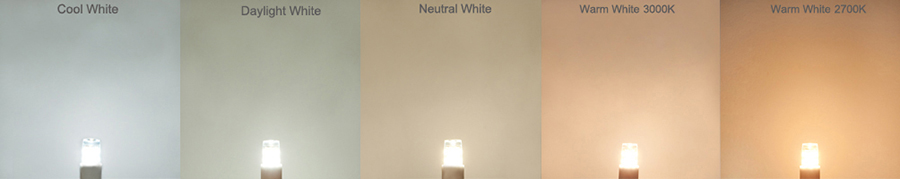

LED Color(s): Daylight White / Warm White
CCT or Wavelength: 5000K / 3000K / 2700K
Color Rendering Index: 80
Diameter: 11.5mm (0.45 in.)
Length (M.O.L.): 36.8mm (1.45 in.)
RoHS Compliant: Yes
LED Lifetime: 40,000 Hours
