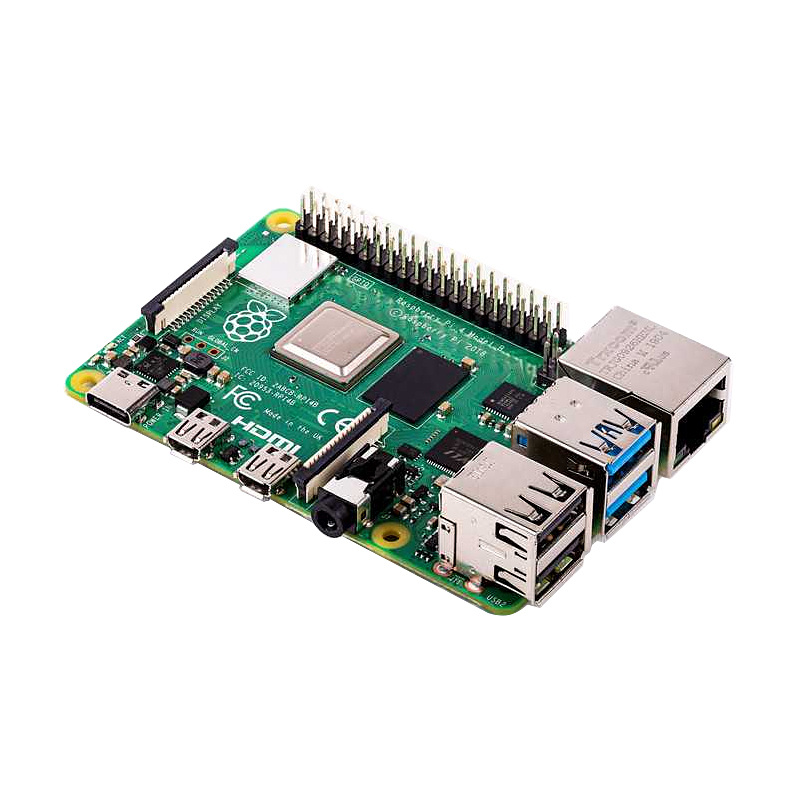

Raspberry Pi 4B 2GB Control Board Basic Package
Raspberry Pi 4B 2/4GB Control Board, three times the performance, CPU1.5GHz 64-bit quad-core, supports dual-screen 4K resolution display, has WiFi and Bluetooth functions. It can control programmable led strip lights like WS2812, SK6812, etc.

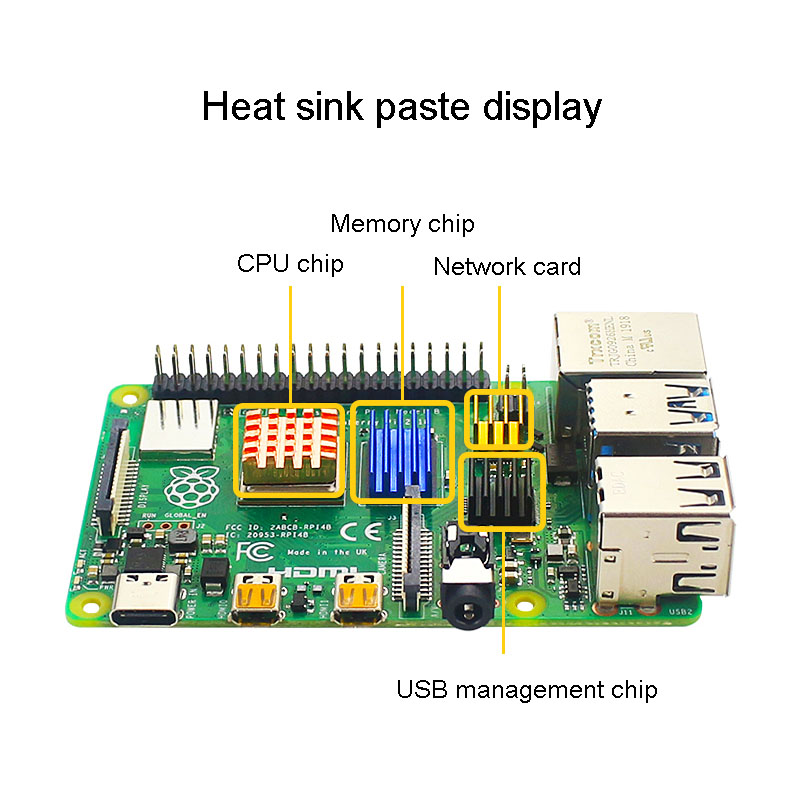

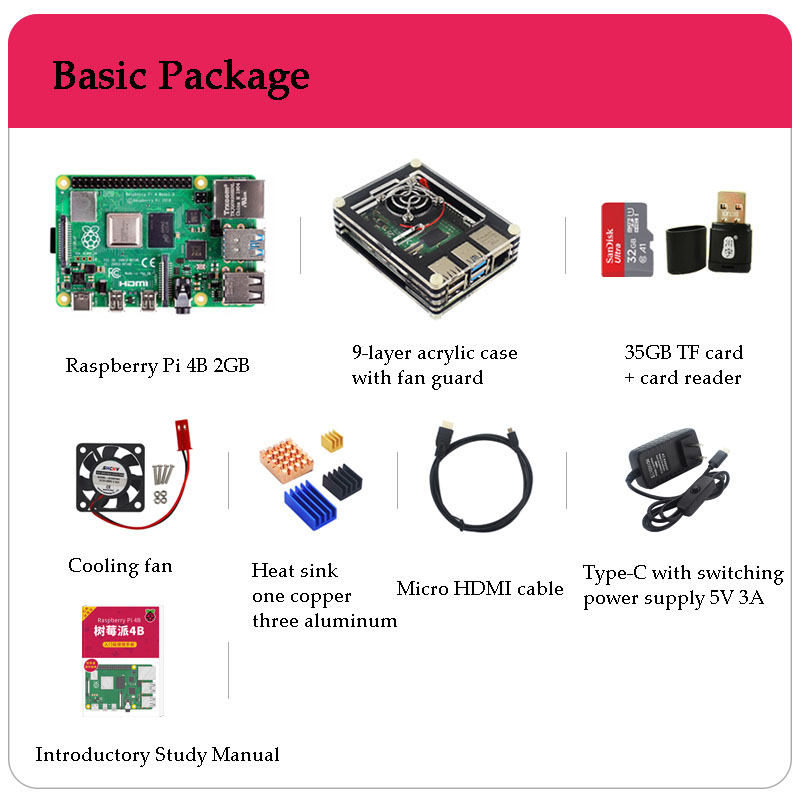

Product package: Raspberry Pi 4B 2 or 4GB, 9-layer acrylic case with fan protection cover, 35GB TF card + card reader, cooling fan, heat sink, one copper and three aluminum, Micro HDMI cable, Type-C with switching power supply(5V 3A), Getting Started Manual.

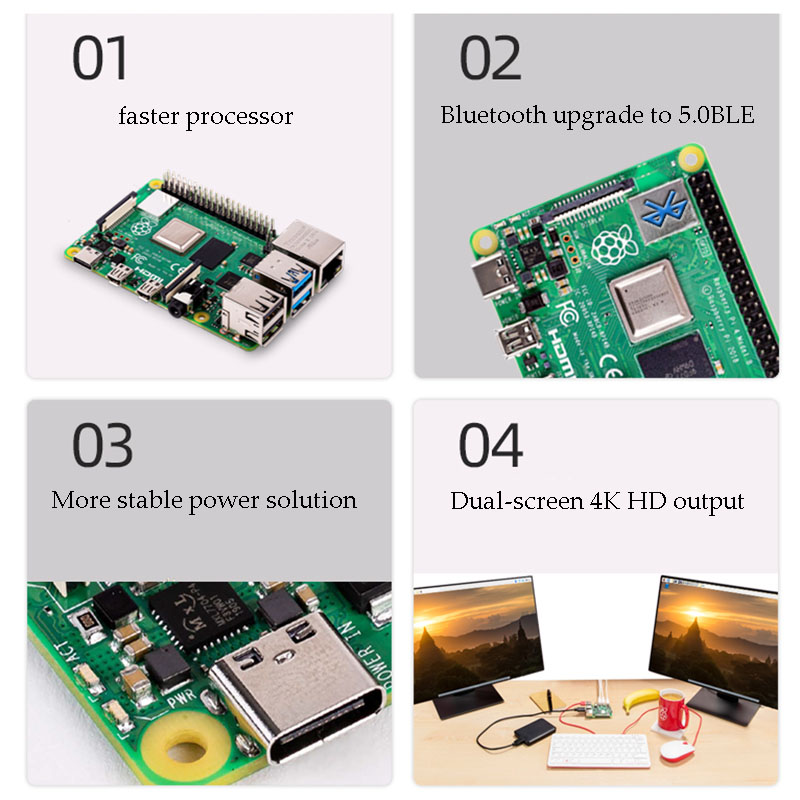

1. Faster processor, CPU increased to 1.5Ghz, editing documents, browsing web pages, forms, or drafting presentations, the experience is smooth.
2. Bluetooth is upgraded to 5.0BLE, the performance is more stable and meets your low power consumption requirements.

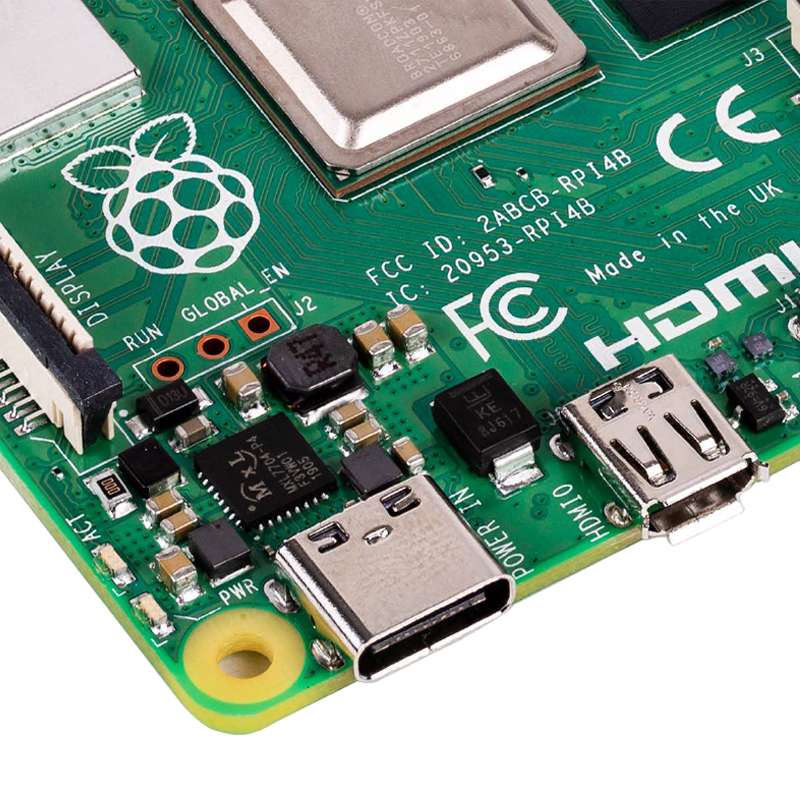

3. A more stable power supply solution, using a Type-C power interface, double-sided pluggable, more stable, and supports larger current input (5V 3A).
4. Dual-screen 4K high-definition output, using the micro HDMI video output interface, and two onboard micro HDMI support 4K and can be used simultaneously for dual-screen output.

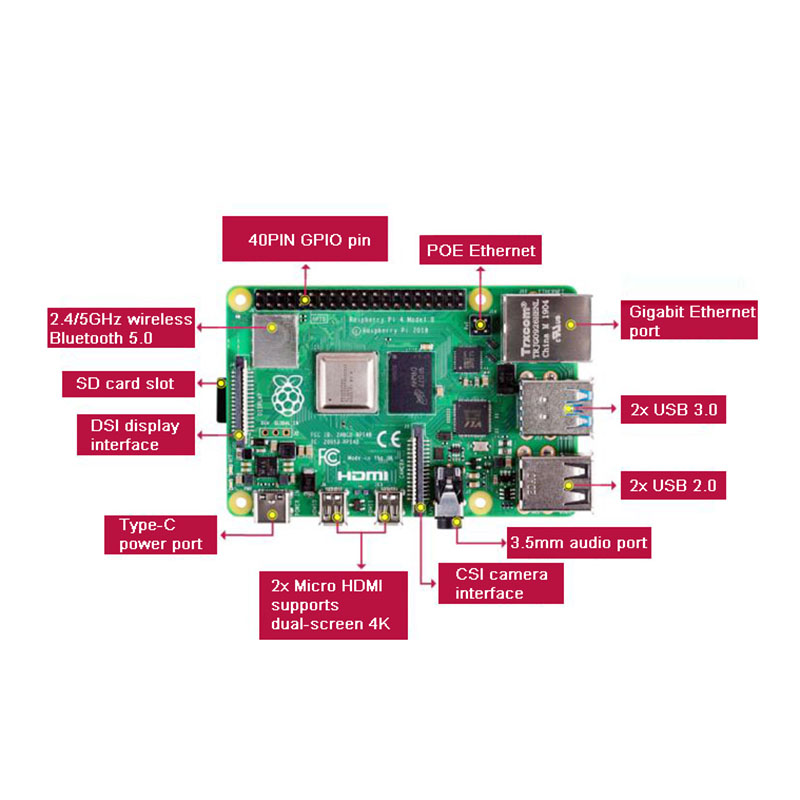

Chip: Broadcom BCM2711
CPU: 64-bit - 1.5GHz Quad Core
WiFi: 802.11AC wireless 2.4GHz/5G dual-band WiFi
USB interface: USB3.0*2, USB2.0*2
Wired Network: Gigabit Ethernet
HDMI: Micro HDMI*2, support dual screen
Power interface: Type-C (5V 3A)
Multimedia: H.265(4Kp60 decode), H.264(1080p60 decode, 1080p30 encode), OpenGL ES, 3.0 graphics
Ethernet POE: via additional Hat Ethernet (Power over POE)

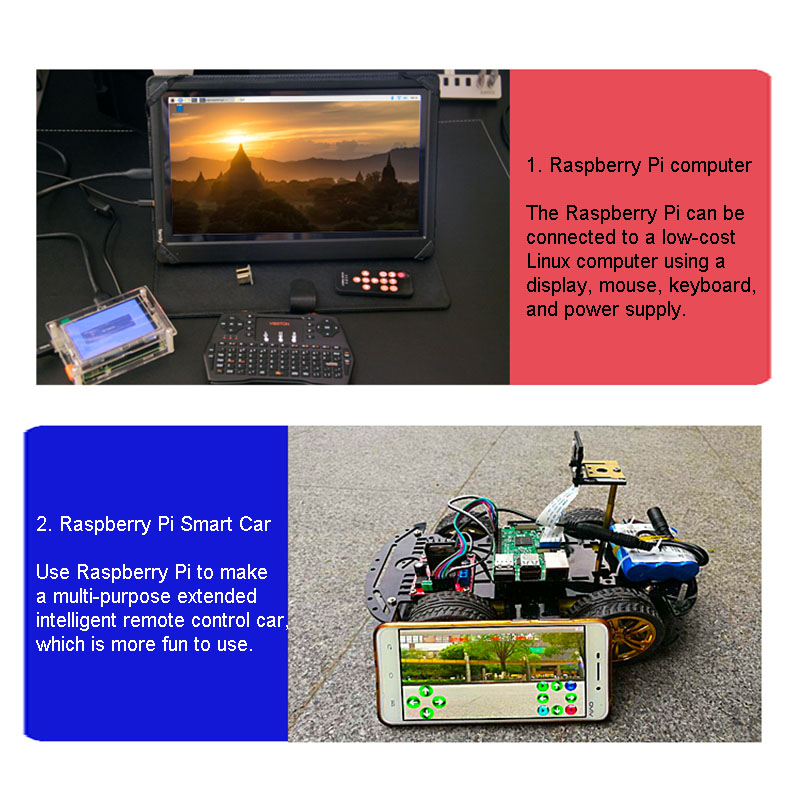

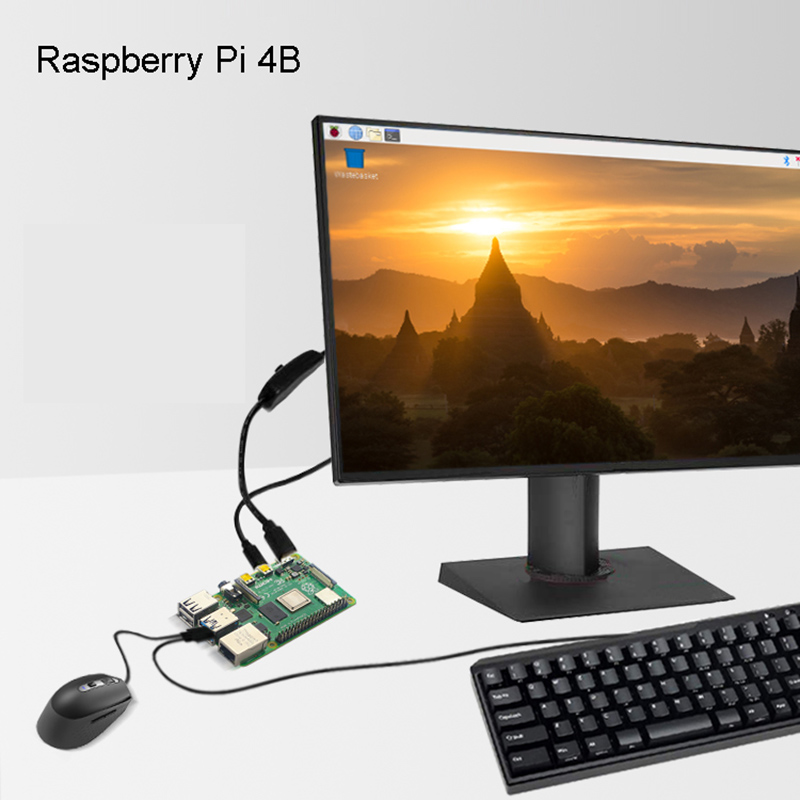

1. Raspberry Pi computer: The Raspberry Pi can be connected to a low-cost Linux computer using a display, mouse, keyboard, and power supply.
2. Raspberry Pi Smart Car: Use Raspberry Pi to make a multi-purpose extended intelligent remote control car, which is more fun to use.

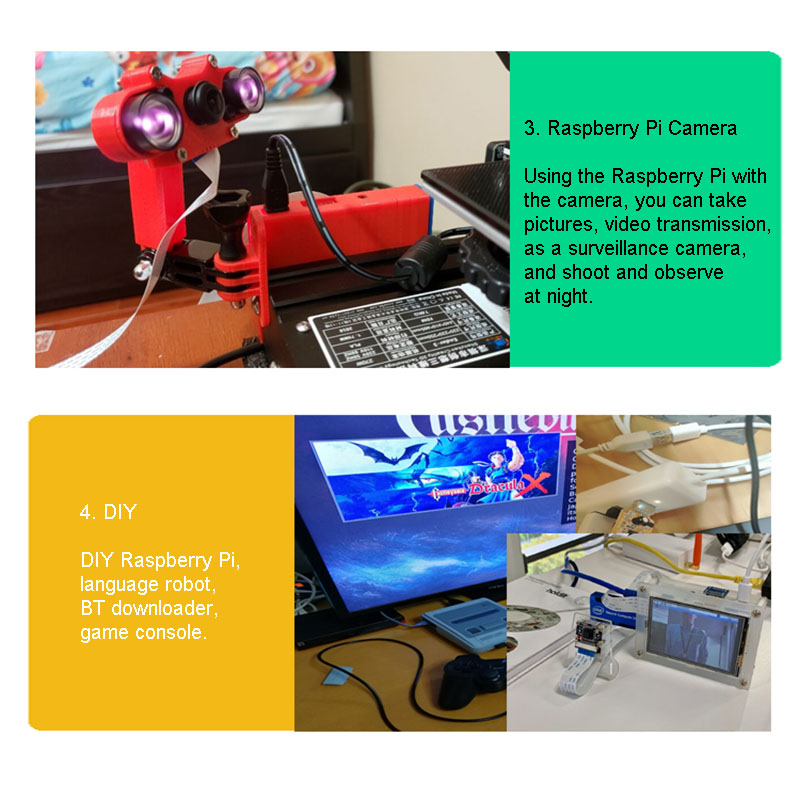

3. Raspberry Pi Camera: Using the Raspberry Pi with the camera, you can take pictures, video transmission, as a surveillance camera, and shoot and observe at night.
4. DIY: DIY Raspberry Pi, language robot, BT downloader, game console.
