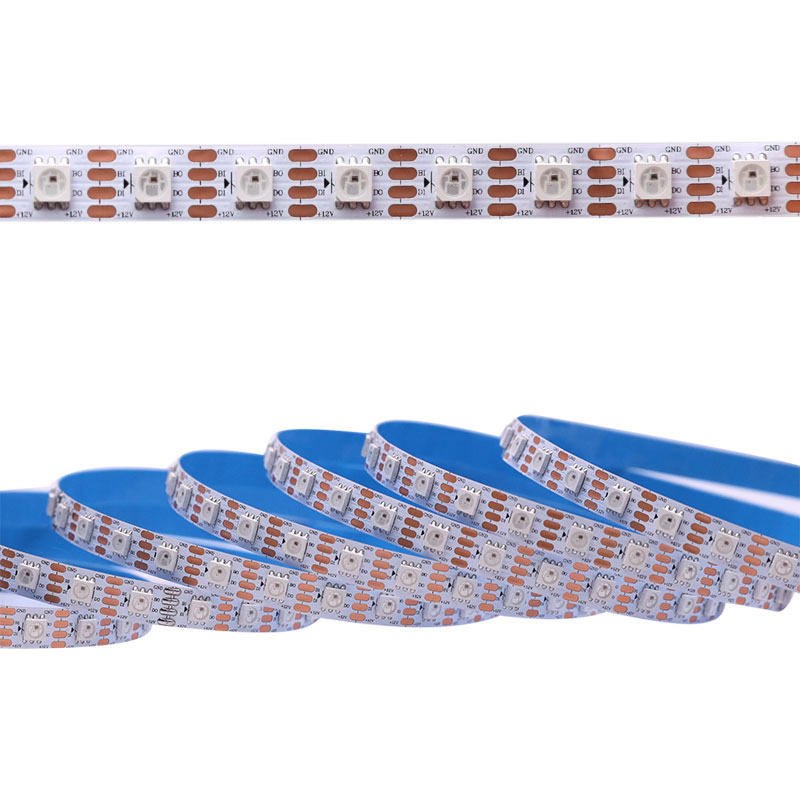

12V WS2815 Individual Addressable 5050 LED Programmable 74LEDs/m RGB Strip Lights 16.4FT
12V WS2815 Individual... $40.98 $37.997% off
96W8A DC12V Plastic Shell... $21.99
SPI WiFi Alexa LED... $11.98
K-1000C (T-1000S Updated)... $54.98
DC5-24V SP107E Wireless... $16.98
Mean Well LRS-100-12... $30.00 $25.9813% off
DC5-24V Ethernet-SPI/DMX... $185.00 $169.988% off
$40.98 $37.997% off
12V WS2815 Individual...
96W8A DC12V Plastic Shell...
SPI WiFi Alexa LED...
K-1000C (T-1000S Updated)...
DC5-24V SP107E Wireless...
Mean Well LRS-100-12...
High density 74LEDs/m RGB led strip light for common lighting in bedroom, kitchen cabinets, ceiling, retail store, etc.

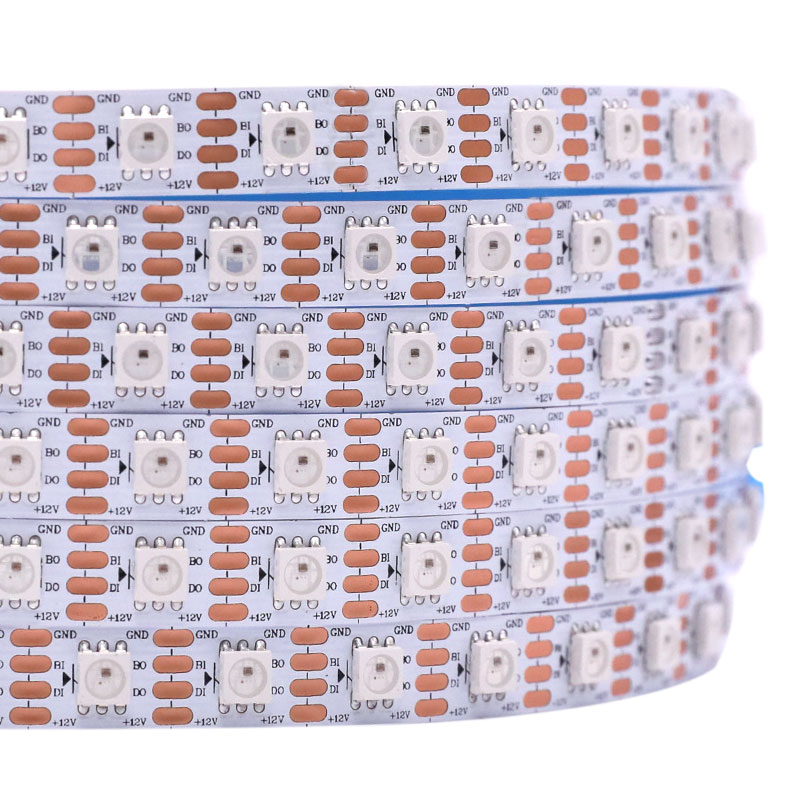

WS2815 intelligent IC built in SMD5050 RGB LEDs, each diode is individually addressable with 256 brightness displays and 24 bit color displays. Controlled by a SPI controller via mobile APP, RF/IR remote, or Alexa/Google Asistant.
Dual data wire input, one data wire and one backup data wire, to make sure the light strip works proplely when a certain LED is broken.
Comes with a 4-pin JST conector and a 2-pin power/ground wire at both ends of strip, easy to conenct multiple strips together, and inject power in time to run longer distances. Work with 12V power supply.
IP20 and IP65 strips have adhesive tape at back, IP67 and IP68 without it. Please prepare installation materials (mounting clips, spare end caps, etc) for your outdoor led strip lights.
Note: this 12V WS2815 RGB led strip lights are for common projects, please look for our engineering versions for your large commercial lighting.
WS2815 IC Chips Specifications Download
Standards and Certifications
|LED Strip Type:||Individually Addressable RGB LED Strip Lights|
|LED Chip:||WS2815 Breakpoint Resume + SMD5050|
|Power:||18W/m max, 90W/roll|
|LED Color Temperature:||Addressable RGB|
|LED Quantity:||74 LEDs/m, 480LEDs per roll|
|IC Quantity:||74 IC/meter (1 IC drives 1 led chip)|

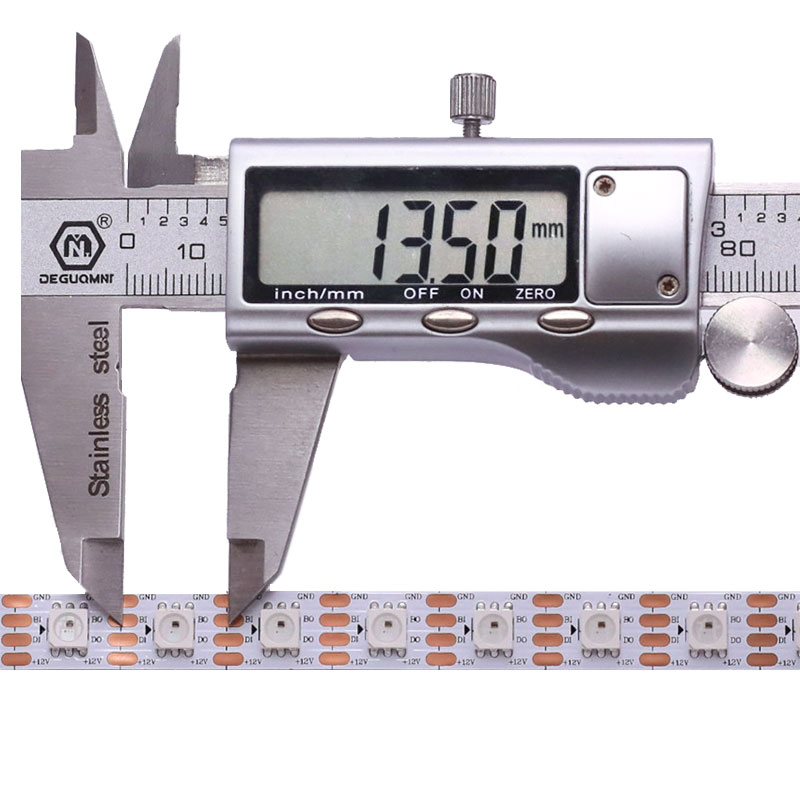

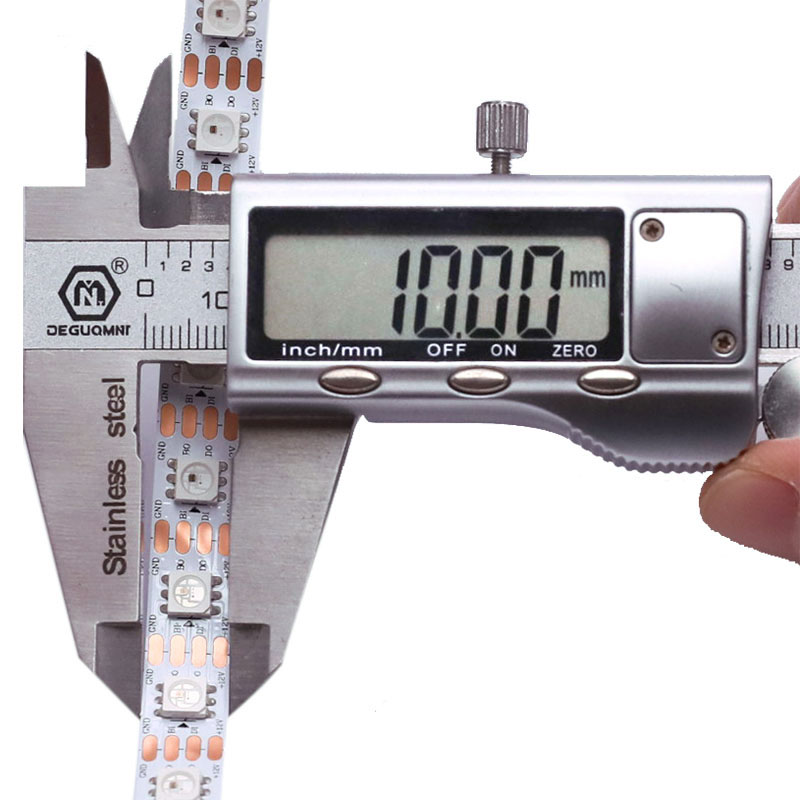

|Dimensions:||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68|
|Lumen:||20-22 lm/LED, 8140lm Max /16.4ft|
WS2815 Technical Features
The control circuit and RGB chip are integrated into 5050 components, to form an external control pixel
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of the waveform of the signal takes place.
Refresh Frequency updates to 2 KHz. It supports the lower frequency and inexpensive MCU.
Any two points the distance less than 3m transmission signal without any increase circuit
The data transfer protocol uses a single NZR communication mode. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.
The BIN receives the data signal, which ensures that any the IC's damage does not affect the signal cascade transmission and make the BIN in the state of receiving signal until the restart after power-off.
