16W RGBW 4 Plug Type Selection 24key RF Remote LED Fiber Optic light Engine Driver For Fiber Optics

Model: FIBERENGINE06 Review stars 0.0 (0 Reviews) Various options in stock
Price$50.98
Select Specifications:
Qty: -+
❓ Ask a question about this item — an engineer replies within 12 hours
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Lights Guide

Product Information

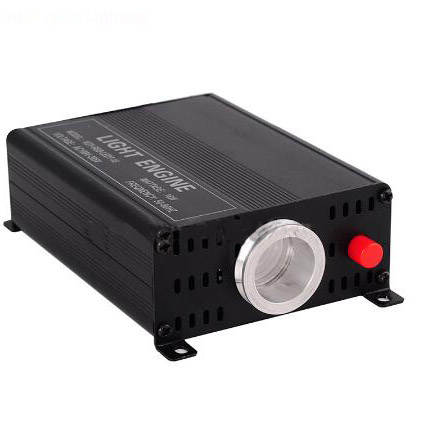

The FIBERENGINE06 is a 16W RGBW led fiber optic light engine engineered to transmit vivid color across optical strands for star ceiling canopies, car headliners, and custom display fixtures. Operating on a universal AC85-265V input, this compact fiber optic driver delivers separate pure white and rich RGB illumination through an integrated 19.7mm coupling head. Complete with a handheld 24-key wireless radio-frequency controller, users can switch between 13 static presets or initiate dynamic color jump, fade, and spark modes through barriers without line-of-sight limits. Note that this fiber optic led transmitter unit does not ship with optical strands; installers must purchase fiber optic cables separately.

Key Product Features

16W RGBW Output

Emits distinct saturated hues alongside independent pure white light via a dedicated 4-channel LED chip assembly.

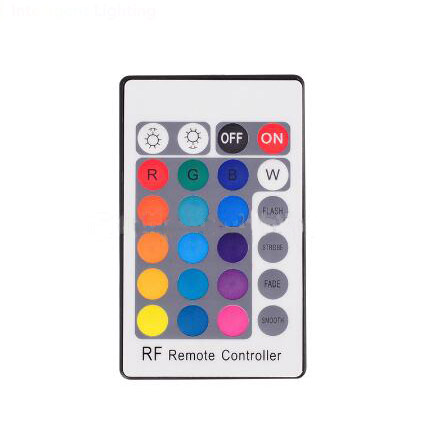

24-Key RF Wireless Remote

Provides through-wall transmission to switch 13 static colors and control multi-speed dynamic fade, jump, and spark patterns.

Universal 19.7mm Port

Accepts standard optical cable bundles securely clamped using a threaded mechanical barrel fitting.

Wide Voltage Compatibility

Accommodates incoming line voltages from AC85V to AC265V at 50/60Hz for reliable operation across standard global power grids.

Four Regional Plug Options

Available in 4 plug choices including US, EU, UK, and AU formats to match local electrical outlets directly.

Rugged Thermal Enclosure

Features an aluminum chassis measuring 115 x 88 x 40mm that operates reliably across extreme temperatures from -50°C to 50°C.

Technical Highlights

  • Four dedicated color emitters (Red, Green, Blue, White) allow pure white illumination without the typical color fringing of standard RGB mixing.
  • Radio-frequency control protocol operates at long range and penetrates drywall, acoustic tiles, and wood paneling without requiring visible infrared sensors.
  • Precision-machined 19.7mm optical barrel maximizes light transfer into bundled end-glow polymer strands.
  • Solid-state driver circuitry maintains constant 16W output under AC line fluctuations from 85V up to 265V.
  • Extruded aluminum casing functions as an integrated heat sink to sustain an operating lifespan rated at 50,000 hours.
16W RGBW LED fiber optic light engine with 24-key RF remote and 19.7mm optical port

Product Specifications

ParameterDetails
Model NumberFIBERENGINE06
Product TypeRGBW LED Fiber Optic Illuminator Driver
Power Consumption16W
Input VoltageAC85V-265V, 50/60Hz
Light SourceRGBW LED Emitter
Fiber Connector Port Inner Diameter19.7mm
Remote Control Type24-Key Wireless RF Remote
Static Color Presets13 Colors (Red, Green, Blue, Yellow, Mixed White, Pure White, Cyan, Purple, etc.)
Dynamic ModesFade, Jump, Spark, Speed Regulation, Dimming
Enclosure Dimensions115mm (L) x 88mm (W) x 40mm (H)
Unit Weight0.6kg
Operating Temperature Range-50°C to +50°C
Plug Type ChoicesUS, EU, UK, AU (4 options available)
Rated Working Lifespan50,000 hours

Target Application Scenarios

Fiber Optic Star Ceiling Installations Serves as the central fiber optic light source for home theaters, bedrooms, and media rooms. Bundles of end-glow filaments run from the 19.7mm aperture through ceiling drywall, replicating a night sky with twinkling fiber optic star light effects.
Automotive Starlight Headliners Mounted behind trunk trim or under seats to illuminate hundreds of fiber optic lights for ceiling headliners in custom vehicle interiors. The 24-key RF remote allows drivers and passengers to select static themes or color transitions without line of sight.
Commercial Displays & Sensor-Free Enclosures Ideal for museum showcases, jewelry displays, and architectural models where electricity and heat must stay isolated from the display area. The fiber optic driver remains safely inside an equipment closet while cold light travels along the fiber runs.

How to Control & Use This Controller

  1. 1. Cable Bundle Preparation: Gather your optical strands into a uniform bundle, wrap the bundle neck securely with electrical tape, trim the strand ends flush using a heated cutting blade, and insert them into the 19.7mm connector aperture.
  2. 2. Mechanical Securing: Tighten the knurled metal screw collar on the 19.7mm port until the fiber bundle is firmly locked and aligned with the internal optical focus lens.
  3. 3. Power Connection: Plug the AC power adapter into an AC85-265V wall outlet matching your selected regional plug type (US, EU, UK, or AU) and connect the barrel jack to the engine body.
  4. 4. Remote Operation: Insert standard batteries into the 24-key RF remote control. Press the ON button to power the illuminator.
  5. 5. Mode Selection: Press any of the 13 static color buttons to set an immediate color hue, or press dynamic buttons to activate Jump, Fade, or Spark sequences. Use Brightness +/- and Speed +/- to calibrate the final atmosphere.
⚠ Installation & Handling Precautions
  • Ensure the fiber optic driver is located in a well-ventilated dry space with at least 50mm of clearance around the metal housing for passive heat dissipation.
  • This illuminator carries an indoor non-waterproof rating; keep the main housing sheltered from rain, condensation, and splashing liquids.
  • Never look directly into the open 19.7mm optical aperture while the 16W engine is powered on, as focused high-lumen light can strain eyes.
  • Cut fiber optic ends cleanly at a flat 90-degree angle; uneven or jagged cuts will introduce significant light transmission loss.

What's in the Box

  • ✓1 x 16W RGBW LED Fiber Optic Light Engine (Model FIBERENGINE06)
  • ✓1 x 24-Key Wireless RF Remote Control
  • ✓1 x AC85-265V Power Adapter (Specified with US, EU, UK, or AU plug choice)
  • ✓1 x User Operating Instructions Manual

Frequently Asked Questions

Q: Does this light engine include fiber optic cables?

A:No, this unit is the light engine driver only. You must purchase your optical strand bundles separately based on your project length and diameter requirements.

Q: How do fiber optic lights work?

A:The light engine houses a focused 16W RGBW LED emitter that shoots concentrated light into a 19.7mm port. Clear strands bundle into this port and guide the light through total internal reflection, emitting pure light at the cut tips without carrying electricity or heat.

Q: What does an led driver do in a fiber optic system?

A:The driver converts incoming AC85-265V line voltage into regulated constant current to power the internal RGBW LEDs safely while translating RF remote commands into specific color and dimming outputs.

Q: How many fiber optic strands fit into the 19.7mm connector port?

A:A 19.7mm inner diameter port accommodates approximately 450 to 500 strands of 0.75mm fiber, around 250 strands of 1.0mm fiber, or up to 70 strands of 2.0mm fiber.

Q: Can the RF remote control this engine through ceiling panels or furniture?

A:Yes, radio-frequency signals pass through plasterboard, wood, and composite ceilings within a standard 10-meter to 15-meter range without requiring a direct line of sight.

Q: What is the difference between this FIBERENGINE06 and the 28-key sibling models?

A:The FIBERENGINE06 features a direct 24-key RF layout optimized for 13 distinct static presets and classic jump/fade/spark controls, whereas 28-key siblings use alternate button layouts and dynamic programming sequences.

Q: What plug types are available for international projects?

A:You can select between four regional plug styles upon ordering: US, EU, UK, or AU, all pre-wired to an AC85-265V input adapter.
