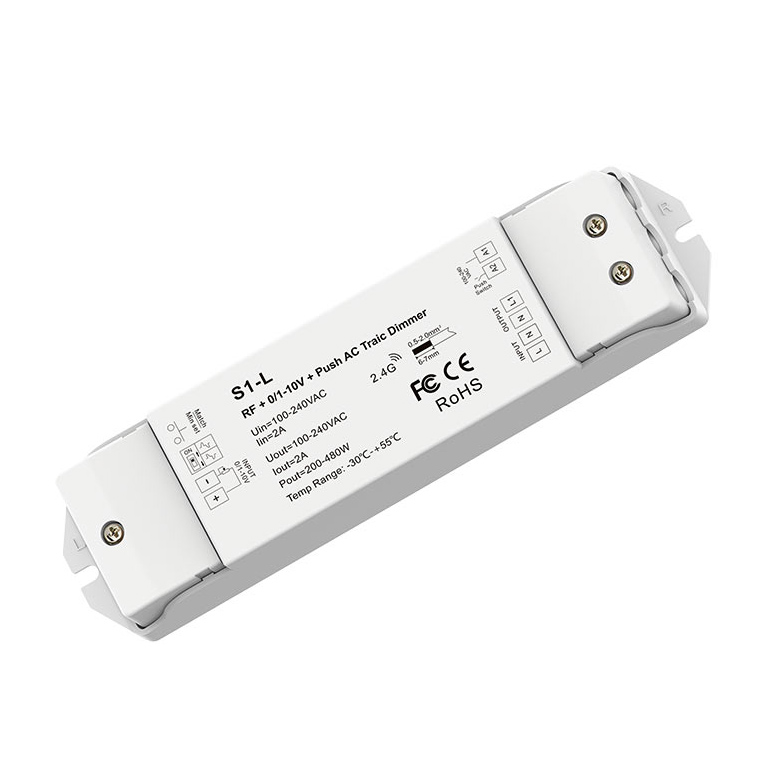

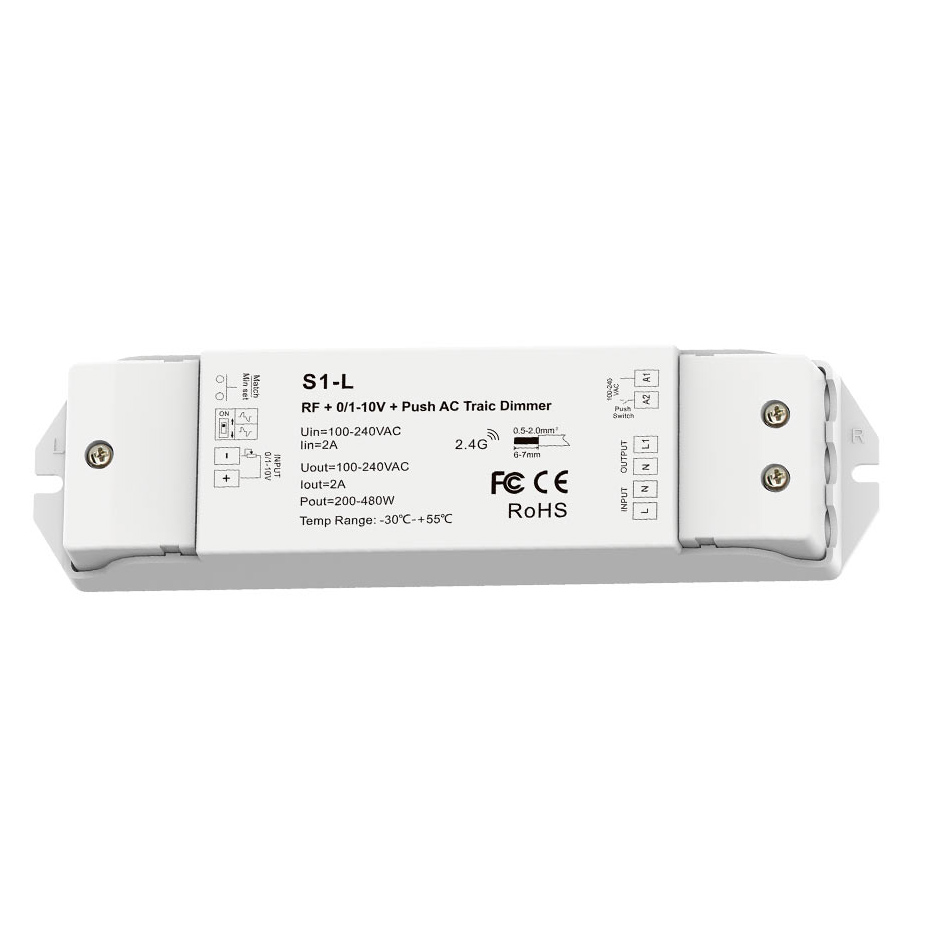

1CH*2A RF+0/1-10V Push AC Phase-cut Dimmer S1-L
RF+0-10V PUSH AC phase-cut dimmer,1 channel output.
To dim and switch single color dimmable LED lamps , traditional incandescent and halogen lights.
Compatibility with RF 2.4G -single zone or multipe zone dimming remote control
Compatibility with active or passive 0-10V,1-10V dimmer
Connect with external push switch to achieve on/off and 0-100% dimming function.
256 levels 0-100% dimming smoothly without any flash.
Leading edge dimming or trailing edge dimming set by dip switch.
Min brightness can be set by key.
Over-heat/Over-load protection, recover automatically.

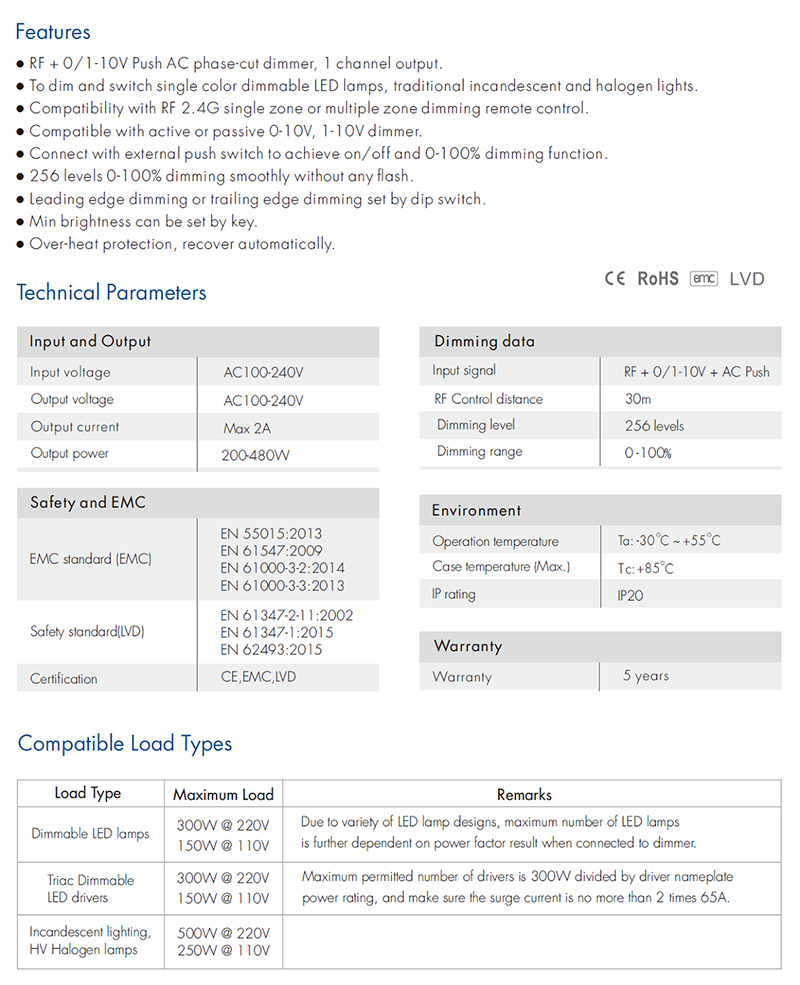

Input and Output
Output current:MAX 2A
Input signal:RF+0-10V AC PUSH
Dimming gray scale:256 levels
Safety and EMC
EMC Standard (EMC): EN55015,EN61547,EN61000
Safety Standard(LVD): EN61347, EN62493
